Mass Air Swap

From 1989 Ford Bronco “Street Truck” — documented by Tim Crase.

43 photos
← Back to this vehicle

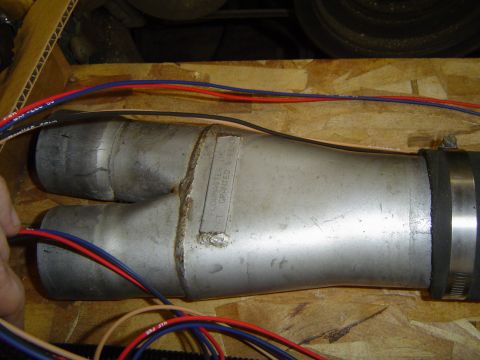

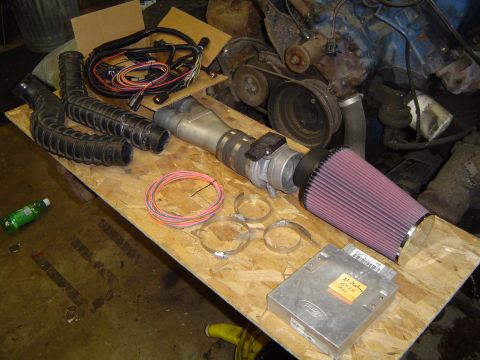

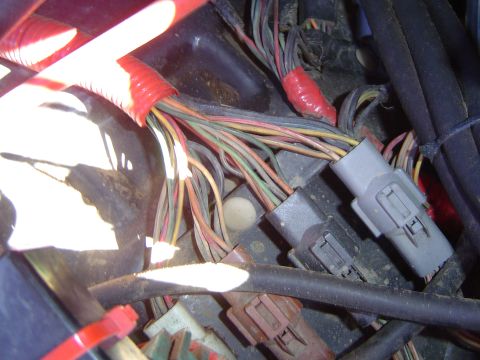

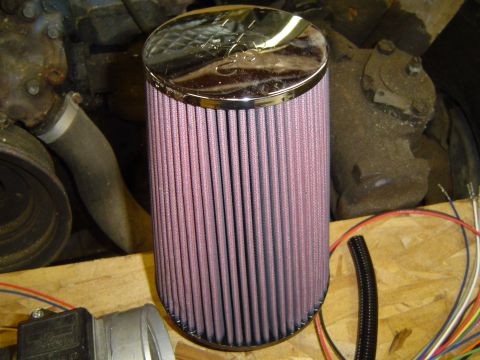

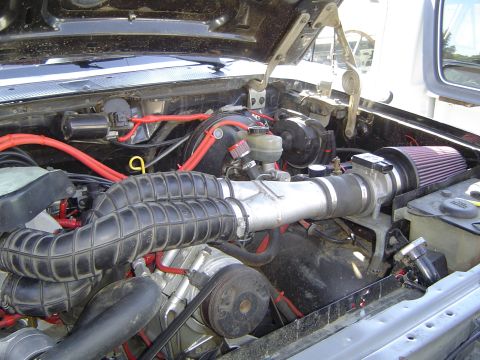

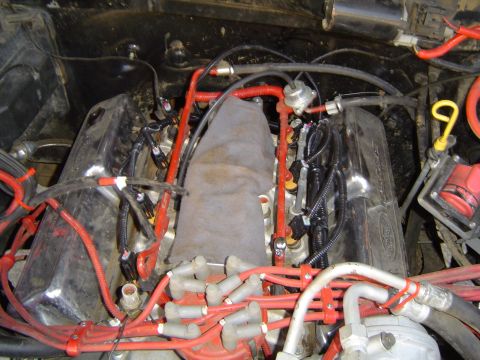

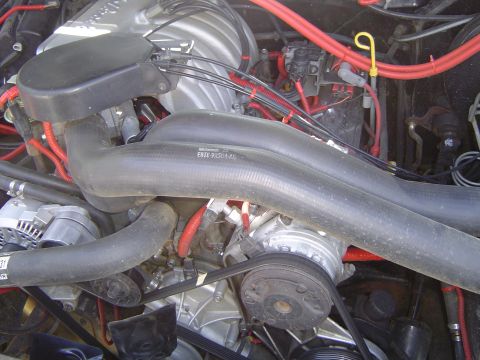

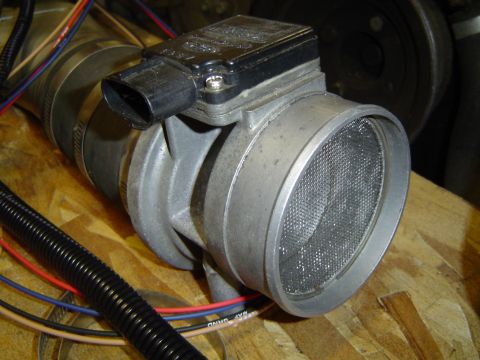

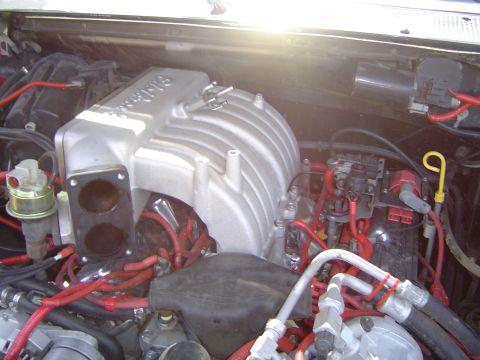

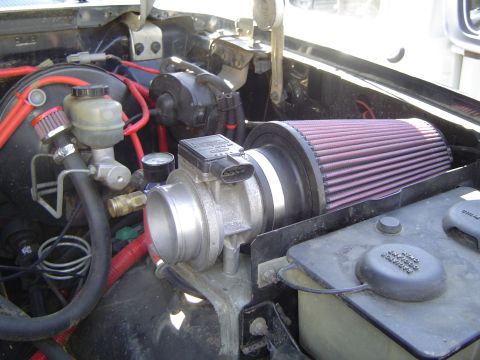

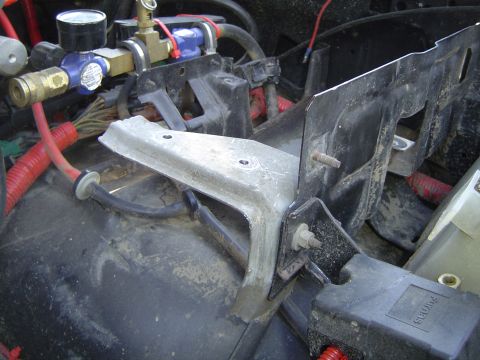

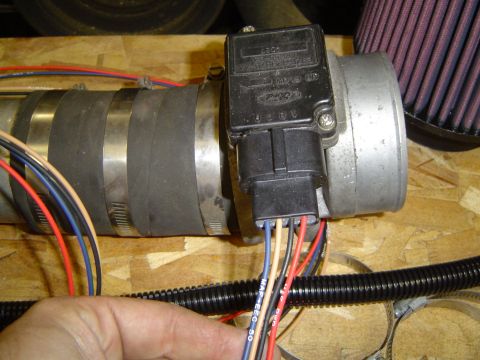

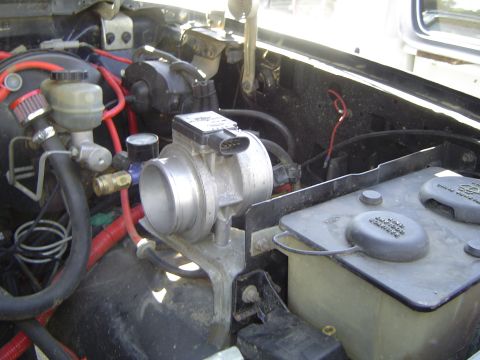

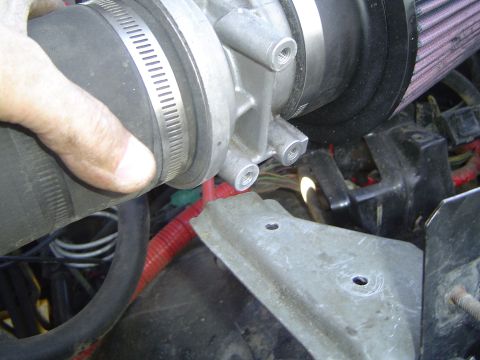

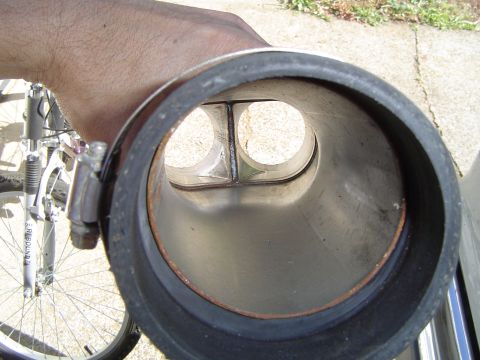

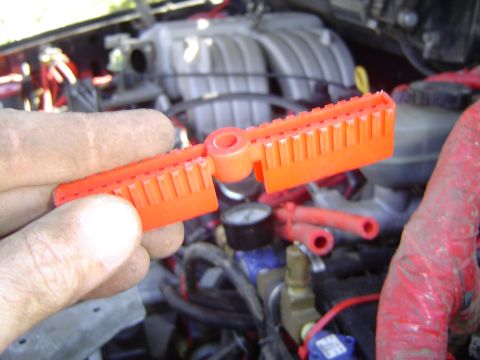

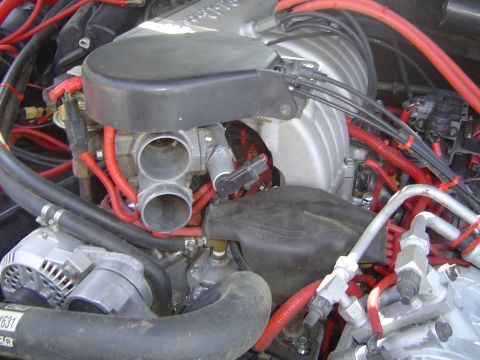

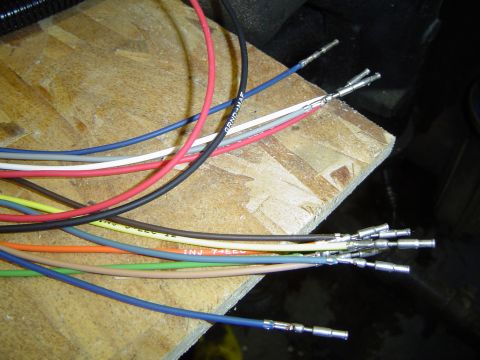

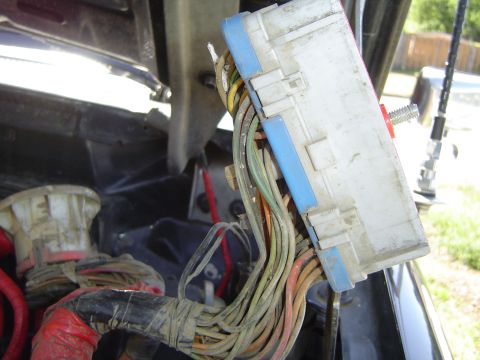

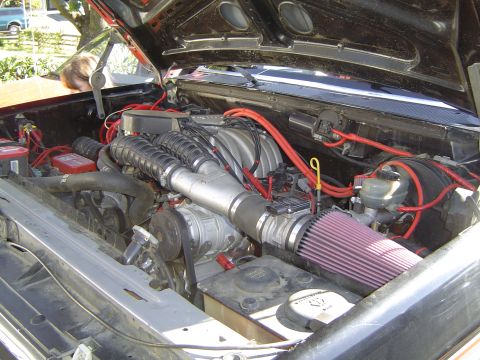

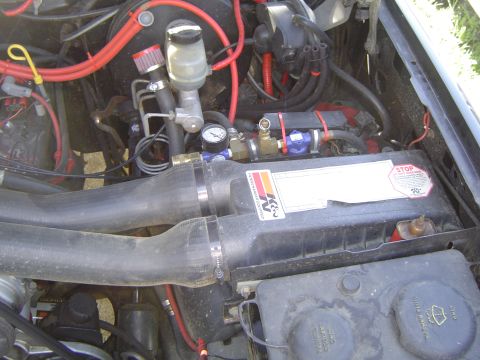

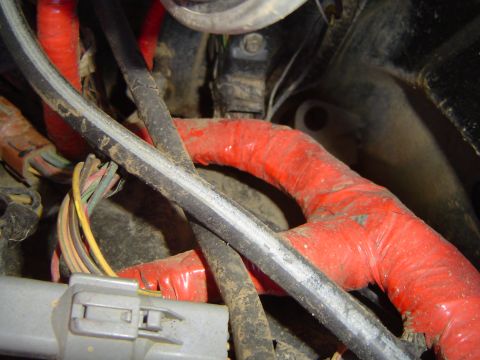

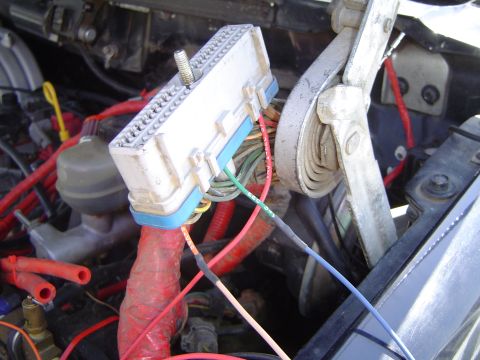

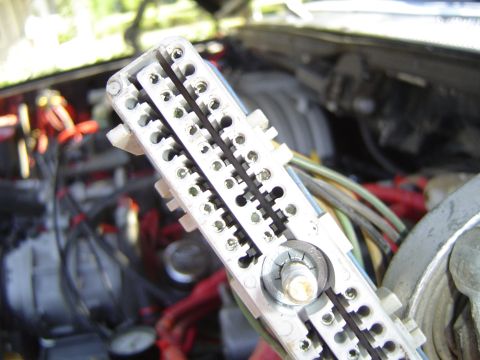

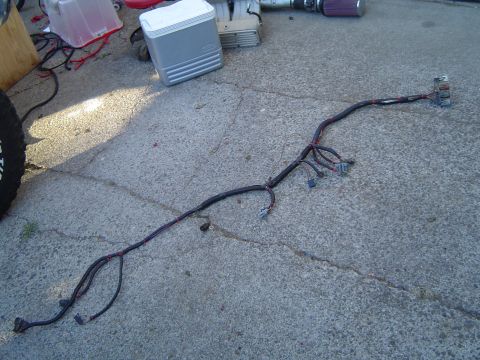

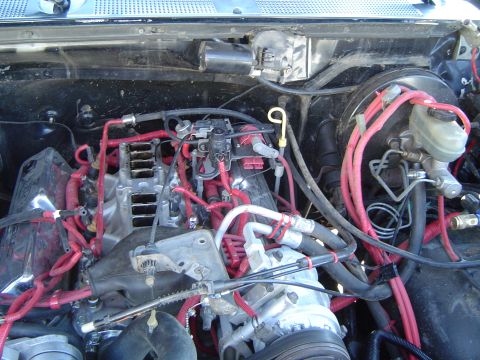

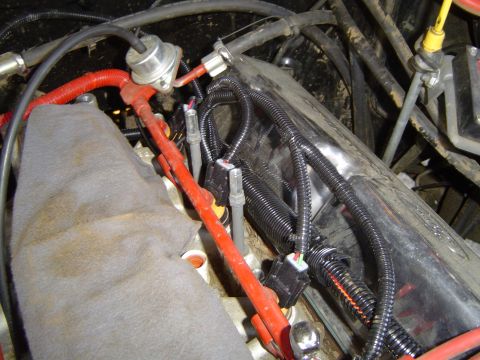

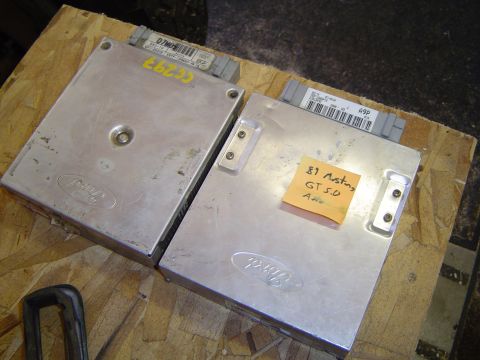

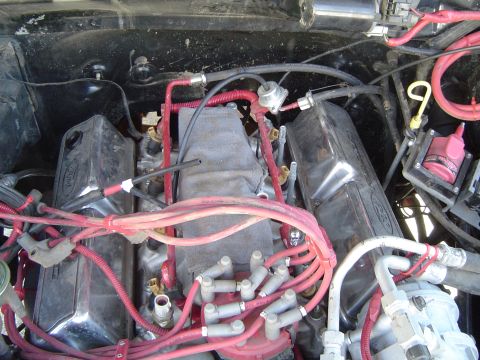

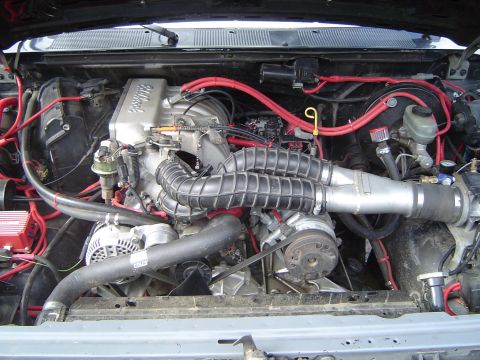

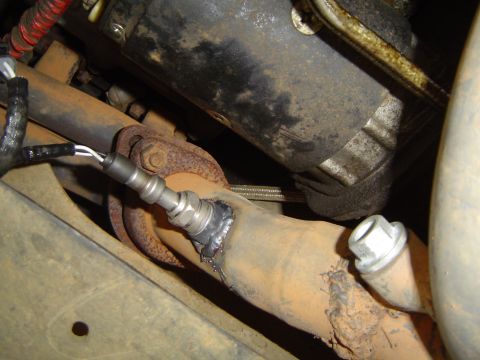

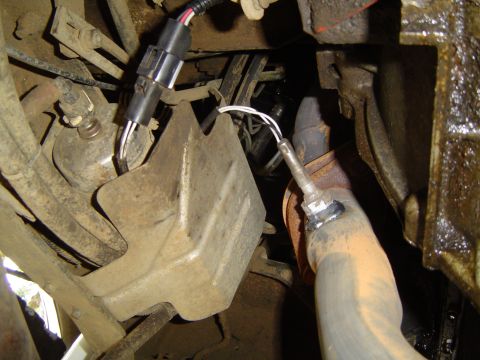

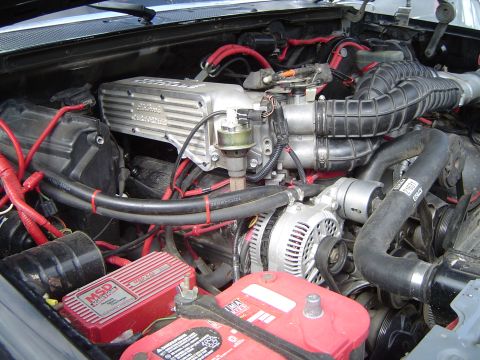

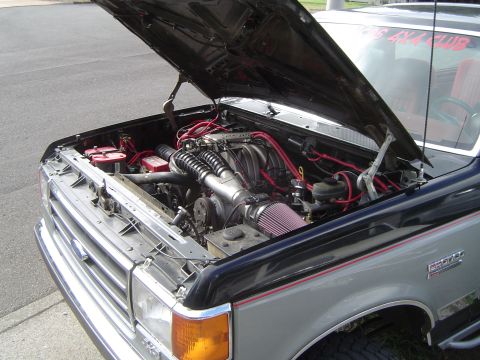

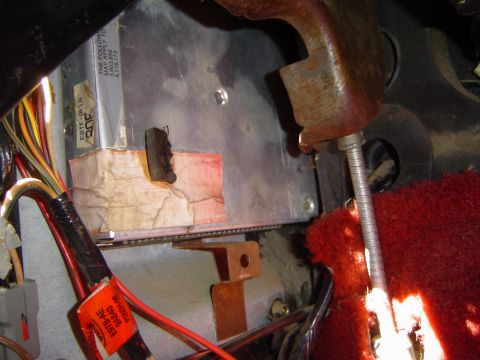

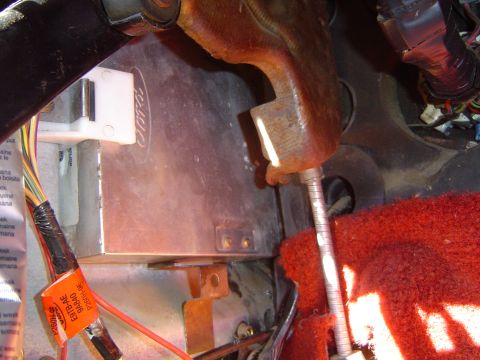

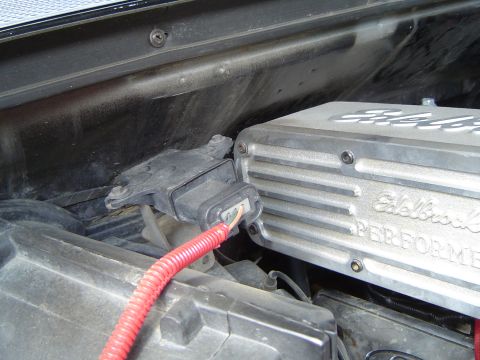

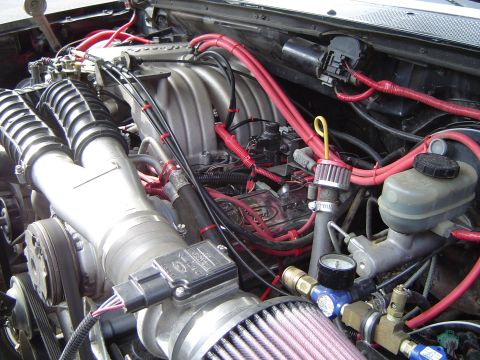

1989 Ford Bronco - Fordfuelinjection.com wiring harness, Computer, MAF and "Y" from a guy in new york. 1989 Ford Bronco - Ends on wires in the Main harness 1989 Ford Bronco - MAF Sensor 1989 Ford Bronco - K&N cone filter 1989 Ford Bronco - Flowmaster "Y" to be used to connect 2 intake tubes to the MAF 1989 Ford Bronco - MAF plug fits Great! 1989 Ford Bronco - Factory engine harness plugs 1989 Ford Bronco - Big bundle going to the computer 1989 Ford Bronco - Stock airbox with K&N drop in filter will be going away 1989 Ford Bronco - Smooth tubes will ge going as well 1989 Ford Bronco - Trial fit of new setup 1989 Ford Bronco - Made this bracket out of some funky bracket 1989 Ford Bronco - Uses 2 of the 3 bolts...It'll be fine 1989 Ford Bronco - Inside the flowmaster "Y" 1989 Ford Bronco - Sensor bolted to my bracket 1989 Ford Bronco - with the filter 1989 Ford Bronco - With the tubes 1989 Ford Bronco - Ok, ready for wiring 1989 Ford Bronco - Tore into the truck today...Started with the throttle body 1989 Ford Bronco - Unplugged the Computer and the body harness so I could work on it without leaning over the fender 1989 Ford Bronco - You pop out this red thing, holds the wire clips in place 1989 Ford Bronco - Red thingie out 1989 Ford Bronco - plug without the thingie 1989 Ford Bronco - Plugging wires into the harness 1989 Ford Bronco - Soldering the red wires together 1989 Ford Bronco - 89 351 van computer in the drivers side kickpanel 1989 Ford Bronco - 351 on the left, Mustang GT A9P on the right 1989 Ford Bronco - Mustang computer in place 1989 Ford Bronco - Upper manifold removed 1989 Ford Bronco - Original wiring harness pulled off the engine 1989 Ford Bronco - Wiring out of the way 1989 Ford Bronco - Harness redone with all the injector wiring removed 1989 Ford Bronco - Misc trash that came off 1989 Ford Bronco - new injector harness installed 1989 Ford Bronco - New injector plugs 1989 Ford Bronco - drivers side I must have got busy...no more pics. I will get some tomorow of it all done. 1989 Ford Bronco - Map sensor needed the vacuum line removed to work right with the mass air 1989 Ford Bronco - New drivers side O2 sensor 1989 Ford Bronco - Passenger side O2 moved up the pipe, and the old location plugged 1989 Ford Bronco - Back together, and runnin mass air 1989 Ford Bronco - Close-up of an engine bay showing modifications to the air intake and fuel system. 1989 Ford Bronco - The engine bay of a Ford Bronco, a modified engine with custom wiring and air intake. 1989 Ford Bronco - The engine bay of a vehicle is shown with various components and wiring.
