1136 hits | 75.28 KB | Posted: 4/30/07

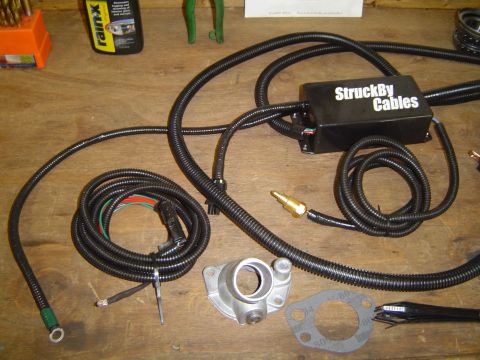

Very complete kit from StruckBy Cables
1092 hits | 77.79 KB | Posted: 4/30/07

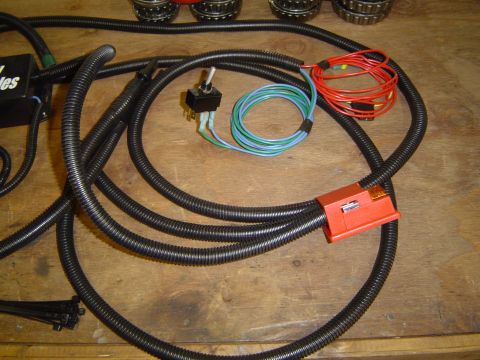

The other half
1029 hits | 65.31 KB | Posted: 4/30/07

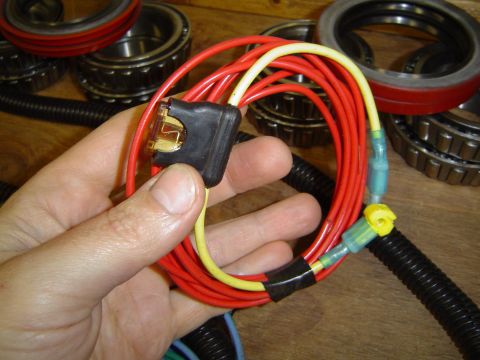

This hooks to switched power
893 hits | 65.68 KB | Posted: 4/30/07

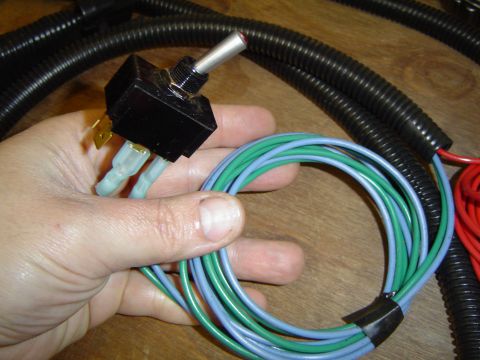

3 way switch for normal AUTO operation, Manual OFF, and manual ON
884 hits | 66.74 KB | Posted: 4/30/07

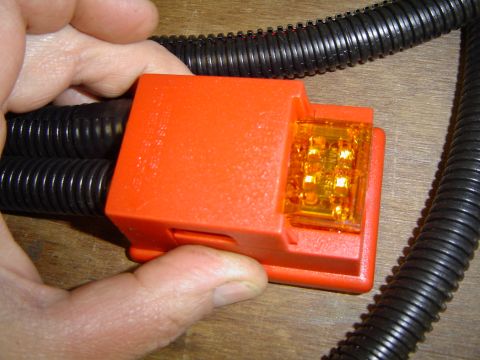

Fuse block
891 hits | 66.1 KB | Posted: 4/30/07

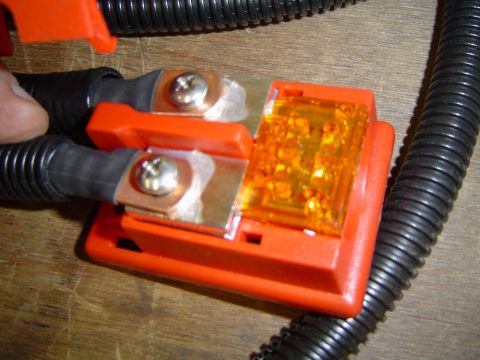

Nice large 40 amp fuse
860 hits | 53.61 KB | Posted: 4/30/07

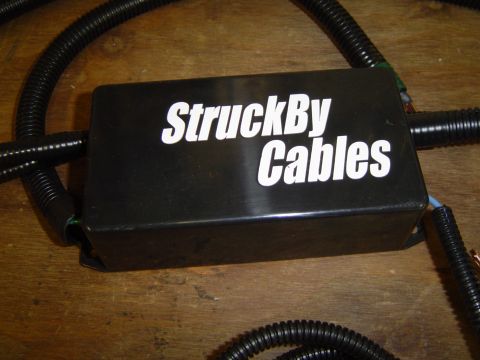

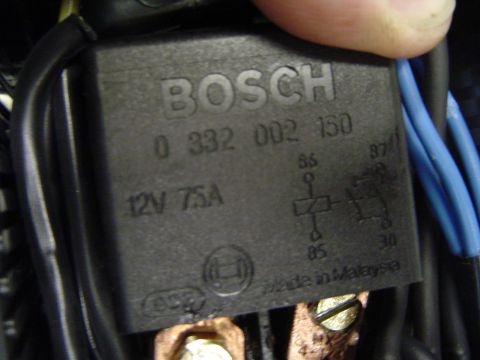

Everything else hidden in this box
931 hits | 68.6 KB | Posted: 4/30/07

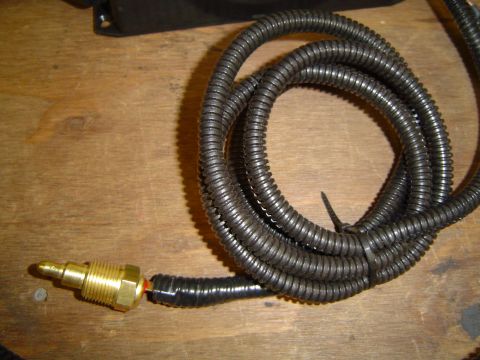

Temp sensor
838 hits | 77.6 KB | Posted: 4/30/07

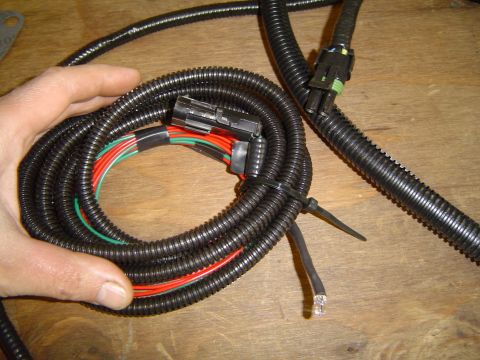

Idiot light...will blink when switch is in OFF position ro remind me to turn it back on
859 hits | 58.92 KB | Posted: 4/30/07

858 hits | 65.86 KB | Posted: 4/30/07

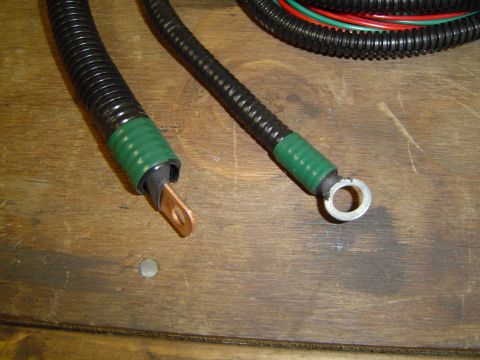

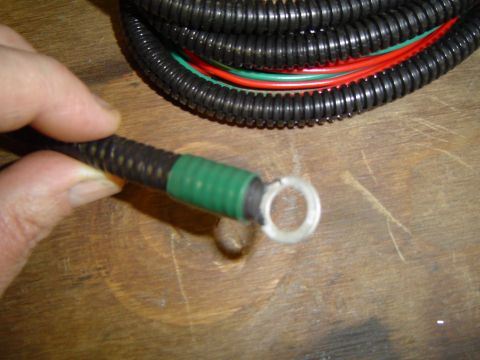

The 2 Grounds for this system
892 hits | 63.1 KB | Posted: 4/30/07

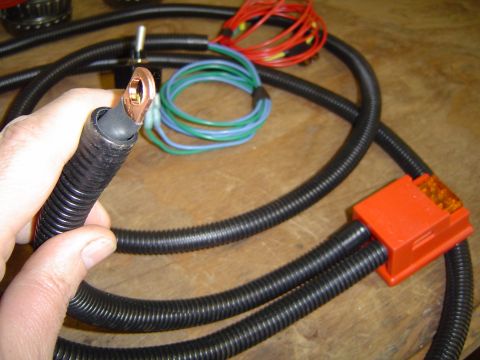

Main power lead
777 hits | 50.76 KB | Posted: 4/30/07

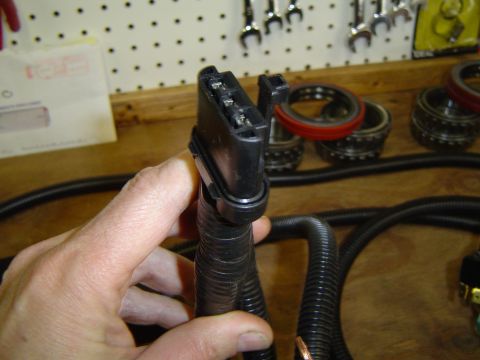

Plug for the fan
844 hits | 60.7 KB | Posted: 4/30/07

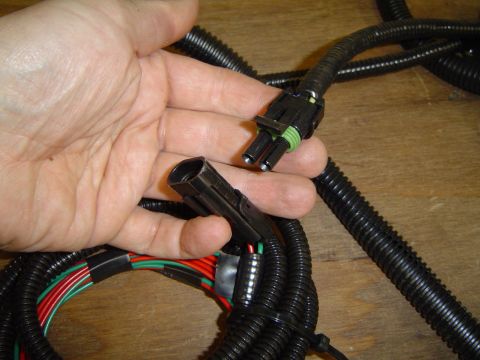

Plug for LED idiot light
801 hits | 60.97 KB | Posted: 4/30/07

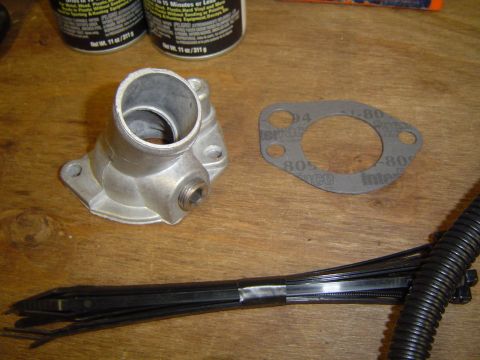

Even came with thermostat housing, gasket and zip ties
1148 hits | 77.78 KB | Posted: 4/30/07

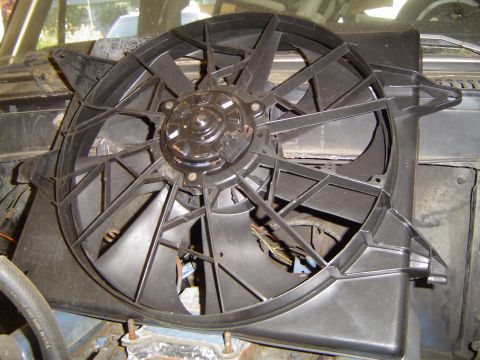

Here is my Lincoln mark 8 fan
921 hits | 73.75 KB | Posted: 4/30/07

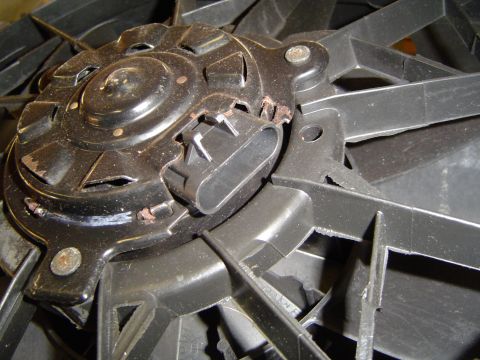

Plug where the harness hooks up
1056 hits | 66.27 KB | Posted: 5/1/07

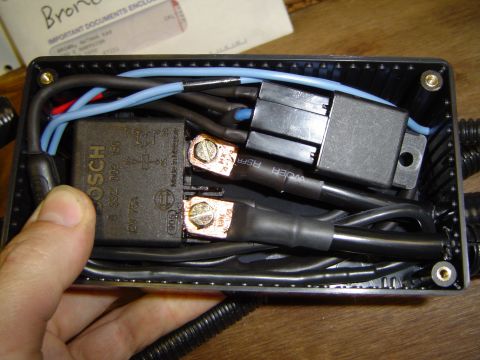

Had to open the box
989 hits | 47.42 KB | Posted: 5/1/07

880 hits | 70.08 KB | Posted: 5/1/07

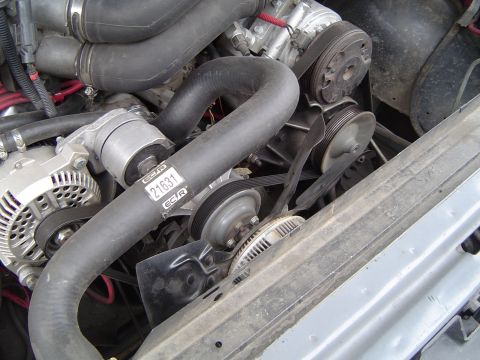

Stock clutch fan
957 hits | 61.53 KB | Posted: 5/1/07

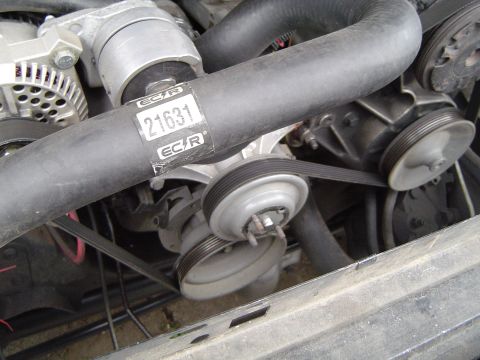

Gone. And I pulled a stud so I can replace them with bolts
1109 hits | 79.93 KB | Posted: 5/1/07

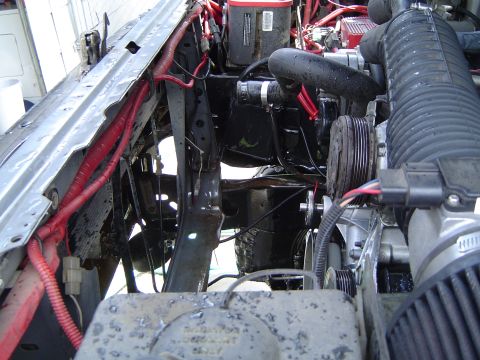

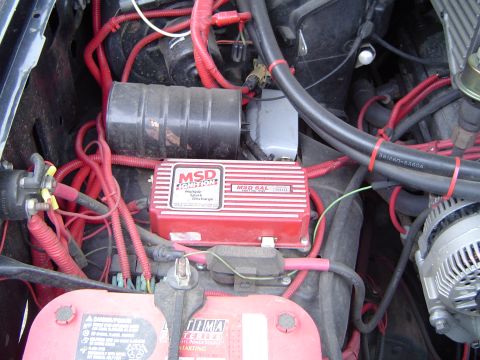

Gotta find room over here for the control box
841 hits | 64.46 KB | Posted: 5/1/07

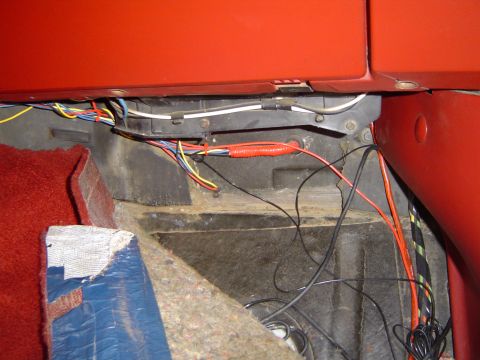

I will come thru the firewall here
893 hits | 70.69 KB | Posted: 5/1/07

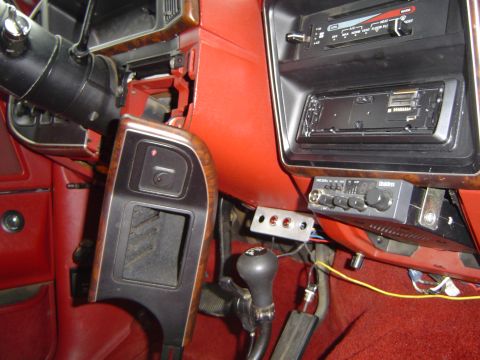

Going to get rid of the little switch bracket thingy under the dash, making a new plate to cover up ...
1006 hits | 71.32 KB | Posted: 5/1/07

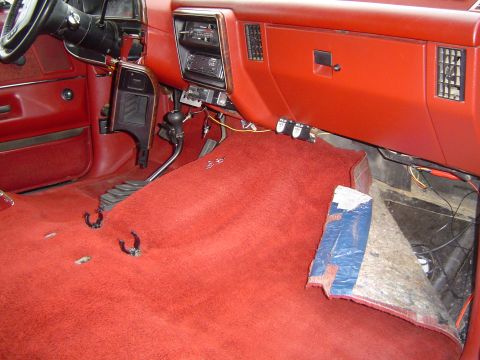

Leaving the seats/console out while I do this so I have room
900 hits | 49.67 KB | Posted: 5/3/07

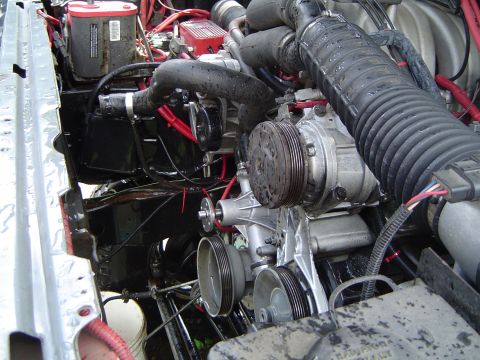

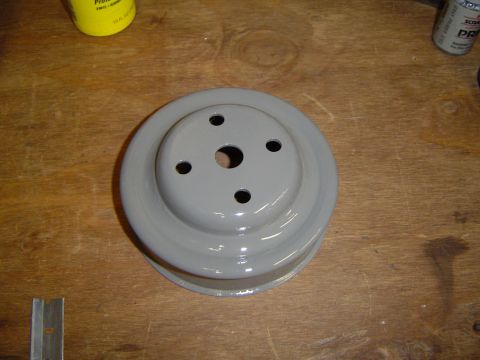

Cleaned up the pulley since the fan wont be on it anymore
813 hits | 83.39 KB | Posted: 5/3/07

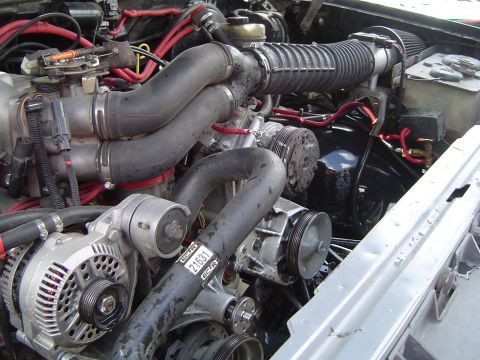

Cleaning up with the radiator out
852 hits | 83.23 KB | Posted: 5/3/07

822 hits | 80.53 KB | Posted: 5/3/07

804 hits | 84.34 KB | Posted: 5/3/07

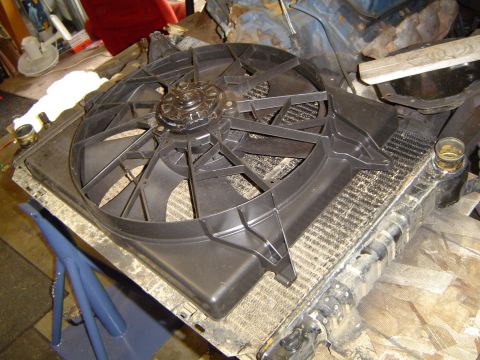

Seeing how the fan looks on the radiator
841 hits | 60.43 KB | Posted: 5/3/07

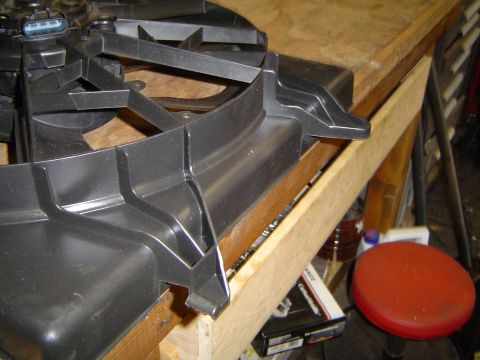

These mounts gotta go
837 hits | 58.3 KB | Posted: 5/3/07

800 hits | 64.53 KB | Posted: 5/3/07

856 hits | 64.94 KB | Posted: 5/3/07

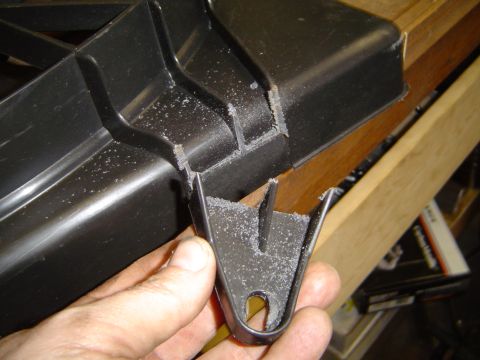

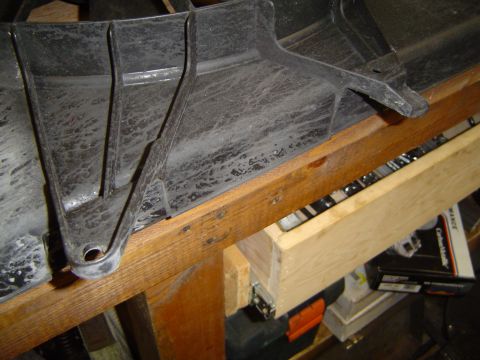

And these
810 hits | 69.38 KB | Posted: 5/3/07

944 hits | 68 KB | Posted: 5/3/07

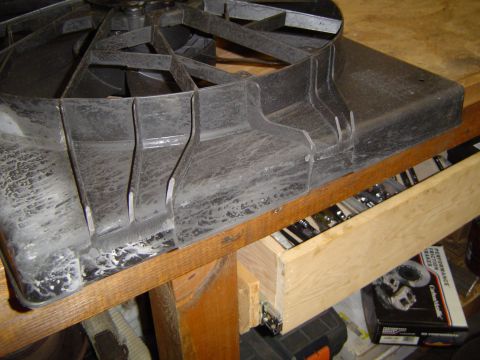

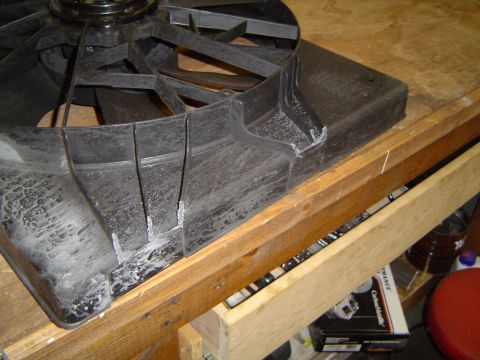

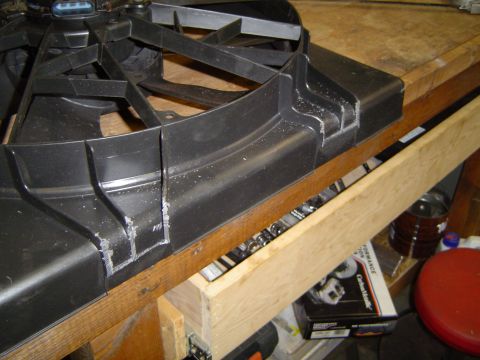

Ground down to clean up the cuts
832 hits | 81.54 KB | Posted: 5/3/07

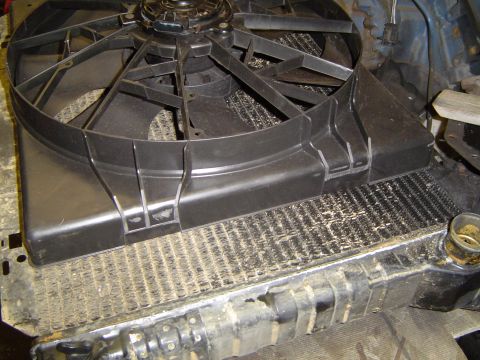

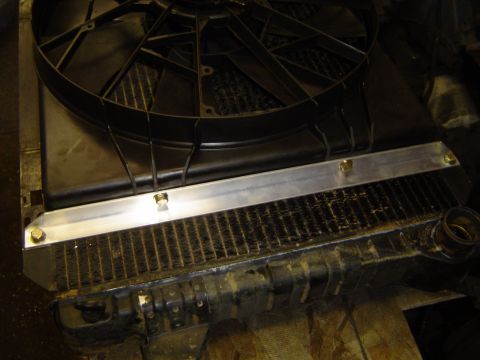

Back on the radiator
879 hits | 69.12 KB | Posted: 5/3/07

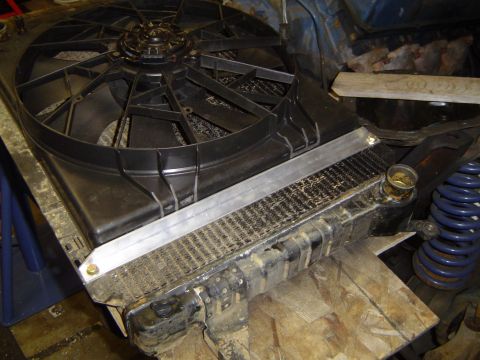

First mounting strip
913 hits | 70.37 KB | Posted: 5/3/07

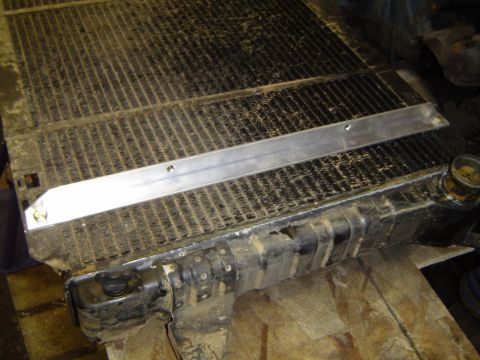

Holes for the fan
949 hits | 53.58 KB | Posted: 5/3/07

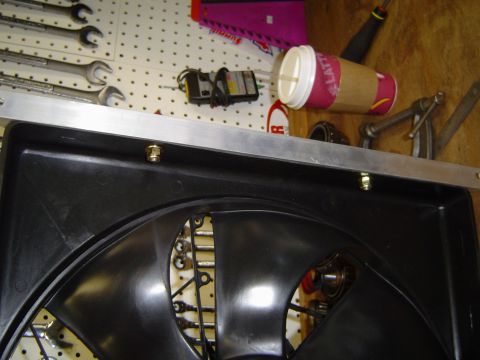

Secured with locknuts
919 hits | 51.06 KB | Posted: 5/3/07

Back on the radiator
944 hits | 60.16 KB | Posted: 5/3/07

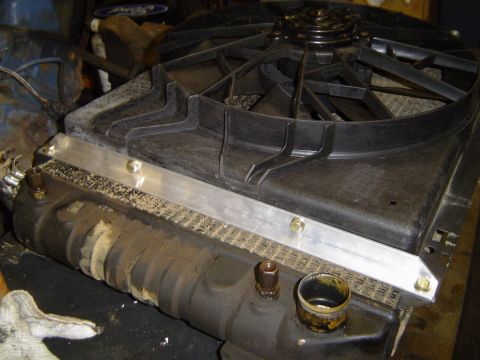

Other side
1090 hits | 84.13 KB | Posted: 5/3/07

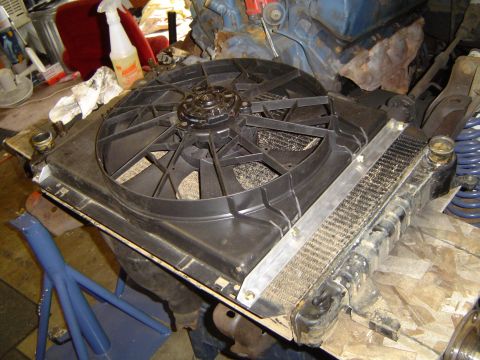

Looks solid
1051 hits | 75.65 KB | Posted: 5/3/07

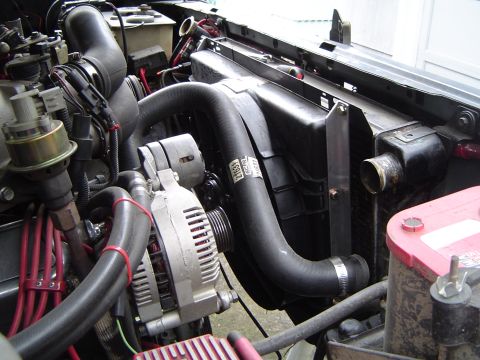

In the truck
934 hits | 71.2 KB | Posted: 5/3/07

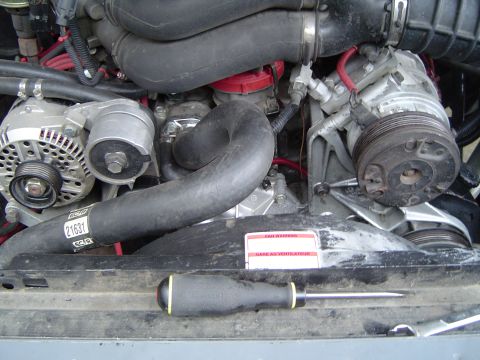

Top veiw
1099 hits | 78.82 KB | Posted: 5/3/07

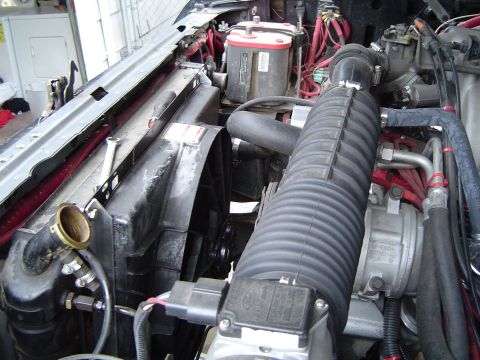

Drivers side
958 hits | 47.88 KB | Posted: 5/3/07

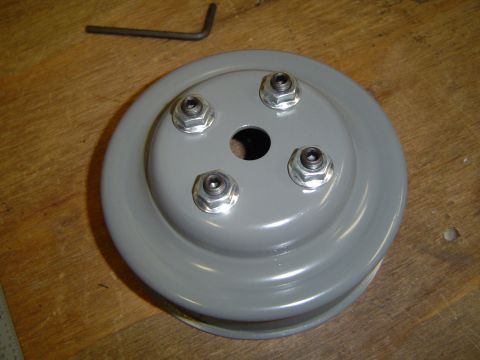

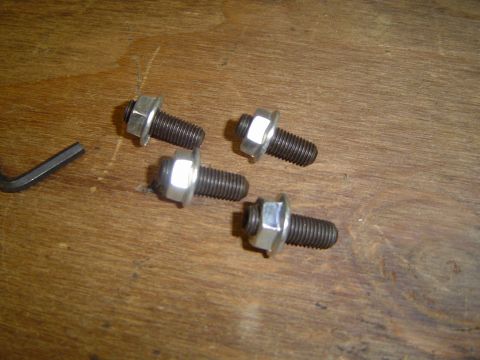

I will use these studs and nuts to hold on the pulley
844 hits | 59.19 KB | Posted: 5/3/07

Electric fan 072.jpg
850 hits | 66.41 KB | Posted: 5/7/07

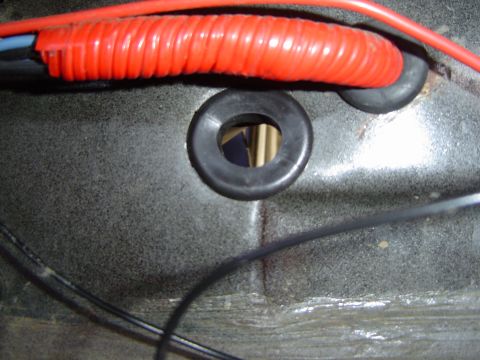

Hole in the firewall
Electric fan 073.jpg
799 hits | 72.65 KB | Posted: 5/7/07

Electric fan 074.jpg
875 hits | 85.18 KB | Posted: 5/7/07

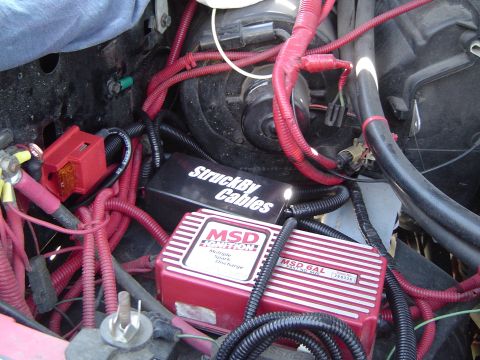

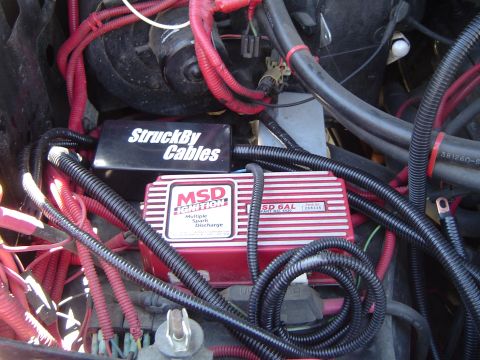

Box mounted
Electric fan 075.jpg
839 hits | 83.82 KB | Posted: 5/7/07

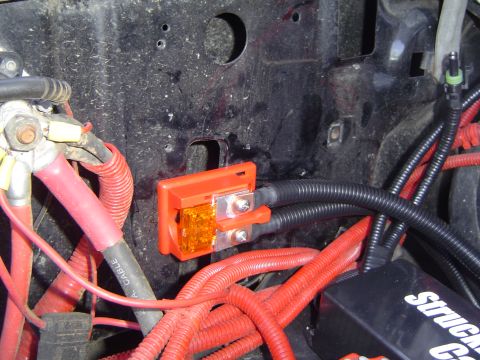

Fuse block mounted
Electric fan 076.jpg
1104 hits | 86.29 KB | Posted: 5/7/07

Electric fan 077.jpg
801 hits | 69.72 KB | Posted: 5/7/07

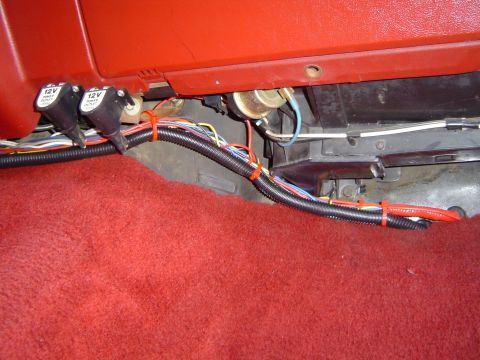

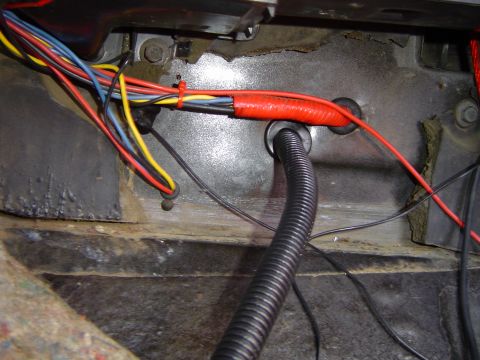

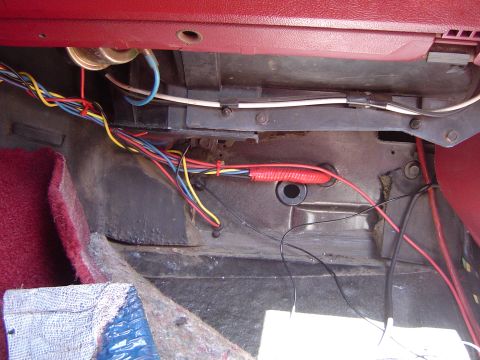

Wires ran inside for switch and idiot light
Electric fan 078.jpg
879 hits | 71.52 KB | Posted: 5/7/07

Electric fan 079.jpg
825 hits | 49.96 KB | Posted: 5/7/07

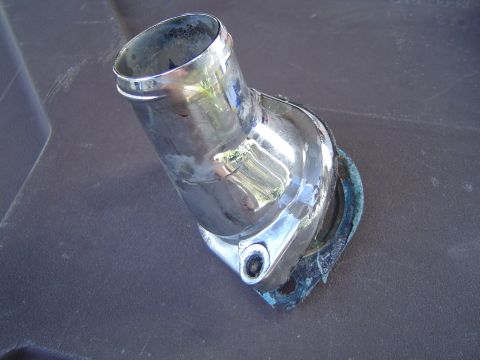

Had to take off my shiny waterneck
Electric fan 080.jpg
874 hits | 55.69 KB | Posted: 5/7/07

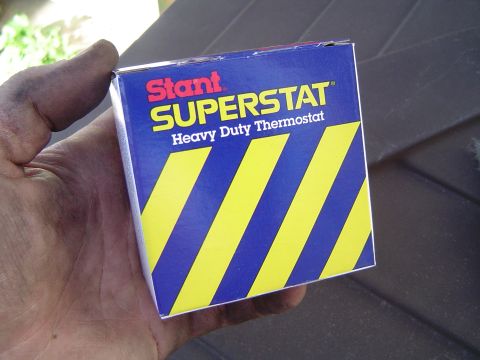

SUPERSTAT
Electric fan 081.jpg
950 hits | 63.62 KB | Posted: 5/7/07

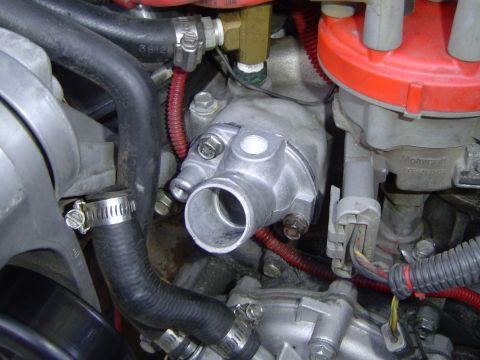

New waterneck with sensor port
Electric fan 083.jpg
883 hits | 62.01 KB | Posted: 5/7/07

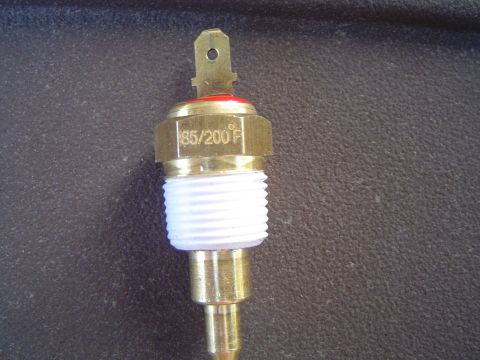

185/200 sensor
Electric fan 084.jpg
1047 hits | 68.18 KB | Posted: 5/7/07

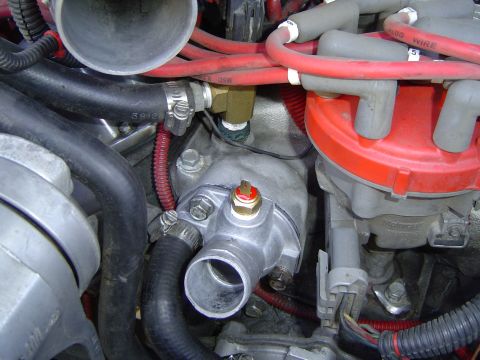

Installed
Electric fan 085.jpg
837 hits | 59.54 KB | Posted: 5/7/07

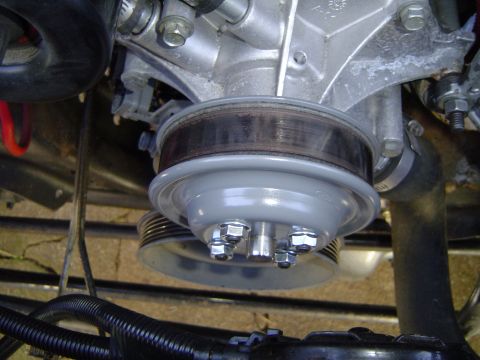

Pulley reinstalled with stud/nuts
Electric fan 086.jpg
939 hits | 65.82 KB | Posted: 5/7/07

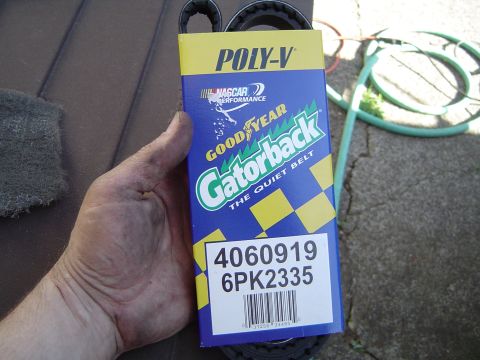

Gatorback poly belt
Electric fan 087.jpg
878 hits | 84.13 KB | Posted: 5/7/07

Electric fan 088.jpg
872 hits | 81.26 KB | Posted: 5/7/07

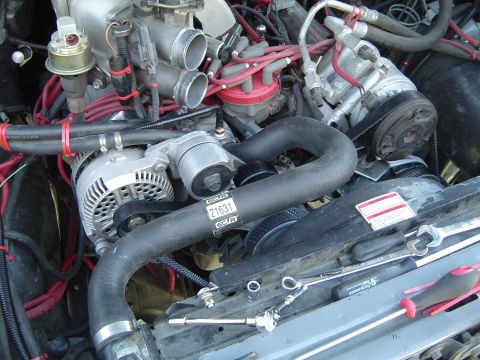

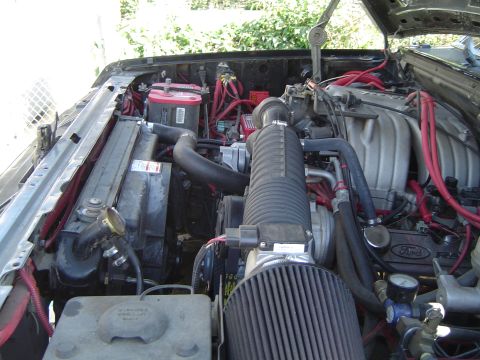

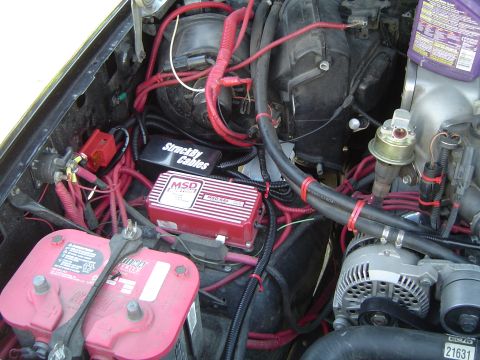

Almost done
Electric fan 089.jpg
1552 hits | 77.01 KB | Posted: 5/7/07

Electric fan 090.jpg
1288 hits | 76.71 KB | Posted: 5/7/07

Electric fan 091.jpg
1179 hits | 84.63 KB | Posted: 5/7/07

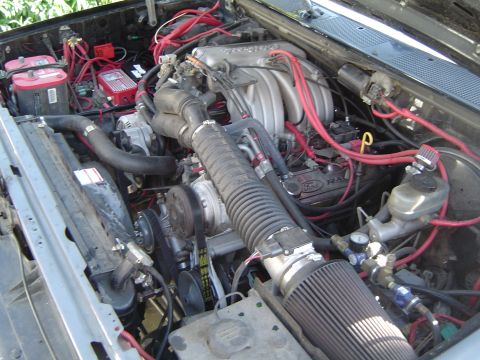

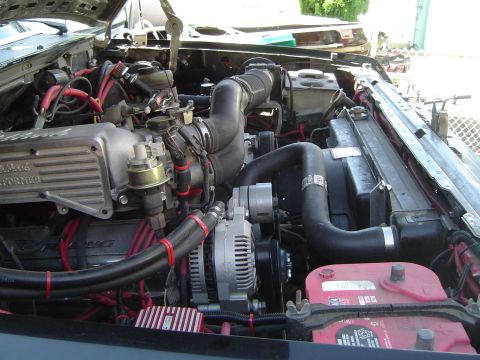

Done
Electric fan 093.mpg
1133 hits | 5.49 MB | Posted: 5/7/07

Fan sounds
Electric fan 097.mpg
1127 hits | 5.49 MB | Posted: 5/7/07

Turning on while running
1008 hits | 49.13 KB | Posted: 5/11/07

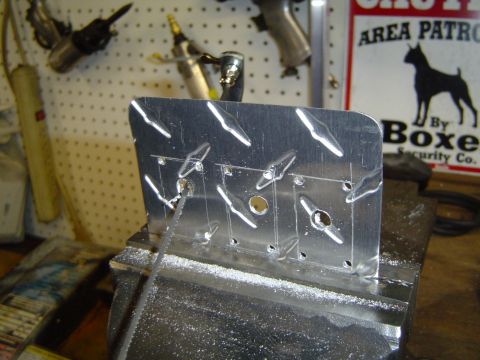

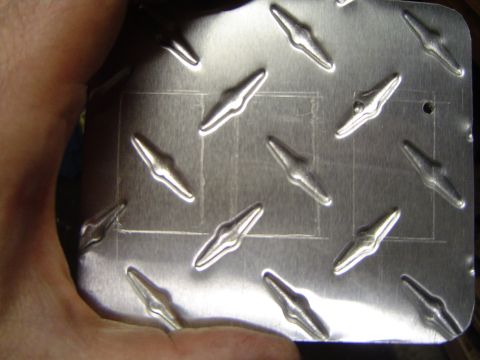

Marked out where the switches go, and drilled holes in the corners
853 hits | 70.86 KB | Posted: 5/11/07

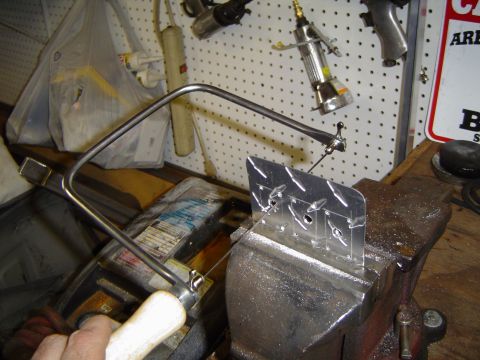

Rough cutting it out with my little jigsaw
999 hits | 65.78 KB | Posted: 5/11/07

919 hits | 65.51 KB | Posted: 5/11/07

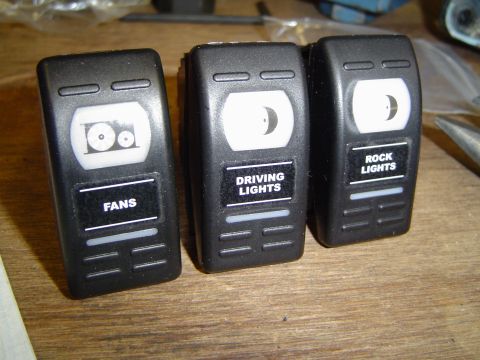

These are the switches going in
905 hits | 60.31 KB | Posted: 5/11/07

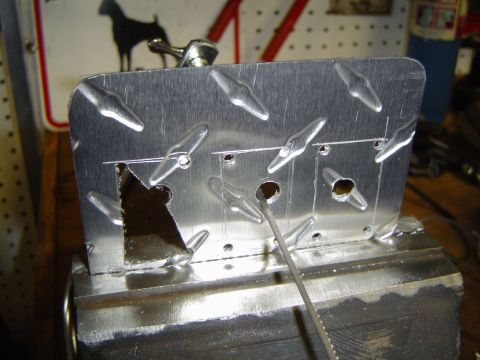

Cut this section out of all 3
1072 hits | 64 KB | Posted: 5/11/07

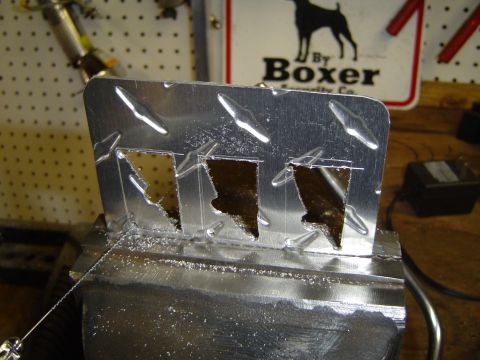

Flipped the plate to cut the other side
1018 hits | 67.23 KB | Posted: 5/11/07

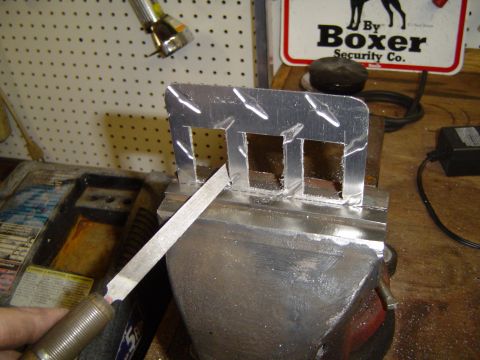

Cleaned up the cuts with a small metal file, and filed them to the correct size
991 hits | 44.1 KB | Posted: 5/11/07

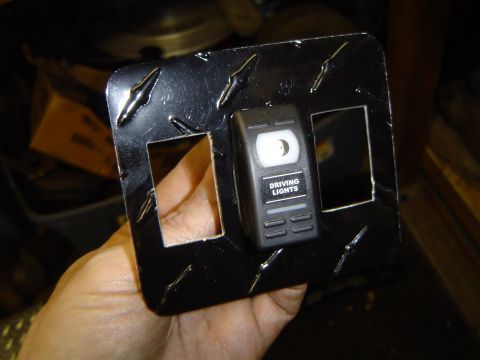

Checking to make sure the switches fit
982 hits | 59.04 KB | Posted: 5/11/07

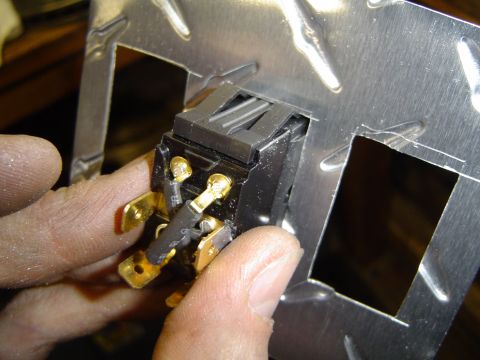

Nice fit, see how the tabs on top and bottom lock it in
1095 hits | 58 KB | Posted: 5/11/07

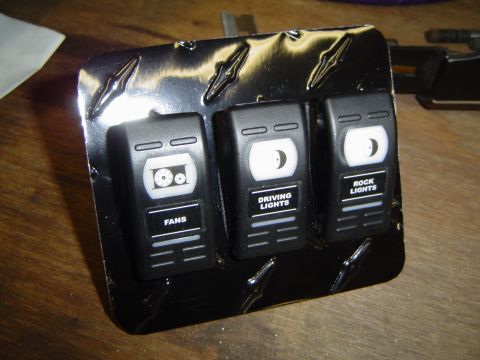

All 3 switches installed
883 hits | 70.11 KB | Posted: 5/11/07

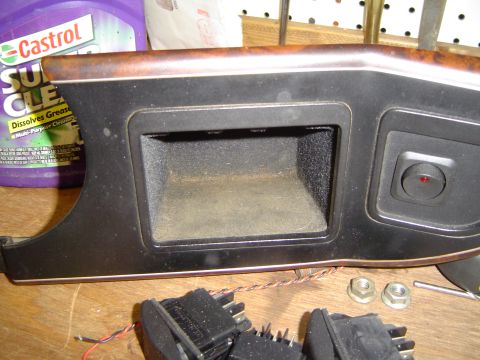

This is where the switches will go, dont need this pocket anyway
870 hits | 62.3 KB | Posted: 5/11/07

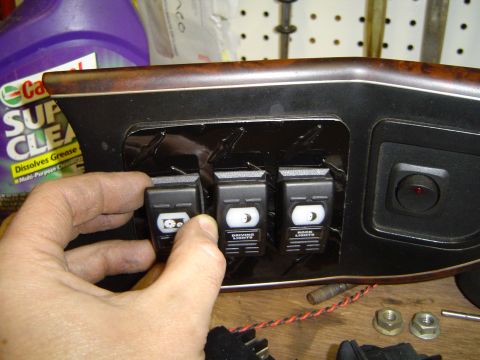

Like this
990 hits | 55.08 KB | Posted: 5/11/07

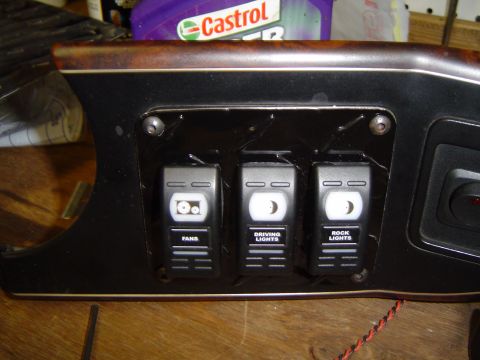

Bolted on
1072 hits | 67.62 KB | Posted: 5/11/07

1099 hits | 65.16 KB | Posted: 5/11/07

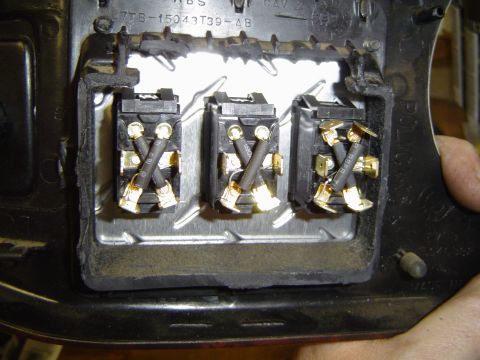

Backside
1132 hits | 48.71 KB | Posted: 5/11/07

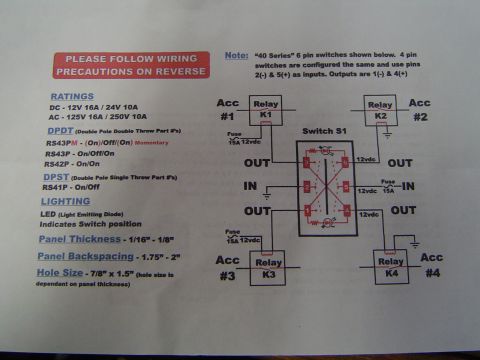

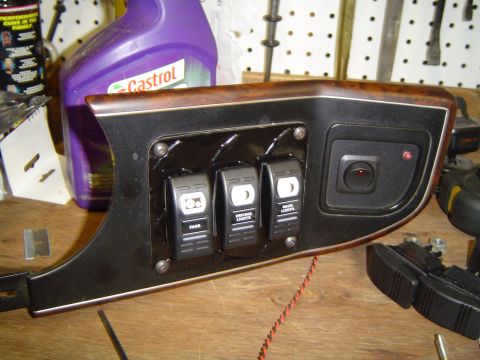

Printout for the switches
1092 hits | 59.35 KB | Posted: 5/15/07

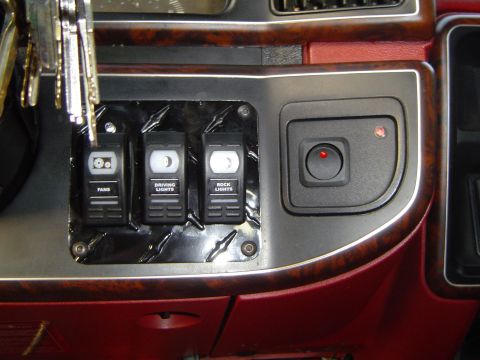

Switch panel installed in the truck
