On board air install 12/8/02

From 1989 Ford Bronco “Street Truck” — documented by Tim Crase.

48 photos
← Back to this vehicle

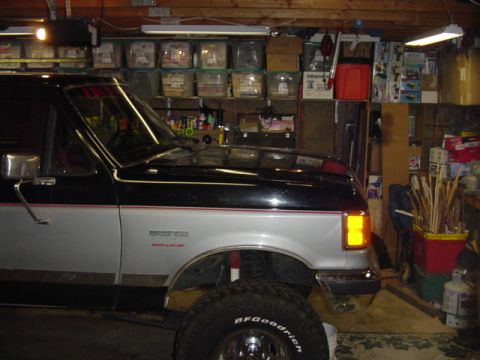

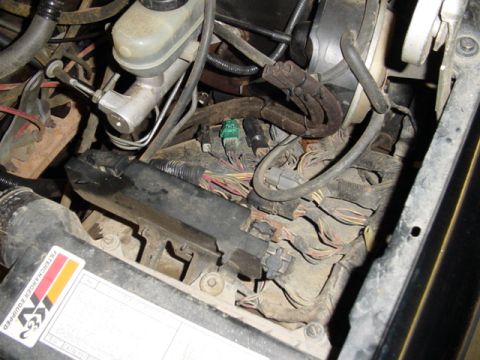

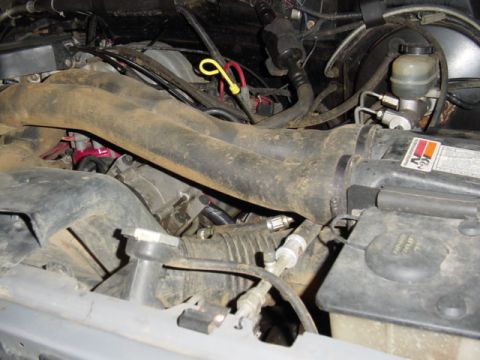

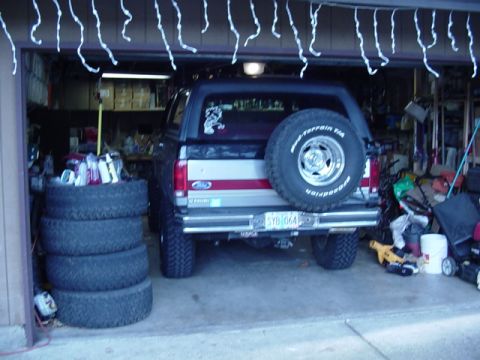

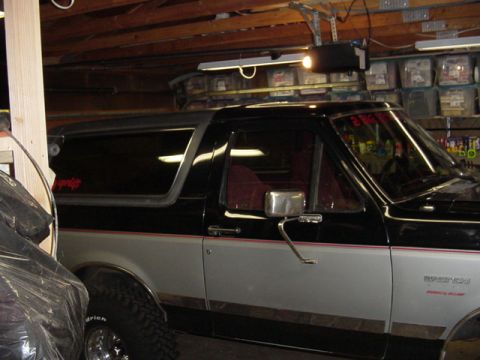

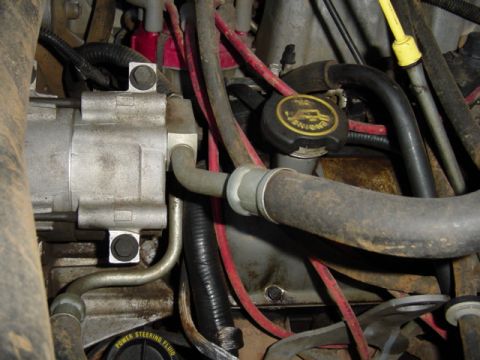

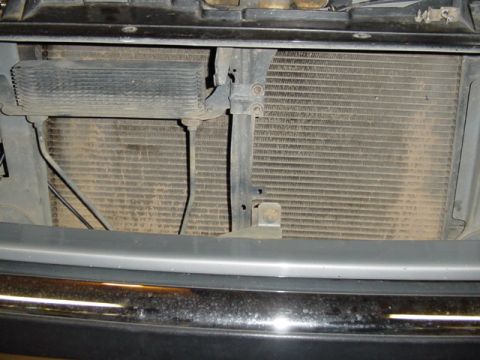

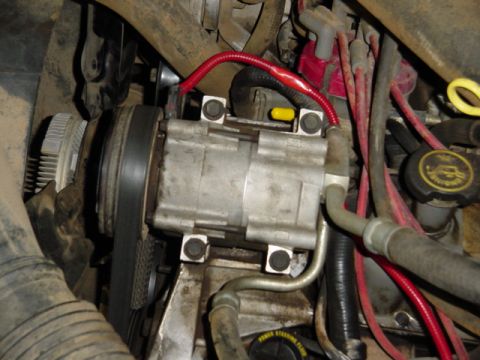

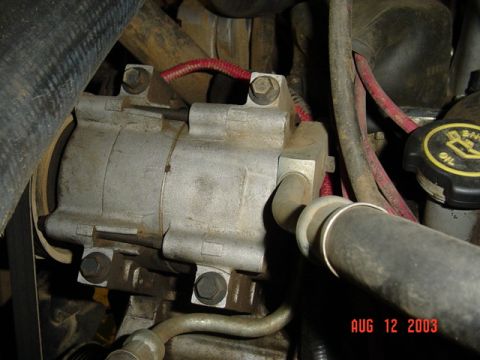

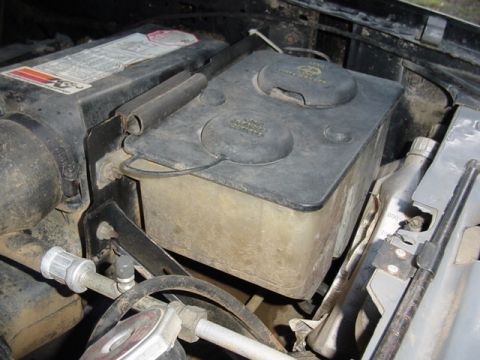

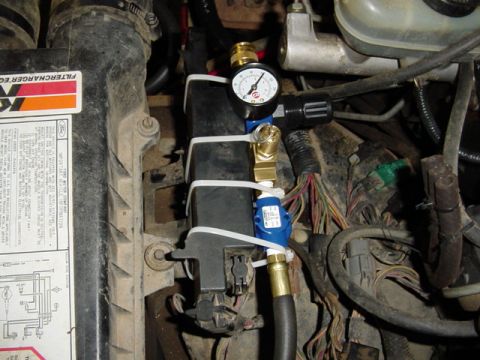

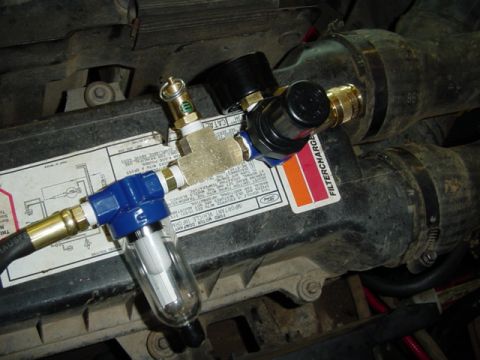

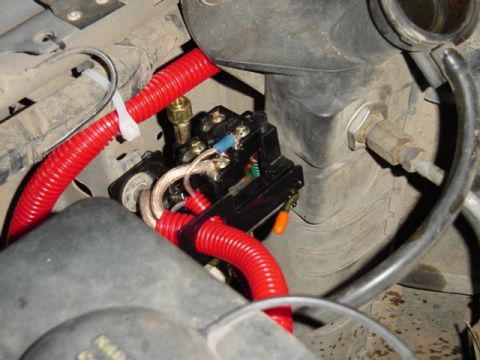

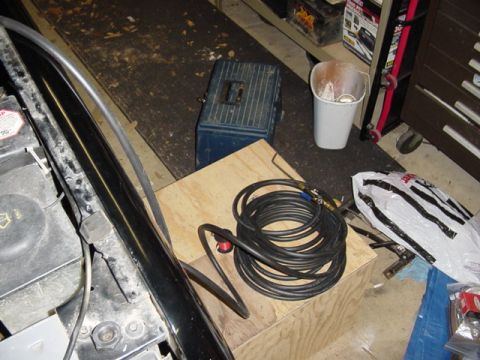

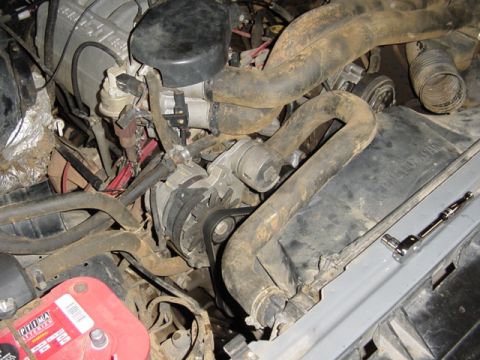

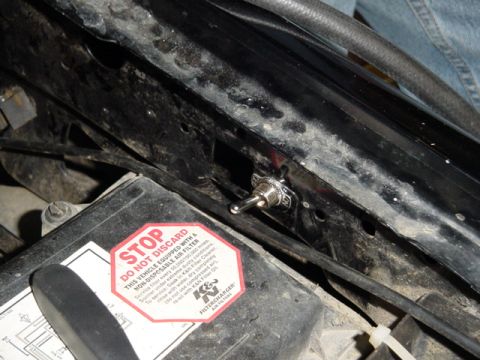

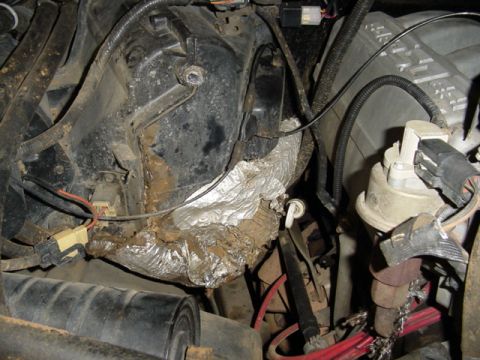

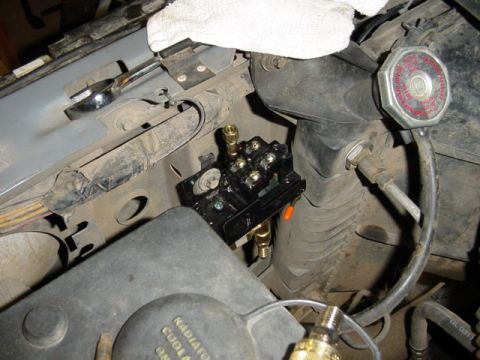

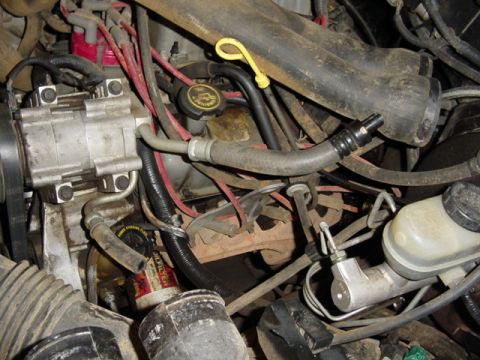

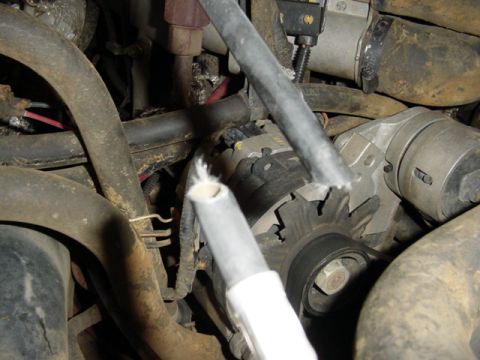

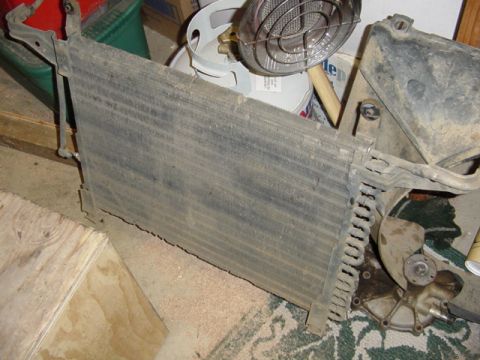

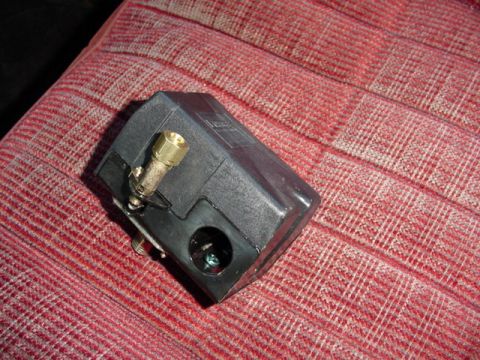

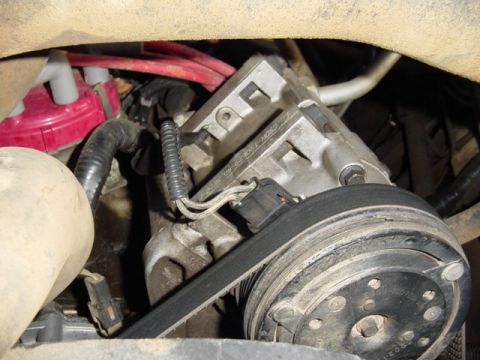

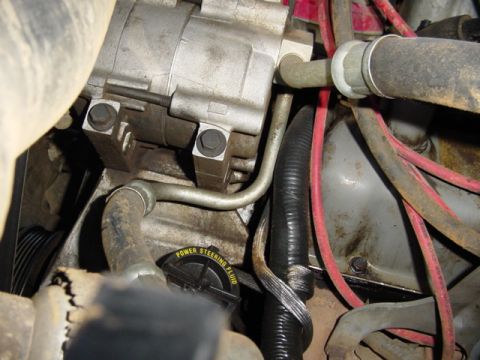

1989 Ford Bronco - I am taking some pics before I start to show what it did look like 1989 Ford Bronco - This is the A/C compressor on an 89 1989 Ford Bronco - Rear veiw of the compressor 1989 Ford Bronco - Better veiw of the lines 1989 Ford Bronco - My first part, a pressure switch, 90-125 psi from Portland Compressor 1989 Ford Bronco - This is my little garage, where I work on my stuff 1989 Ford Bronco - Bronco is kinda a tight fit 1989 Ford Bronco - My messy workbench 1989 Ford Bronco - Rear veiw of the garage. I fit with 3/4" to spare on the top 1989 Ford Bronco - This is the side where all the stuff is going to go 1989 Ford Bronco - The Freon release spot 1989 Ford Bronco - With the big can and hoses gone 1989 Ford Bronco - Wont be needing this anymore 1989 Ford Bronco - Lookit all the mud that was hiding behind the condensor 1989 Ford Bronco - The passenger stuff with all the A/C stuff removed 1989 Ford Bronco - Drivers side with everything removed but the hoses 1989 Ford Bronco - Hmmmm now where to put everything 1989 Ford Bronco - My first try was to put the pressure switch here 1989 Ford Bronco - With this switch until I get my ARB lockers, then I will move to a real nice ARB switch inside 1989 Ford Bronco - So we got it all wired in, And the lid wont fit....Gotta move it 1989 Ford Bronco - New wiring to the pump 1989 Ford Bronco - Frank came over to help 1989 Ford Bronco - So we came up with this spot 1989 Ford Bronco - For now I turn it on and off here 1989 Ford Bronco - Veiw from back a little bit 1989 Ford Bronco - Power side of the wiring 1989 Ford Bronco - Close up 1989 Ford Bronco - It works!! 1989 Ford Bronco - Thats me, taping up the wire covers 1989 Ford Bronco - When we started the truck, it was spraying goo, so we hooked this up 1989 Ford Bronco - And ran the hose outside. It moves alot of air when you rev up the truck a little bit. Tomorrow I put in the rest of the toys 1989 Ford Bronco - I got the hoses connected 1989 Ford Bronco - Heres where I tied into the A/C line 1989 Ford Bronco - This is all the fun stuff, The water/oil seperator, 150 PSI pop off valve, Regulator with guage, and the connector to hook up all the air t… 1989 Ford Bronco - Another veiw so you can see the guage 1989 Ford Bronco - Theres the whole install, ready to run 1989 Ford Bronco - I just zip-tied the assembly to this thingy, seems to be pretty solid, may change it later, or not?? 1989 Ford Bronco - IT WORKS!!!!!! 1989 Ford Bronco - It turns on with the switch, pumps up to 125 PSI, shuts off, then when it gets under 90 PSI it turns back on. Good pressure, needs a tank f… 1989 Ford Bronco - Bolt heads on the inside 1989 Ford Bronco - Threads on the outside 1989 Ford Bronco - Tank mounted 1989 Ford Bronco - Veiw from the rear 1989 Ford Bronco - See it way up there above the muffler 1989 Ford Bronco - Make shift table while we redo the air manifold 1989 Ford Bronco - All together and ready to go...now pumps a 35" tire from 5psi to 30psi in 1 min 15 sec. 1989 Ford Bronco - Seised pump 1989 Ford Bronco - rear veiw
