Hand throttle install 12-11-02

From 1989 Ford Bronco “Street Truck” — documented by Tim Crase.

30 photos
← Back to this vehicle

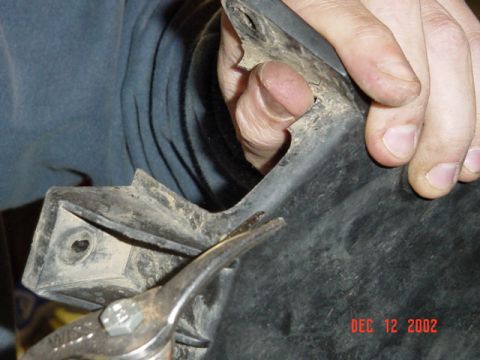

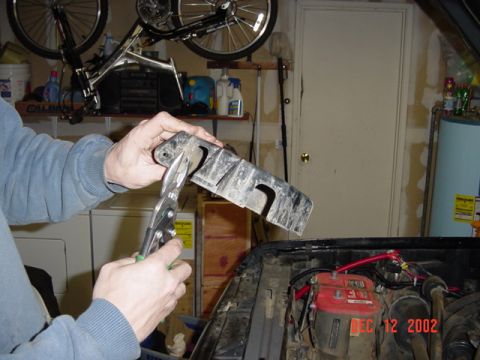

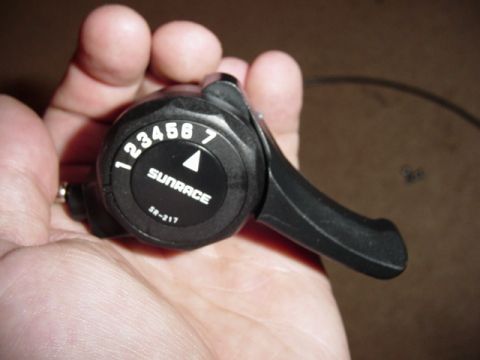

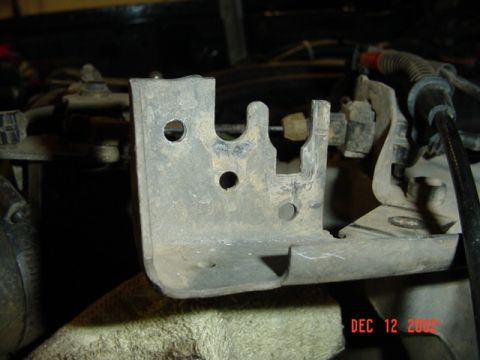

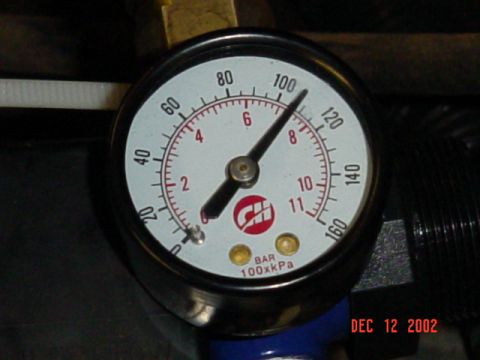

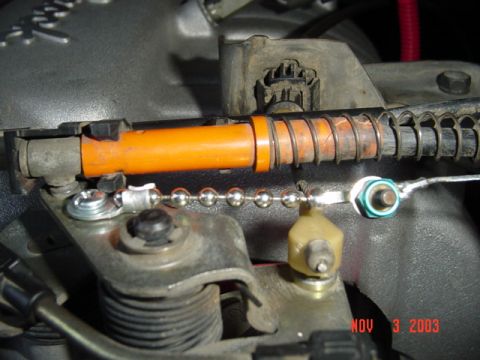

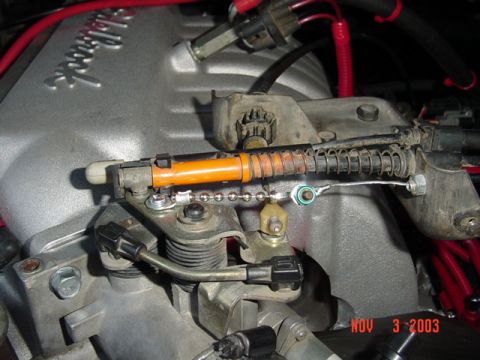

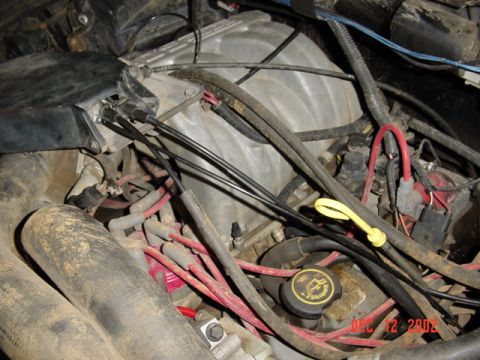

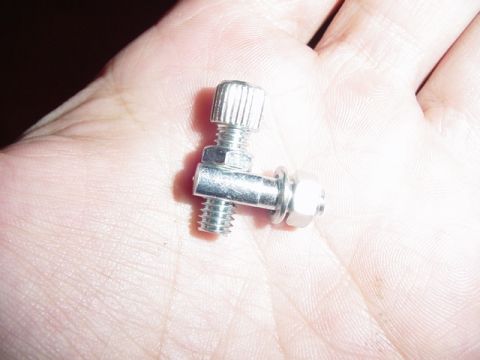

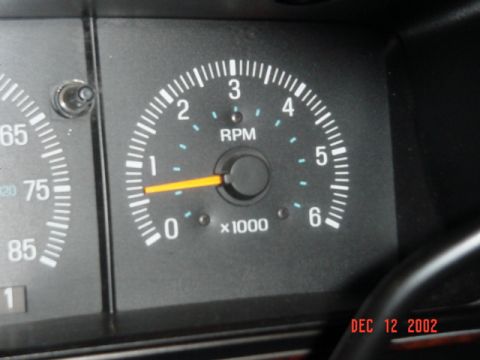

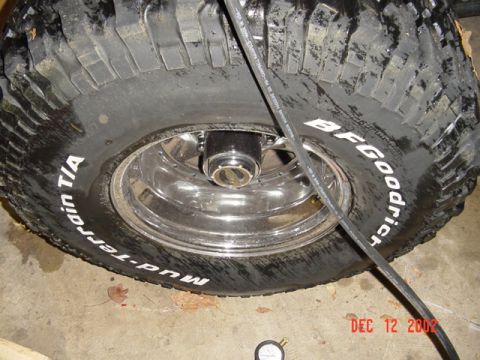

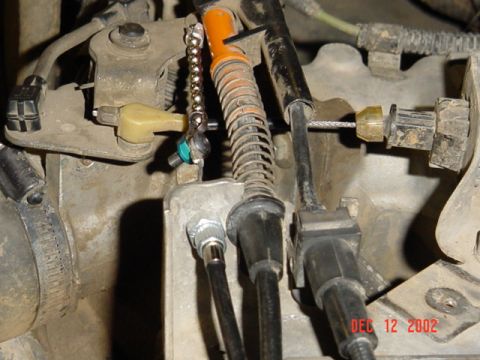

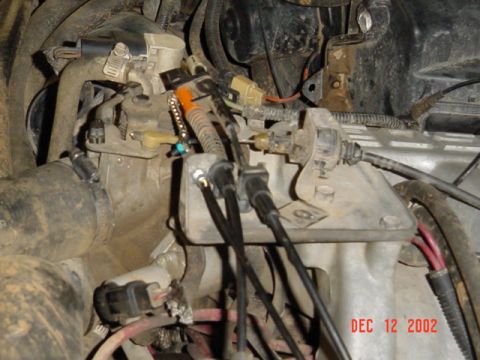

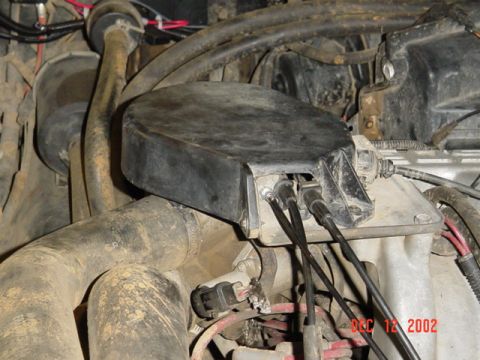

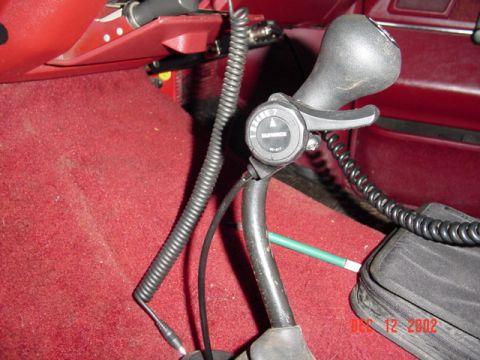

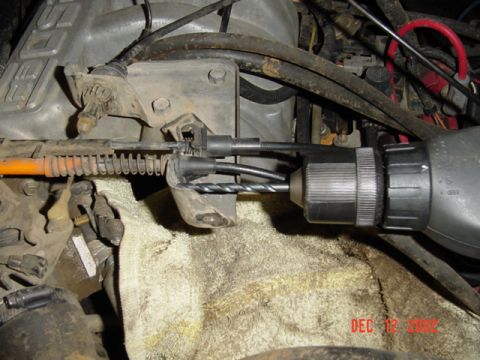

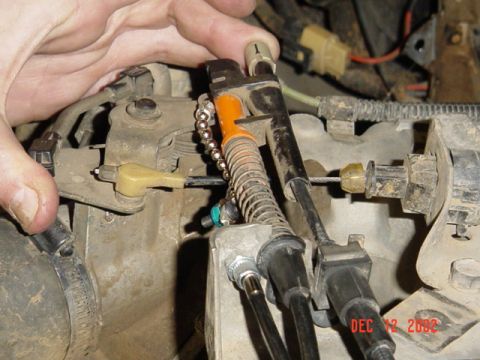

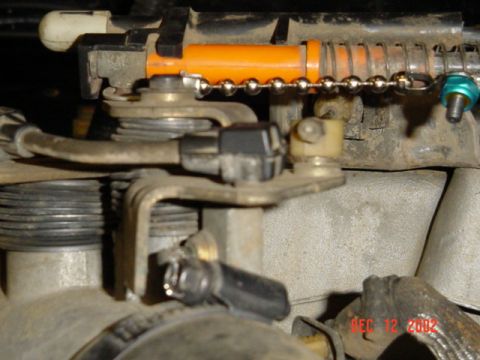

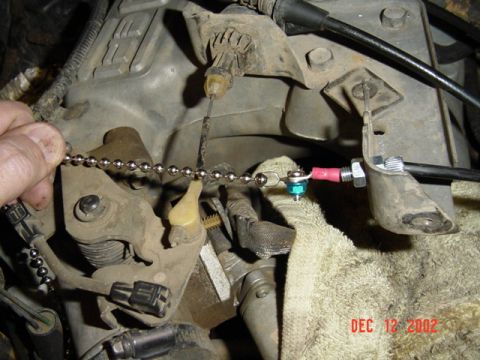

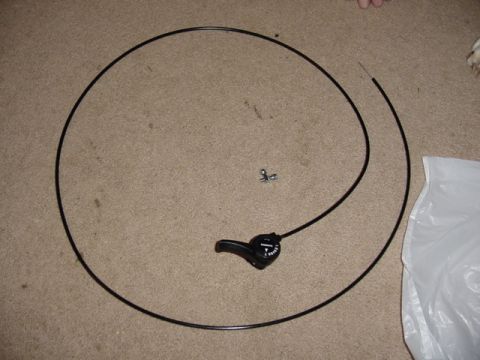

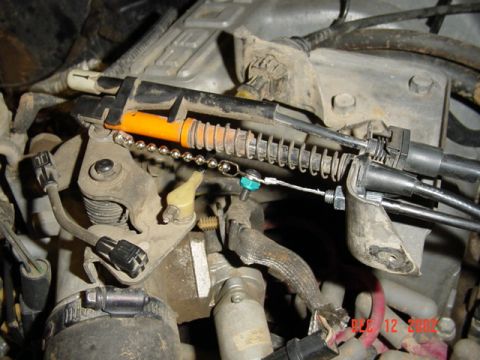

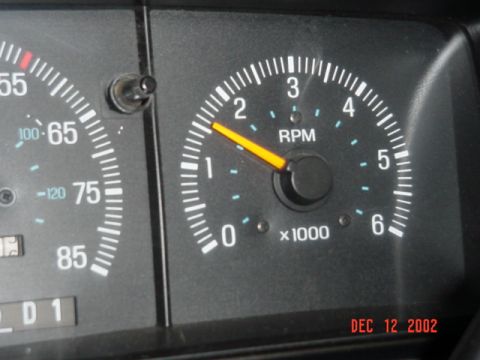

1989 Ford Bronco - Went to the schwinn bike shop today and got this 1989 Ford Bronco - Bike gear shifter will become a hand throttle for when I need to raise the idle. 1989 Ford Bronco - This thingie will go at the end of the cable to give me a mount and some adjustment 1989 Ford Bronco - The first step was putting the lever onto the transfer case shifter, had to use some rubber hose so the clamp would tighten up. 1989 Ford Bronco - Frank is ready to help again 1989 Ford Bronco - Had to drill one hole in the cable bracket 1989 Ford Bronco - Hole in the bracket 1989 Ford Bronco - Figuring out where the ball chain goes 1989 Ford Bronco - Linkage on, and ready to go 1989 Ford Bronco - In line veiw of the cable 1989 Ford Bronco - Closer 1989 Ford Bronco - Yup, it will pull the throttle off the stop 1989 Ford Bronco - Ball chain moves out of the way when you do the normal throttle 1989 Ford Bronco - Small modification to the cover 1989 Ford Bronco - Just a notch to clear the cable 1989 Ford Bronco - Looks factory 1989 Ford Bronco - Just another cable 1989 Ford Bronco - Normal idle 1989 Ford Bronco - 2 clicks up 1989 Ford Bronco - Gets up to pressure real fast now 1989 Ford Bronco - Decided to lower the pressure in one of the 35" tires for a test 1989 Ford Bronco - 15 psi 1989 Ford Bronco - Yup 15 psi 1989 Ford Bronco - Time to fill it back up 1989 Ford Bronco - Jumping between 90-120 psi pretty quick 1989 Ford Bronco - The air hose hooked up 1989 Ford Bronco - Back up to 37psi 1989 Ford Bronco - Yup 37psi....3 min to fill, this will improve with an air tank 1989 Ford Bronco - Hand throttle cable was melted on the headers so this is "Hand throttle V2" 1989 Ford Bronco - Closer look
