Extended Breather Lines

From 1989 Ford Bronco “the magic carpet” — documented by Andrew Knox.

13 photos
← Back to this vehicle

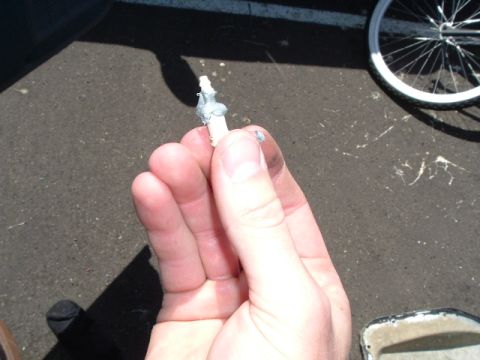

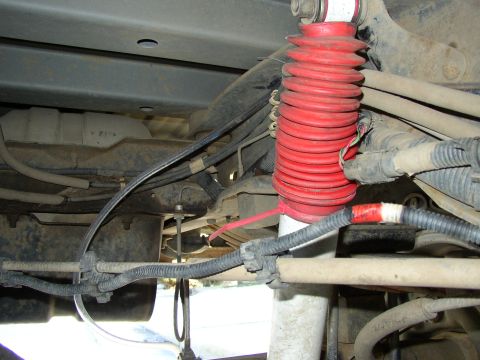

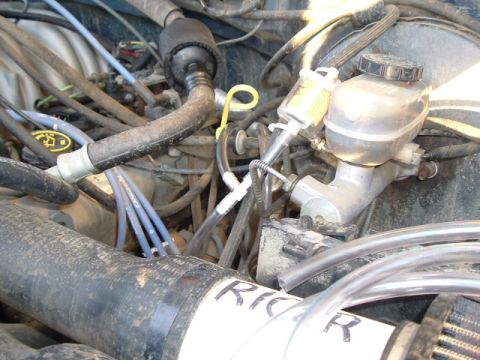

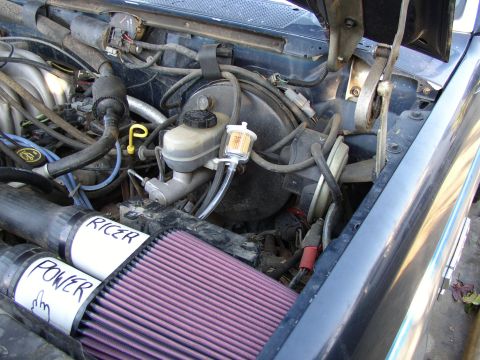

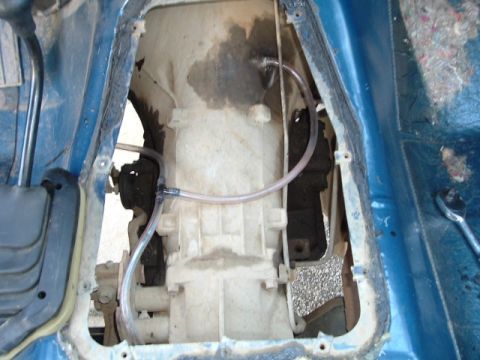

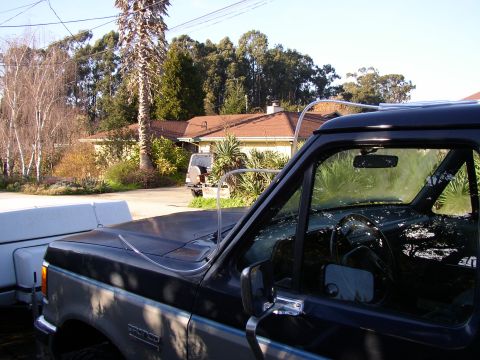

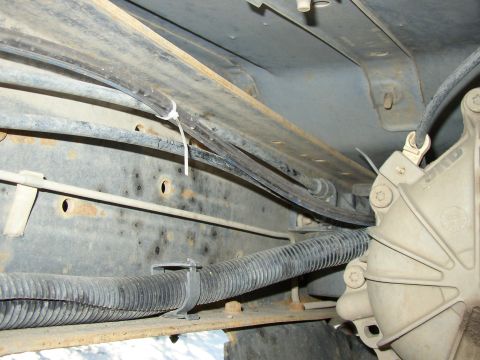

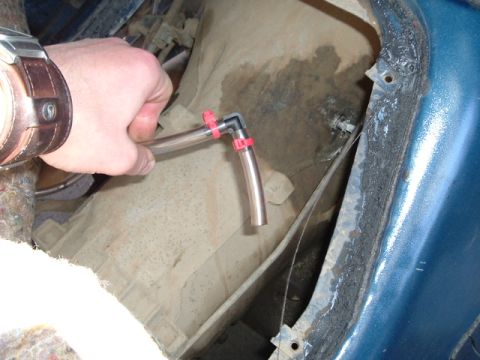

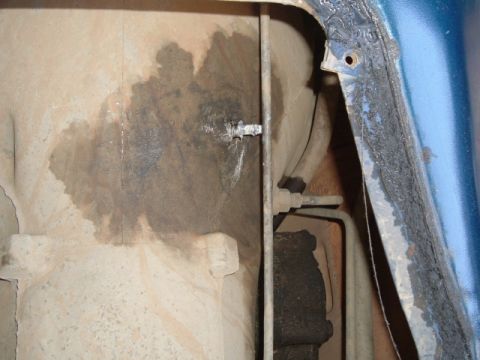

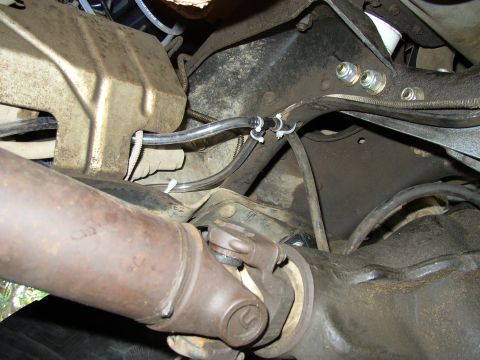

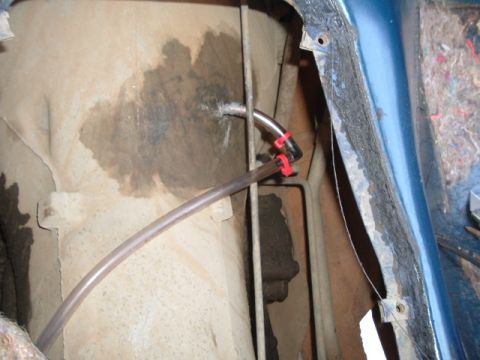

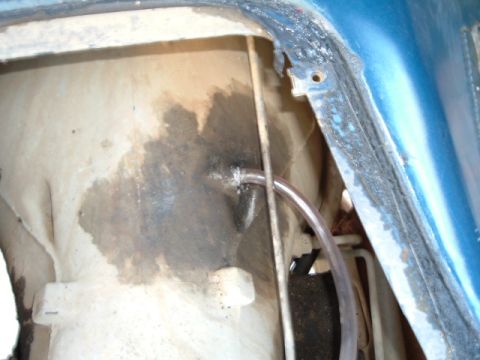

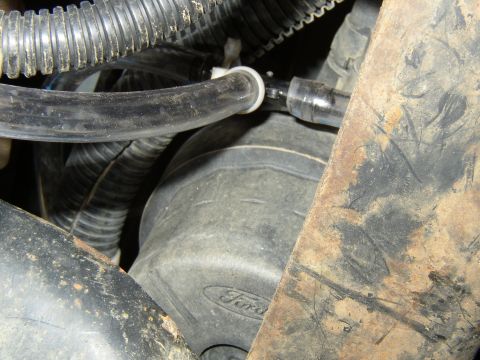

1989 Ford Bronco - breather line coming off the rearend. 1989 Ford Bronco - where the line parallels the wire loom/fuel line on the left frame rail. 1989 Ford Bronco - where the transfer case t's into the line that runs fron to rear. 1989 Ford Bronco - where the front diff and rear line T and mate with the one line that goes under the hood. 1989 Ford Bronco - fram fuel filter 1989 Ford Bronco - snorkel 1989 Ford Bronco - pulled the tranny access panel to get the tranny breather on 1989 Ford Bronco - re-routed the breather lines so that the diffs are on 1 line and the tranny and t-case are on another. 1989 Ford Bronco - still using 1 filter with a T in the line right before the filter now. the tranny/tcase (which both use ATF) are on one line, and the diffs… 1989 Ford Bronco - my previous method of a tranny breather had fallen off, so i needed to get a male adapter to fit inside the tranny's hole. 1989 Ford Bronco - i used some random silicone i had laying around, but it didn't hold. i ended up using krazy glue, which believe it or not worked. 1989 Ford Bronco - the angle of the hose was not allowing it to hold in, so i used a 90* bend to get it right. 1989 Ford Bronco - its ghetto, but it survived the rubicon.
