D60 front

From 1989 Ford Bronco “the magic carpet” — documented by Andrew Knox.

35 photos
← Back to this vehicle

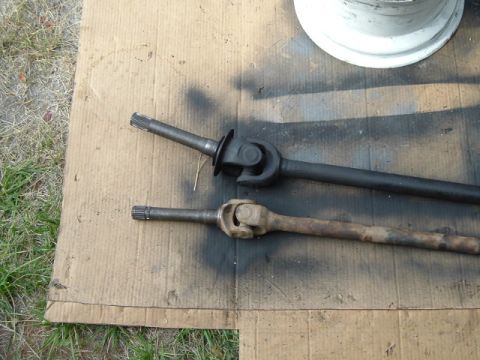

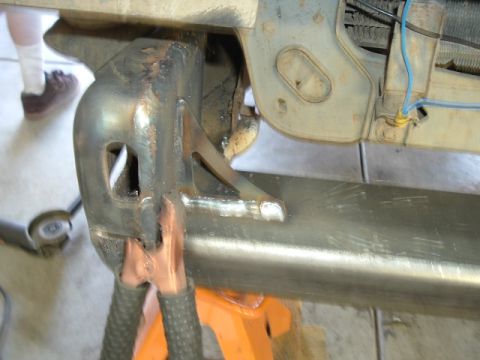

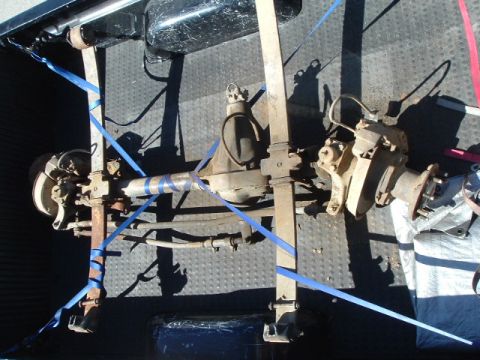

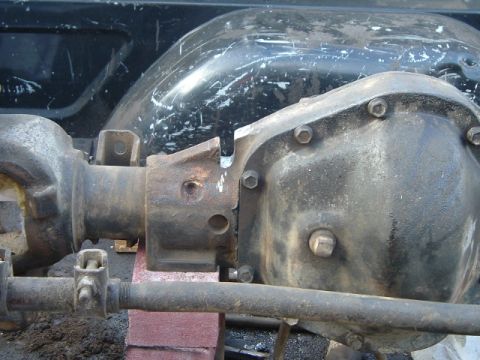

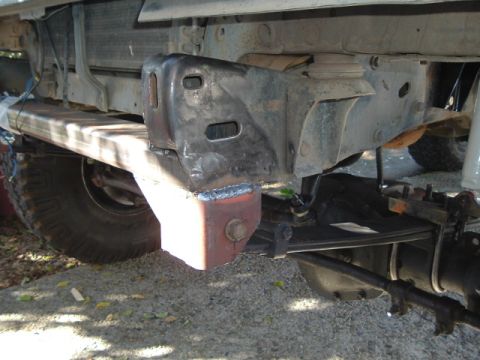

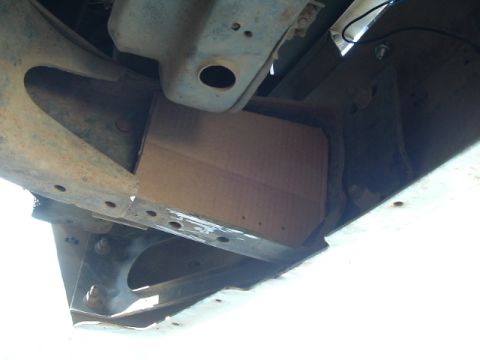

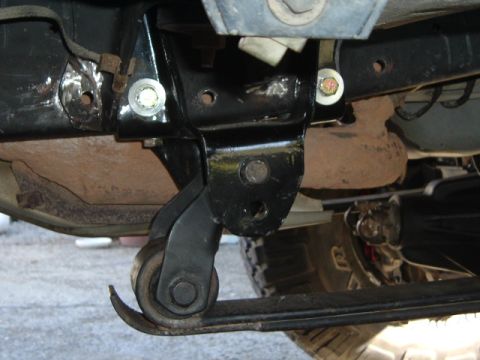

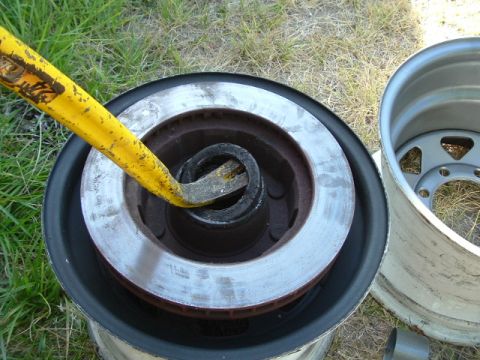

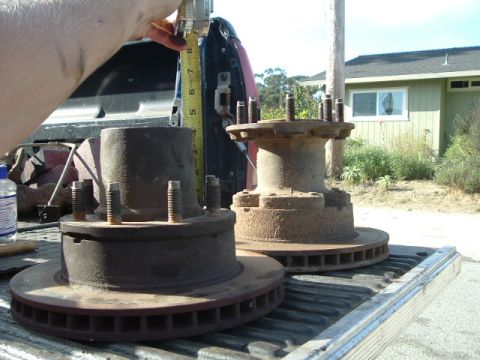

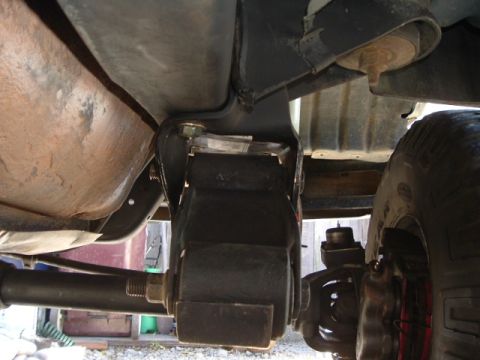

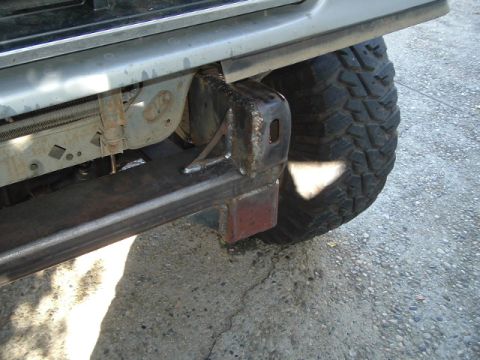

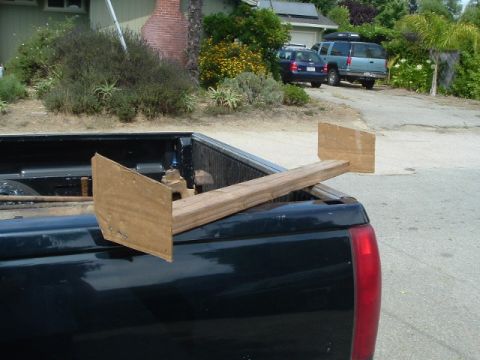

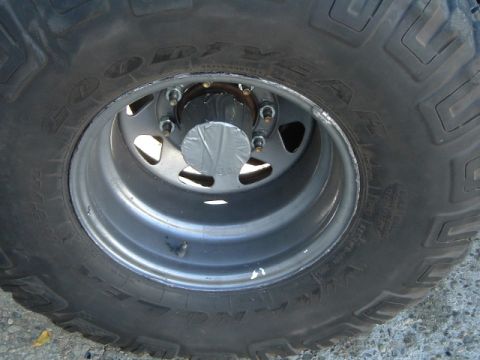

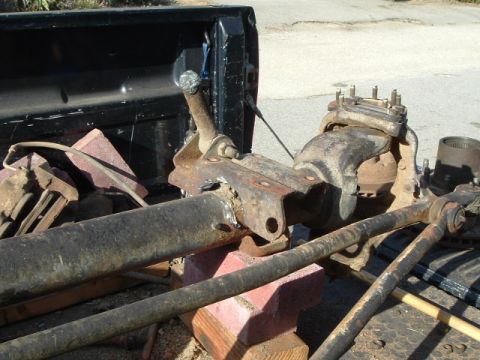

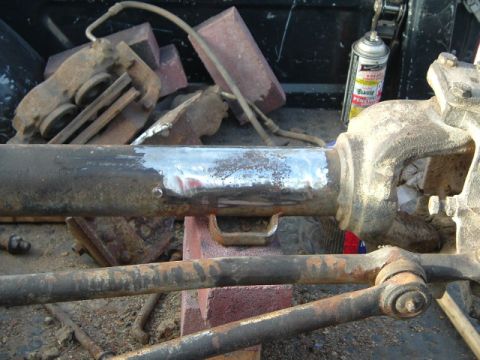

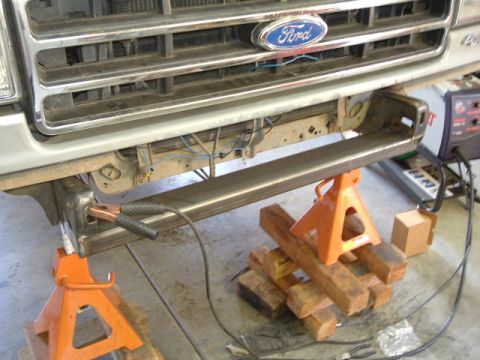

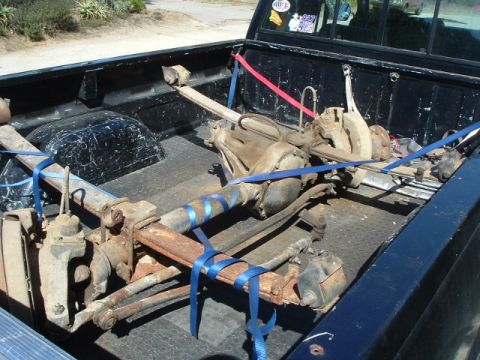

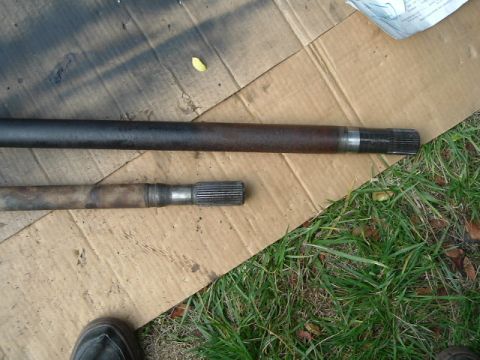

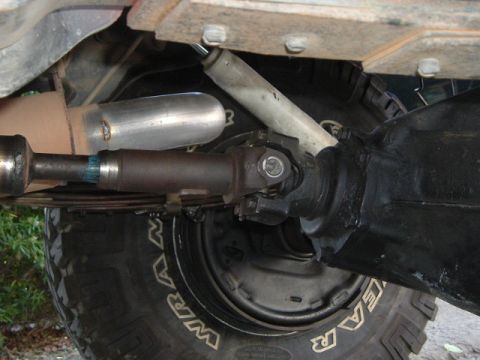

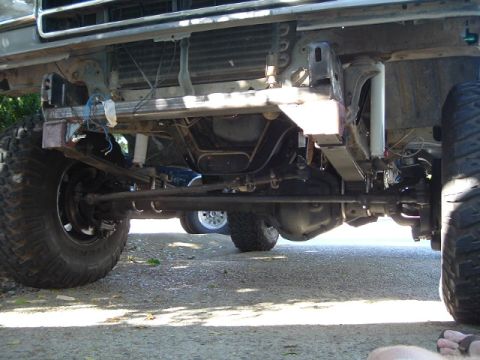

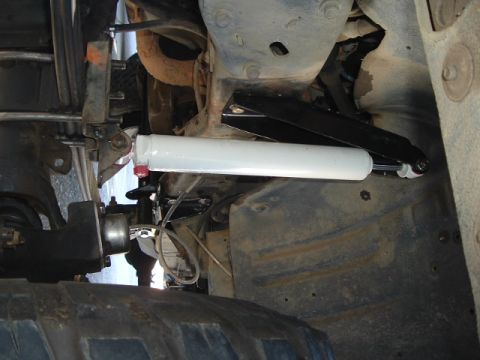

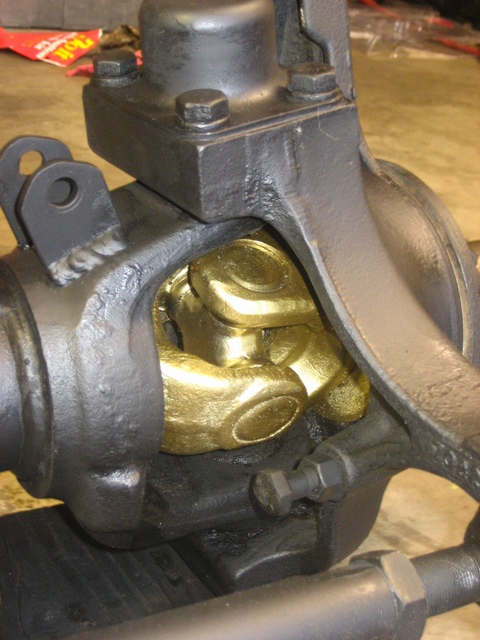

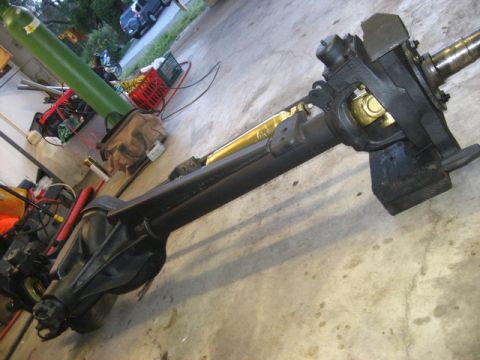

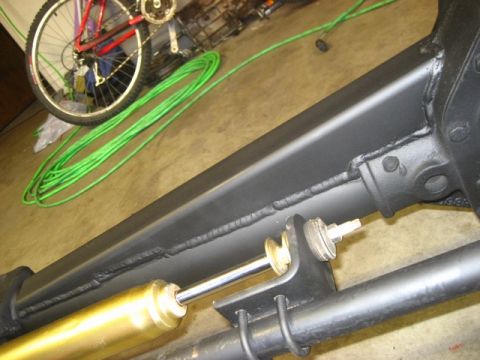

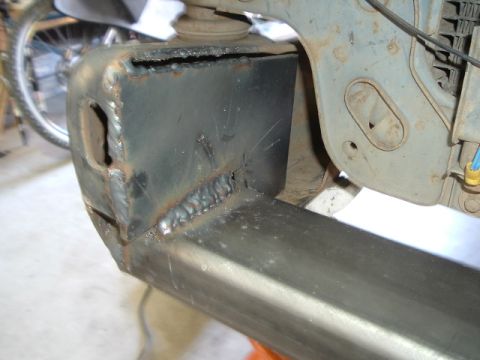

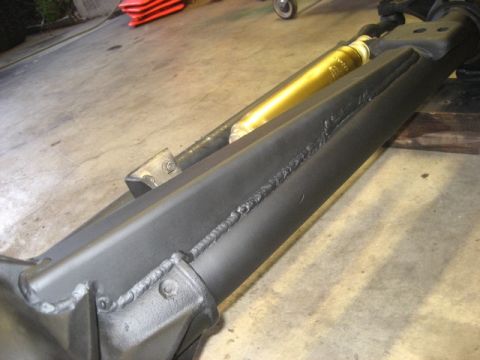

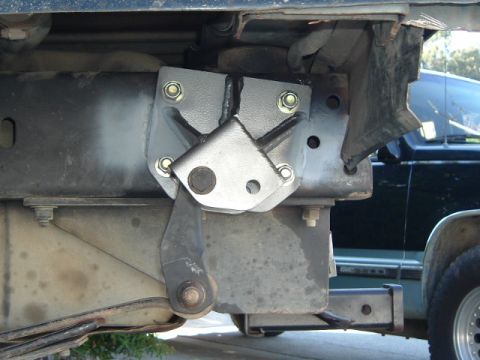

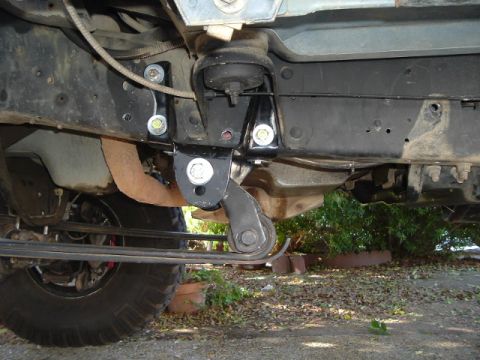

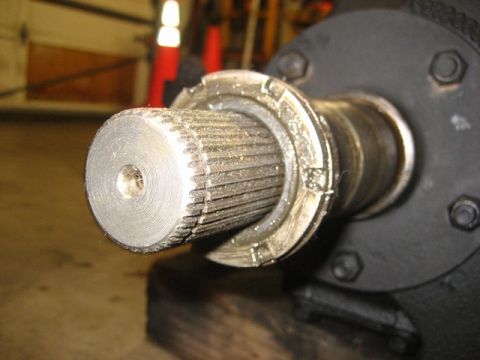

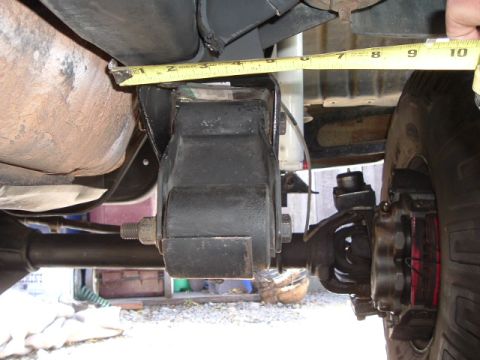

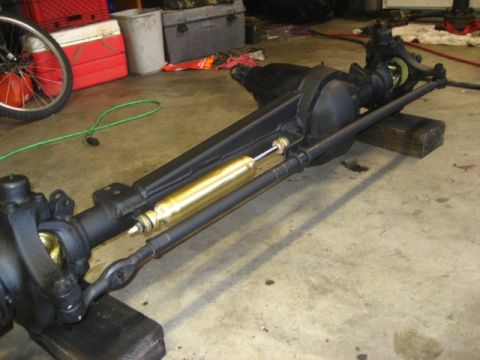

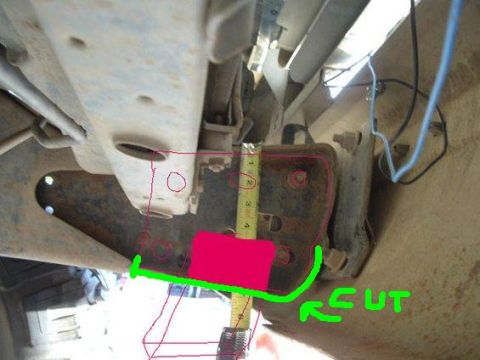

1989 Ford Bronco - 87 HP 60. dual rear wheels, kingpins, and 4.10s. 1989 Ford Bronco - Vehicle front axle assembly, likely for a 4x4, is strapped down in the bed of a pickup truck. 1989 Ford Bronco - rough plan for the front crossmember 1989 Ford Bronco - mockup of the crossmember. spring perches will be welded to the bottom of it. 1989 Ford Bronco - DRW hubs vs. SRW hubs. the dually hubs add about 5" of width per side compared to the single wheel ones. and no, i will not be running the… 1989 Ford Bronco - grinding and beating off the old trac bar mount. 1989 Ford Bronco - all gone 1989 Ford Bronco - notch cut into the webbing for u-bolt flip 1989 Ford Bronco - 60 shaft vs a TTB 44 shaft 1989 Ford Bronco - notice how small the 44 shaft necks down too. i'm not sure if a solid 44 shaft does this as well, but the difference in shaft size is signi… 1989 Ford Bronco - where the fins on the crossmember will go 1989 Ford Bronco - same thing, other side 1989 Ford Bronco - A yellow pry bar is used on a brake rotor and hub assembly, with another wheel rim nearby. 1989 Ford Bronco - Front end of a 1989 Ford Bronco, the grille and bumper, supported by jack stands during work. 1989 Ford Bronco - This image shows a custom welded steel frame component, not a complete vehicle. 1989 Ford Bronco - Custom metalwork is being performed on the vehicle's frame, with a focus on a bracket attachment point. 1989 Ford Bronco - left side frame horn and crossmember 1989 Ford Bronco - same thing 1989 Ford Bronco - turn your head, front shock mount. left over from TTB lower and stock f250 upper 1989 Ford Bronco - looks right at home 1989 Ford Bronco - stock f350 rear hanger moved forward and a shot of the shackle angle 1989 Ford Bronco - rear pinion angle is fubared after shackle flip, only because when the 14 bolt was installed, we took out the angle wedges and set the pini… 1989 Ford Bronco - Sky Manufacturing shackle flip kit. the flip is good for about 4.5" of lift. its uber easy to install too. 1989 Ford Bronco - duct tape drive flange 1989 Ford Bronco - side shot showing the new stance 1989 Ford Bronco - right side shackle shot 1989 Ford Bronco - Close-up of a vehicle's suspension component being measured. 1989 Ford Bronco - Close-up of the vehicle's undercarriage, focusing on suspension parts and a tire. 1989 Ford Bronco - truss and bling 1989 Ford Bronco 1989 Ford Bronco 1989 Ford Bronco 1989 Ford Bronco - 4340 35 spline outers 1989 Ford Bronco
