TSB 94-15-13 Dash Tab

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

14 photos
← Back to this vehicle

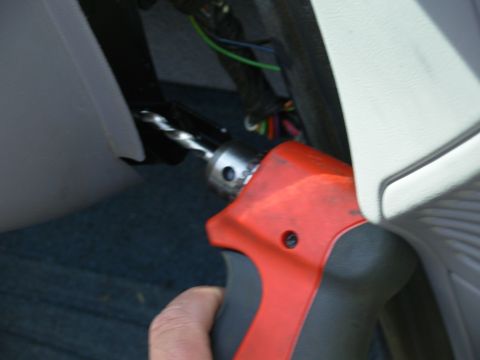

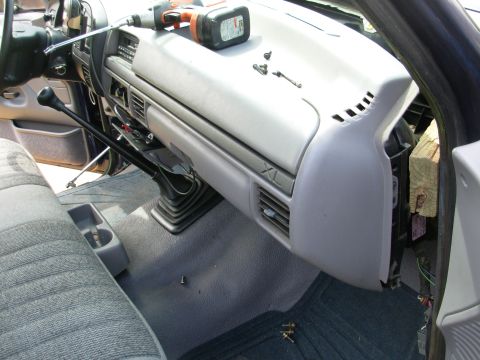

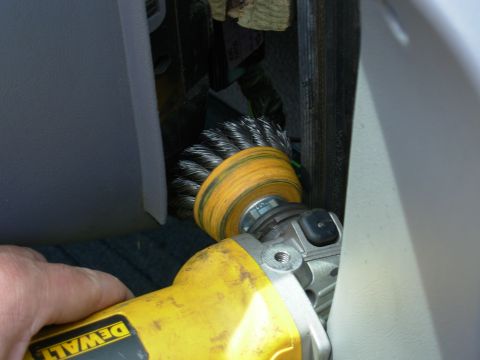

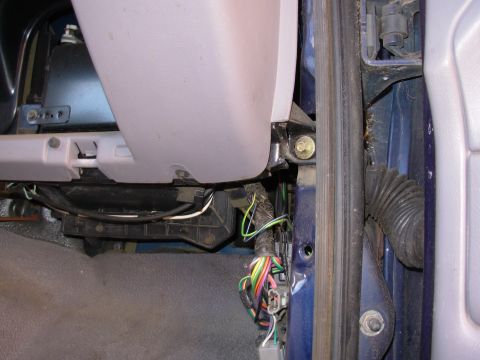

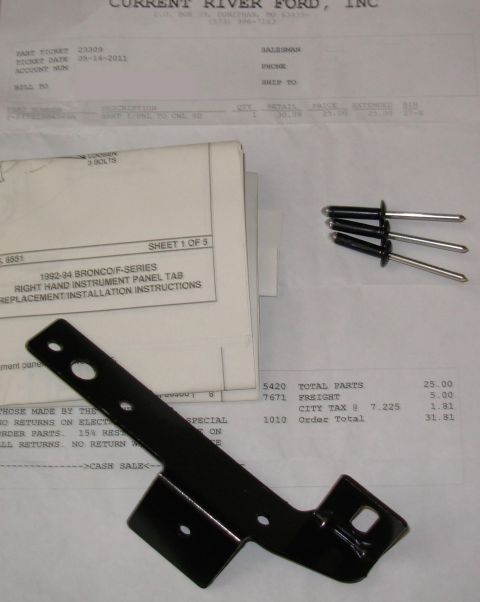

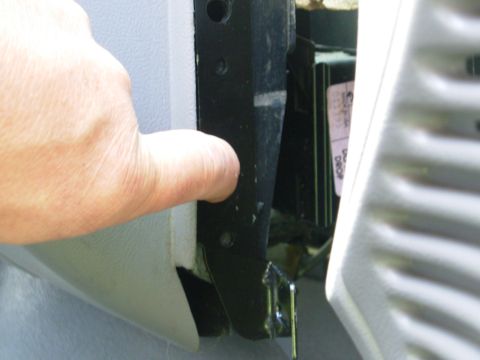

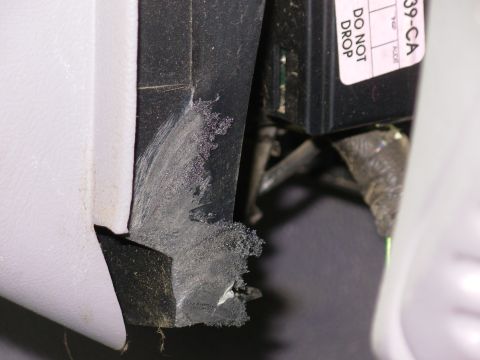

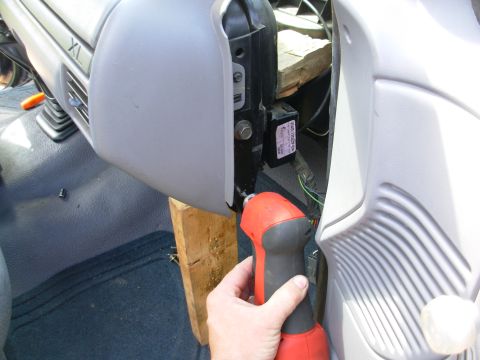

1983 Ford Bronco - The main structure of '92-96 (& '97 >8500GVWR) dashes are the black plastic A/C ducts, with a colored skin wrapped over them, and some comp… 1983 Ford Bronco - TSB 94-15-13 Dash Right Attachment Tab IF THE IMAGE IS TOO SMALL, click it. Publication Date: JULY 27, 1994 LIGHT TRUCK: 1992-94 BRONCO, F… 1983 Ford Bronco - There are very few of these kits left, but I managed to find one for less than the full list price. If you can't read the invoice, click th… 1983 Ford Bronco - This is how the TSB says to prepare the dash, but it didn't give me enough working room. I didn't disconnect the battery - I was listening… 1983 Ford Bronco - The TSB says to sand the rough surface flat, but I didn't feel like wasting that much elbow grease, or cleaning up all that black dust. Thi… 1983 Ford Bronco - Pretty flat, and some of the slag stayed attached. Continue to the NEXT pic... 1983 Ford Bronco - A perfect fit. Continue to the NEXT pic... 1983 Ford Bronco - Even using a right-angle drill and a short (LeftHand) bit, I couldn't get in line. Also, the TSB says to drill 1/4", but the holes in… 1983 Ford Bronco - After loosening the 4th bolt on the column support, wedging the dash a little farther out, and swapping to a 3/16" bit, access was muc… 1983 Ford Bronco - These are low-force rivets, so it didn't take much effort to set them. The wide head on the 3/8" bolt I used prevented me from setting… 1983 Ford Bronco - That's a winner! Continue to the NEXT pic... 1983 Ford Bronco - Done, other than reinstalling the trim pieces. I now make & sell these kits. See: [url=https://www.supermotors.net/registry/media/1167727]… 1983 Ford Bronco - These tabs are very close to the original late-'95-97 parts, and Aluminum rivets are included with them. Email me through my profile here o… 1983 Ford Bronco - This '95 F150 XLT dash was made before the revision, so I installed a steel tab that I made on it. I eyeballed the position of the hole in…
