Sky Jacker Class II TTB drop mounts

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

26 photos
← Back to this vehicle

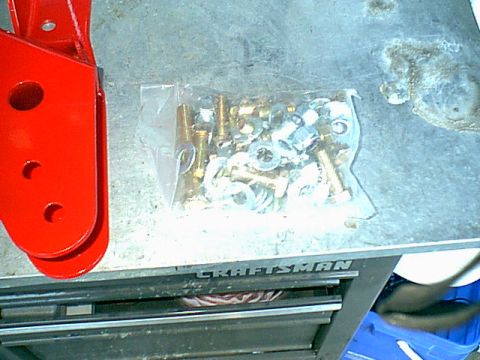

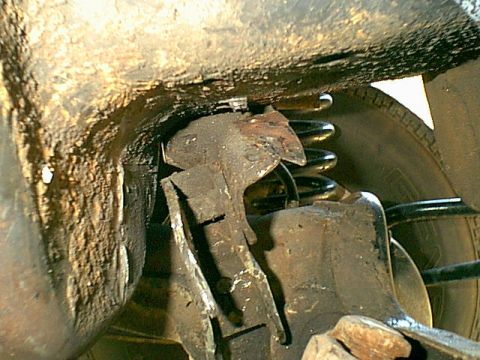

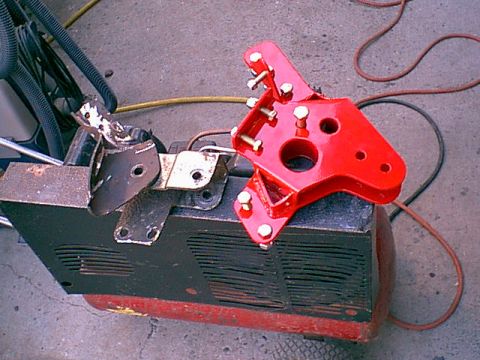

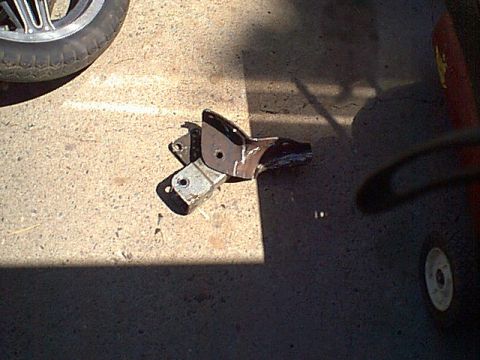

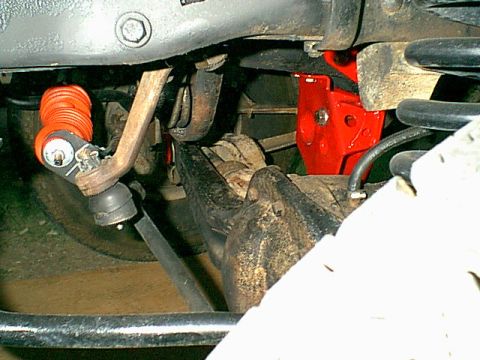

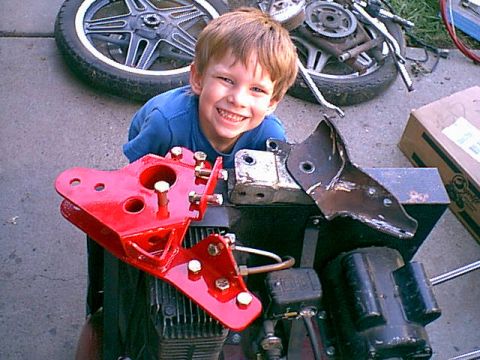

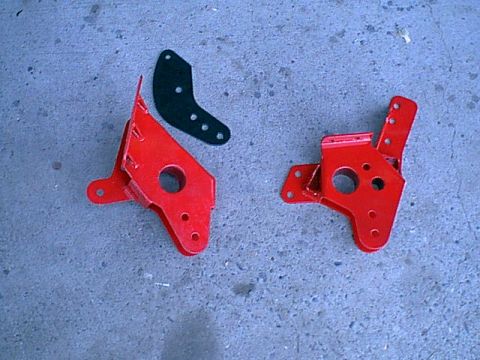

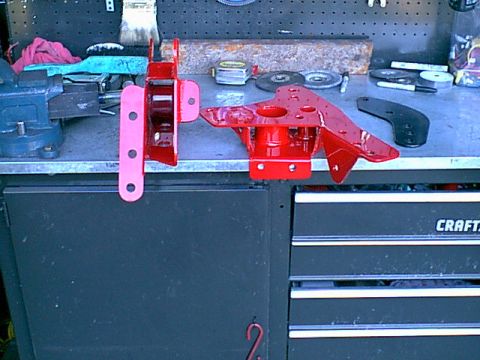

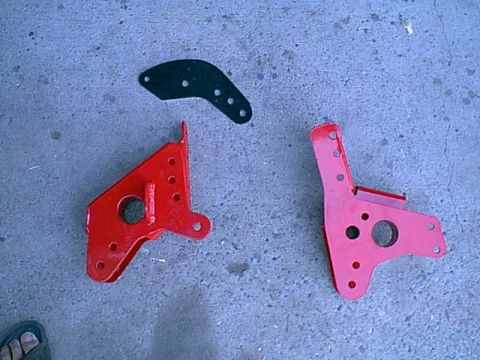

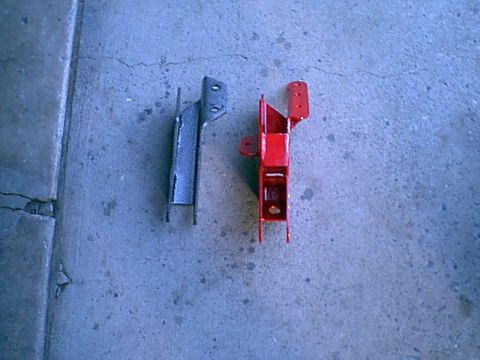

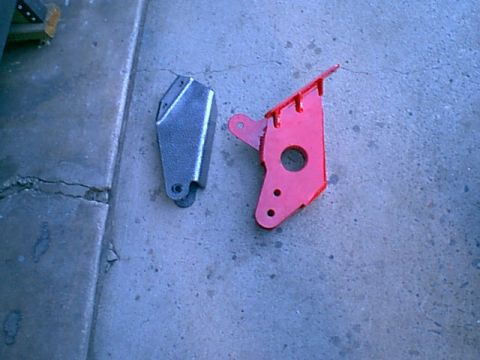

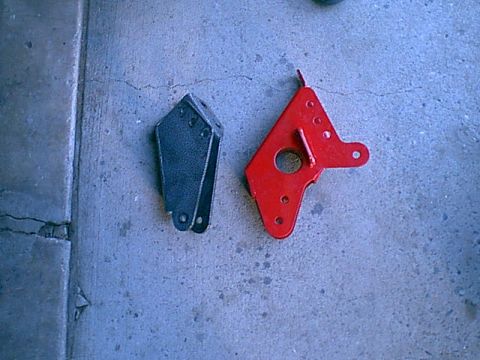

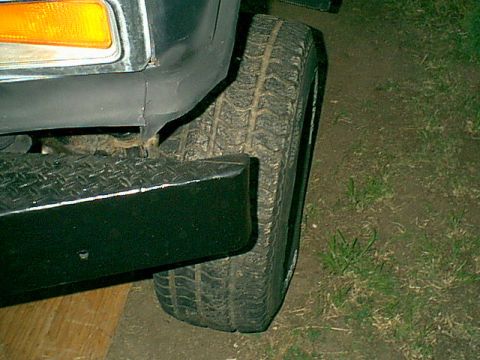

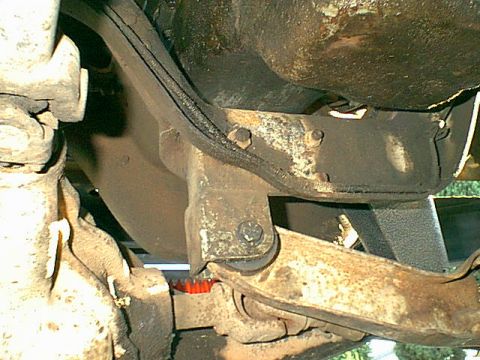

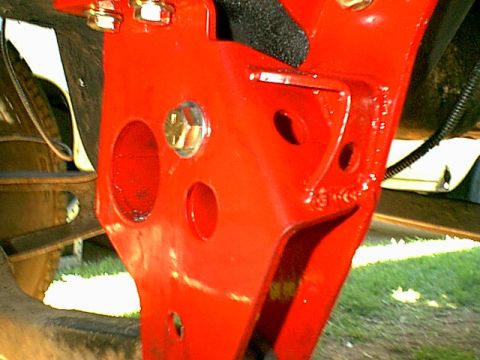

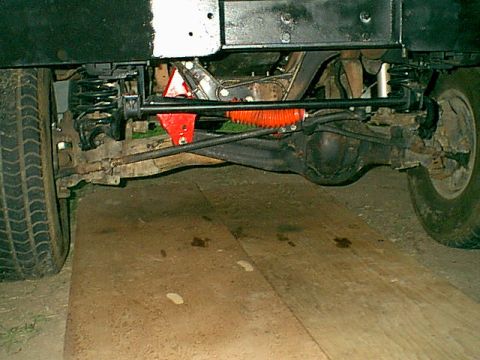

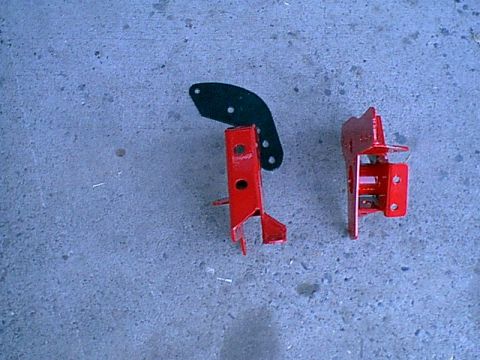

1983 Ford Bronco - Here s the bag of hardware that came with the drop mounts. the kit part number is CHB542 this is for a 4" or 6" lift kit. 1983 Ford Bronco - here are the Class II skyjacker drop mounts. Alot stronger than most of the other drop mounts on the market. 1983 Ford Bronco - here is a side view. these have bracing thru the center and are heavey duty. The top black bar is a frame stiffener it bolts to the outside… 1983 Ford Bronco - Here is the other side view. 1983 Ford Bronco - Here is a closer view on the bench. 1983 Ford Bronco - here is a back side shot of the standard 4" drop mount and the skyjacker Class II 4 or 6" drop mount. the class II has extra mounting tabs… 1983 Ford Bronco - Here is a front view of the standard 4" drop and the class II 1983 Ford Bronco - here is a back side view of the driverside mount. 1983 Ford Bronco - Here is the pass side Class II drop mount next to the standard 4" drop mount and "Helper Christain" 1983 Ford Bronco - big difference in the Class II and the standard 4" drop mount. 1983 Ford Bronco - this is what i do to hold the TTB as i did the swap. i put upward presure on the outside of the beam with a jack stand then pull the inside… 1983 Ford Bronco - The stock mount needs to come out. there are 6 rivets that need to be removed.. i hate these revits.. 1983 Ford Bronco - Here is the back of the pass side (on drivers side) 4" drop mount. It is in the stock pivot mount and held in by 3 bolts. 1983 Ford Bronco - Removing the rivets. I hate rivets i had to cut the added weld on the 4" drop mount and then cut drill the rivets (failed) then grind the h… 1983 Ford Bronco - it is fighting alot but it will loose. this is the 1/2 way point for the mount coming out. 1983 Ford Bronco - after drilling, cutting the heads off, and 2 hours of air chisling it finall gave up. this mount was weldeed and riveted to the cross membe… 1983 Ford Bronco - it fought hard but i did win finally. I hate rivets... 1983 Ford Bronco - this was the halfway mark and "Helper Josh" wanted to get a mug shot. 1983 Ford Bronco - anothe "Helper Josh" mug shot at the Halfway strech. 1983 Ford Bronco - extream close up of the pass side drop mount. 1983 Ford Bronco - here is a drivers side view of the new mounts in place. 1983 Ford Bronco - Here is a view fron the pass side wheel well. 1983 Ford Bronco - Here is the result with the class II mount installed and it just set back under it own weight. it only off a degree or 2 now. it drives alo… 1983 Ford Bronco - Pass side wheel after install. 1983 Ford Bronco - here is a front shot with both mounts in place. Time to do a Knuckle under to reduce the steering angle. then align and and drive. 1983 Ford Bronco - No more "Pigen Toe" it rides alot better. i still got to replace a tie rod and ball joint.
