Rear

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

22 photos
← Back to this vehicle

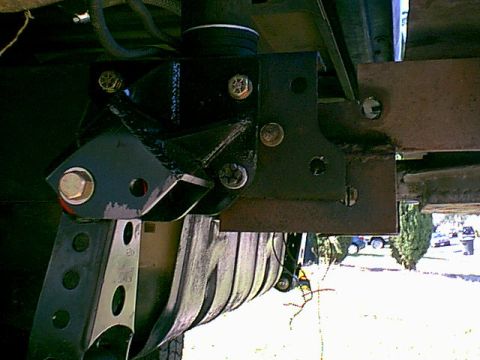

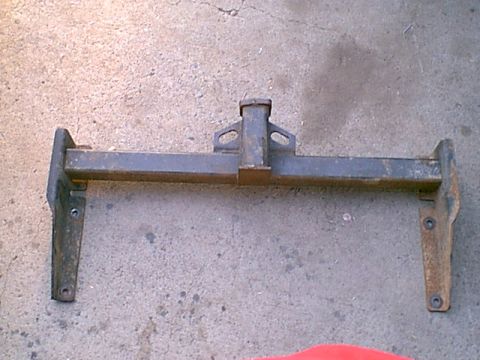

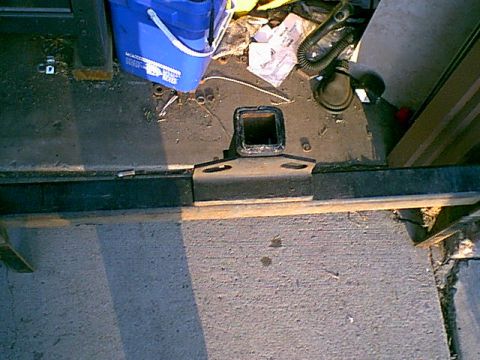

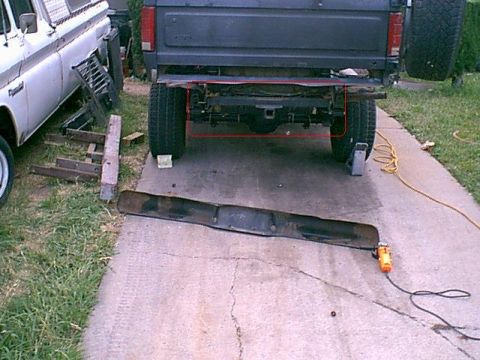

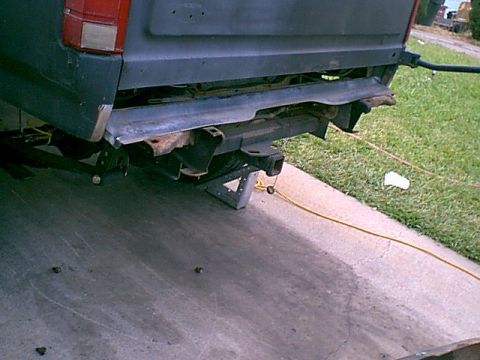

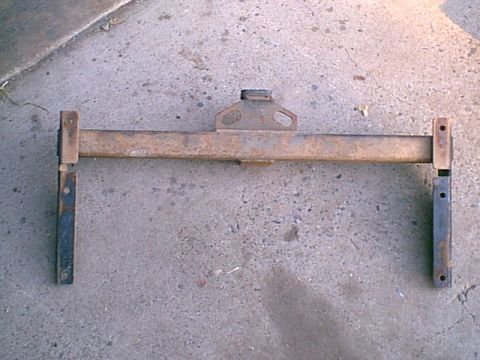

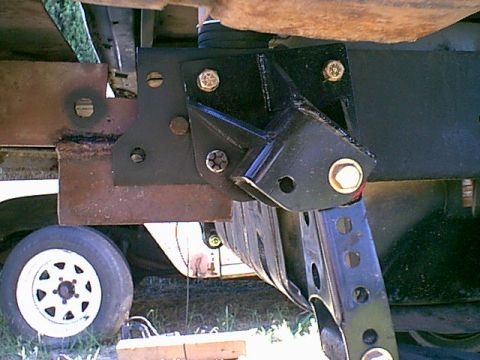

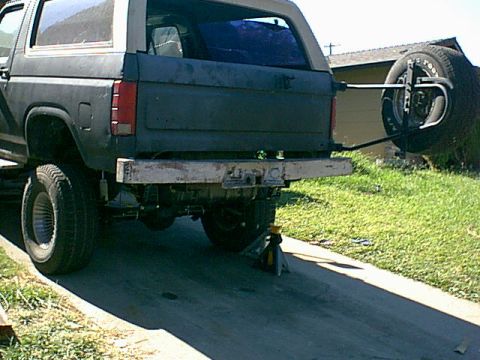

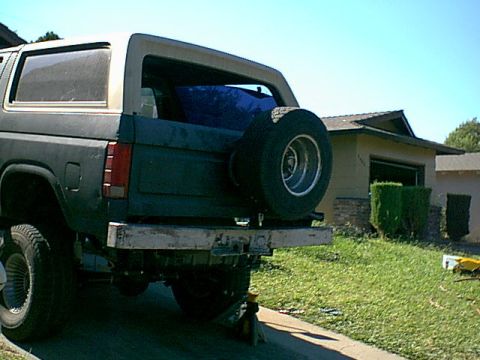

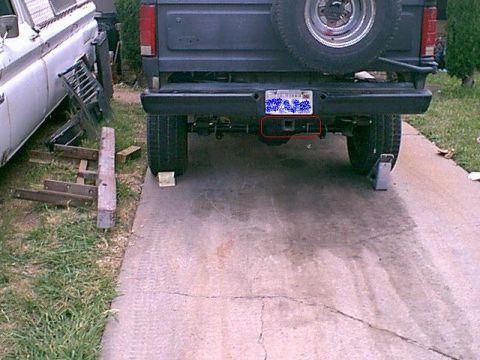

1983 Ford Bronco - Here is how the rear started out. There is a class VI hitch under the bumper. You can see the ne bumper in the grass. tis was on a 1977 ful… 1983 Ford Bronco - The fastest way to get these off was to cut off the heads of the bolts all 4 of them. i took this off and set at the end of the driveway an… 1983 Ford Bronco - Here is another view of the back without the stock bumper. i could not reuse the gap tray so out it came. 1983 Ford Bronco - The next thing off is the hitch. 6 bolts and it was off. This was sold to a fellow FSB member. 1983 Ford Bronco - here is the bottom side of the reciever asembly 1983 Ford Bronco - Here is the reciever end with the saftey connections. i was going to add this to the front but decided the one on the front was enough. 1983 Ford Bronco - after bolting and getting this set is when i found out why the last person got rid of it. the outside ends are bent up alittle. no problem… 1983 Ford Bronco - this was a pain to setup i used 1 shackle hanger bolt 3 other bolts on this side and almost the same on the other. i then tac weleed it to… 1983 Ford Bronco - Here is the driver side. 1983 Ford Bronco - Here it is with the spare holder open 1983 Ford Bronco - Here is the bumper all ready to be installed 1983 Ford Bronco - here it is spare and tailgate open. it is very close but it does clear no issues 1983 Ford Bronco - here is the reciver end. i like how it is in the bumper. 1983 Ford Bronco - Here is the hitch in the reciever. much higher than the undr the bumper model that was on there. 1983 Ford Bronco - It was a long hot day but we got it done here is Josh holding himself up... 1983 Ford Bronco - her it is in the yard getting ready for paint 1983 Ford Bronco - here is another angle. 1983 Ford Bronco - i had to put it on the street to cleanup the driveway. it is looking real good. 1983 Ford Bronco - here is one coat of paint. i going to hit it with a couple coats 1983 Ford Bronco - i kid you not as i was finishing up a cop stopped and aske where the rear plate was and was going to site me. i pointed to the red box in t… 1983 Ford Bronco - so here is my new plate setup the top bolts are LEDs and light blue. 1983 Ford Bronco - Here it is from 25 feet. I found out 3 days later the LEDS were illegal and i since replaced them i add those pics soon.
