Steering Stablizer

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

18 photos
← Back to this vehicle

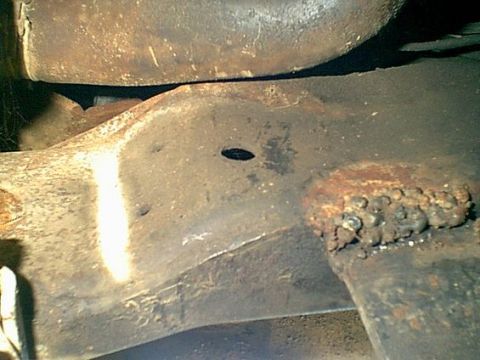

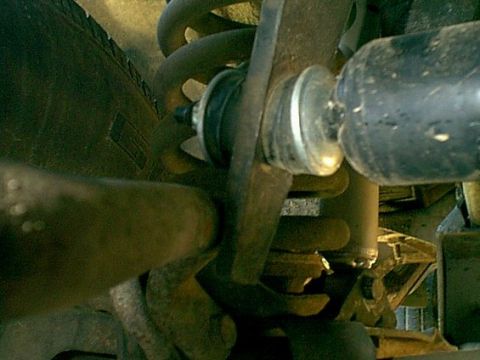

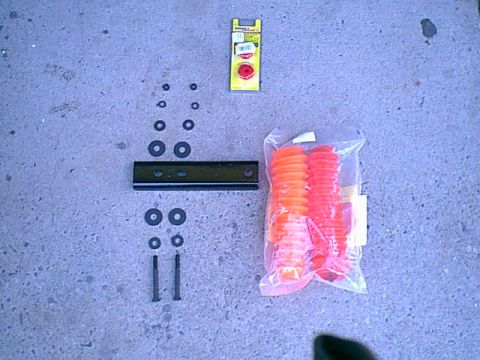

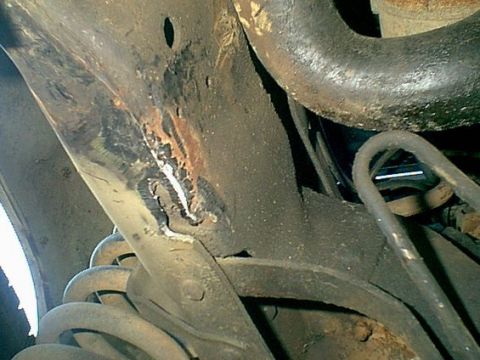

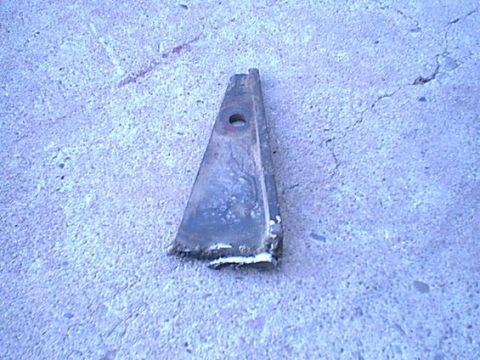

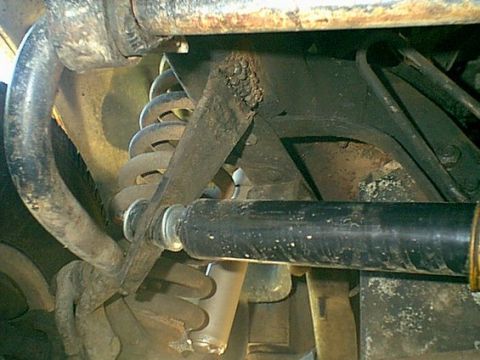

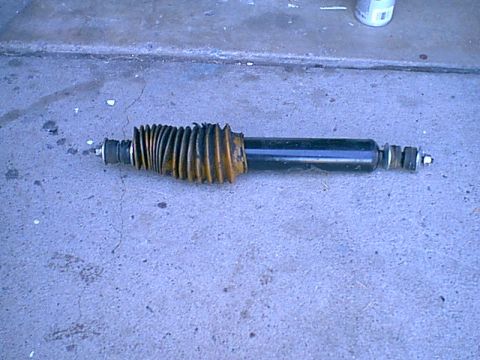

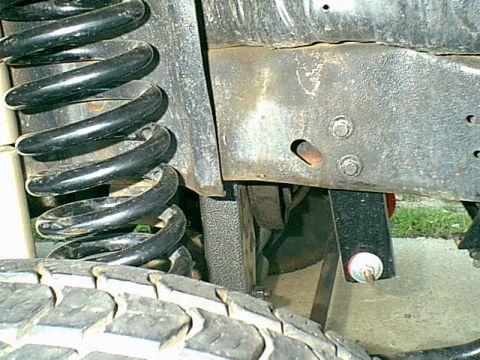

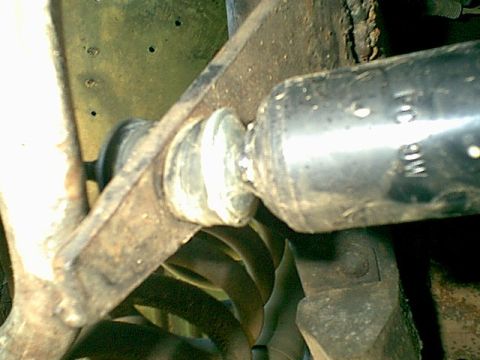

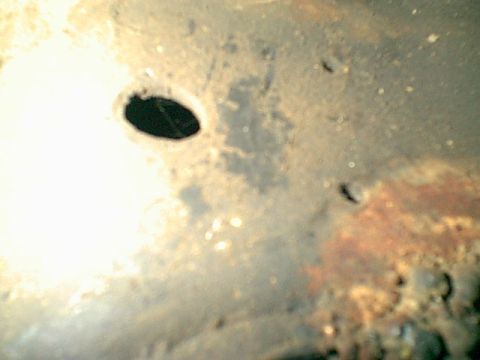

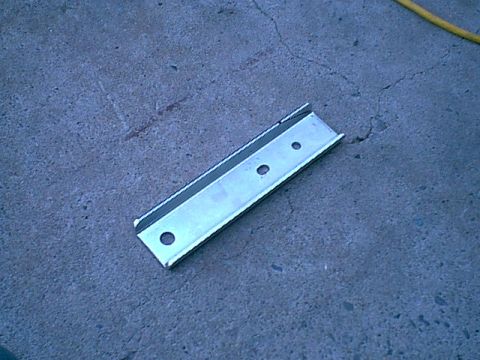

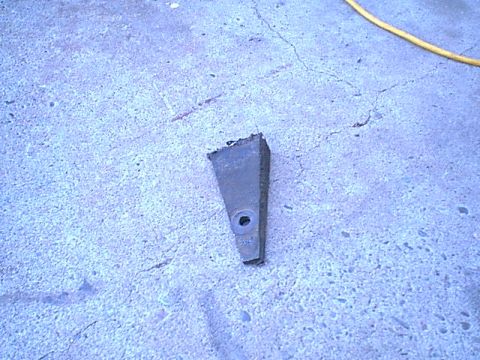

1983 Ford Bronco - I found this mount to be another reason for the "Death Wobble" the PO just welded a chunk of scrap to the frame and drilled a hole for the… 1983 Ford Bronco - Here is a closer view. you can see this weld is no longer holding the mount. 1983 Ford Bronco - Here is the issue when the wieght is on the wheels. this is bending the shock mount and locking around the swaybar. no good how ever you lo… 1983 Ford Bronco - I unbolted the shock and then grabbed the mount and it came right off. here is the old mount. 1983 Ford Bronco - Here is the back side of the old mount. 1983 Ford Bronco - here is the frame where the mount tore off of. you can see the 2 holes in the frame i used these with the new mount. Funny thing is the new… 1983 Ford Bronco - this was an issues the shock was pinned around the swaybar. 1983 Ford Bronco - These 2 holes were already in the frame. i just needed to open them up alittle. 1983 Ford Bronco - I found this in the center storage container. 1983 Ford Bronco - This is the stablizer the boot is old and beatup but the shock was new. as were the bushings. i decided to replace the bushings with poly a… 1983 Ford Bronco - Here are all the parts for the new mount. new poly end links, new boot, mount, and bolts. 1983 Ford Bronco - I drilled the holes larger to fit bigger grade 8 bolts. 1983 Ford Bronco - this is the back side of the mount. 1983 Ford Bronco - here is the stablizer back installed with new poly end bushings. looks mush better. 1983 Ford Bronco - Here is the other end. i added new poly bushings here too and a new boot. i re aligned the mount on the center link. this works so much bet… 1983 Ford Bronco - Here is a shot from a few feet back. looks and works great. 1983 Ford Bronco - here it is ll done. Much stronger and ready to goto work. 1983 Ford Bronco - here it is all done.
