Ball Joints

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

18 photos
← Back to this vehicle

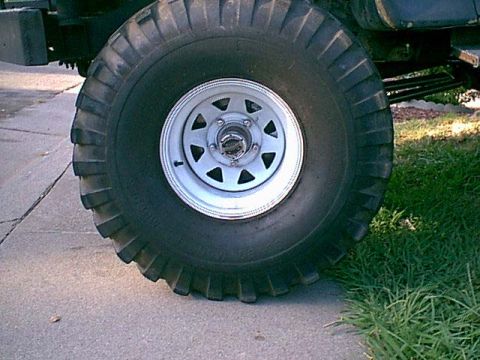

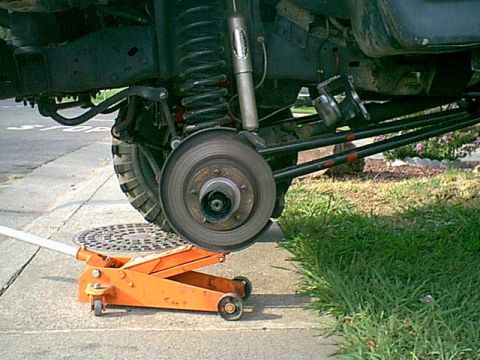

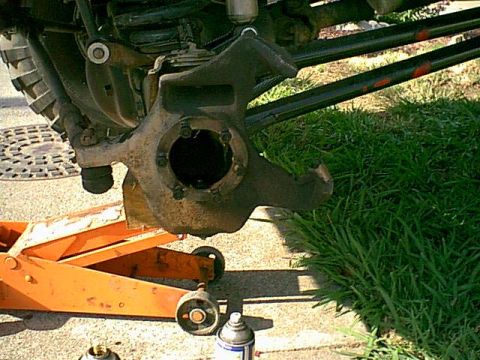

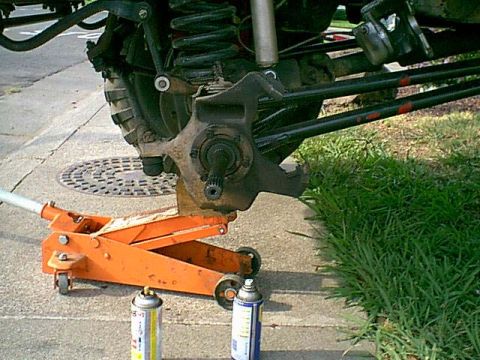

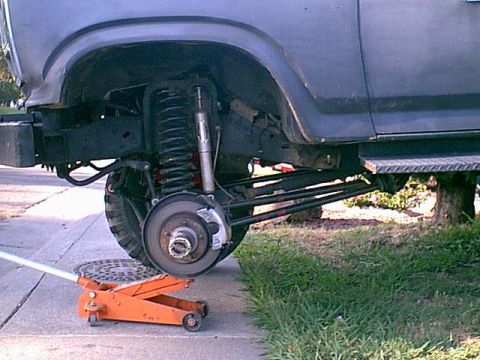

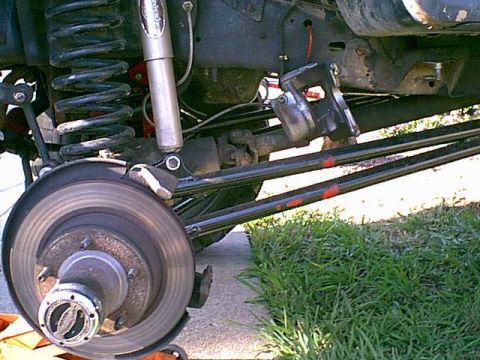

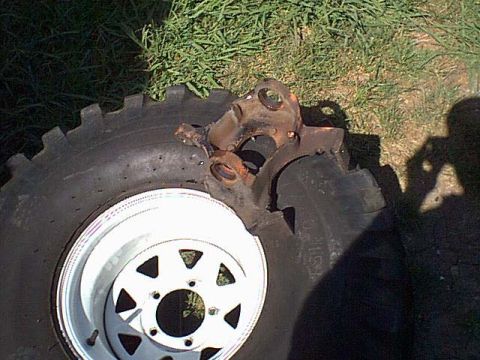

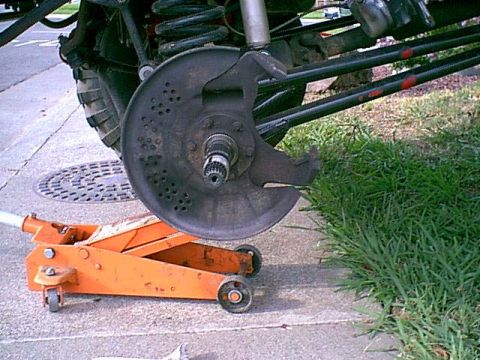

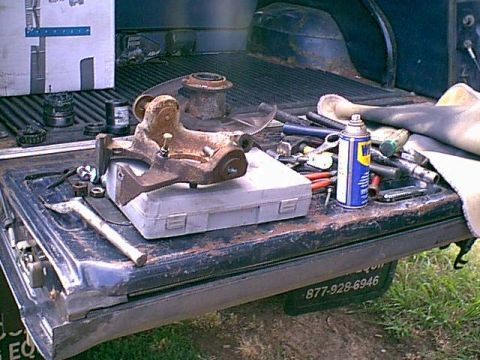

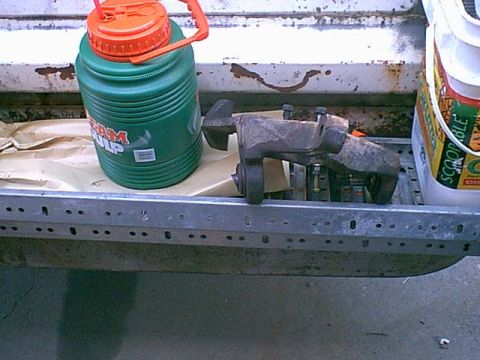

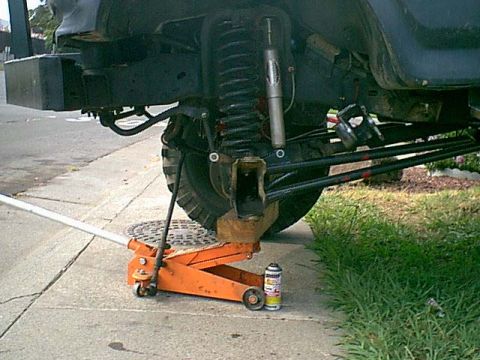

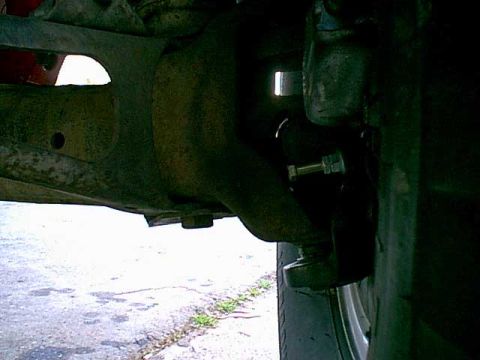

1983 Ford Bronco - Here is the drivers side ball joint replacement. Here we are with the wheel in place. 1983 Ford Bronco - Ok the wheel is off. I was lazy here please put a Jack stand under the frame or front axle do not work on the jack as i did. I have had jac… 1983 Ford Bronco - Remove the caliper (do not just let it hang. i got a set of "S" hooks and these work well here) 1983 Ford Bronco - Now the lock outs are off. 1983 Ford Bronco - ok now the hub and rotor assembly are off. 1983 Ford Bronco - now the dust shield and spindel assemble are removed. 1983 Ford Bronco - Here it is without the spindal 1983 Ford Bronco - ok now the axle and then the knuckle is removed. 1983 Ford Bronco - here is the knuckle assembly ready to press out the ball jints. I ran into an issue the C-press was not deep enough to press out the old jo… 1983 Ford Bronco - Here is the steering stop for the pass side knuckle. 1983 Ford Bronco - Here is the bent knuckle. well off to the junk yard as it is sunday and no one has a new one. i found out there are a few different knuckle… 1983 Ford Bronco - Ok i got back from the junk yard and the ball joints seemed ok, but i had new ones sitting onthe bench. i pressed out the old ball joints a… 1983 Ford Bronco - well as i said i did the pass side ball joints with the c press but this side did not want to work with me. i had to get a new toy (ok -too… 1983 Ford Bronco - Here are the old Ball joints. 1983 Ford Bronco - Here are the new Ball joints. i now got all 4 replaced. 1983 Ford Bronco - Here is the new lower ball joint in place. the new press just poped it right in. 1983 Ford Bronco - I did not do the ball joints at the same time. i did the pass side and then the drivers side. here was the drivers side ball joints complet… 1983 Ford Bronco - here is a better shot od the completed pass side ball joints.
