Emissions

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

31 photos
← Back to this vehicle

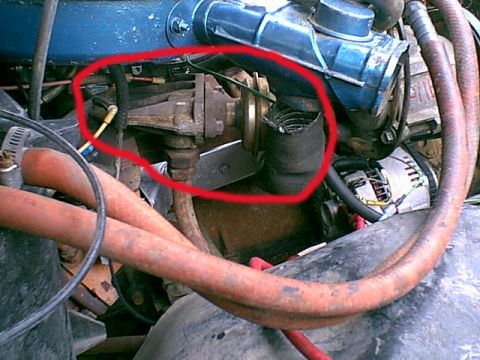

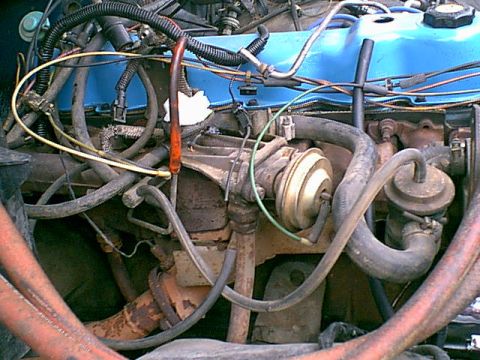

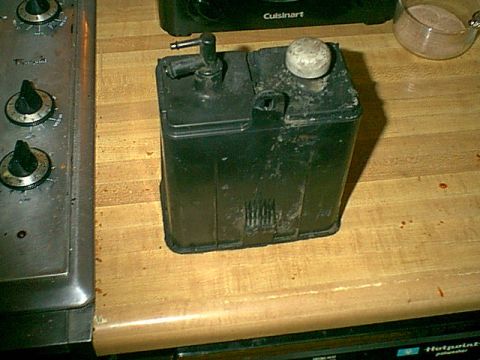

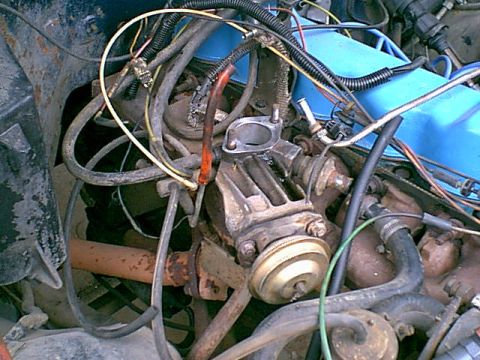

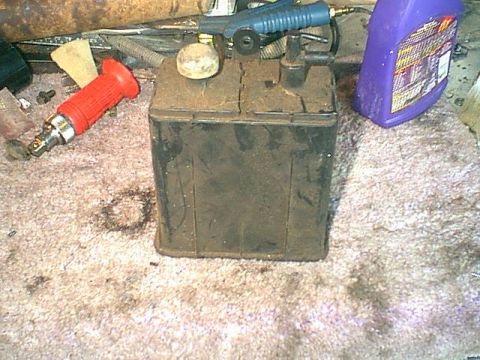

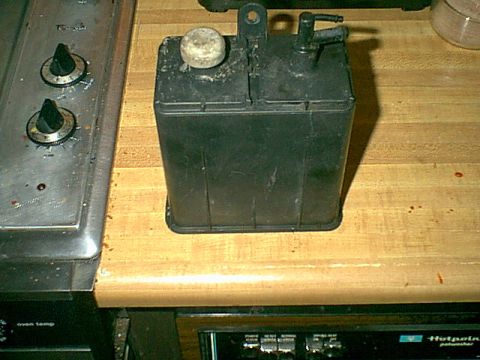

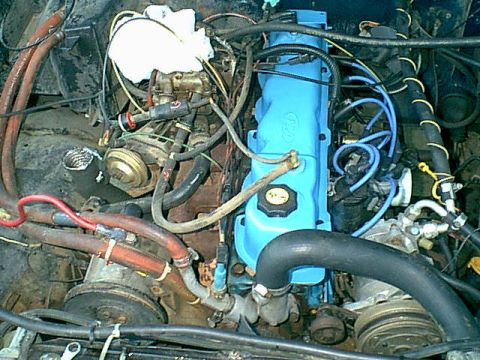

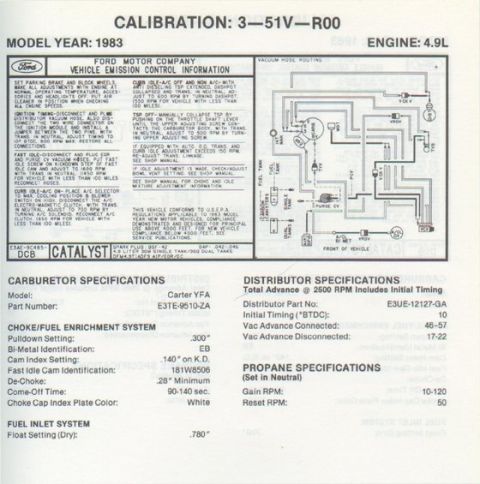

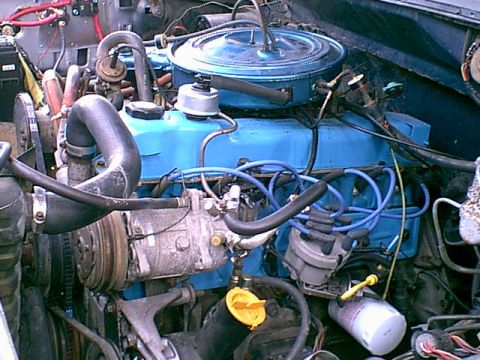

1983 Ford Bronco - I got lucky and found the last of the part number on the vaccum diagram sheet. the rest of the sheet was torn off. i made copies of this an… 1983 Ford Bronco - My charcole can mount was broken so i went to the junk yard and got a new one here it is as i brought it home. 1983 Ford Bronco - Here it is after some cleanup. this is the back side and you can see there is a tab at the bottom this lides into on the frame and the top… 1983 Ford Bronco - Here is the front side of the can. it is ready to go in. this connects to the vaper recovery line in the fuel tank and then to the perge va… 1983 Ford Bronco - good think i know a person in the smog business. i failed inspection due to the oil cap being wrong. so here is the new correct oil cap. 1983 Ford Bronco - I failed for a few reasons this truck is in smog confusion centrail. it is a fed 48 truck and someone added some fed 48 and some CA state s… 1983 Ford Bronco - Ok on the next trip i found the EGR valve was junk and needed to be replaced. here is the old bad valve. 1983 Ford Bronco - another view of the EGR ready to come out 1983 Ford Bronco - here is the bad EGR almost ready to come out. 1983 Ford Bronco - Here is the new EGR installed. i had to use the correct washer in the system. different calibrations used different thickness and different… 1983 Ford Bronco - i got luckey and found a FED 48 truck in the junk yard. i was missing the WOT system and the EGR tube was broked and patched many times so… 1983 Ford Bronco - Here is the Vac advance system a fast cleanup and it will be installed. 1983 Ford Bronco - This is the WOT (wide open throddle) system. I did not have this on the bronco. this was another junk yard find. 1983 Ford Bronco - Here is the WOT mount after being cleaned up and painted. 1983 Ford Bronco - here is the EGR system loop (there is the cruse control cut out switch in the upper right but that is not part of the EGR system) 1983 Ford Bronco - Ok the next failure was this temp vac tree. so i have to replace it now. 1983 Ford Bronco - Here is the new 4 port tree installed. 1983 Ford Bronco - Ok next failed reason was this is a FED 48 truck so it does not require an O2 sensor so i need to disable or remove this system. (i was goi… 1983 Ford Bronco - here is the new EGR and WOT lines installed 1983 Ford Bronco - Here is one reason it failed. the PO hollowed out the cat. 1983 Ford Bronco - OK the next failure reason the cat was not working correctly. (i found out the PO beat out all the center of the cat so i did not have one)… 1983 Ford Bronco - here is a side view of the new cat. 1983 Ford Bronco - you can see the catalyst in the cat with this pic. 1983 Ford Bronco - This is the heat stove. it is needed for the warm up in the smog system. mine was in ok shape but since i had to remove it to swap other pa… 1983 Ford Bronco - hee is a diferent view of the warm up stove. 1983 Ford Bronco - Here is the warm up stove all painted and reinstalled. looks good. 1983 Ford Bronco - I had a hard time timing this beast. there are timing markes on both sides of the motor. this is the drivers side as you stand in front of… 1983 Ford Bronco - to make things easier to time ford ran the maroks on the driver side up the timing coveryou can see the degrees on the top of the cover. 1983 Ford Bronco - after yanking out my hair and my mind i did find the driver side was the side to time off of, but the notch was not TDC on the pulley. ther… 1983 Ford Bronco - here is the hail line i used a paint pen to make it easier to see when timing the truck. 1983 Ford Bronco - here was one issue i had the notch did not line up with the pass side marks. i then found these marks on the pass side of the motor. and th…
