Aqua Magic Swap

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

25 photos
← Back to this vehicle

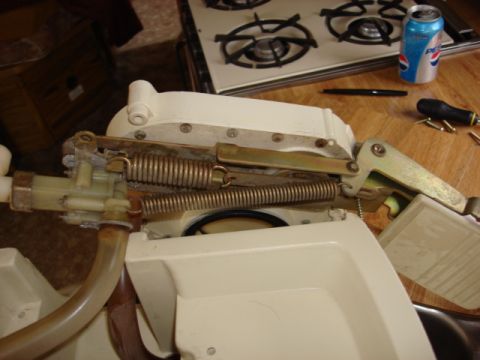

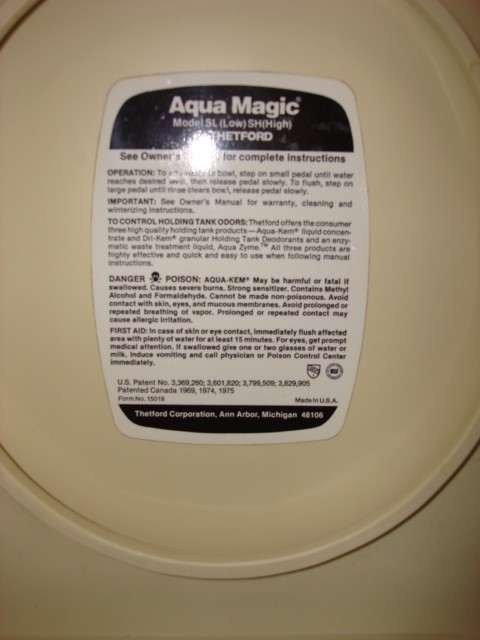

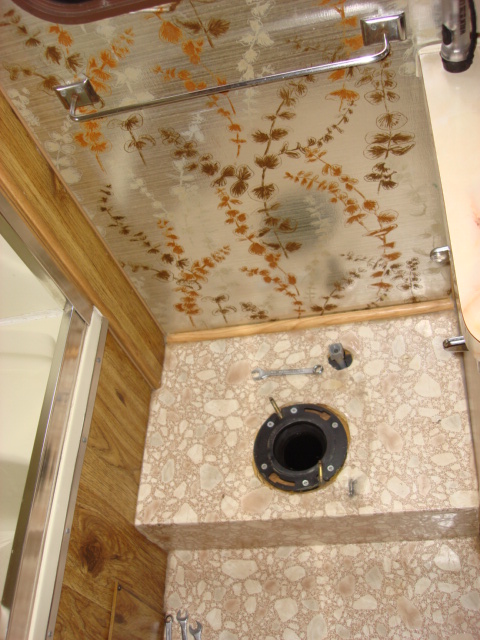

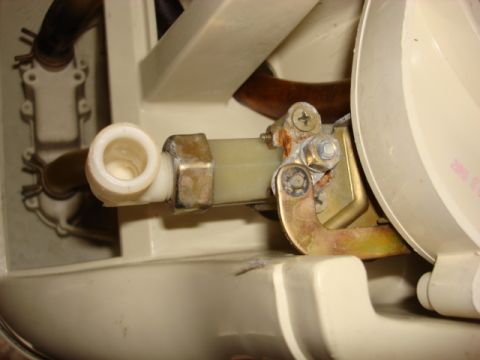

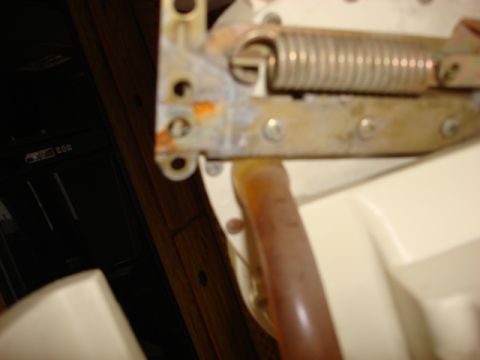

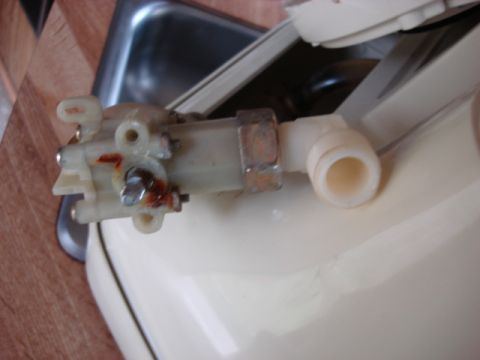

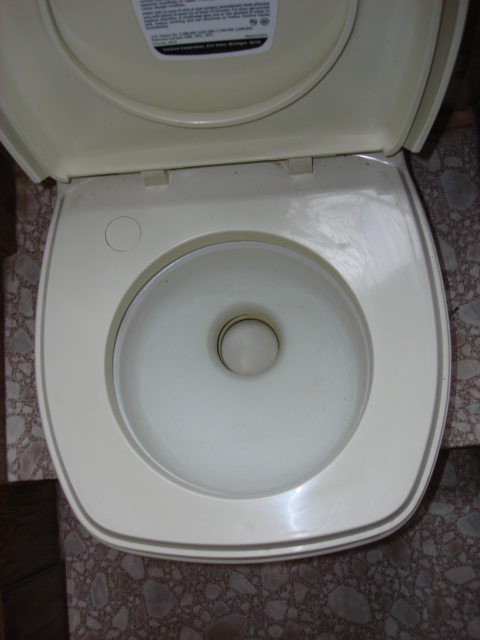

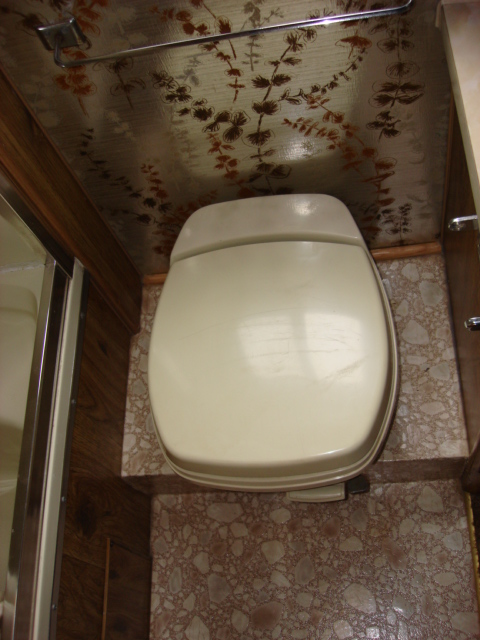

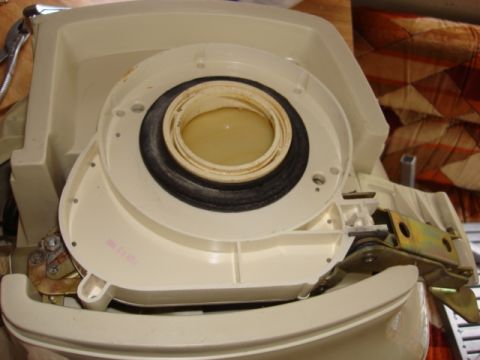

1983 Ford Bronco - This is a Thetford Aqua Magic Potty. it provided many good years of service. it sprung a leak while on the last camping trip. I had to remo… 1983 Ford Bronco - This is the printed sticker under the top lid. 1983 Ford Bronco - Here is the working end of the potty. There is 3 13mm nuts holding the potty to the floor. i removed them and the water supply line. 1983 Ford Bronco - after disconnecting the water supply and the 2 nuts the potty comes right off. 1983 Ford Bronco - This is the #1 failure part. they are readily avalable at most camping worlds or RV pats houses. 1983 Ford Bronco - if you have small hands you can swap the part without disassembly of the whole potty. here is the base 7 phillips screws. 1983 Ford Bronco - After removing the screws the lower half comes right up. i had to disconnect 2 hoses and the base is set aside. 1983 Ford Bronco - this is the supply valve. you can see 2 screws hold it in place. this is a common falure part. I bought a new valve for $35 camping world 1983 Ford Bronco - The view was just for me. i wanted to have a view of how the springs were connected so if they came apart i kne how to put back (they staye… 1983 Ford Bronco - this is the old valve and supply line. 1983 Ford Bronco - This is the new rebuild kit. all the parts are in one bag. you can see the part number 09868 on the top 1983 Ford Bronco - here is a closer shot of the part number 1983 Ford Bronco - Here is the old and new supply valves. 1983 Ford Bronco - here is the supply valve installed. if you undid the supply line and removed the nut and 2 screws you can replace the valve without pulling… 1983 Ford Bronco - I found a 2nd leake the vacuum break. it is in the tank in this shot. bad news was 2 weeks to get one (discontined gasket) i needed to get… 1983 Ford Bronco - My bad news was my potty mount was for only one mounting and not going to work with the new potty. the mount is held in place with 6 screws… 1983 Ford Bronco - I took my dramil and cut the flange top ring. 1983 Ford Bronco - here is the new flange installed. it was called an inside slider flange and purchased from Home Depot for $4. i glued and then screwed the… 1983 Ford Bronco - Here is the bottom of the new potty. I instaled the new bottom gasket. 1983 Ford Bronco - I had to extend the water supply line 6" for the new potty. i got the parts from Home Depot and Lowes. 1983 Ford Bronco - Here it i all installed and ready for use. 1983 Ford Bronco - Here is the side front view. looks almost like the old one but no foot pedals 1983 Ford Bronco - Here is the working half and it is ready for work. 1983 Ford Bronco - Here is the stamped label under the top lid. 1983 Ford Bronco - Allnew pottys come with a spray wand. i just installed the mount on the wall and put the wand in the mount. all done.
