Mustang GT instrument cluster converson

From 1996 Mercury Grand Marquis “The "LSE S/C"” — documented by Drock96marquis.

18 photos
← Back to this vehicle

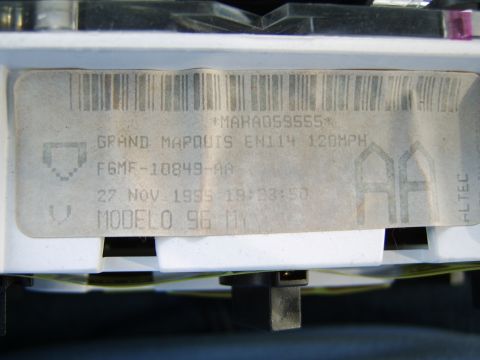

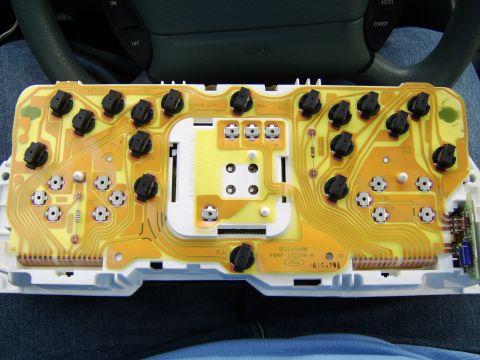

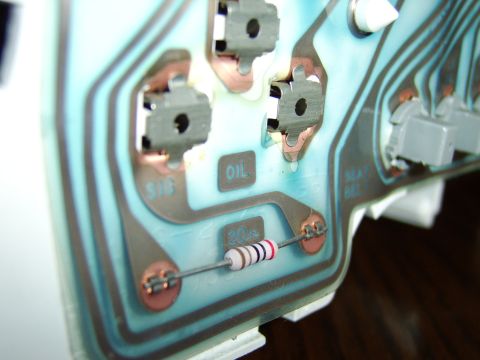

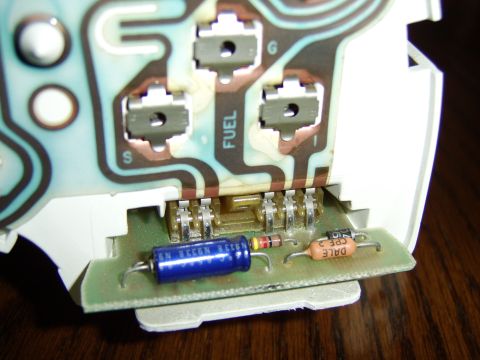

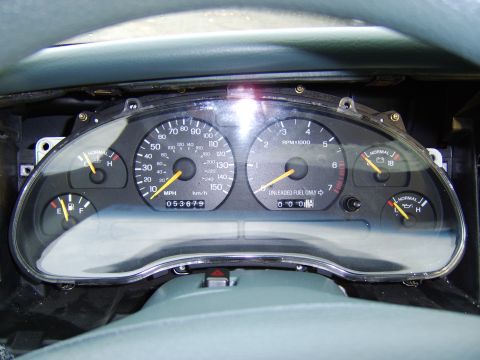

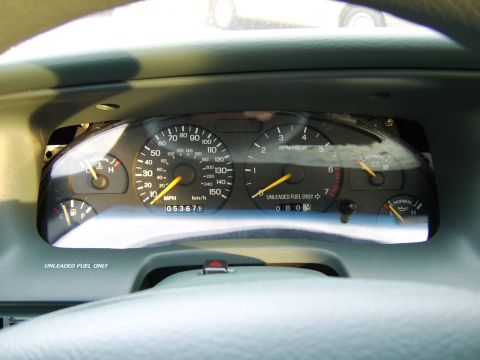

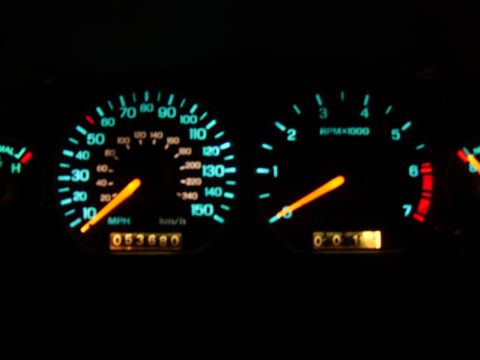

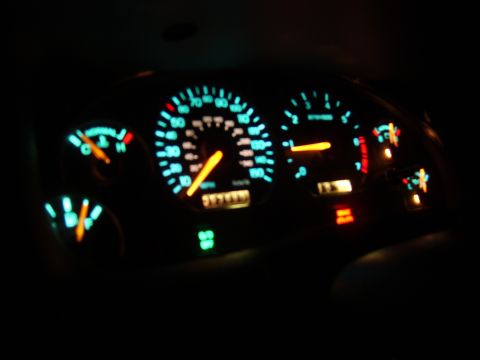

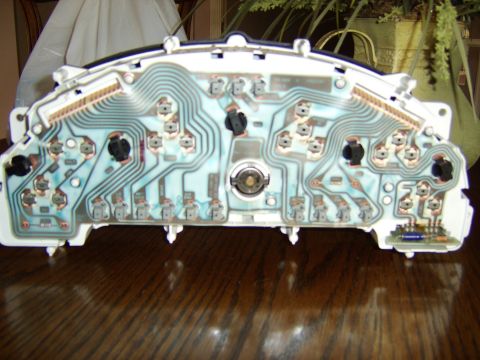

1996 Mercury Grand Marquis - View of the backside of the Mustang Cluster From a 94-95 Mustang GT 1996 Mercury Grand Marquis - The Mustang cluster uses the external resistor. If I had the functional oil pressure switch, I would've jumped this resistor to make the ga… 1996 Mercury Grand Marquis - The anti-slosh. The unused trace is for a low fuel light. I may add a small yellow LED to serve as this. In order to let the cluster fit, I… 1996 Mercury Grand Marquis - View of the backside of my stock cluster. In perfect shape. That black residue you see is just goop from the harness tape ford uses. You ca… 1996 Mercury Grand Marquis - View of the stock cluster label. 1996 Mercury Grand Marquis - Stang cluster sitting in the stock opening, after being cut down Not mounted in any fashion, working on brackets 1996 Mercury Grand Marquis - Testing a bracket set. Mounted. Kind of. Crooked as hell. Had to take it out and try again. 1996 Mercury Grand Marquis - I got it trimmed out tonight. It was too dark to get any good pics, I'll take some more soon. Here are some night shots 1996 Mercury Grand Marquis - The illuminated instrument cluster shows a speedometer and tachometer with glowing orange needles against a dark background. 1996 Mercury Grand Marquis - The illuminated dashboard gauges glow in the dark, showing speed, RPM, fuel level, and temperature. 1996 Mercury Grand Marquis - The illuminated dashboard gauges display speed, RPM, fuel level, and temperature, with warning lights illuminated. 1996 Mercury Grand Marquis - The following pictures were after more tweaks. I repositioned the cluster higher up. But, I put it too high now. Ugh. Needs a custom made d…
