LF Window Regulator Replacement

From 1996 Mercury Grand Marquis “The "LSE S/C"” — documented by Drock96marquis.

11 photos
← Back to this vehicle

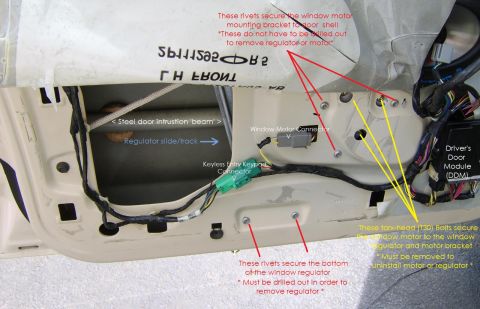

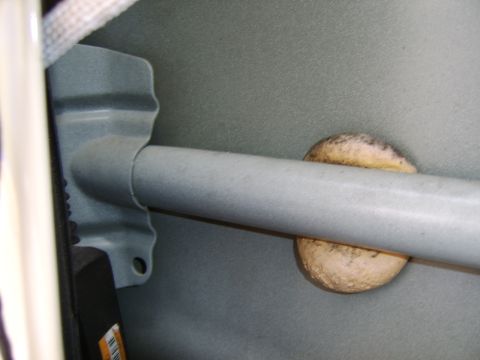

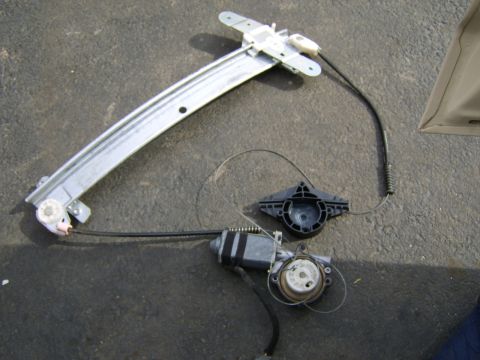

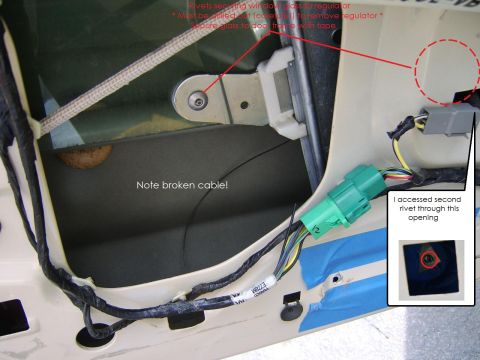

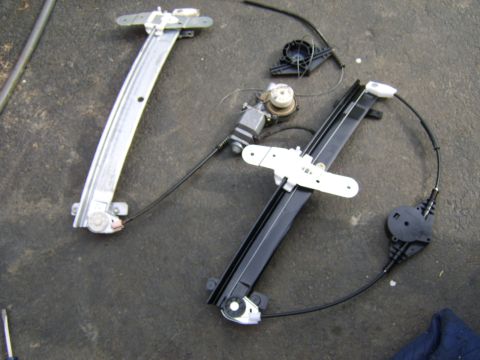

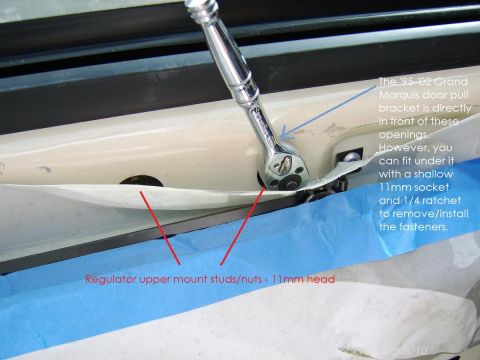

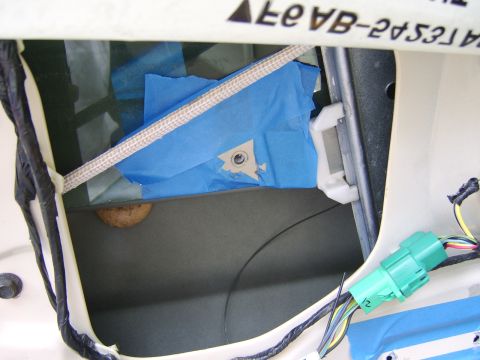

1996 Mercury Grand Marquis - The driver's window regulator decided to snap while moving/driving the car for the first time this year. A little frustrating, but the repa… 1996 Mercury Grand Marquis - An overview of what had to be removed / drilled out to remove the regulator. The window glass must also be removed, which can be done after… 1996 Mercury Grand Marquis - The rivets which attach the glass to the regulator sliding mechanism are the most difficult to remove. This position worked out well for me. 1996 Mercury Grand Marquis - Stupid door pull bracket in the way, but a shallow 11mm socket with a ratchet made it a minor inconvenience. non-issue for CV owners. 1996 Mercury Grand Marquis - A close-up of the door beam pictured and labeled above. The small black part in the bottom left is the lock actuator. 1996 Mercury Grand Marquis - Drilling out the bottom rivets. Once you drill them out, before using a hammer and punch STABILIZE the backside of the glass with some sort… 1996 Mercury Grand Marquis - The bottom rivet on the other side removed. As mentioned in an earlier pic, this hole is where the window motor wiring passes through and i… 1996 Mercury Grand Marquis - Old and new. The new regulator is an aftermarket Dorman part. Not my first choice, and I'd advise you use OEM/Ford - though it seems just f… 1996 Mercury Grand Marquis - Snaking the new window regulator in. The replacement was secured using 1/4" hardware (bolts, washers, locknuts) rather than rivets. DO… 1996 Mercury Grand Marquis - With the glass removed, it's an ideal time to polish it out to remove any water spots/etching. I've used both of these products with good r… 1996 Mercury Grand Marquis - A picture speaks a thousand words. This little image from the service manual shows exactly how you need to rotate the glass while lifting i…
