D60 SAS

From 1992 Ford Bronco “Truck”, documented by woodydog.

52 photos
← Back to this vehicle

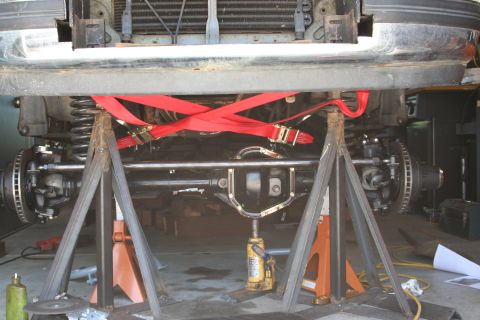

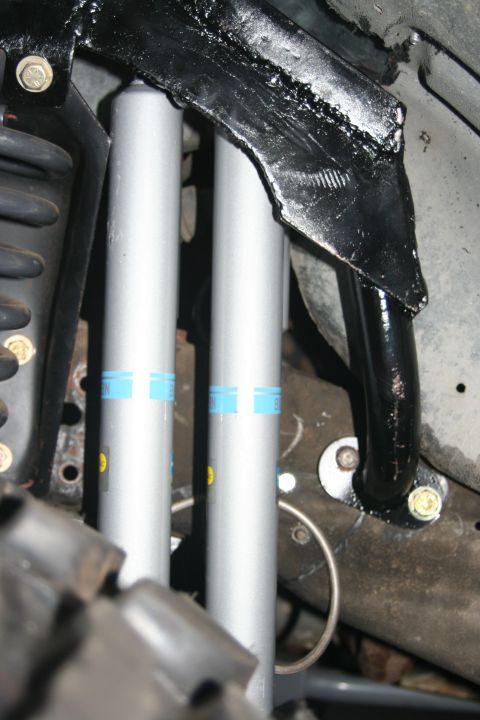

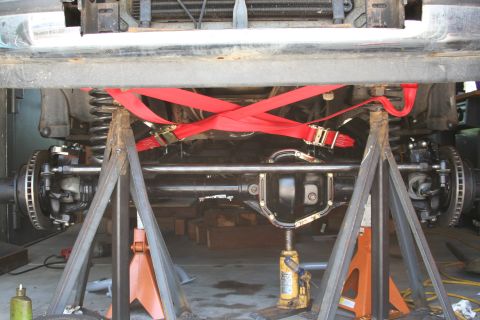

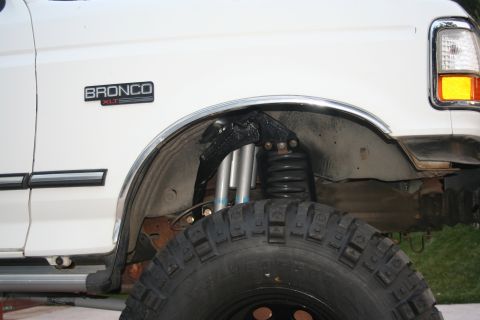

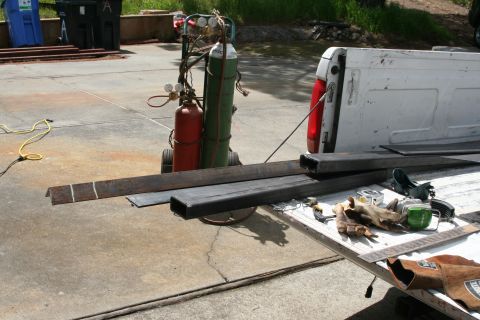

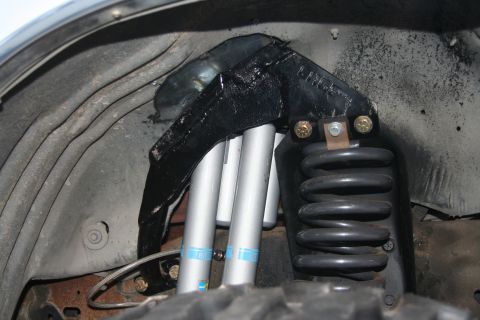

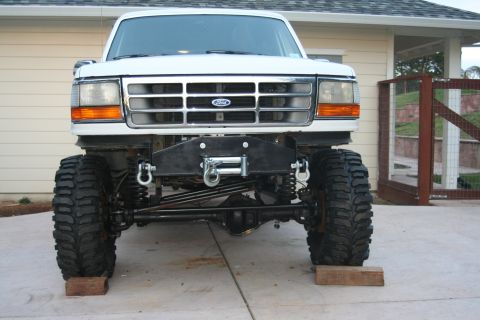

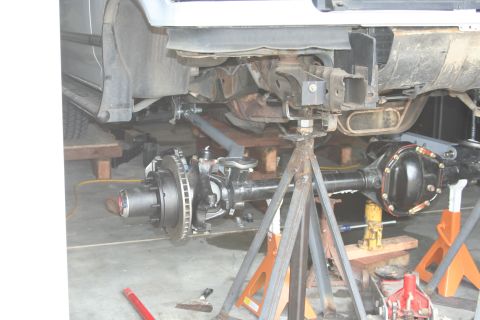

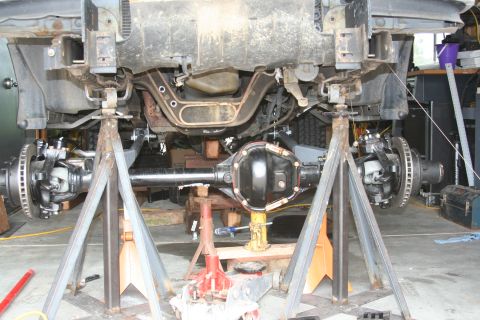

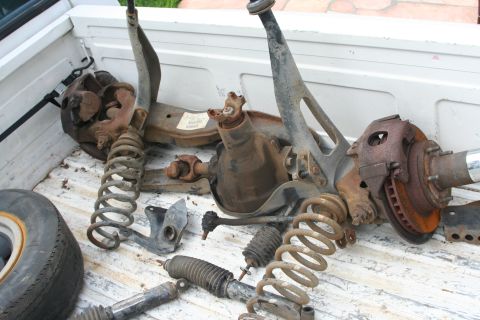

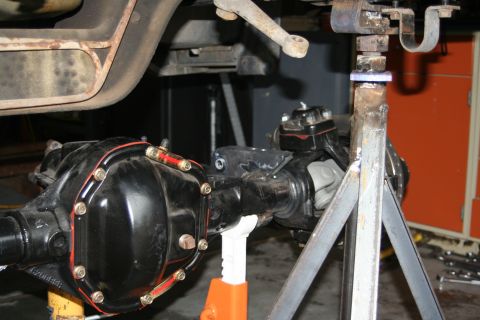

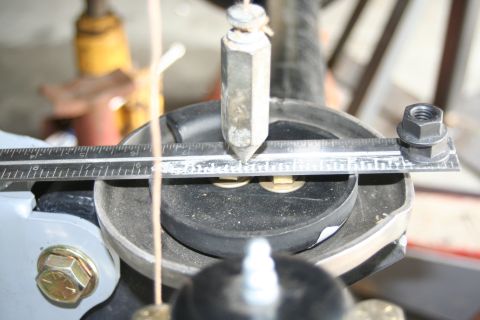

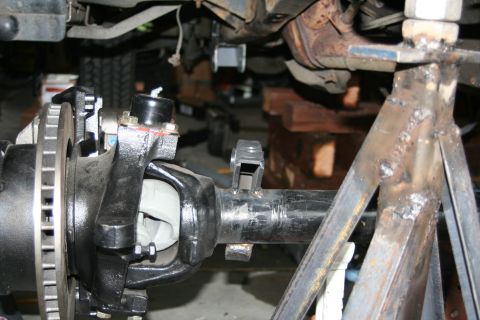

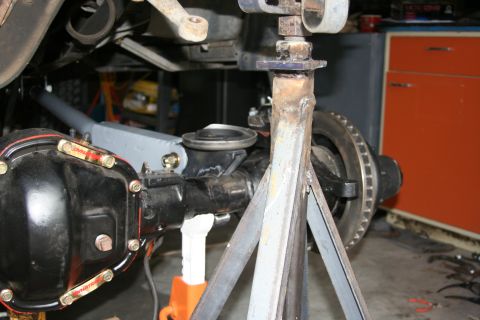

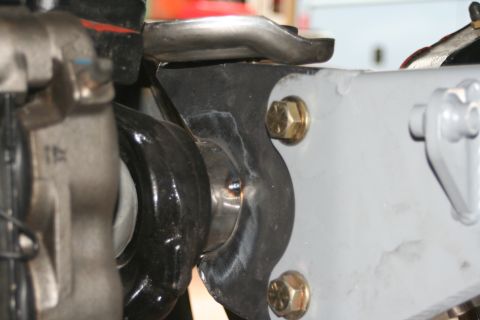

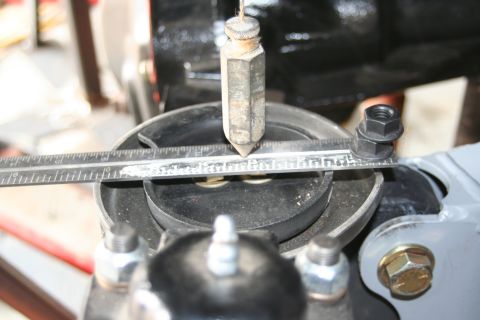

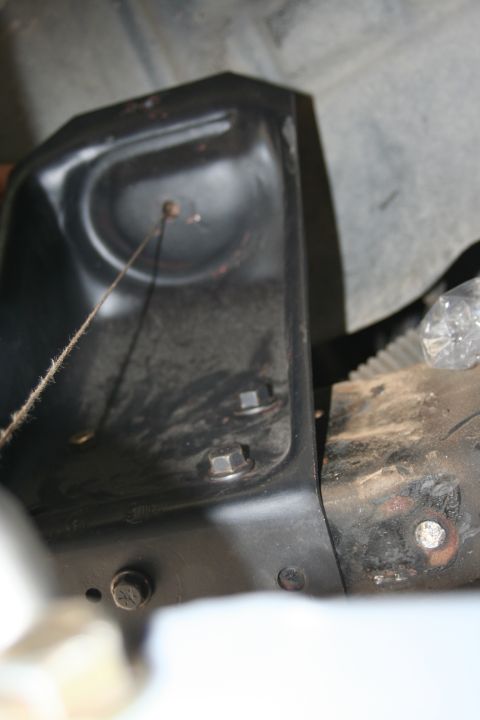

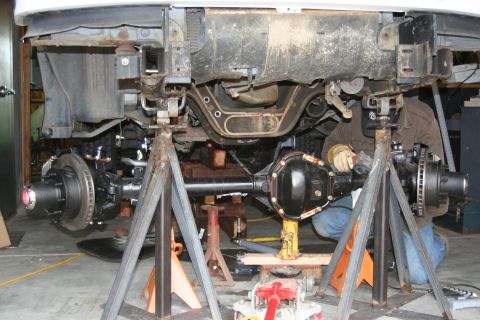

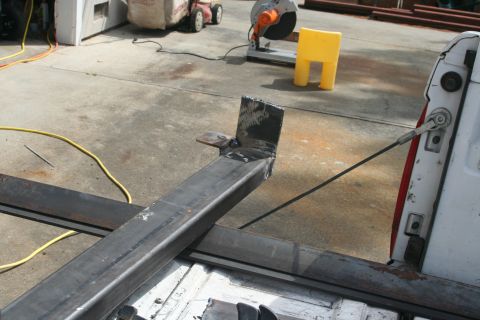

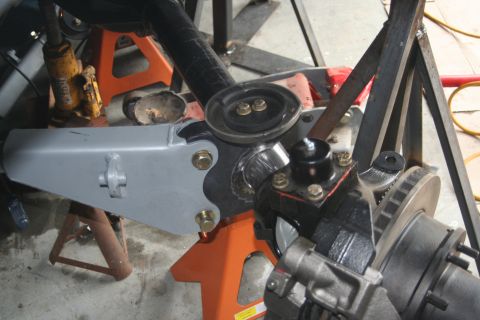

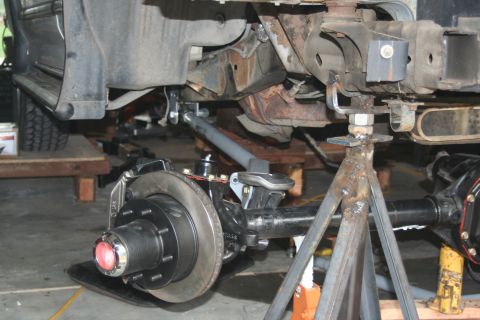

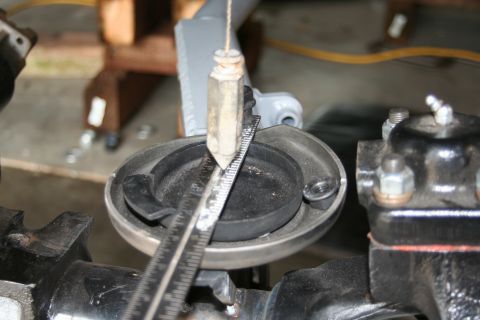

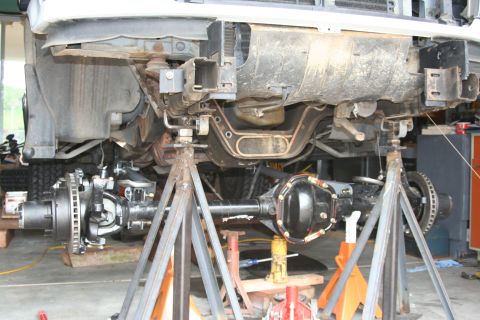

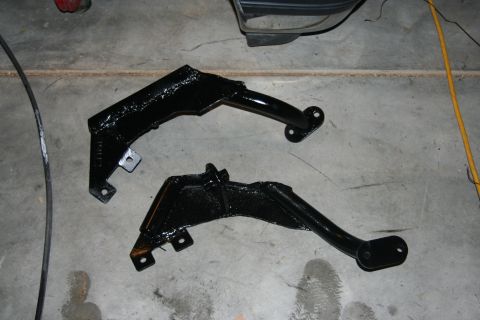

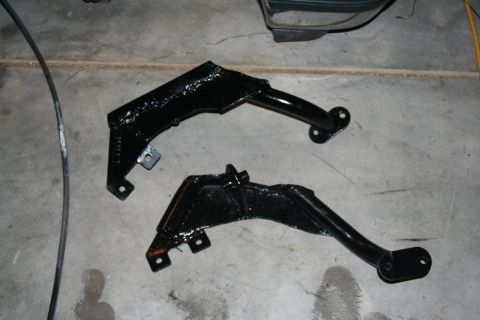

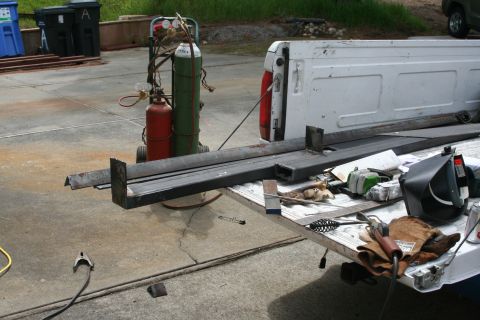

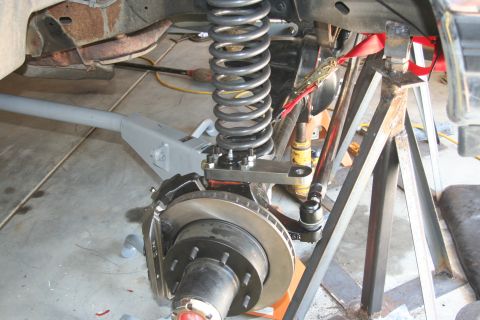

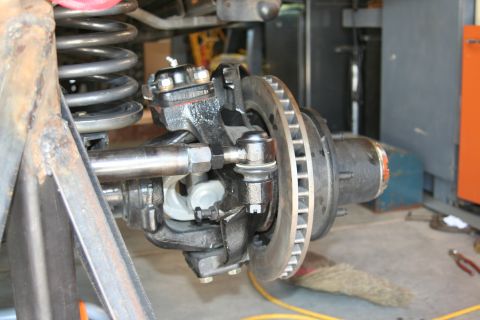

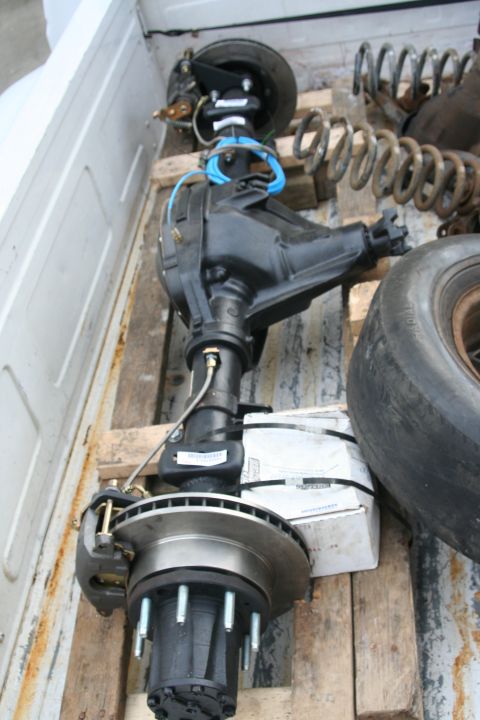

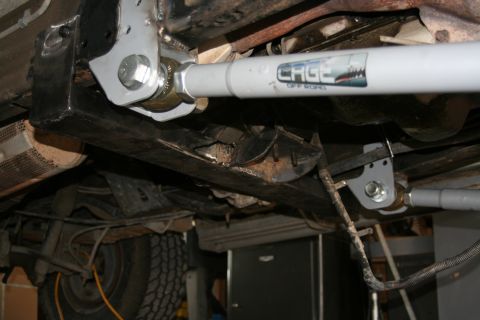

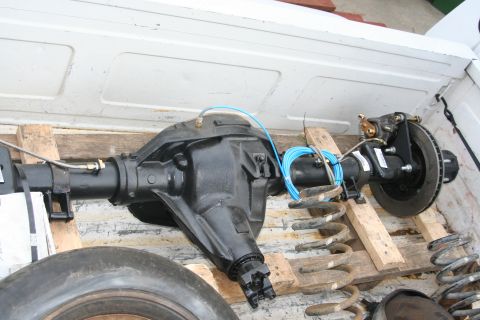

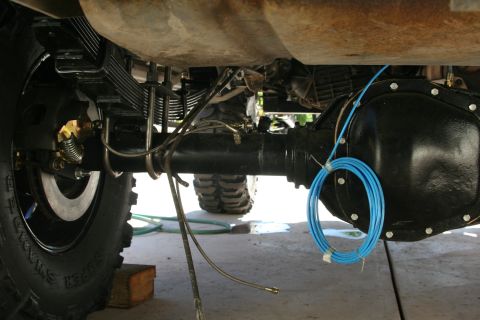

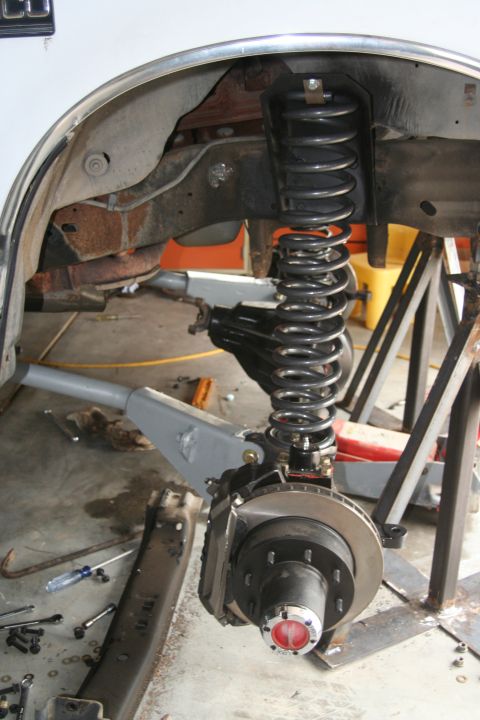

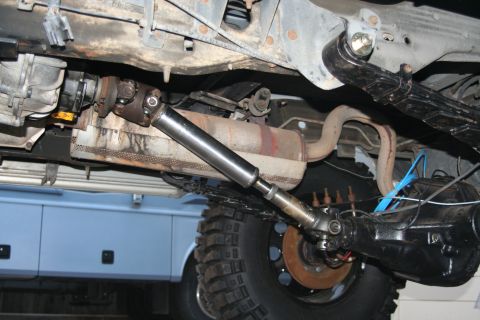

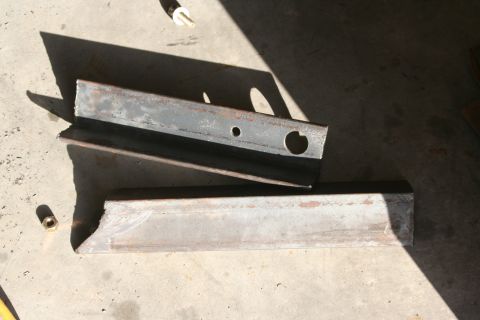

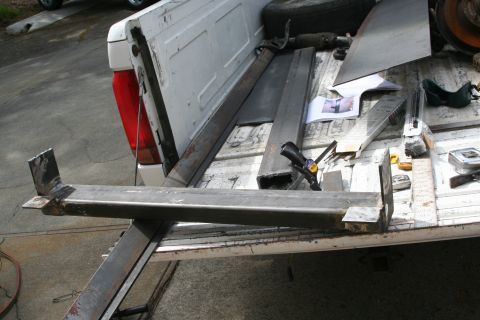

1992 Ford Bronco - Starting 1992 Ford Bronco - Old TTB now off Bronco 1992 Ford Bronco - old ttb gone - d60 getting rady 1992 Ford Bronco - the 79 coil towers - about 1.125 " forward -see right up aginst the xmember rivet 1992 Ford Bronco - d60 & cage arms 1992 Ford Bronco - looking down the arm - rear is up to frame 1992 Ford Bronco - rear of arm - note had to remove trany X member - I will be fabricating a new x member - another item on the "to do" list 1992 Ford Bronco - see both arms - note wooded cradle holding transfer case up 1992 Ford Bronco - grinding on the d60 for some clean weld spots - to weld the cage brackets 1992 Ford Bronco - cage arm - just sitting on axle - this is during the measureing ten times prior to weld - just lining things up 1992 Ford Bronco - another view of the bracket prior to weld - still measuring 1992 Ford Bronco - cage bracket - tac weld on driverside 1992 Ford Bronco - driverside - front view tac weld 1992 Ford Bronco - passenger side 1992 Ford Bronco - another driverside 1992 Ford Bronco - use to center bottom coil plate 1992 Ford Bronco - this is the pass side - 1 7/8 from front to center - 1 11/16 from rear (as the front will shorten as the arm needs to come up 2 more inches 1992 Ford Bronco - front view of pass side - spring is in center, good thing 1992 Ford Bronco - drivers side - side view - same measure as pass side 1992 Ford Bronco - drivers side - front view spring in center 1992 Ford Bronco - view - d 60 connected to arms 1992 Ford Bronco - front view 1992 Ford Bronco - front 1992 Ford Bronco - See the 2x4 cut to size - outside frame to outside fram - mine was 37 1/4 " also see angle marked to be cut for bottom frame rail mount 1992 Ford Bronco - here welded the 1/4 by 4" ends on - later these will bolt to side of frame 1992 Ford Bronco - here welding on the 21/2 angle - this will bolt to the bottom of the frame rail 1992 Ford Bronco - here it is both sides welded up now I need to drill out and test fit for trams mount location 1992 Ford Bronco - Just finished the trans cross member 1992 Ford Bronco - Close-up of a vehicle's front suspension and brake system, showing the coil spring and brake rotor. 1992 Ford Bronco - The rear end came in today 1992 Ford Bronco - Differential axle assembly with brake components and springs are visible in the back of a white pickup truck. 1992 Ford Bronco - new tie rod 1992 Ford Bronco - Undercarriage view of a 1992 Ford Bronco, showing the front axle and suspension system supported by jack stands. 1992 Ford Bronco - This image shows a close-up of a vehicle's front axle assembly, including the steering components and brake rotor. 1992 Ford Bronco - Close-up view of a vehicle's front suspension system, showing modified components. 1992 Ford Bronco - start of my track bar mount 1992 Ford Bronco - This lifted 1992 Ford Bronco features large off-road tires and a prominent side profile. 1992 Ford Bronco - Close-up of rear axle and suspension parts, showing leaf springs and brake assembly. 1992 Ford Bronco - This lifted 1992 Ford Bronco is elevated on wooden blocks, its modified suspension and off-road tires. 1992 Ford Bronco - A white 1992 Ford Bronco SUV is shown with a lifted suspension and oversized tires in front of a residential garage. 1992 Ford Bronco - Two black suspension brackets are shown on a concrete floor, likely for a vehicle modification project. 1992 Ford Bronco - Two newly painted metal brackets are laid out on a concrete surface, possibly for installation. 1992 Ford Bronco - White 1992 Ford Bronco modified with a lift kit and oversized tires. 1992 Ford Bronco - This heavily modified Ford truck features an aftermarket winch and suspension system, obscuring its original model year. 1992 Ford Bronco - Close-up view of the underside of a vehicle, focusing on the mechanical components of the drivetrain. 1992 Ford Bronco - Close-up of a modified front suspension system dual shocks and a heavy-duty coil spring, with "SUPERMOTORS" branding visible. 1992 Ford Bronco - Close-up of the front fender and suspension system on a 1992 Ford Bronco XLT. 1992 Ford Bronco - This image shows aftermarket Bilstein shocks installed on a vehicle's suspension system. 1992 Ford Bronco - A brass proportioning valve with labels like "FI", "RI", "RO", and "FO" is shown resting on a blue Bendix brake parts box. 1992 Ford Bronco - A blue and white Bendix Master Cyl box with part number 12197 is held by a hand. The box shows "by Honeywell" and contains "1 EA" made in C… 1992 Ford Bronco - A close-up view of the brake booster and master cylinder assembly in the engine bay of a vehicle. The black brake booster is prominent, wit… 1992 Ford Bronco - The image shows a close-up view of the brake master cylinder and brake booster assembly in a vehicle engine bay. The translucent plastic ma…
