MMAirbox/PI Zip

From 2000 Ford Crown Victoria “BricVic”, documented by jcg1.

14 photos
← Back to this vehicle

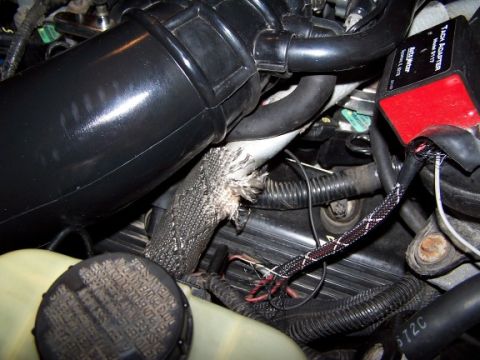

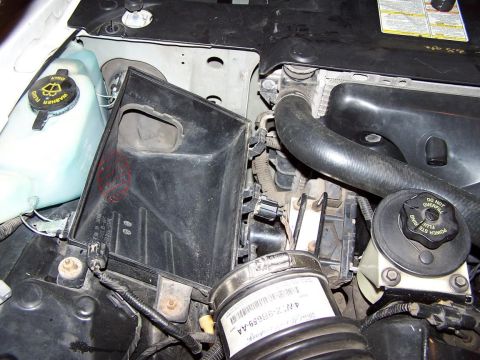

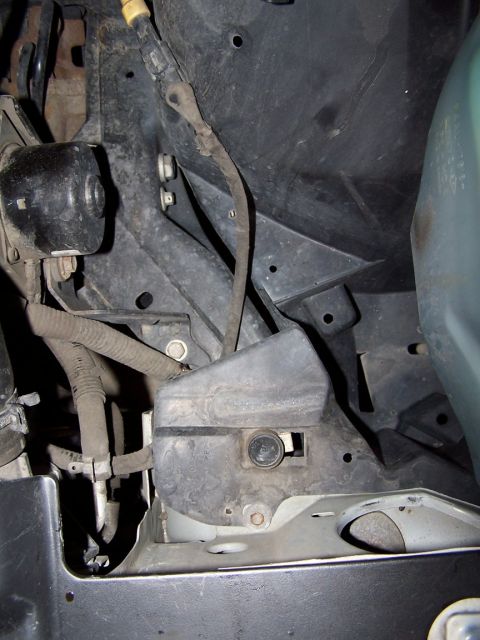

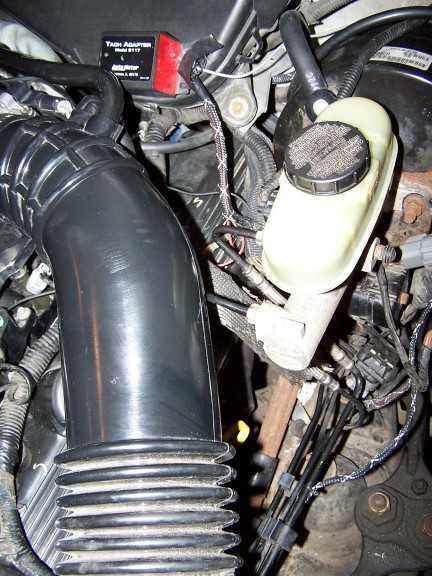

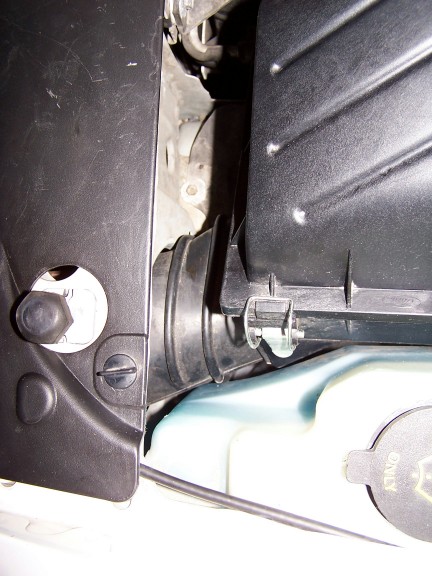

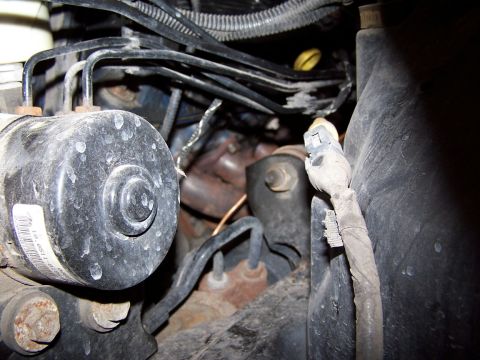

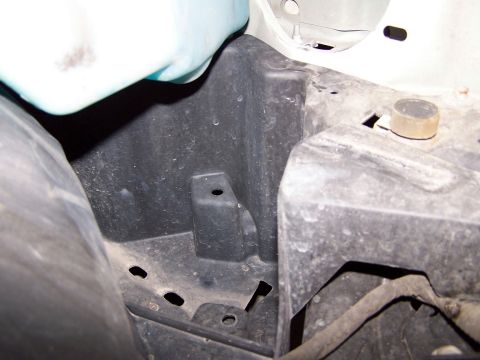

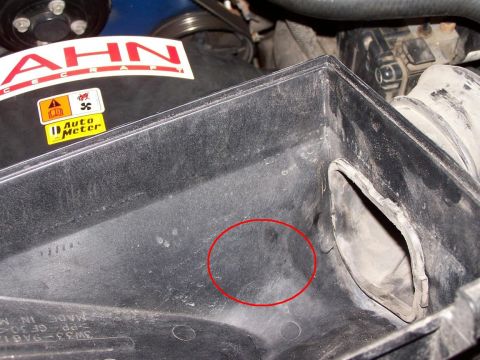

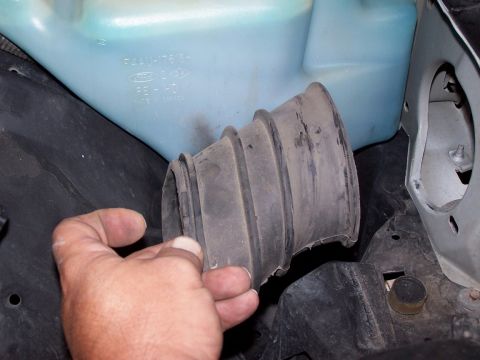

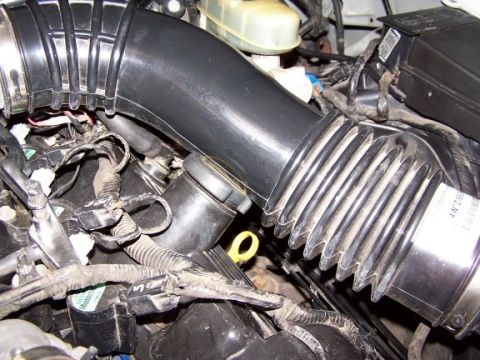

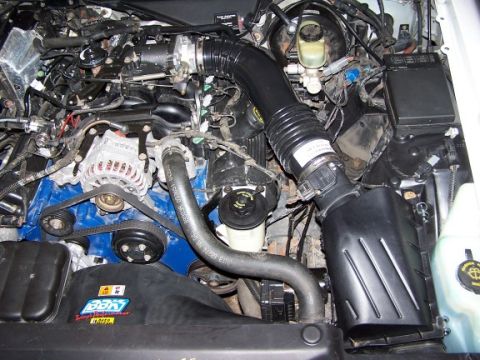

2000 Ford Crown Victoria - The engine bay of a 2000 Ford Crown Victoria is captured from a close-up perspective, detailing various components. 2000 Ford Crown Victoria - Close-up view of a vehicle's engine compartment, showing various mechanical components and wiring. 2000 Ford Crown Victoria - Larger snorkel into nose 2000 Ford Crown Victoria - Interference with oil filler tube 2000 Ford Crown Victoria - Clearance with EGR tube, PCV valve/hose 2000 Ford Crown Victoria - Clearance with brake lines 2000 Ford Crown Victoria - Schematic showing cold-air intake routing including cone filter, MAF and engine tray sealed to a cowl-scoop hood. 2000 Ford Crown Victoria - Location of airbox 2000 Ford Crown Victoria - Area directly below airbox Cutting this would theoretically allow access, via tubing, to air from in front of the tire/behind bumper 2000 Ford Crown Victoria - View from opening in radiator support (cold-air snout on airbox) at level of airbox. Oh look, what's that visible in the background? Those… 2000 Ford Crown Victoria - MM Airbox snout. This protrudes into radiator support space and draws air from ahead of the engine compartment/fan wash. 2000 Ford Crown Victoria - Airbox bottom installed 2000 Ford Crown Victoria - Airbox bottom installed with access location marked 2000 Ford Crown Victoria - Airbox bottom with location where access hole would need to be placed.
