Album section

Motor

From 1996 Ford Bronco, documented by Greg Rice.

39 photos
← Back to this vehicle

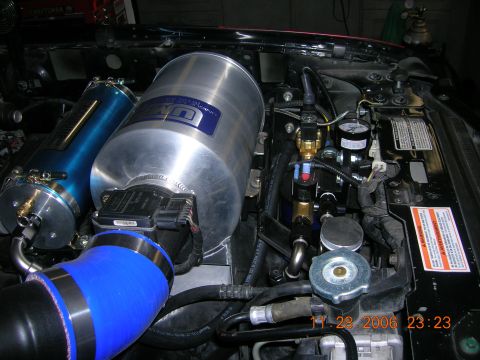

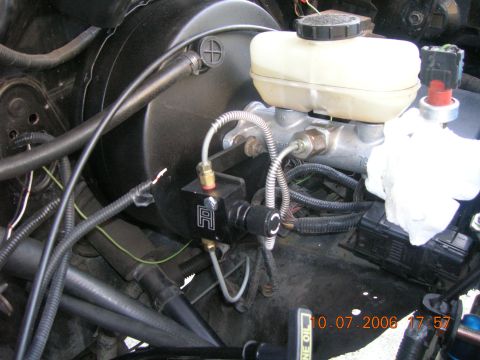

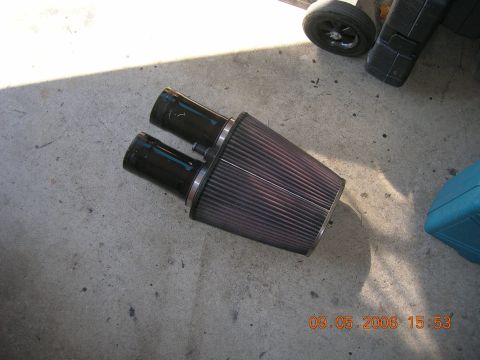

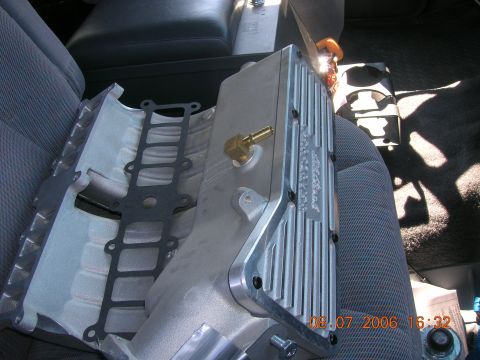

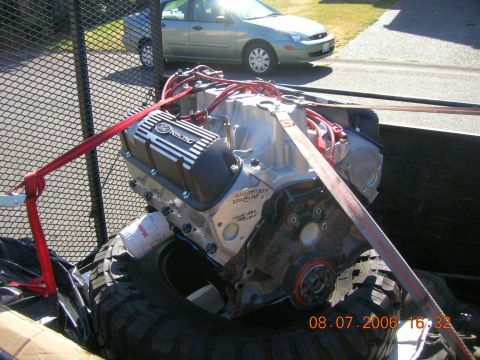

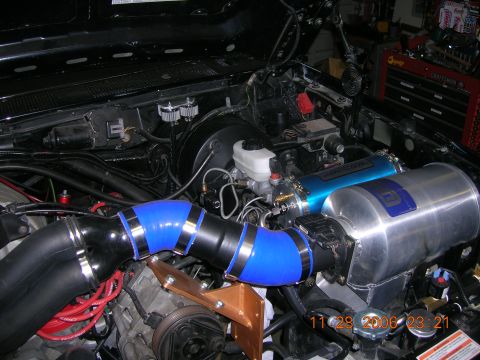

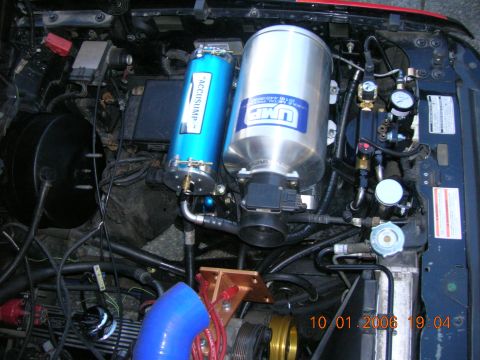

1996 Ford Bronco - Bringing the 408 home 1996 Ford Bronco - E-brock upper 1996 Ford Bronco - A Ford Racing engine is secured with straps in a trailer, with a car visible in the background. 1996 Ford Bronco - Freshly built V8 engine strapped down in a pickup bed on a sunny lawn, wearing black finned Ford Racing valve covers, a polished aluminum i… 1996 Ford Bronco - A freshly assembled Ford V8 hanging from an engine hoist chain in a garage, wearing black Ford Racing finned valve covers, a white Motorcra… 1996 Ford Bronco - Freshly assembled Ford small-block V8 resting on a mud tire in a garage, hanging from a hoist chain. It wears black Ford Racing finned valv… 1996 Ford Bronco - UMP air box custom made for 80mm mass air flow meter. 1996 Ford Bronco - Back in place 1996 Ford Bronco - Dual intake air filter with black pipes and a purple filter element on concrete. 1996 Ford Bronco - Accusump, Canton Remote Filter, Custom UMP Filter 1996 Ford Bronco - Custom engine modifications are visible in this engine bay, including an Accusump and UMP air intake. 1996 Ford Bronco - Close-up view of the brake system components, including the master cylinder and booster, with a date stamp of 10.07.2006. 1996 Ford Bronco - Engine bay of a black Ford with the hood up, showing a custom cold-air intake made of black tubing joined by blue silicone couplers and pol… 1996 Ford Bronco - Dual Optima batteries are installed in the engine bay, connected by red cables and a solenoid. The date stamp reads 10.07.2006. 1996 Ford Bronco - Chrome exhaust manifold and suspension components are visible in this close-up shot. 1996 Ford Bronco - Engine bay showing a dual-battery setup with two blue-top batteries, gold-plated top-post terminals and heavy 2-gauge red cables, plus a bl… 1996 Ford Bronco - Vehicle engine bay shows an ARB air compressor, battery, and various electrical connections. 1996 Ford Bronco - Custom engine bay modifications include a large air intake system with blue silicone hoses and a prominent silver air filter housing. 1996 Ford Bronco - Engine-bay corner detail showing a polished aluminum air tank with a blue Unified/UMI-style decal, a blue anodized cylinder and canister at… 1996 Ford Bronco - Close-up down into an engine bay showing a red MSD distributor cap at lower left, red plug wires routed over a black finned valve cover, an… 1996 Ford Bronco - Engine bay wiring and dual battery setup, dated November 28, 2006. 1996 Ford Bronco - A pair of electric cooling fans are shown mounted on a shroud, likely for an automotive application. 1996 Ford Bronco - bracing to tie fan shroud to the core support 1996 Ford Bronco - Close-up view of a vehicle's engine bay, showing various components and a date stamp. 1996 Ford Bronco - Close-up view of an engine bay dual batteries, a fuse box, and extensive wiring, with a timestamp of 04/09/2007. 1996 Ford Bronco - The engine bay features a radiator, blue and black hoses, and various engine parts, with a timestamp of 04.09.2007. 1996 Ford Bronco - Intake to firewall 1996 Ford Bronco - A fabricated sheet metal panel or bracket lying on a concrete floor, featuring four large flanged round holes in a row plus a smaller circu… 1996 Ford Bronco - A black finned transmission or engine oil cooler mounted on a black steel bracket with four large circular cutouts and bolt holes, showing… 1996 Ford Bronco - Front-end view with the hood open and grille/bumper cover removed, exposing dual black cooling cores (radiator/transmission cooler and A/C… 1996 Ford Bronco - Two black stacked-plate transmission oil coolers laid side by side on a concrete floor, the larger unit on the right roughly twice as thick… 1996 Ford Bronco - Oil cooler and fan assembly, likely for an engine swap or upgrade. 1996 Ford Bronco - An electric cooling fan is attached to an oil cooler assembly, resting on a concrete surface. 1996 Ford Bronco - Close-up of a vehicle's engine bay, revealing the radiator, fan, and other components. 1996 Ford Bronco - Front view of a black Ford truck with the hood open, revealing the grille and a winch mounted below. 1996 Ford Bronco - Front view of a 1996 Ford Bronco grille, showing fans and a winch mechanism. 1996 Ford Bronco - Autofab Motor Mounts 1996 Ford Bronco - Close-up of custom-fabricated metal brackets, likely for automotive use, on a workshop surface. 1996 Ford Bronco - Custom metal brackets are shown on a workbench, with a date stamp of 10.01.2007 visible in the lower right corner.
