twin sticks

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

18 photos
← Back to this vehicle

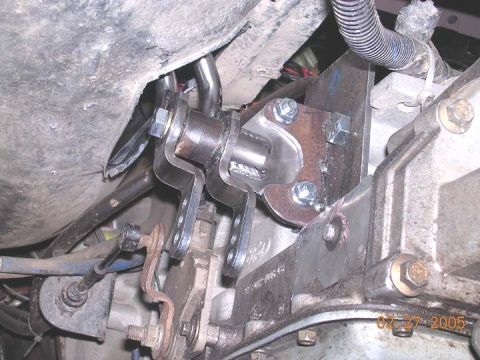

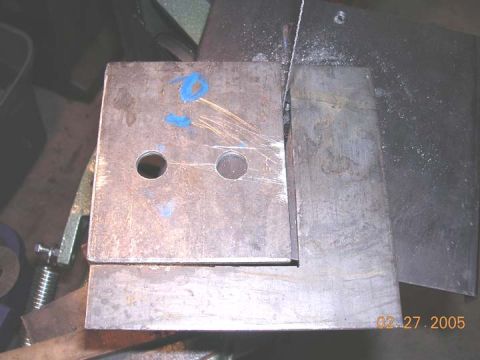

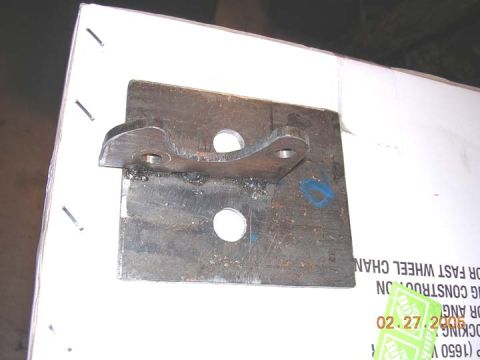

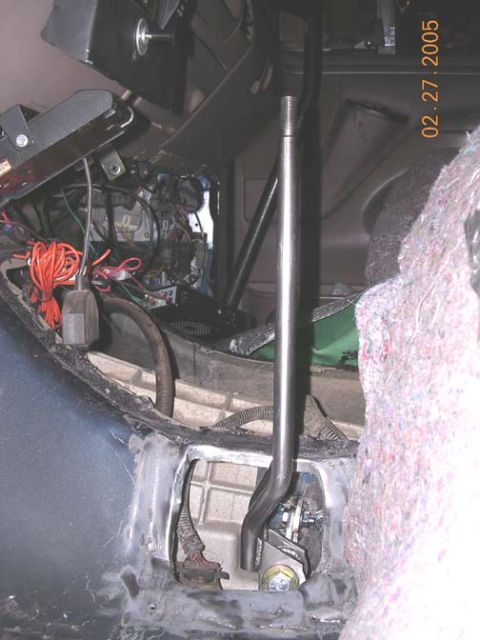

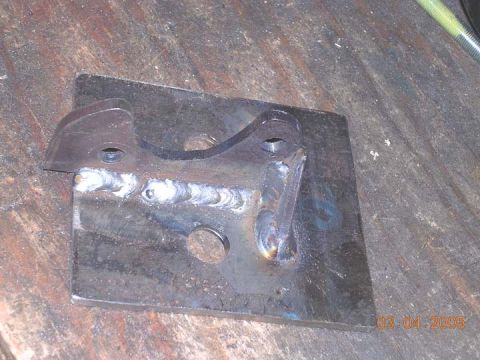

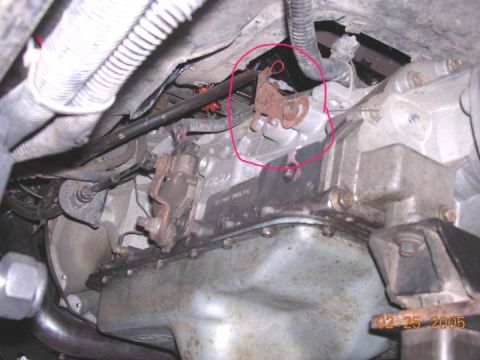

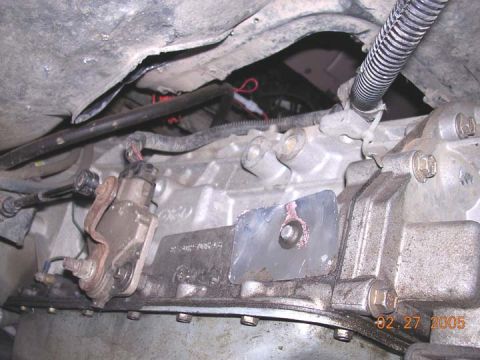

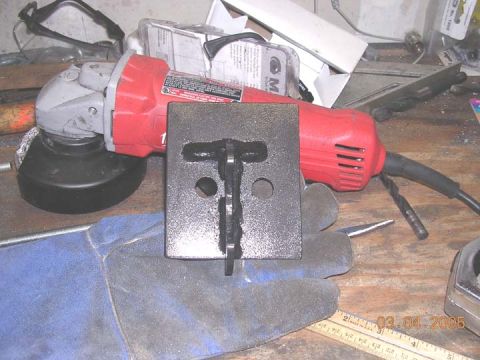

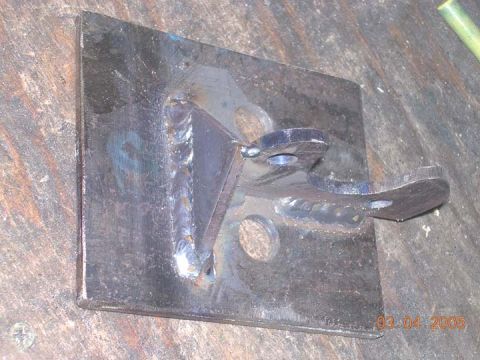

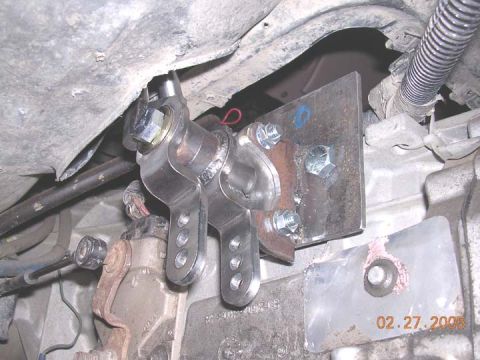

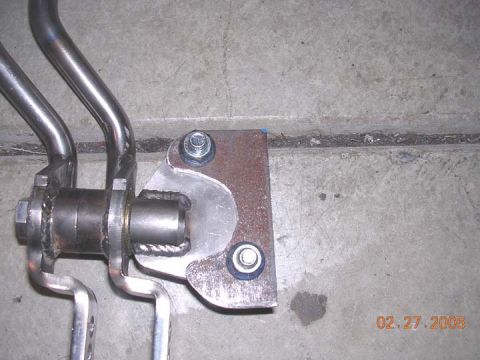

1994 Ford Bronco - the bronco came with a hole in the floor, but no where to mount a shift lever. This piece of metal apparently serves no purpose, so I remov… 1994 Ford Bronco - this is the bracke removed, and ready for me to take over. 1994 Ford Bronco - Cut from 1/4" plate, this will be the mounting piece to the tranny 1994 Ford Bronco - The ORD sticks came with an 'ear'shaped mounting bracket, esigned to mount to the bolts on the klune. ( This would have been great if the E… 1994 Ford Bronco - the bracket tacked together, awaiting the rest of the install before final weld. 1994 Ford Bronco - bracket and sticks mounted 1994 Ford Bronco - this took lots of "in and out" measuring, marking, remeasuring, etc and took a full day. But the finalproduct came out pretty well. 1994 Ford Bronco - heres where the sticks pop out. Getting that cover off was HARD. I dont know what kinda glue Ford used, but it is strong. Ill prolly bend t… 1994 Ford Bronco - bracket welded up with a small gusset plate. It was recommended that the sticks get some force against them when the tcase binds up. This s… 1994 Ford Bronco - yeah, i know, my welds suck but it should hold 1994 Ford Bronco - bracket finished and painted. ready for install. The grinder gives an idea of how large the bracket is. 1994 Ford Bronco - went to pick and pull, and got this bracket and padding out of an F250. im guessing that a bronco will have it too. The f250 was late 80's,… 1994 Ford Bronco - The ORD shifters come with the boot, and a metal "doughnut" that mounts the boots to their bracket. I ground down and bent the doughnut to… 1994 Ford Bronco - the two "stock" holes wouldnt have allowed a bolt to mount to the plastic, so i drilled a 3rd one in the middle. It doesnt need to be stron… 1994 Ford Bronco - I mounted the klune shifter and ran the cable through the tranny cover plate. The shifter cable doesnt bend too well, so try and et your me… 1994 Ford Bronco - here are the sticks and all installed. Im pretty happy, but may pull the sticks out and have them bent a little more for better knee/thight… 1994 Ford Bronco - otherside of sticks 1994 Ford Bronco - Im pleased, overall it came out well, has plenty of clearance to shift, and once painted looks good enuf. This was a pretty time consuming…
