shackle flip

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

8 photos
← Back to this vehicle

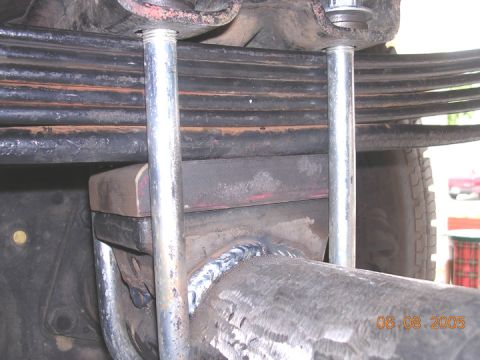

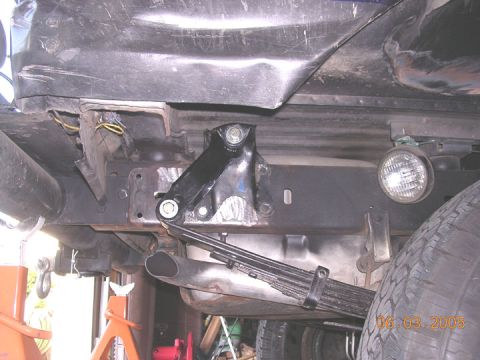

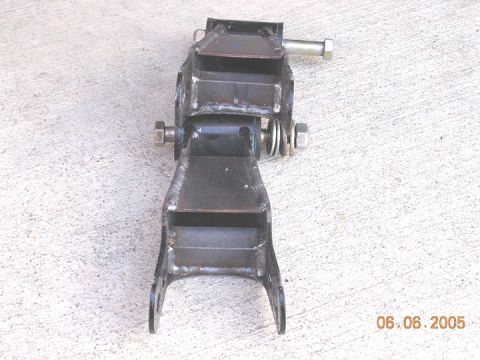

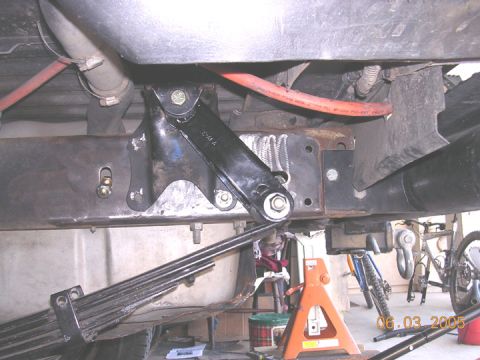

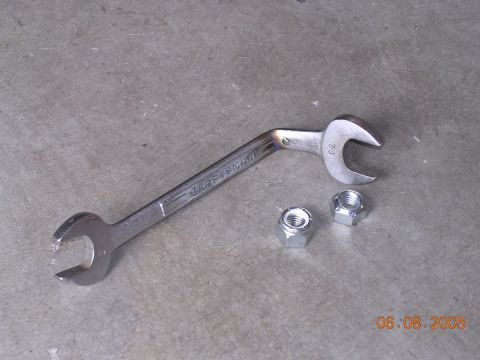

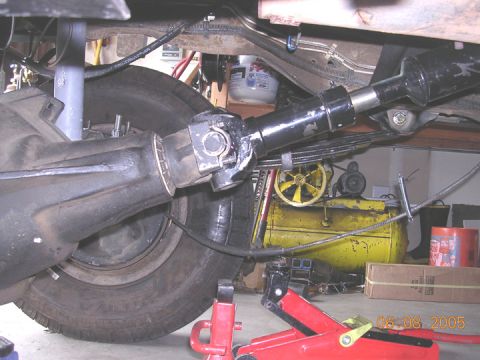

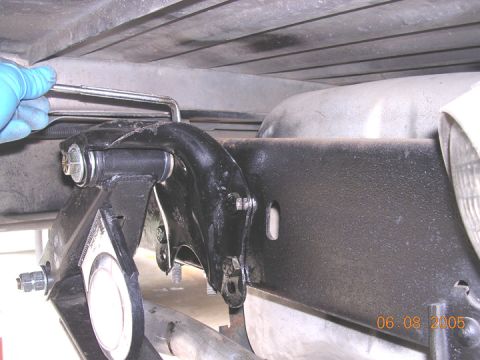

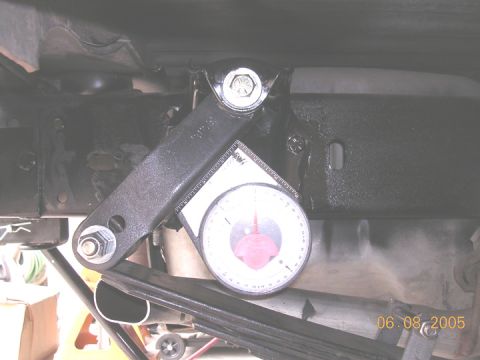

1994 Ford Bronco - drivers side using the stock hanger, a 2" lowering shackle for a ford p/u and using the stock front two mounting holes for the stock hanger… 1994 Ford Bronco - this is the drivers side stock hanger on the pass side (and vice versa for the previous pic) the holes are a little off, o the hanger is cr… 1994 Ford Bronco - lowered the hanger a little (about an inch) by drilling new holes. After playing around for a day, i went back to the original forwrd holes… 1994 Ford Bronco - I tried finding some new "better" perches, but decided that the original cast steel ones were hard to beat. here it is welded with the ORD… 1994 Ford Bronco - had to make this tool to tighten the upper nut/bolt for the shackle 1994 Ford Bronco - this is why? Not a crows foot, or anything else i had would ork. im sure there is some tool out there I could hav bought, but had an extra… 1994 Ford Bronco - here is the final pinion angle. Its a tad low, but I figure once the springs break in and everything settles, it should be fine. The torque… 1994 Ford Bronco - reinforced the shackle also with some 3/16 plate and some 1" angle iron. It is a 2" lowering shackle for a F150. You have to widen the spri…
