Album section

E brake

From 1994 Ford Bronco “Plug Ugly”, documented by Damon Haas.

8 photos

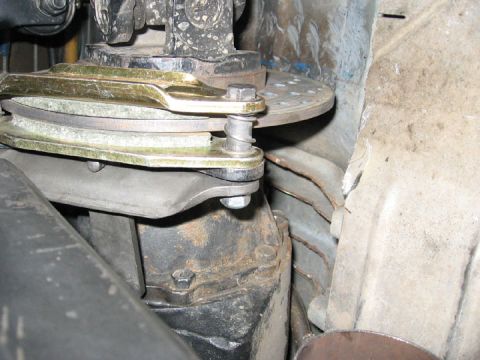

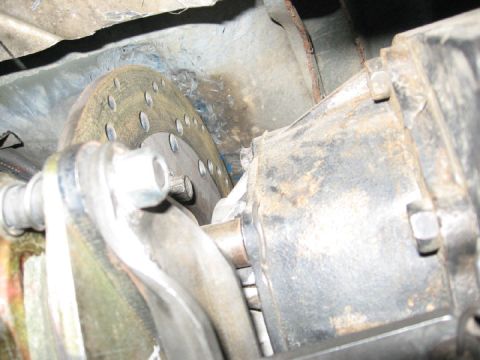

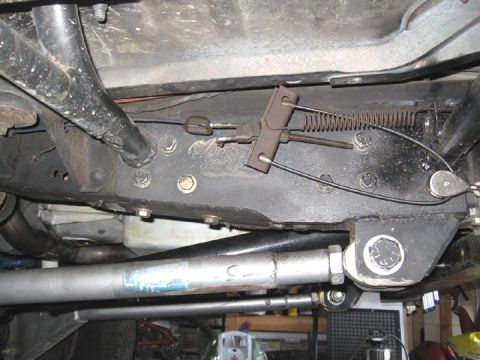

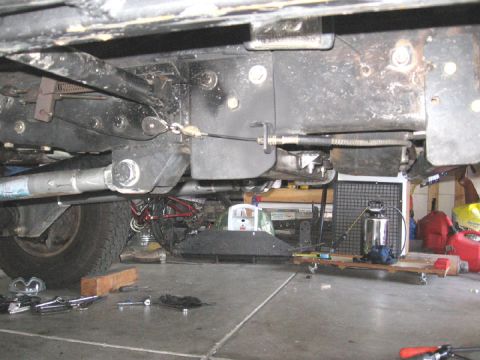

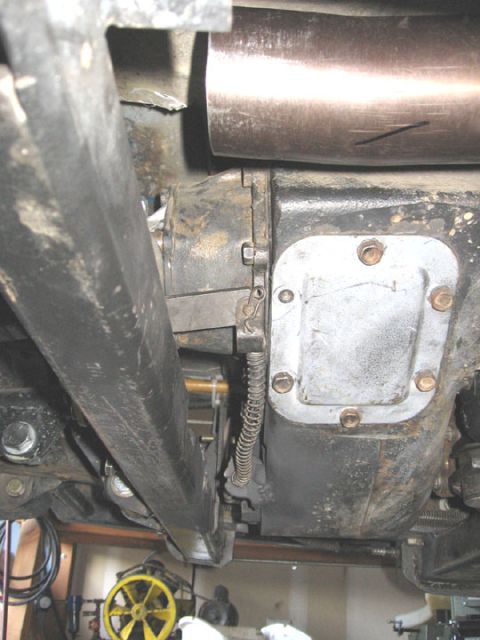

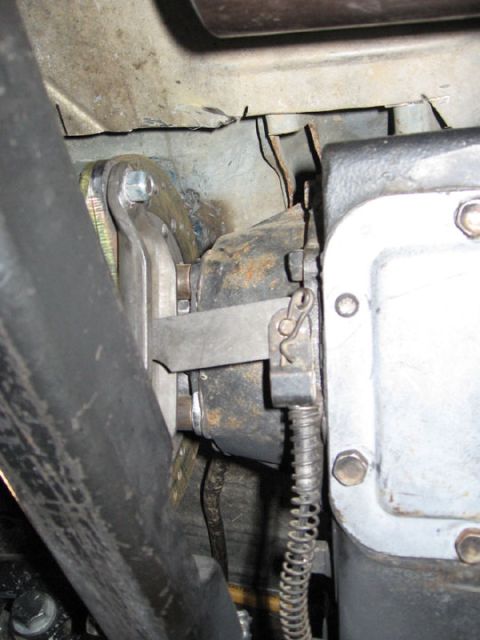

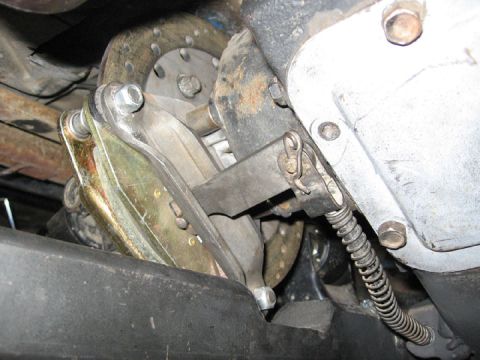

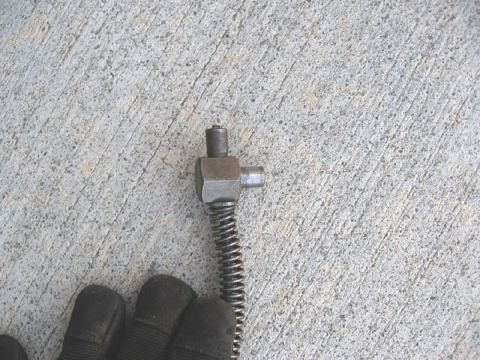

1994 Ford Bronco - Close view under a 1994 Ford Bronco of a drilled brake rotor clamped by gold-zinc plated bracket plates and a spring-loaded bolt, mounted n… 1994 Ford Bronco - this is the end of the 1986 lincoln mark VIII rear brake line. With a little grinding, it fits perfectly over the HAD caliper lever arm. Th… 1994 Ford Bronco - Looking up at a 1994 Ford Bronco's underside, a drilled brake rotor is held by a plated steel bracket with a lever arm, clevis pin and a co… 1994 Ford Bronco - welded a tab onto the side of the 205 to hold the VIII line. 1994 Ford Bronco - Underside of a 1994 Ford Bronco in a home garage showing a cable-operated brake linkage running along a black frame crossmember, with an ax… 1994 Ford Bronco - Close-up of the parking brake cable mechanism, showing the spring and linkage system. 1994 Ford Bronco - stock line attachment from high angle driveline 1994 Ford Bronco - Close-up under a vehicle showing a small drilled parking-brake rotor mounted behind a driveshaft yoke, with the boxy cast housing of a tran…
