BroncoAir Pictures

From 1996 Ford Bronco “Zak the Bronc”, documented by David Couch.

18 photos
← Back to this vehicle

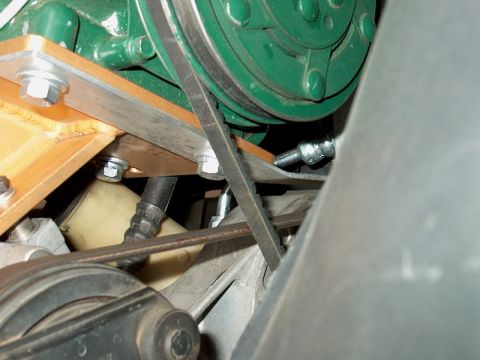

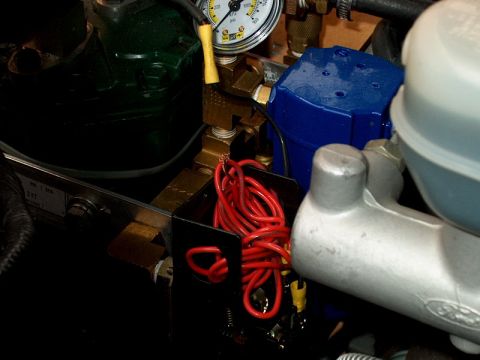

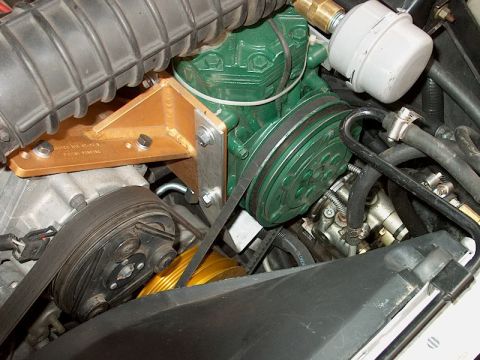

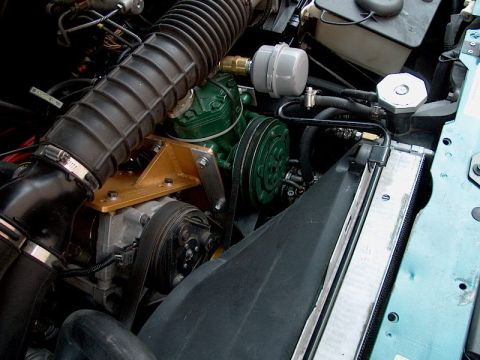

1996 Ford Bronco - Rear view of York in Bronco 1996 Ford Bronco - Front view of air filter. Air manifold bracket on drivers side of York. 1996 Ford Bronco - Front view of York, with aluminum bracket for PS protector going down, and one in the back for air manifold. 1996 Ford Bronco - Drivers side view from rear showing air manifold. Listed as xx12.jpg in my instructions. 1996 Ford Bronco - Yet another passenger side view of air manifold. 1996 Ford Bronco - Passenger side view of air manifold from top... 1996 Ford Bronco - Passenger side view of air manifold, close up and from top. 1996 Ford Bronco - Passenger side view of air manifold. 1996 Ford Bronco - Top view with PS protector. 1996 Ford Bronco - Front side view. Note aluminum power steering protector. 1996 Ford Bronco - Dark but good view of air manifold. 1996 Ford Bronco - Another view of PS hose protector, rotate image 90 degrees to right... 1996 Ford Bronco - Shown with a 15 inch steel rule by the side for comparison. The protector is 1 1/2" x 1/8" aluminum. 1996 Ford Bronco - Side view of protector to show detail of "foot" that protects the PS hose 1996 Ford Bronco - Close-up rear view of a green cast-iron air compressor pump head mounted on a shelf, plumbed with brass tee fittings and two brass quick-di… 1996 Ford Bronco - Overhead view of a shop-built onboard air setup on a green speckled bench top: a green cast-iron compressor pump, a round white-faced press… 1996 Ford Bronco - A tan flat steel mounting plate lying on an OSB workbench with a Helix flexible steel rule laid across it for measurement. The plate has be… 1996 Ford Bronco - A green-painted York-style piston compressor repurposed as an on-board air setup, with a V-belt pulley, aluminum mounting bracket, brass fi…
