Sub Box and Amp Rack.JPG
1479 hits | 66.64 KB | Posted: 2/9/07
I was actually planning on using a DA7122 Eclipse 1000W Mono Block Amplifier. I ended up getting thi...

Sub Box Basic.JPG
2286 hits | 62.34 KB | Posted: 2/9/07

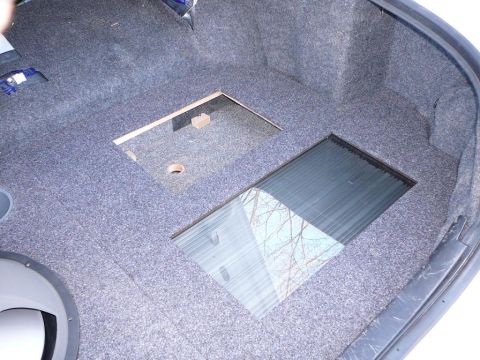

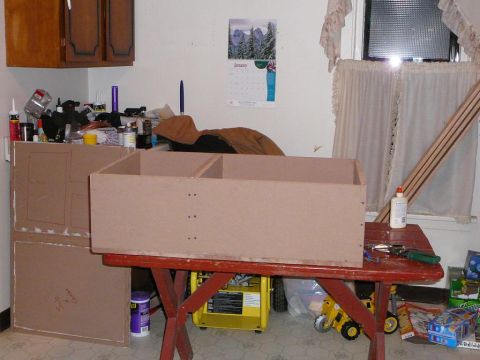

OK, This is Subwoofer box design number 2. Design number 1 didn't fit in the trunk prperly. The box ...

Amp under Lexan with Backlight.JPG
1617 hits | 27.35 KB | Posted: 2/9/07
Eclipse E34230 370W X 2 RMS at 4 Ohm Subwoofer Amplifier. Mounted in Amp rack under smoked Lexan Pla...

Amp Without Lexan.JPG
999 hits | 27.99 KB | Posted: 2/9/07
Eclipse PA5422 85W X 4 RMS at 4 Ohm Front doors and rear deck amplifier. Mounted in Amp rack, no Lex...

New Sub 1.JPG
1166 hits | 53.54 KB | Posted: 2/9/07
Diamond Audio D615D4 15 inch, Dual 4 Ohm Voice Coils. 750 Watt Nominal input. Approx 31 Lbs.

New Sub 2.JPG
1037 hits | 64.43 KB | Posted: 2/9/07
15 Inch Subwoofer compared to a Quart of Oil.

New Sub 3.JPG
1240 hits | 63.24 KB | Posted: 2/9/07
15 Inch Diamond Audio Subwoofer Closeup.

New Sub 4.JPG
1158 hits | 55.8 KB | Posted: 2/9/07
Subwoofer inverted mounting.

New Sub Mounted 1.JPG
1880 hits | 72.98 KB | Posted: 2/9/07
Diamond Audio Subwoofer mounted in Subwoofer enclosure.

New Sub Mounted 2.JPG
1054 hits | 59.87 KB | Posted: 2/9/07

Top Panel driver side.JPG
2224 hits | 57.95 KB | Posted: 2/9/07

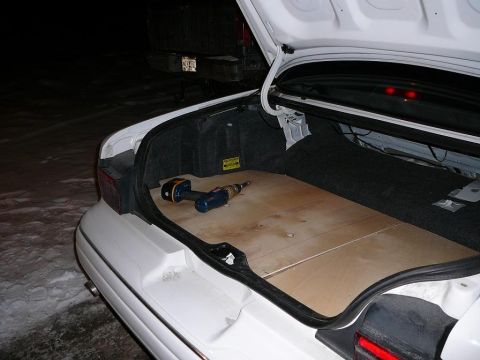

Subwoofer enclosure Cover Panel. Finished rough cutout. Driver Side.

Driver Side Closeup.JPG
1307 hits | 74.32 KB | Posted: 2/9/07
Subwoofer enclosure Cover Panel. Finished rough cutout. Driver Side Closeup.

Top Panels passenger side.JPG
1186 hits | 50.57 KB | Posted: 2/9/07

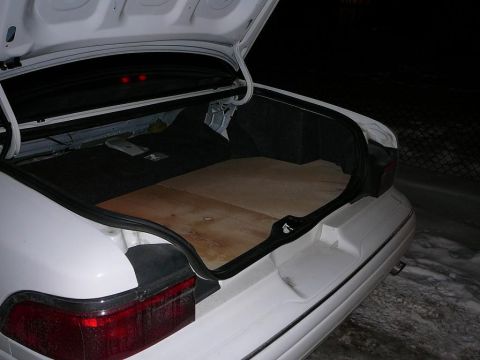

Subwoofer enclosure Cover Panel. Finished rough cutout. Passenger Side.

Passenger Side Closeup.JPG
1005 hits | 57 KB | Posted: 2/9/07

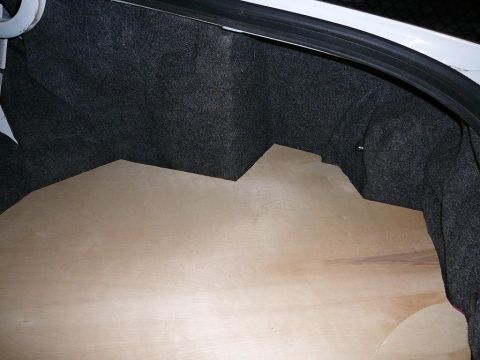

Subwoofer enclosure Cover Panel. Finished rough cutout. Passenger Side Closeup.

Driver Front Door After.JPG
1129 hits | 80.02 KB | Posted: 2/15/07

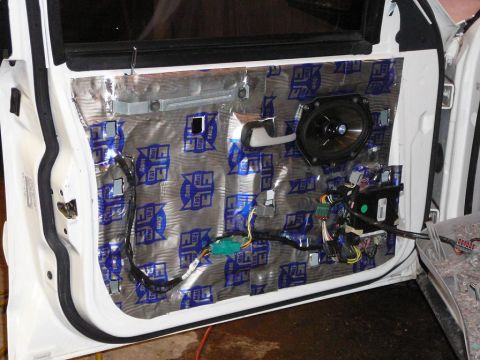

Spent an afternoon disassembling all the doors and removing the factory installed plastic cover in f...

Trunk RIght Finished Dampening.JPG
4098 hits | 98.1 KB | Posted: 2/15/07

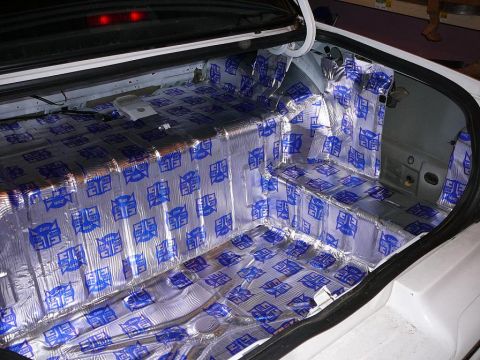

Spent the morning installing Fat-Mat in the trunk of the car. This was installed for a number of re...

Box installed 1.JPG
3300 hits | 57.09 KB | Posted: 2/15/07

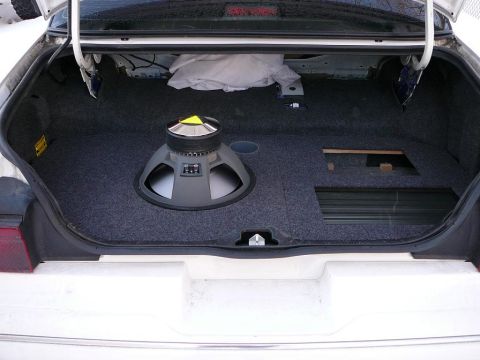

Sub box is installed with most equipment. I have decided NOT to invert the sub so it will be mounte...

Box Installed 2.JPG
1811 hits | 62.07 KB | Posted: 2/15/07

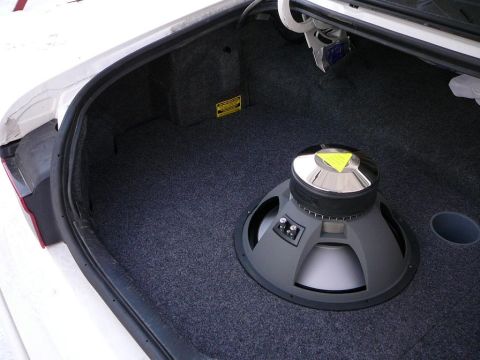

sub box conforms fairly well to the trunk panels. The sub will NOT be invert mounted as shown in th...

Box Installed 3.JPG
1207 hits | 89.94 KB | Posted: 2/15/07
