Engine Swap

From 1997 Mercury Grand Marquis, documented by Not_Grandpas_Marquis.

29 photos
← Back to this vehicle

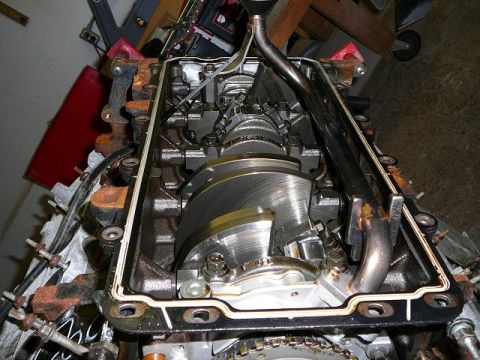

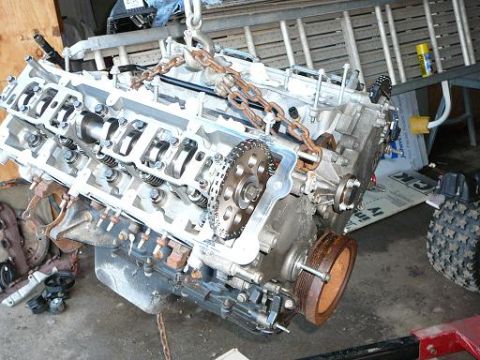

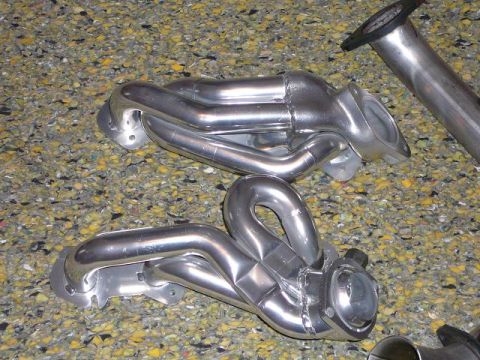

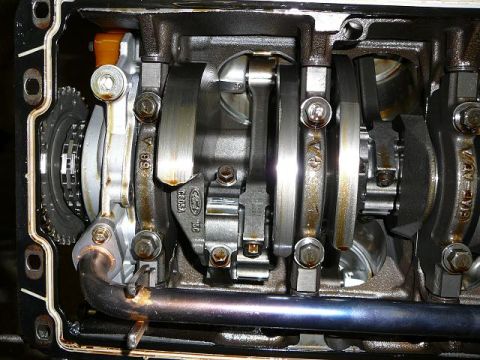

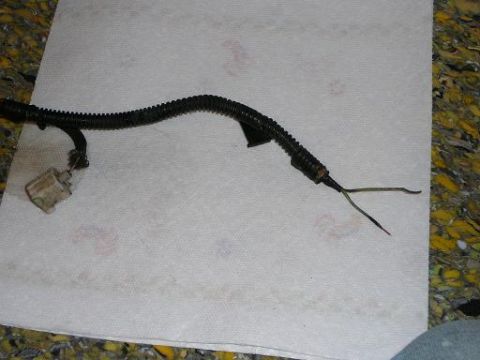

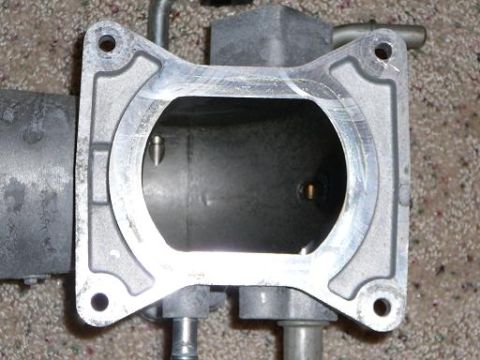

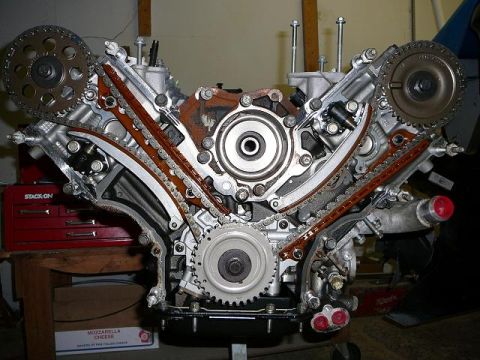

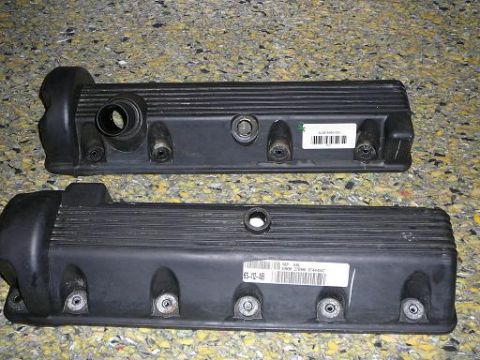

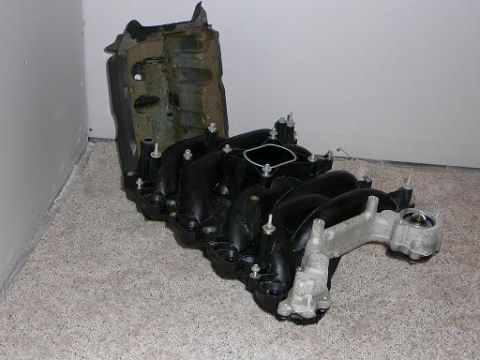

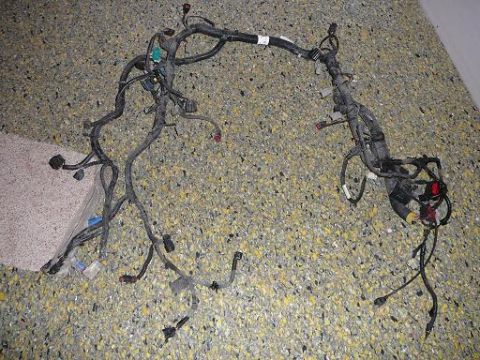

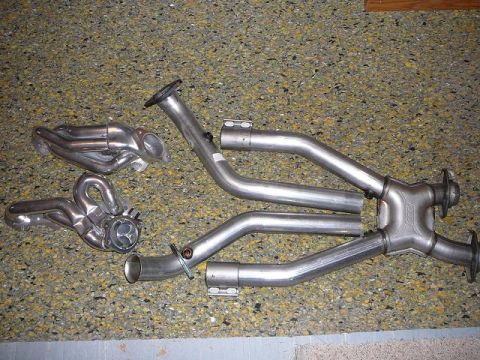

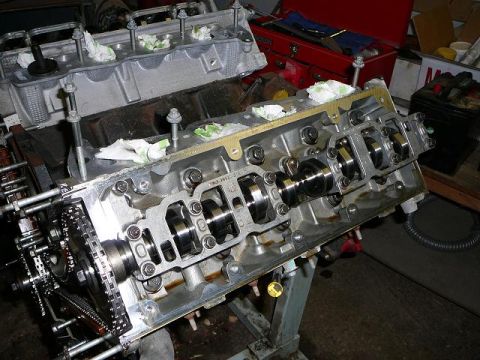

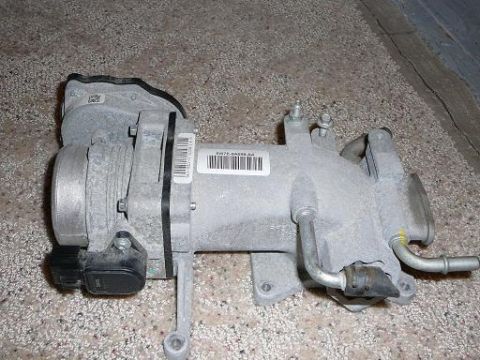

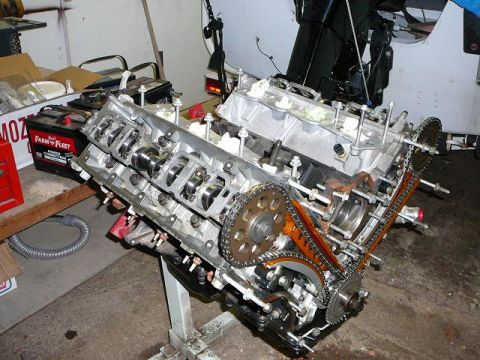

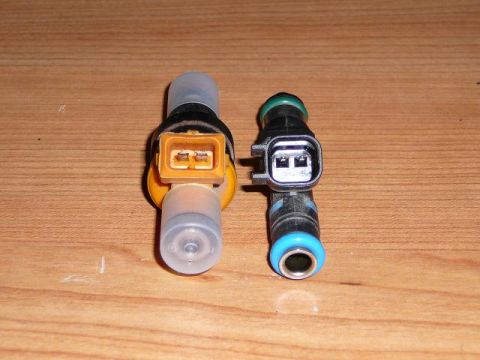

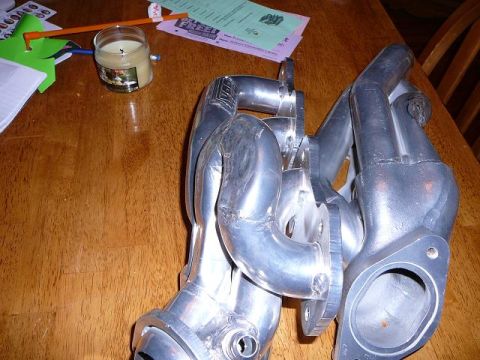

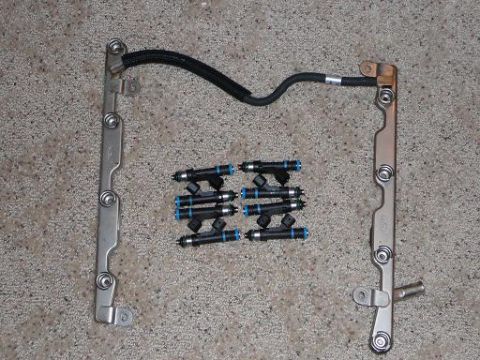

1997 Mercury Grand Marquis - 2006 4.6L with 32000 miles. 1997 Mercury Grand Marquis - Full engine harness minus 1 connector 1997 Mercury Grand Marquis - 2006 Ford fuel injectors and returnless style fuel rail. 32K miles. 1997 Mercury Grand Marquis - only damage on the harness. 1997 Mercury Grand Marquis - Includes Intake Manifold, Thermostat, Thermostat housing(not pictured) and heat shield. No bolts are included. 1997 Mercury Grand Marquis - Drive-by-wire Throttle body and upper intake plenum 1997 Mercury Grand Marquis - I haven't cleaned it yet. 1997 Mercury Grand Marquis - Engine block is hoisted by chains, showing internal components and timing chain mechanism. 1997 Mercury Grand Marquis - Two black valve covers are shown, each with visible labels and part numbers. 1997 Mercury Grand Marquis - Internal engine components, including the crankshaft and connecting rods, are visible in this close-up view. 1997 Mercury Grand Marquis - Close-up view of an engine's internal components, including the crankshaft and oil pan area. 1997 Mercury Grand Marquis - Polished exhaust headers are shown laid out on a textured surface, with a section of exhaust pipe in the upper right corner. 1997 Mercury Grand Marquis - Aftermarket exhaust headers and pipes are shown before installation. 1997 Mercury Grand Marquis - A custom aluminum exhaust manifold is shown resting on a textured burgundy surface. The manifold features multiple pipes welded together an… 1997 Mercury Grand Marquis - Two engine gaskets are laid out on a wooden table next to some papers. 1997 Mercury Grand Marquis - Comparison of two different fuel injectors, likely for an engine swap project. 1997 Mercury Grand Marquis - Engine block assembly on a stand, showing internal components and timing chains. 1997 Mercury Grand Marquis - Close-up of an engine block undergoing repair, showing internal components and a timing chain mechanism. 1997 Mercury Grand Marquis - Close-up view of an engine's timing chain and gear system, likely a V-configuration engine. 1997 Mercury Grand Marquis - Engine assembly on a stand, possibly undergoing maintenance or modification. 1997 Mercury Grand Marquis - Air/Fuel Gauge installed for new motor. 1997 Mercury Grand Marquis - Engine bay of a white car with the upper intake removed, exposing the engine valley; dirt bikes visible in the background. 1997 Mercury Grand Marquis - White Mercury sedan sitting in a garage with the hood raised and the engine bay partially disassembled, front end facing camera with its wa… 1997 Mercury Grand Marquis - White Mercury sedan in a garage with its V engine lifted out on an engine hoist above the empty engine bay. 1997 Mercury Grand Marquis - A pair of polished cast aluminum exhaust manifolds/headers sitting on a wooden kitchen table, showing the curved runners, bolt flanges and… 1997 Mercury Grand Marquis - This exhaust manifold shows significant damage to its internal structure. 1997 Mercury Grand Marquis - Two chrome angle-cut exhaust tips with rusty weld-on inlet necks lying on a red and black Flowmaster muffler box outdoors. A barcode label… 1997 Mercury Grand Marquis - Close-up of two shiny exhaust tips on top of a box containing performance exhaust system parts. 1997 Mercury Grand Marquis - Two exhaust tips are shown, likely for an engine swap, with visible rust at their connection points.
