Vacuum System

From 1985 Ford LTD Crown Victoria, documented by AOD.

3 photos
← Back to this vehicle

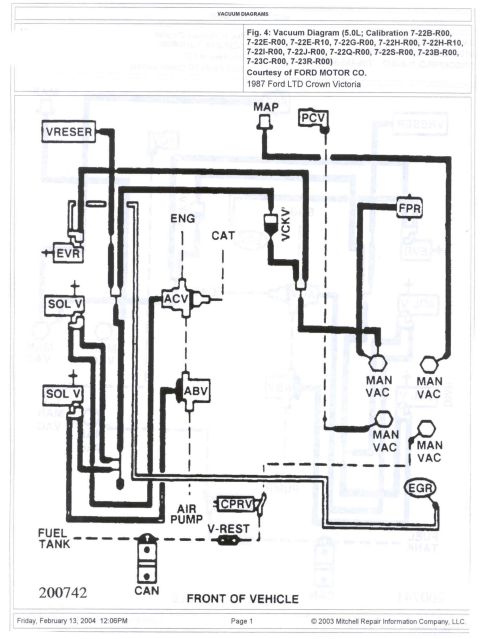

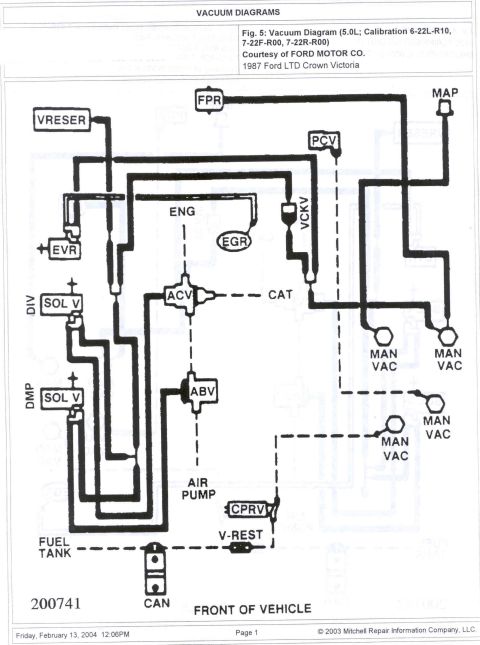

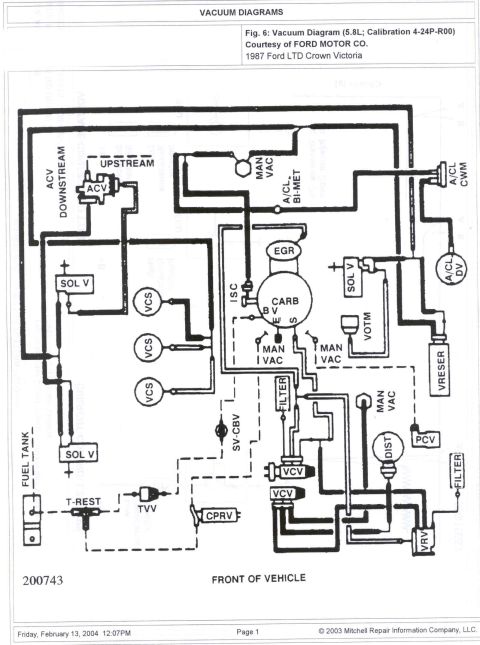

1985 Ford LTD Crown Victoria - Engine vacuum routing for the 5.0L 1987 Crown Victoria showing EVR, EGR, ACV, ABV, CPRV and CANP connections to manifold vacuum and the air… 1985 Ford LTD Crown Victoria - 5.0L 1987 Crown Victoria emission vacuum routing showing FPR, manifold-vacuum solenoid valves and EGR/ACV plumbing for multiple calibration… 1985 Ford LTD Crown Victoria - 5.8L 1987 Crown Victoria vacuum routing showing ACV upstream/downstream, EGR, carburetor, distributor, PCV, VRESER and Thermactor air contr…
