10.25 and 8 lug front swap

From 1992 Ford Bronco “badassbronco” — documented by Zach Kohl.

48 photos
← Back to this vehicle

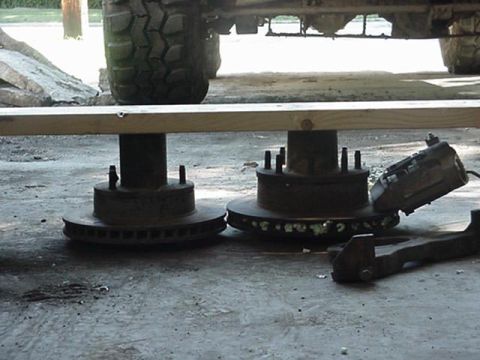

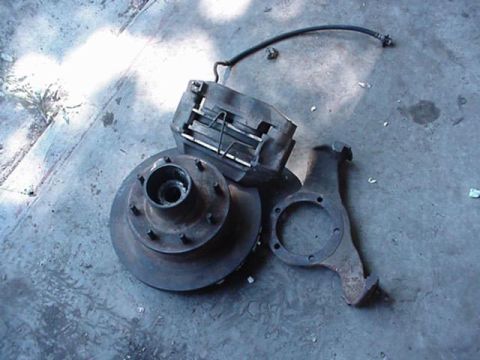

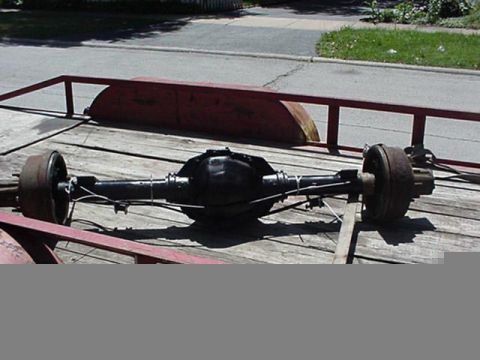

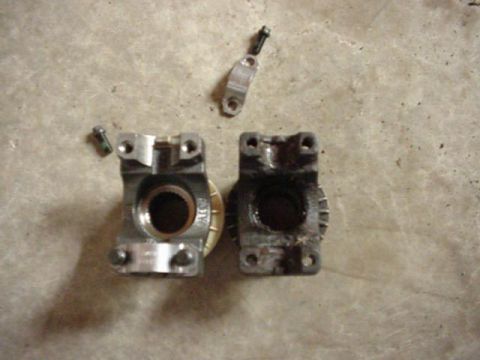

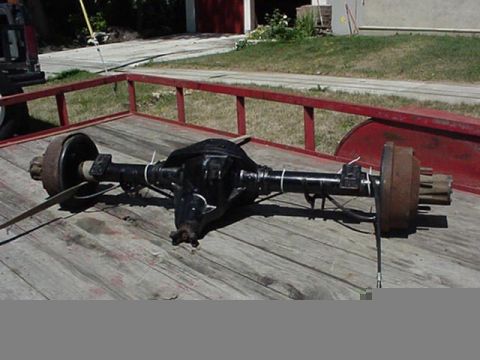

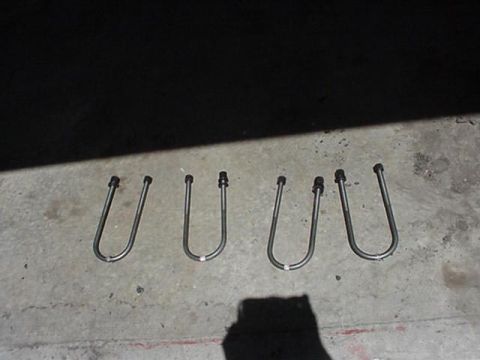

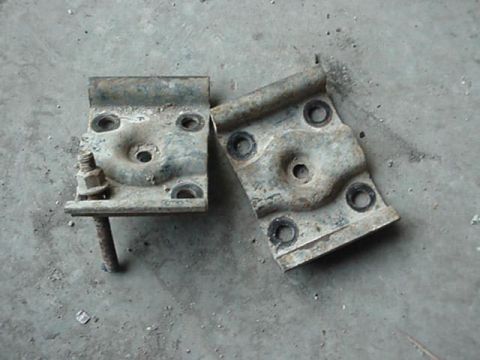

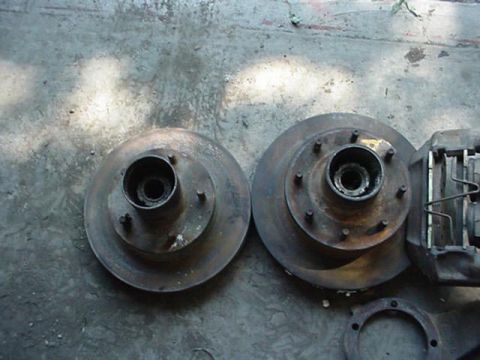

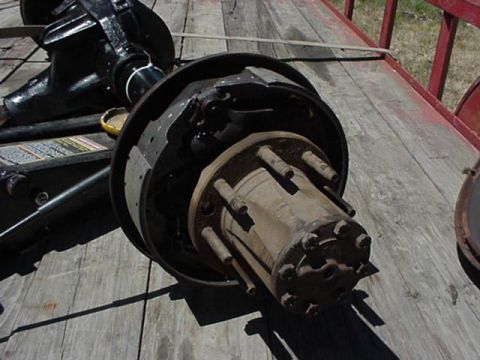

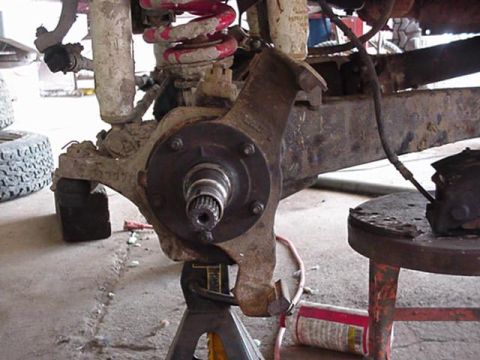

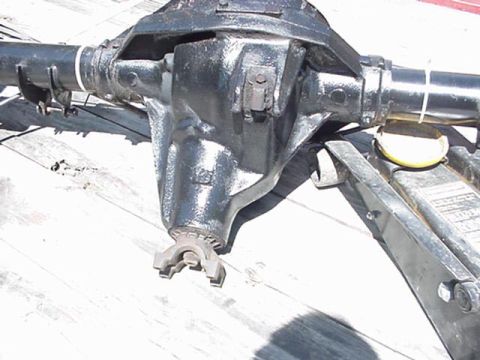

1992 Ford Bronco - 10.25 sterling rear axle. out of a 91 F250HD, aslo available in 1 tons. 35 spline axleshafts. 1992 Ford Bronco - backside shot of the 10.25 1992 Ford Bronco - center of the housing. the little protected electrical hookup is what controls the computer on speed sensing on 92+ trucks, and abs on all… 1992 Ford Bronco - redid the brake son the axle. new shoes, new hardware kit, new springs, new starwheels, new emerency brake cables, and new wheel cylinders. 1992 Ford Bronco - another $30 1992 Ford Bronco - 1350 yoke for the 10.25 on the left, replaces the puny 1330. my driveshaft is 1350 joints at all 3 spots. another $40 1992 Ford Bronco - The front 8 lug stuff from a 77.5 to 79 F250. will bolt right up. all you do is replace the caliper brackets, calipers, spindle, wheel bear… 1992 Ford Bronco - side veiw of a 8 lug rotor with spindle attached compared to the 5 lug rotor with spindle attached. same overall height as easier seen with… 1992 Ford Bronco - top view of the 5 vs 8 lugs. this style even uses the same internal retained lockouts, so you can reuse you lockouts. only the 77.5-79 had… 1992 Ford Bronco - spring plates i took off my parts truck ,with another complete sterling 10.25 FF in it. as you can see, im to lasy to wrench, i do it the e… 1992 Ford Bronco - 8/11 broken in friends mustang. the thing couldnt handle 225x60's, and thats the same day i also broke a shaft on my 8.8 down the road. 1992 Ford Bronco - again, why 8.8's suck. 1992 Ford Bronco - free wheel for my spare. 1992 Ford Bronco - Wrong wheels!!!! 4 wheel parts wharehouse sucks! they told me the wheels i ordered were 15x10 chrome mods with 2.5 BS, 8 on 6.5(2.5 BS requ… 1992 Ford Bronco - They got it wrong again!!!!!! AGAIN!!! Will they ever get it right? DO NOT BUY STUFF FROM 4 Wheel Parts! 1992 Ford Bronco - rear axle removed. cut the hard lines, clamped them shut, took of the tone sensor, parking brake cables, took out dirveshaft, removed U bol… 1992 Ford Bronco - my way of jacking the rear. 1992 Ford Bronco - favorite tool again, 1992 Ford Bronco - the comparison 1992 Ford Bronco - the junk axle 1992 Ford Bronco - in. drilled th rut out of the perches, used the same wedge block, bolted it up. the f 350 sprinh plate need a bigger hole the middle, so i… 1992 Ford Bronco - ground clearence shot 1992 Ford Bronco - all done with the rear. 1992 Ford Bronco - full floater shot 1992 Ford Bronco - my drive shaft about one inch from being totally closed. the shaft needs to be shortened a few inches for this swap. 1992 Ford Bronco - almost all the way extended. 1992 Ford Bronco - taking apart the front 1992 Ford Bronco - remove the 5 lug hub assmebly, spindle, caliper braket and caliper. the same brake lines, axleshafts, and hubs are used. 1992 Ford Bronco - 8 lug spindle moued on the 1/2 ton knuckle 1992 Ford Bronco - the 8 lug rotor mounted. 1992 Ford Bronco - front almost finsihed(for any normal person) 1992 Ford Bronco - any normal person would have run 16 or 16.5 wheels, but not me, i will always run 15's and to run a 15 inch wheel on the dayton twin piston… 1992 Ford Bronco - backside shot of the caliper to wheel. 1992 Ford Bronco - front done! 1992 Ford Bronco - done with it all. driveshaft needed 3 inches takne off my already extended shaft. drives fine with the swap. trans shifts right. 1/2ton mas… 1992 Ford Bronco - damm, its wide now! i now need to run dummy tires to fit it on my trailer. 1992 Ford Bronco - i feel like a IFS chevy with this much tire sticking out past the fender! 1992 Ford Bronco - this is how a welded rear end turns. 1992 Ford Bronco - notice the pin sheared off. 1992 Ford Bronco - changing the block. notice other tire scuffs in the pic. 1992 Ford Bronco - price list for swap. -------NOTE-------- The front swap is for a 78/79 soild axle dana 44, this wont work for the TTB dana 44(80-96) 1992 Ford Bronco - carriers. lef to right. dana 44 open, 8.8 open, 8.8 crap lock, 8,8 detroit locker. 1992 Ford Bronco - dana 35 vs 8.8 the 10.25 dwarfs them both. 1992 Ford Bronco - more of rafs parts 1992 Ford Bronco - R&P 8.8 1992 Ford Bronco - the 10.25 detorit locker $$$ comparing to the 8.8 detroit locker. also $$$ 1992 Ford Bronco - again. 1992 Ford Bronco - bearing compare. size difference is great. the 10.25 bearing is centered ontop of the 8.8 bearing.
