How to change balljoints.

From 1992 Ford Bronco “badassbronco” — documented by Zach Kohl.

15 photos
← Back to this vehicle

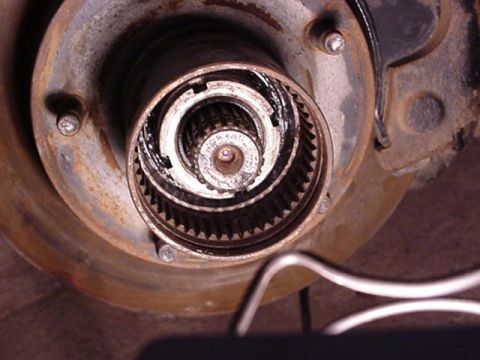

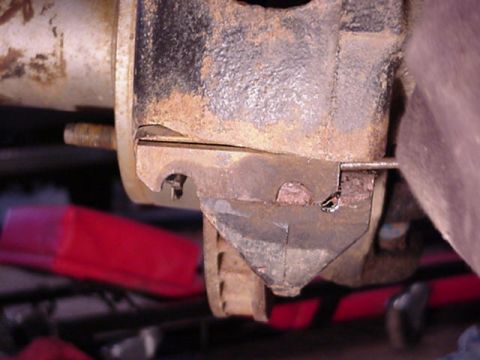

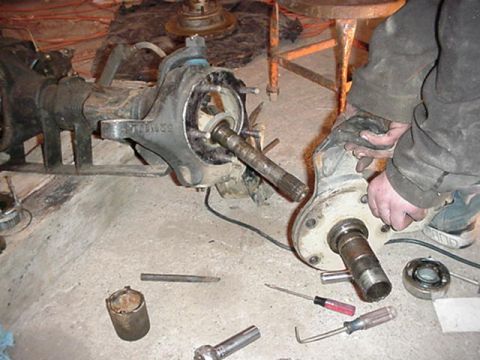

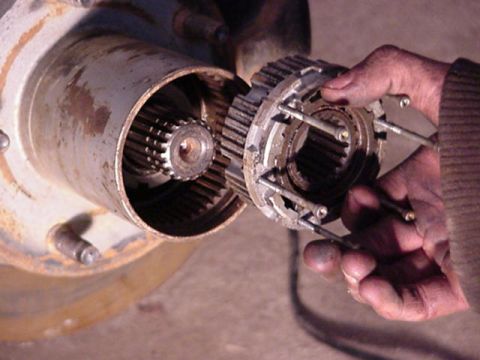

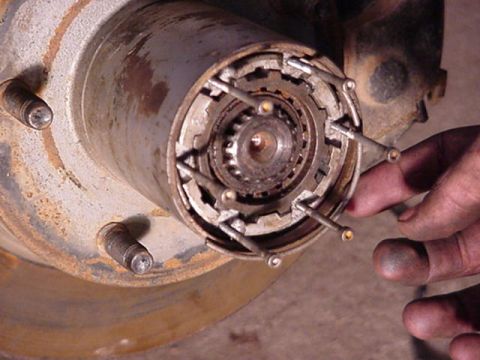

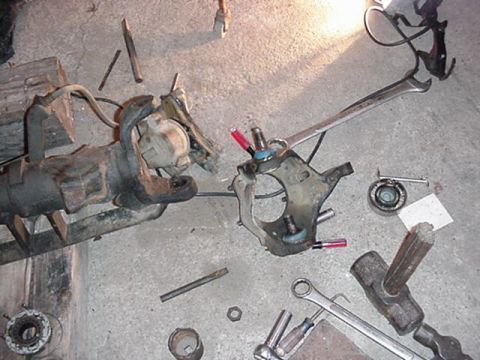

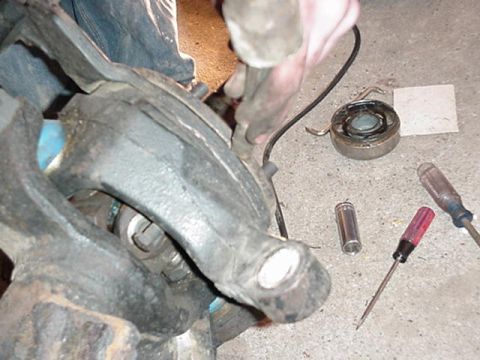

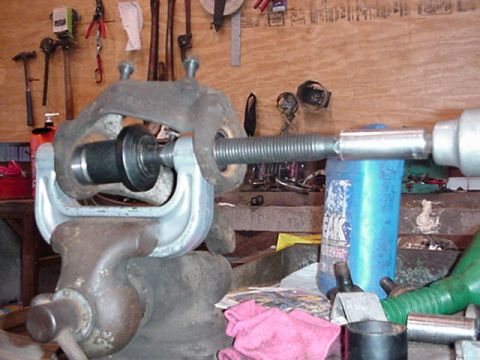

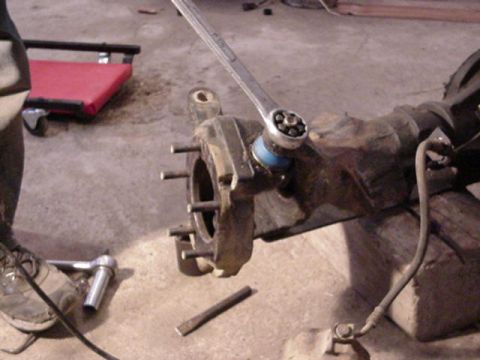

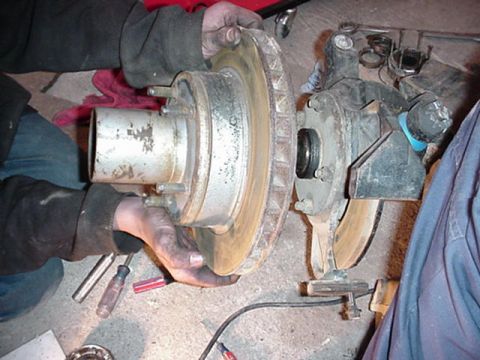

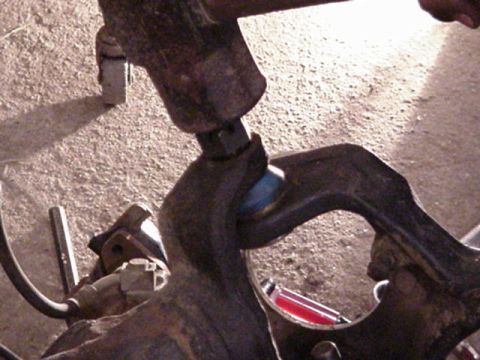

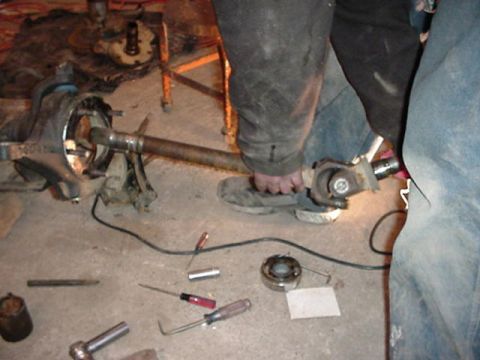

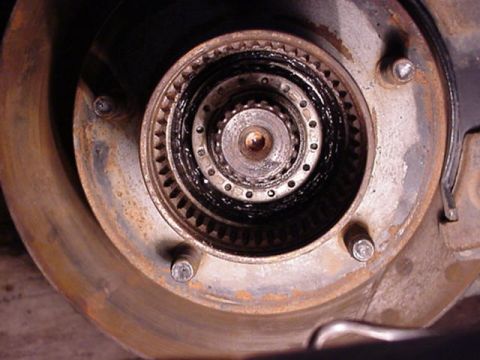

1992 Ford Bronco - start by jacking up the vehicle and setting it on jackstands, remove wheel, and take the hub cover off. then remove the 2 C clips holding i… 1992 Ford Bronco - remove hub ody, using screws to help grab onto it. 1992 Ford Bronco - soindle nut that you need you 4 fingered tool to remove. 1992 Ford Bronco - after you remove the first nut, you will see this, its a lockring you need to pic out, then remove the spindle nut form behind it. 1992 Ford Bronco - remove the caliper, by removing the bolt, then punching out the spacer. 1992 Ford Bronco - pull of the rotor. 1992 Ford Bronco - remove tie rod, the remove spindle and caliper bracket by prying on both sides with a chisel. spindle pullers are available. 1992 Ford Bronco - remove the spindle 1992 Ford Bronco - pull out the axleshaft. 1992 Ford Bronco - remove the balljoint nuts 1992 Ford Bronco - thread the top nut on even with the top of the balljoint, and smack it hard with a heavy hammer(baby sledge picture, 12 inch handle on 12LB… 1992 Ford Bronco - everything dissasembled. 1992 Ford Bronco - using a balljoint press to remove and install the balljoints. can be rented at autozoe, andother parts stores. 1992 Ford Bronco - got pissed, since it would reach far enough, so i go tout the 150 ton shop press, and pressed in the upper balljoint, it did a balancing ac… 1992 Ford Bronco - finsished with balljoints. install is oppostie, be shure to use the correct torque and procedures on reassembly. this was on a 79 1/2ton da…
