482 hits | 62.28 KB | Posted: 1/10/09
replacement block back from the machine shop

370 hits | 71.31 KB | Posted: 1/10/09
so all the parts...

381 hits | 92.62 KB | Posted: 1/10/09
and these ones too.

366 hits | 62.99 KB | Posted: 1/10/09
The new 3500 rpm stall converter, Rusty and TCS rule!

364 hits | 79.97 KB | Posted: 1/24/09
screw in plugs installed and block deburred

371 hits | 66.09 KB | Posted: 1/24/09
oil pump to filter passages drilled to 9/16" to match pump outlet and all main galleries drilled to ...

337 hits | 70.76 KB | Posted: 1/24/09
a 12" drill bit was used to drill this passage from both ends

IMG_0110 (Large).JPG
452 hits | 30.39 KB | Posted: 3/5/09
#1 main bearing feed opened up to 1/2" and tapped to 9/16" NF for a restrictor

IMG_0111 (Large).JPG
359 hits | 28.75 KB | Posted: 3/5/09

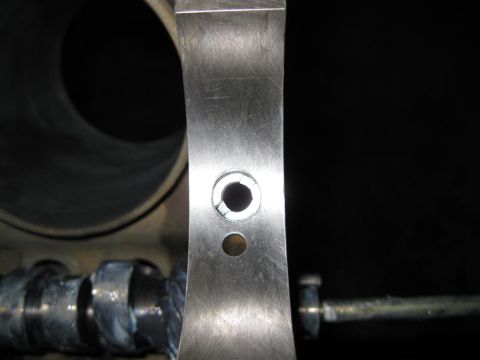

restricted to 5/16" to match all of the others

IMG_0116 (Large).JPG
357 hits | 59.99 KB | Posted: 3/5/09

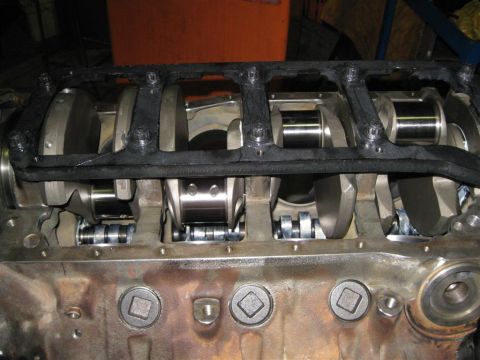

and it starts to go back together

IMG_0121 (Large).JPG
371 hits | 64.78 KB | Posted: 3/5/09

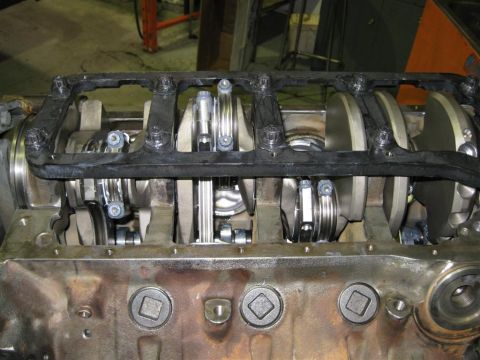

rotating assembly complete

IMG_0122 (Large).JPG
369 hits | 54.95 KB | Posted: 3/5/09

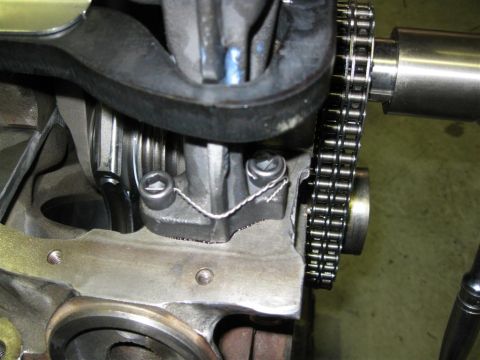

mmmmm, safety wire...

IMG_0126 (Large).JPG
368 hits | 55.73 KB | Posted: 3/5/09

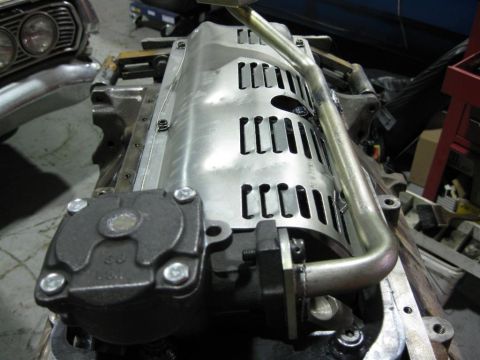

note to self, bolt down the windage tray before installing the oil pick up

IMG_0136 (Large).JPG
365 hits | 63.82 KB | Posted: 3/9/09

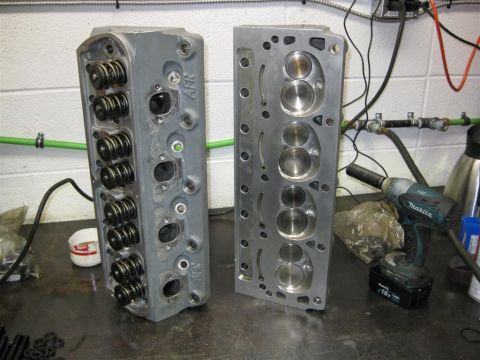

All done and ready to install

IMG_0137 (Large).JPG
350 hits | 41.28 KB | Posted: 3/9/09

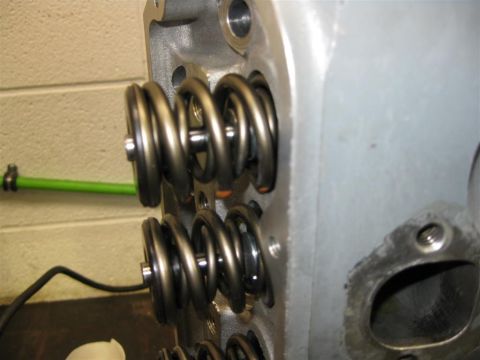

serious springs for serious revs

IMG_0141 (Large).JPG
402 hits | 54.8 KB | Posted: 3/10/09

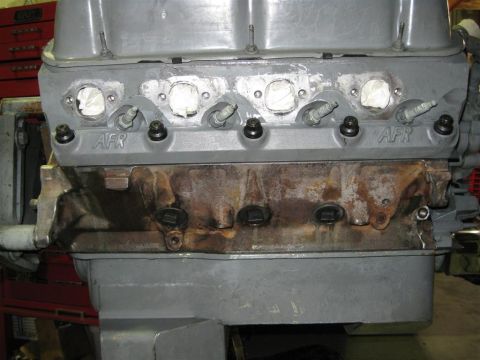

Kinda icky lookin'

IMG_0143 (Large).JPG
354 hits | 53.44 KB | Posted: 3/10/09

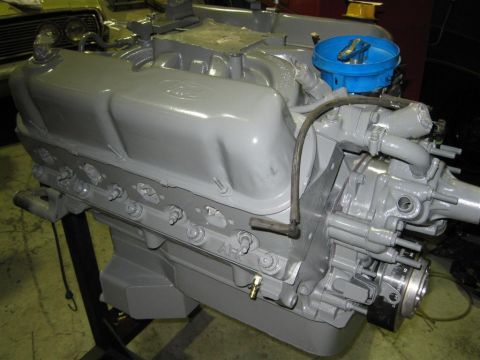

Way better, just a few more odds and ends

IMG_0149 (Large).JPG
375 hits | 63.09 KB | Posted: 3/15/09

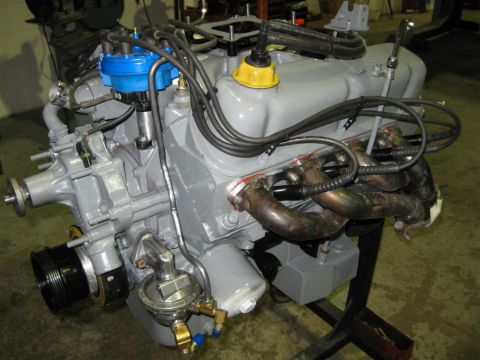

Finally complete and ready to install.

IMG_0153 (Large).JPG
443 hits | 63.55 KB | Posted: 3/15/09

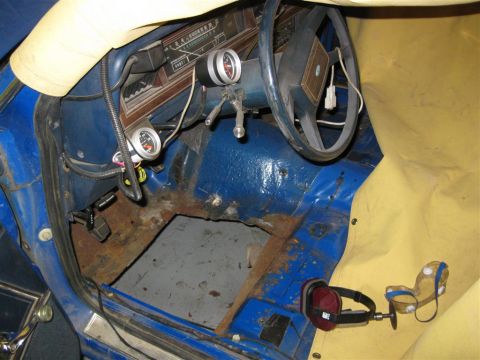

And if it doesn't work, there's a back up plan...

IMG_0203 (Large).JPG
406 hits | 69.4 KB | Posted: 4/1/09

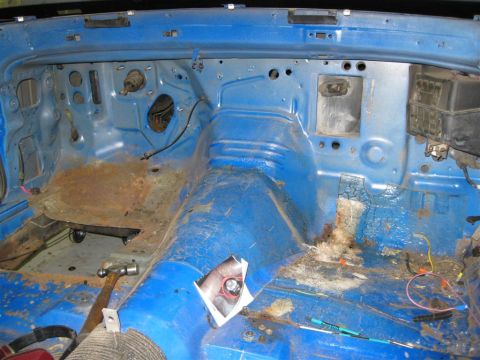

Prepping for installing the 2"x.102" full roll cage.

IMG_0207 (Large).JPG
427 hits | 61.78 KB | Posted: 4/1/09

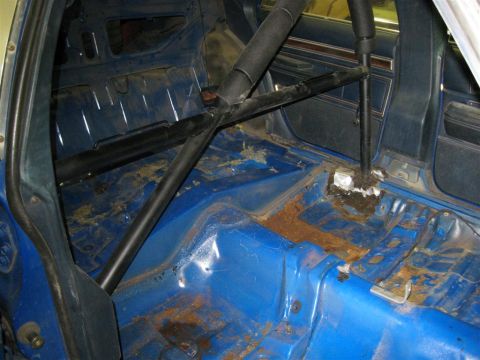

This homebuilt bar is coming out and it's time to give up on having a back seat.

IMG_0208 (Large).JPG
403 hits | 66.46 KB | Posted: 4/1/09

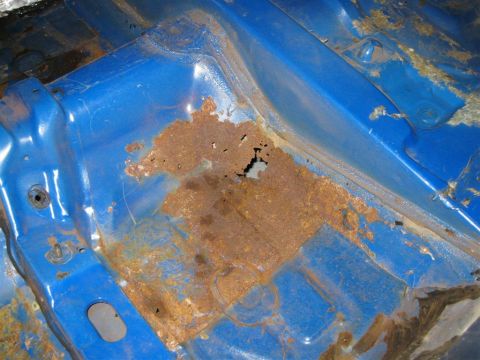

I hate surprises like this, back to the junkyard for more donor parts!

IMG_0216 (Large).JPG
384 hits | 67.32 KB | Posted: 4/10/09

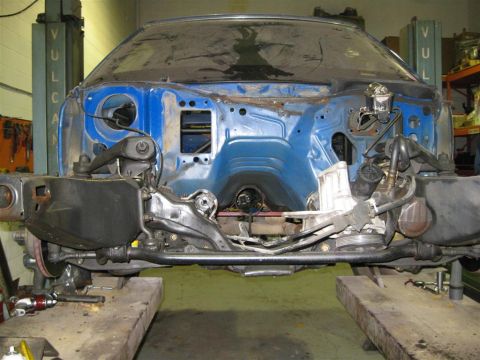

This is going make putting the roll cage in a lot easier.

IMG_0217 (Large).JPG
386 hits | 62.83 KB | Posted: 4/10/09

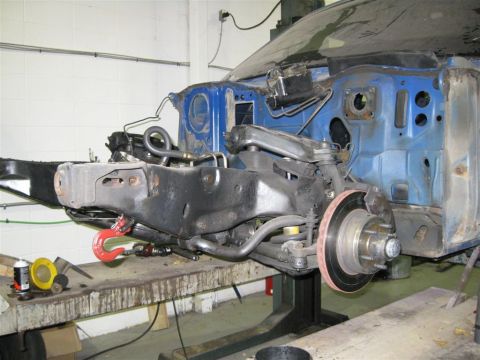

Same thing from a different angle.

IMG_0219 (Large).JPG
390 hits | 46.45 KB | Posted: 4/10/09

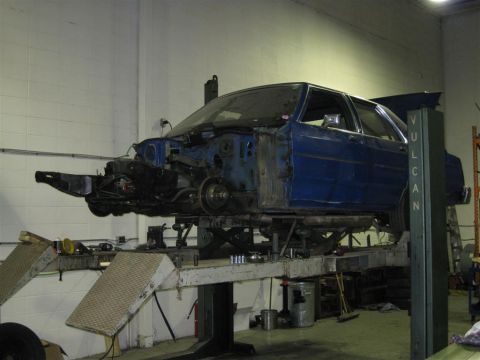

"In for a little, in for a lot"
Tomorrow the rest comes off.

IMG_0230 (Large).JPG
481 hits | 63.87 KB | Posted: 4/25/09

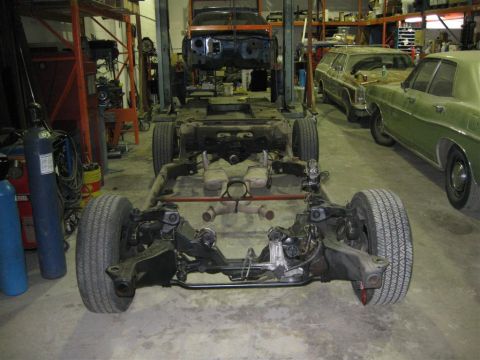

Ain't got no body!

IMG_0234 (Large).JPG
415 hits | 65.59 KB | Posted: 4/29/09

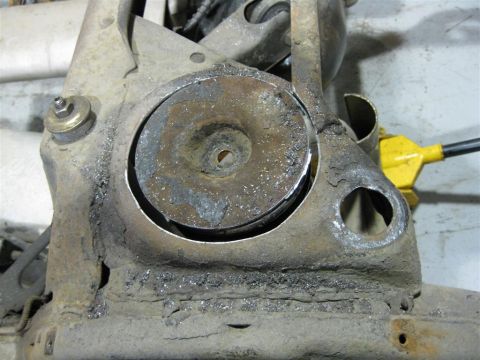

Who knew that a Makita 18v cordless drill could run a 6" holesaw.

IMG_0235 (Large).JPG
375 hits | 60.87 KB | Posted: 4/29/09

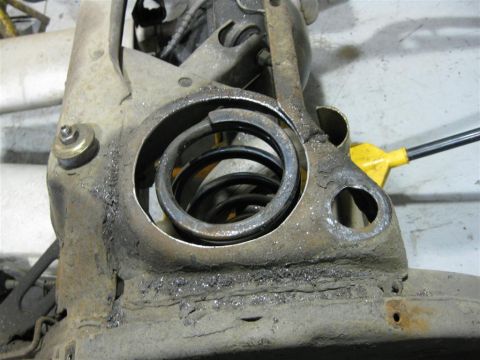

Enlarging the holes to 6-1/4" with one of their cordless grinders and a plug stone.

IMG_0236 (Large).JPG
372 hits | 56.79 KB | Posted: 4/29/09

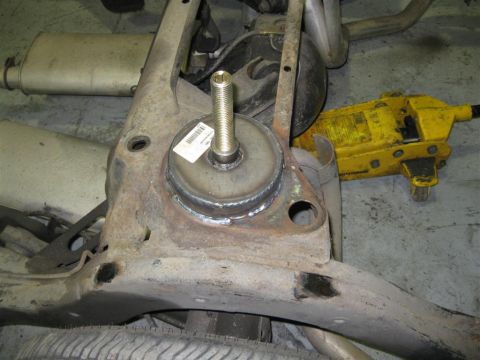

So these things will fit

IMG_0237 (Large).JPG
400 hits | 65.47 KB | Posted: 4/29/09

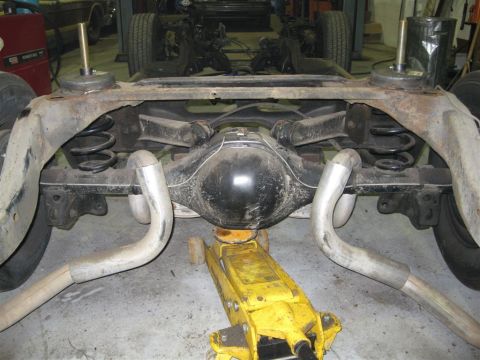

The rear suspension now has 4 inches of adjustability from this...

IMG_0240 (Large).JPG
447 hits | 66.59 KB | Posted: 4/29/09

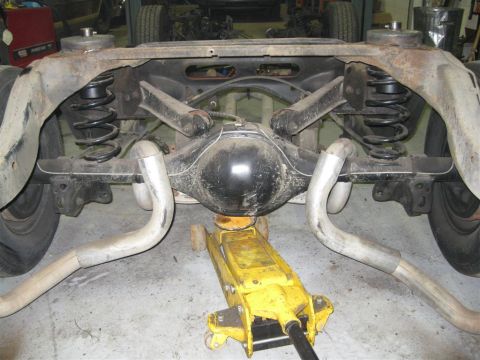

to this!

IMG_0241 (Large).JPG
392 hits | 62.17 KB | Posted: 6/16/09

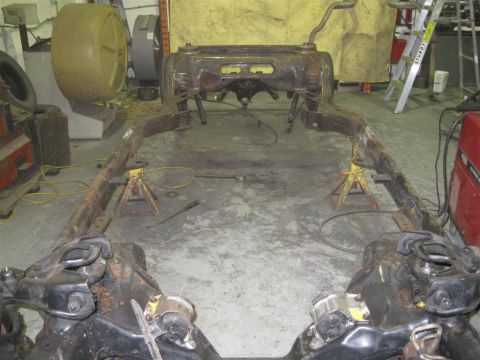

Let's take it apart more.

IMG_0242 (Large).JPG
371 hits | 58.95 KB | Posted: 6/16/09

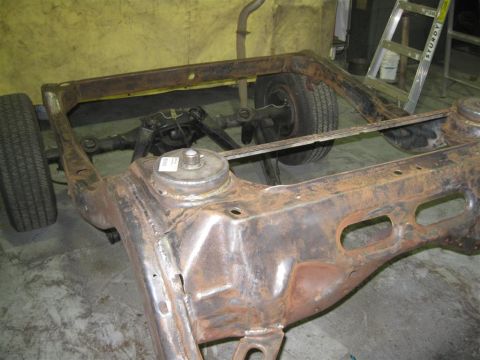

Hours and hours with a grinder and a big wire brush later.

IMG_0243 (Large).JPG
383 hits | 63.89 KB | Posted: 6/16/09

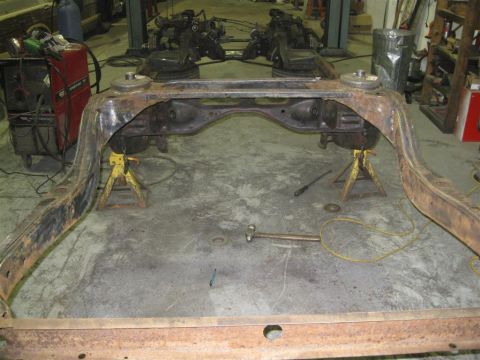

After cleaning some of the rust off the rear crossmember, i could see through it.

IMG_0244 (Large).JPG
378 hits | 69 KB | Posted: 6/16/09

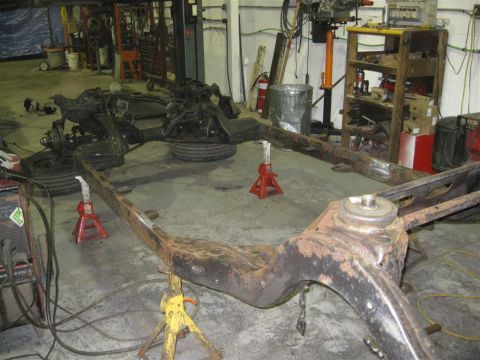

Maybe sandblasting would have been easier.

IMG_0249 (Large).JPG
358 hits | 51.23 KB | Posted: 6/16/09

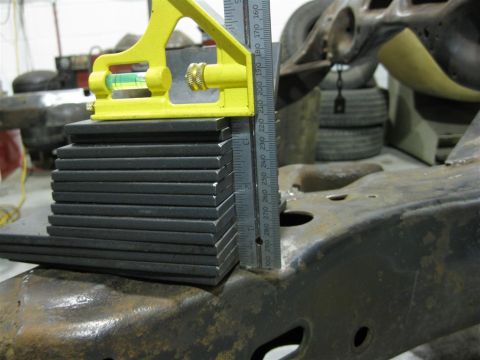

26-1/2 lbs (!!) of 1/4" thick mounting plate material before fitting and trimming.

IMG_0251 (Large).JPG
365 hits | 51.85 KB | Posted: 6/16/09

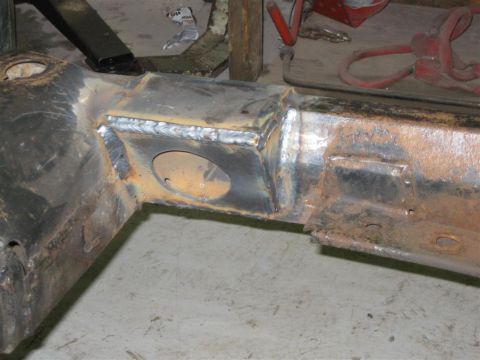

Right front "A" pillar mount complete with speed hole.
That 3" hole saves about 1/2 a pound.

IMG_0257 (Large).JPG
356 hits | 54.23 KB | Posted: 6/16/09

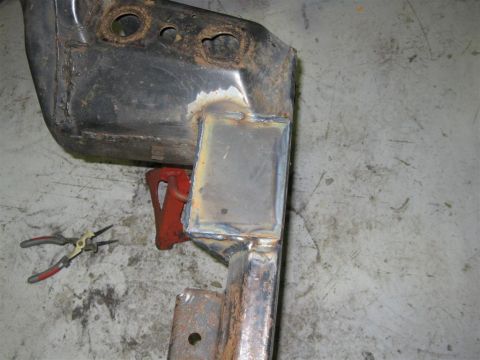

Same mount from the top, all 4"x6" of it.

IMG_0258 (Large).JPG
387 hits | 56.22 KB | Posted: 6/16/09

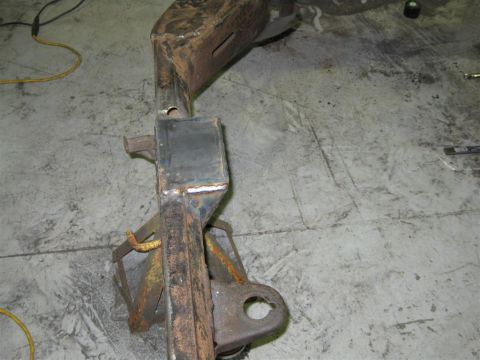

Right side main hoop mount.

IMG_0259 (Large).JPG
392 hits | 72.94 KB | Posted: 6/16/09

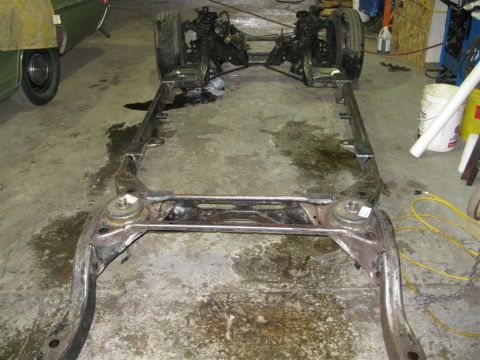

Many weeks later and more wire brushing and sanding and cleaning, followed by an application of some...

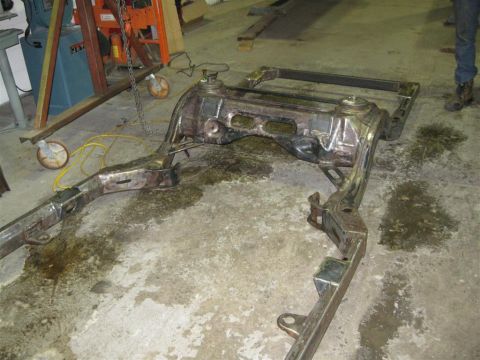

IMG_0260 (Large).JPG
397 hits | 65.9 KB | Posted: 6/16/09
Final washed and drying overnight for paint.

IMG_0262 (Large).JPG
420 hits | 72 KB | Posted: 6/16/09

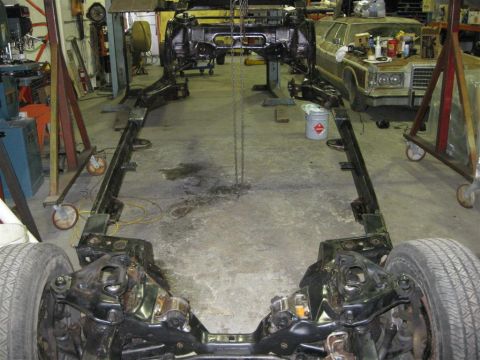

3 cans of rust converting primer later

IMG_0263 (Large).JPG
394 hits | 58.42 KB | Posted: 6/16/09

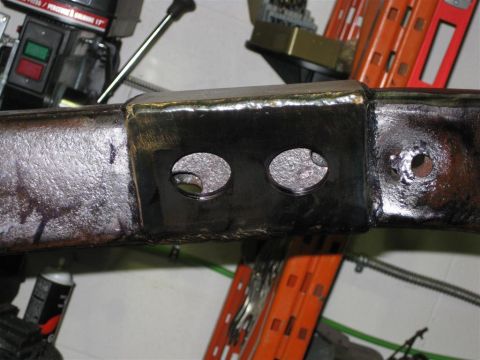

Right rearmost mounting pad

IMG_0266 (Large).JPG
425 hits | 64.83 KB | Posted: 6/16/09

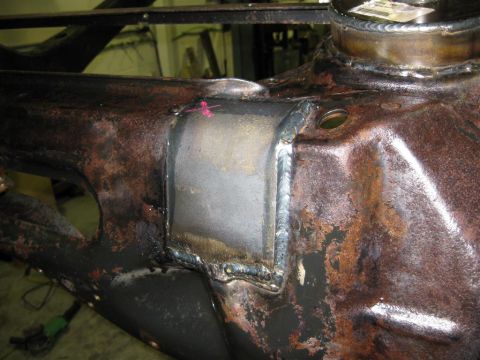

The left rear "X" brace mounting pad

IMG_0265 (Large).JPG
438 hits | 45.85 KB | Posted: 6/16/09

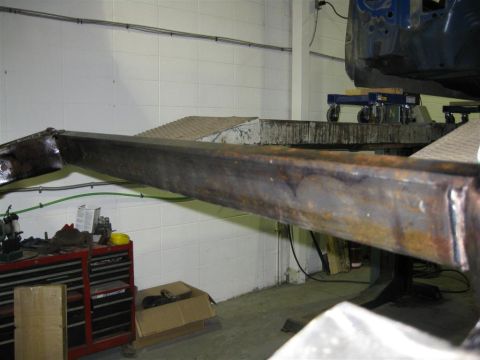

The new non-porous rear crossmember

IMG_0269 (Large).JPG
594 hits | 54.7 KB | Posted: 6/17/09

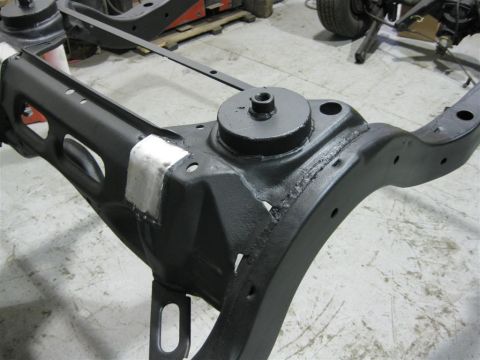

Painted finally!

IMG_0267 (Large).JPG
436 hits | 56.52 KB | Posted: 6/17/09

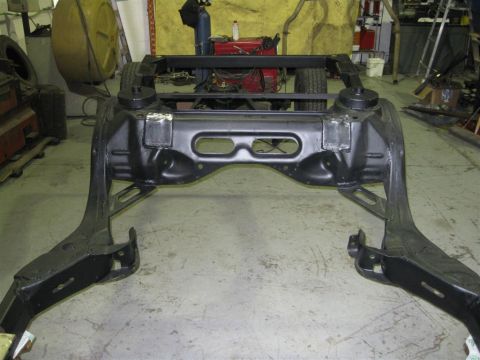

6-1/2 cans of spray paint to cover the frame from the firewall back.

IMG_0273 (Large).JPG
389 hits | 65.33 KB | Posted: 6/20/09

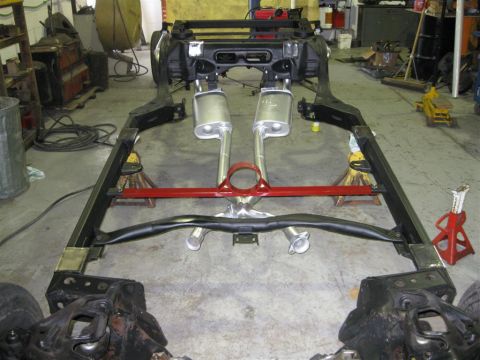

Yay, stuff starts going back on!

IMG_0274 (Large).JPG
405 hits | 56.44 KB | Posted: 6/20/09

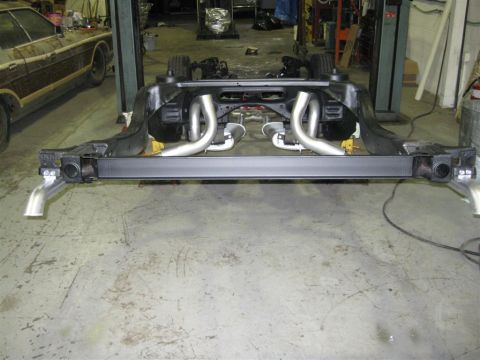

Back view.

IMG_0275 (Large).JPG
412 hits | 53.78 KB | Posted: 6/20/09

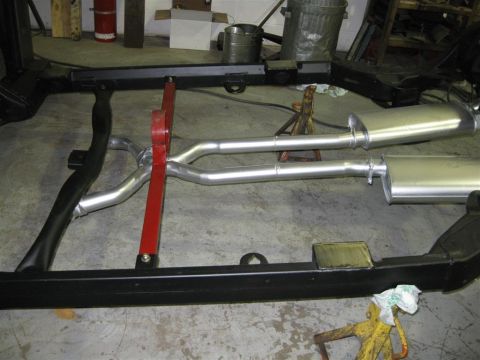

Side view.

IMG_0279 (Large).JPG
444 hits | 61.65 KB | Posted: 6/20/09

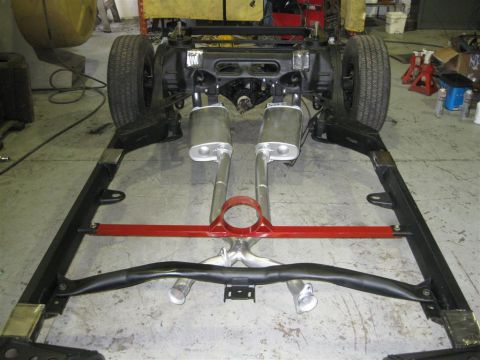

Rear axle installed.

IMG_0280 (Large).JPG
458 hits | 61.07 KB | Posted: 6/20/09

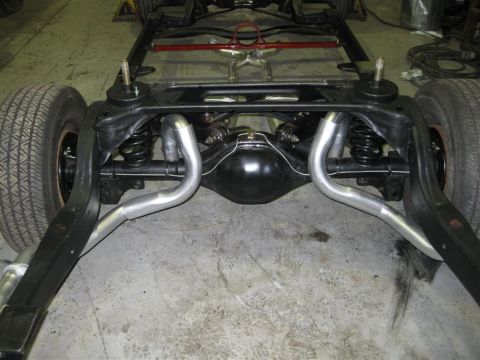

Very few of these with a 9", even fewer with a Currie Track 9.

IMG_0284 (Large).JPG
666 hits | 62.33 KB | Posted: 6/28/09

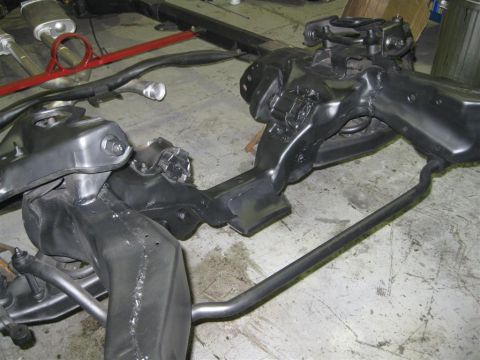

Then I took all the steering linkage out

IMG_0288 (Large).JPG
1975 hits | 68.99 KB | Posted: 6/28/09

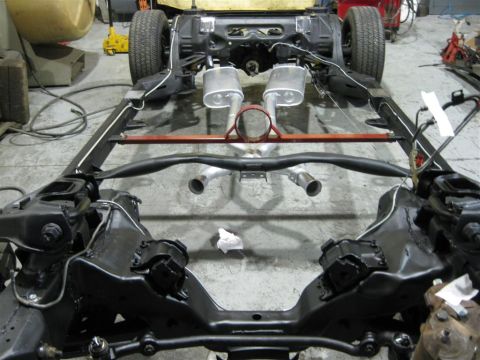

And then put it all back with new pitman and idler arms. All the frame mounted brake lines are repla...

IMG_0292 (Large).JPG
625 hits | 71.15 KB | Posted: 6/28/09

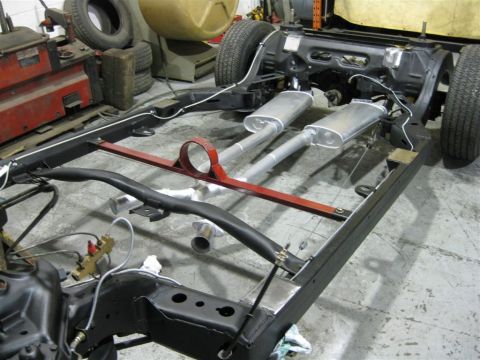

The pre-made brake lines ended up 4" too short, so it was build every line from scratch.

IMG_0286 (Large).JPG
534 hits | 43.99 KB | Posted: 6/28/09

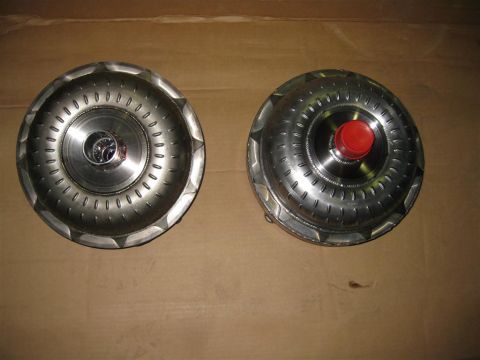

One is good, two are better! The used 2500 rpm stall is on the left and the brand new 3500 rpm stal...

IMG_0295 (Large).JPG
508 hits | 40.06 KB | Posted: 6/28/09

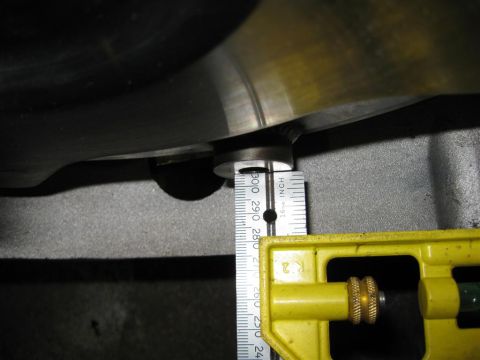

This is how to tell if a Ford torque converter is fully installed.

IMG_0296 (Large).JPG
515 hits | 62.95 KB | Posted: 6/28/09

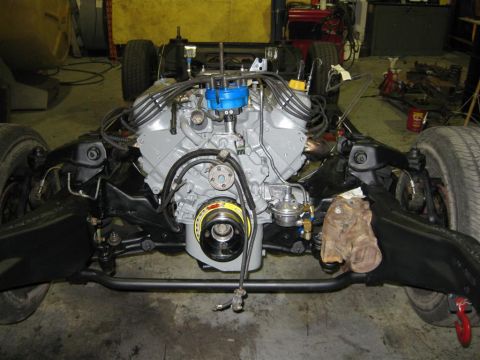

After 18 months it's back in, had to look for the bolts for a while though.

IMG_0297 (Large).JPG
505 hits | 72.94 KB | Posted: 6/28/09

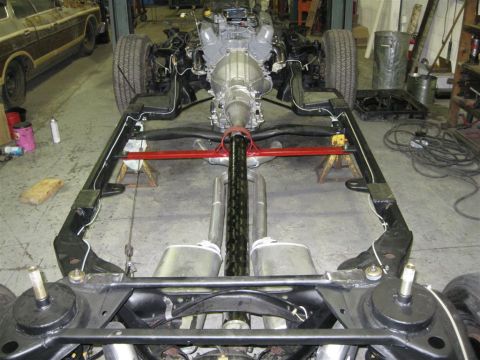

Just your average 25 or 30 thousand dollar drivetrain.
(Not counting development costs BTW)

IMG_0364 (Large).JPG
700 hits | 66.64 KB | Posted: 11/14/09

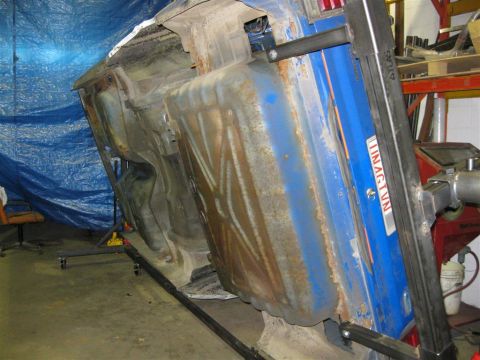

Been a while but now that I have a new toy, things should go a bit quicker.

IMG_0365 (Large).JPG
643 hits | 54.38 KB | Posted: 11/14/09
Along with a few other goodies, working on the body is going to a lot easier.

IMG_0366 (Large).JPG
635 hits | 70.95 KB | Posted: 11/14/09
This is an Auto-Twirler brand from the Eastwood Company. I put it together in minutes and started us...

IMG_0368 (Large).JPG
703 hits | 60.86 KB | Posted: 11/14/09
Took me 3 hours to get the front and rear glass out using the tools I bought last night. Nerve-racki...

IMG_0370 (Large).JPG
677 hits | 57.32 KB | Posted: 11/14/09
But my $400 and really hard to get factory clear windshield came out intact and will be re-used.
