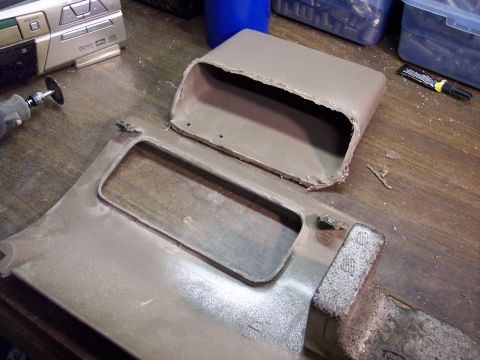

Switch panel 1.JPG
982 hits | 61.61 KB | Posted: 3/28/07

First, I cut off the cubby hole pocket using my trusty Dremel tool. And yes, those are boxes of fir...

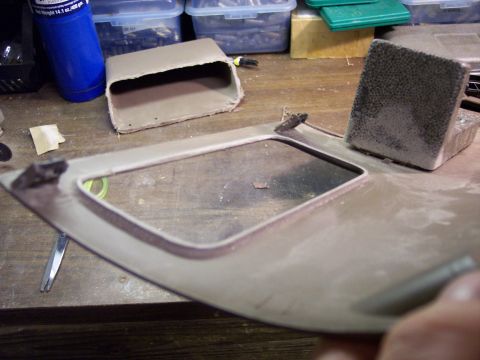

Switch panel 2.JPG
807 hits | 50.97 KB | Posted: 3/28/07

I ground down the edges to provide a smooth, level mounting surface for the switch panel. I later a...
Switch panel 3.JPG
835 hits | 50.11 KB | Posted: 3/28/07

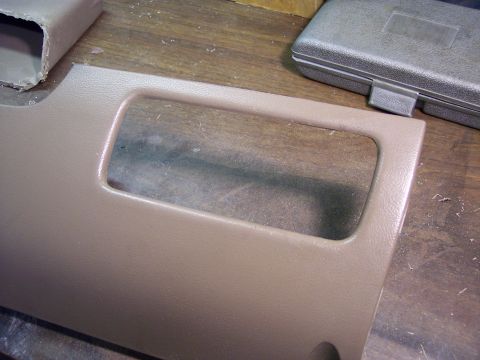

Looks nice and clean in front.

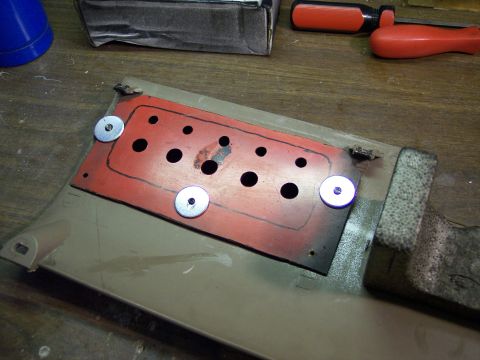

Switch panel 4.JPG
797 hits | 53.11 KB | Posted: 3/28/07

Here's the switch panel from the rear. I made it out of a plastic marquee sign letter, if you can b...
Switch panel 5.JPG
925 hits | 57.78 KB | Posted: 3/28/07

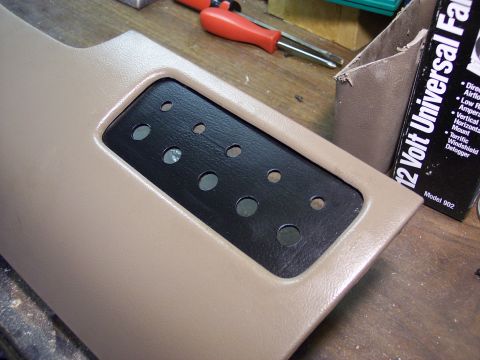

Switch panel mounted up and ready to receive toggle switches. The top row of smaller holes is for t...
Switch panel 6.JPG
848 hits | 57.41 KB | Posted: 3/28/07

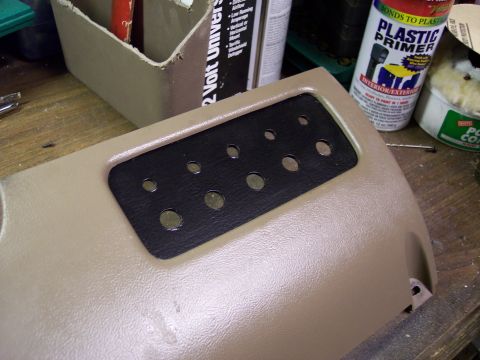

Yes, I buggered up the center LED hole, but you won't notice it once the LED is in.
Repaired panel tab (front).JPG
975 hits | 48.98 KB | Posted: 3/28/07

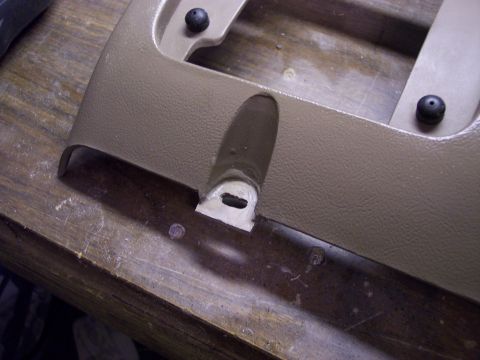

While I had the panel out of the truck, I decided to try and fix this mounting tab that had broken o...

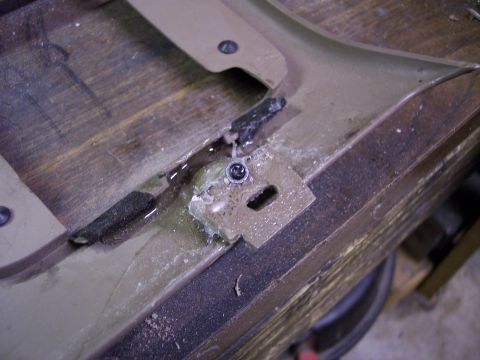

Repaired panel tab (rear).JPG
737 hits | 52.98 KB | Posted: 3/28/07

But what a mess behind...good thing this part doesn't show

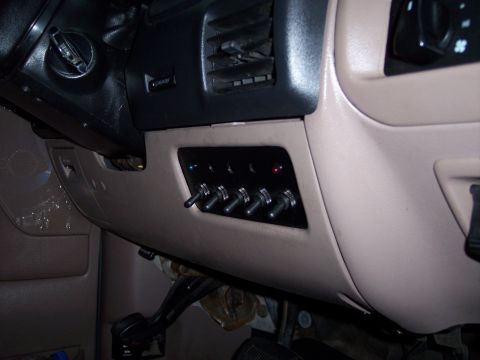

Switch panel 7.JPG
1234 hits | 38.19 KB | Posted: 4/3/07

Black plastic toggle switches and two LEDs in...just waiting for the rest of the LED's to arrive fro...

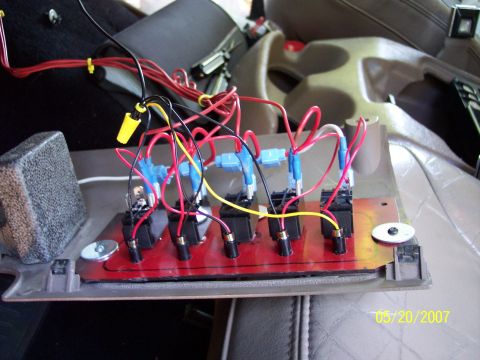

Switch panel 8.JPG
1170 hits | 64.29 KB | Posted: 5/20/07

Here's the nearly complete bird's nest of wiring and switches along with the rest of the LED's befor...

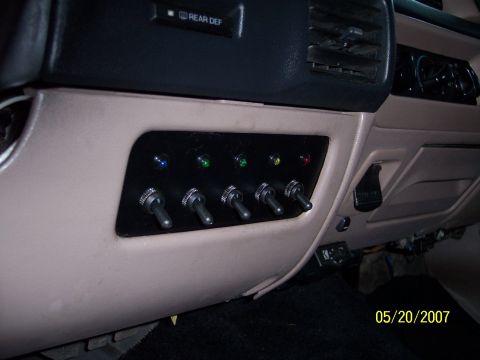

Switch panel 09.JPG
1319 hits | 37.75 KB | Posted: 5/20/07

Everything re-installed, ready to go

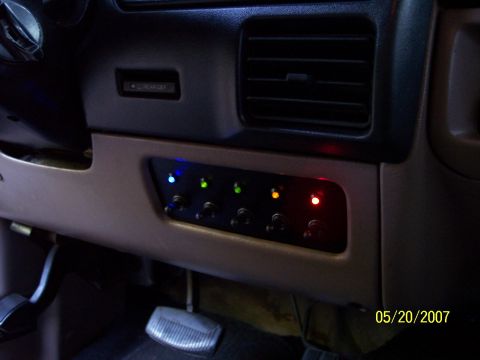

Switch panel 10.JPG
1224 hits | 33.53 KB | Posted: 5/20/07

Everything switched on:

Blue (flashing) - Strobes/wig-wags (just for fun)
Green - Empty
Green -...
