Misc. Bronco Information (diagrams, etc.)

From 1996 Ford Bronco “The Beast”, documented by Roadkill.

13 photos
← Back to this vehicle

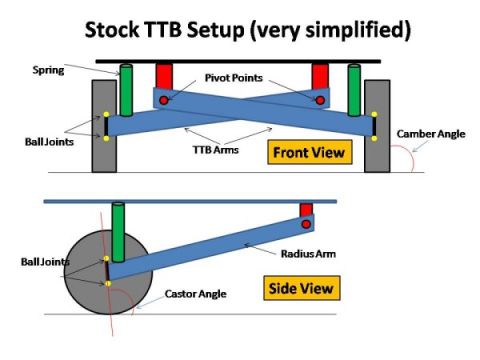

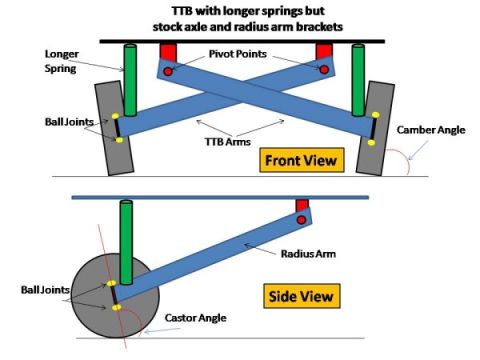

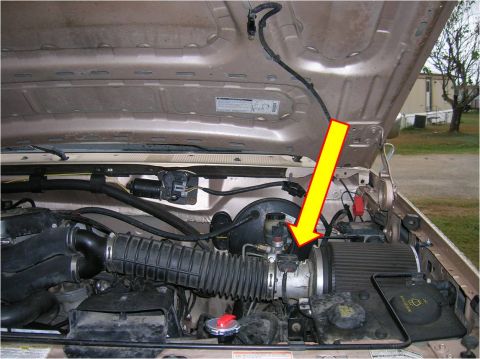

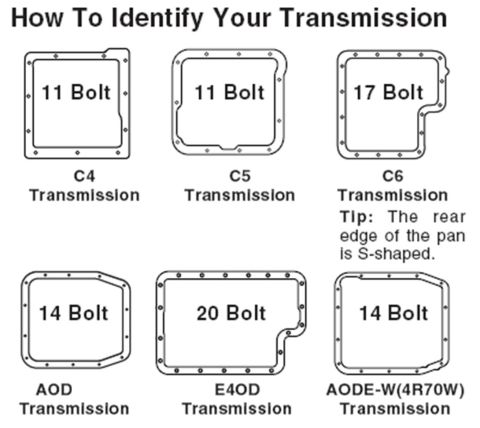

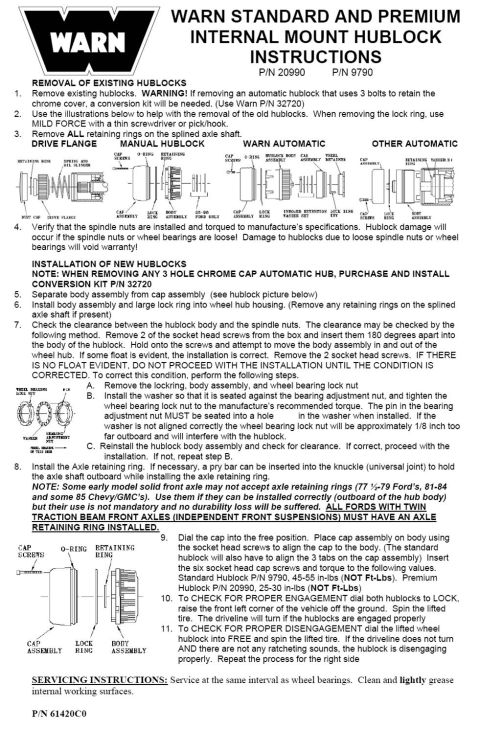

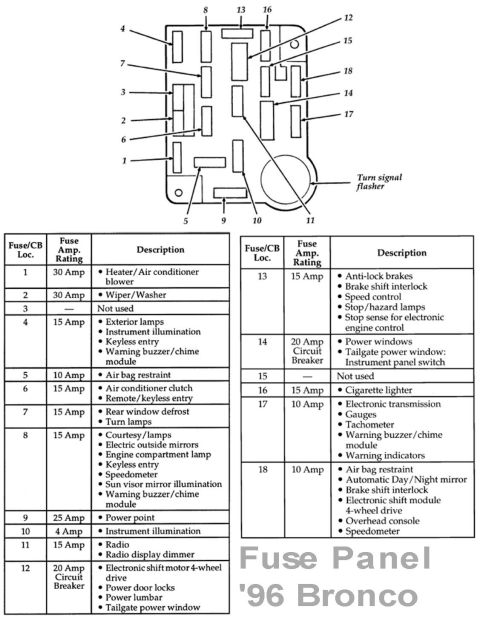

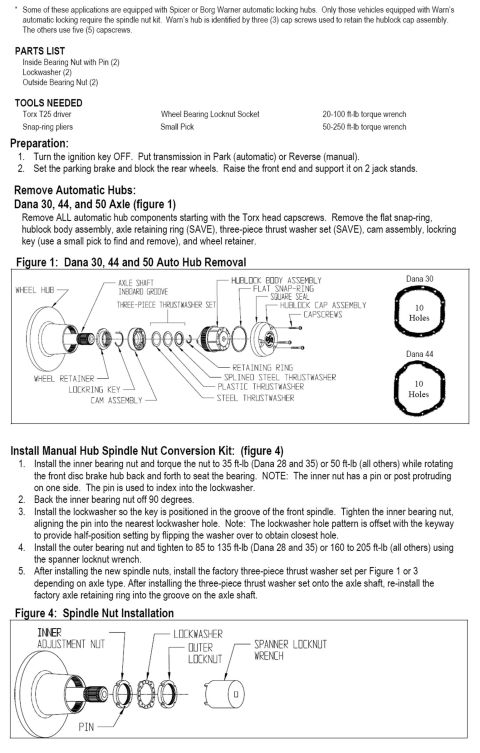

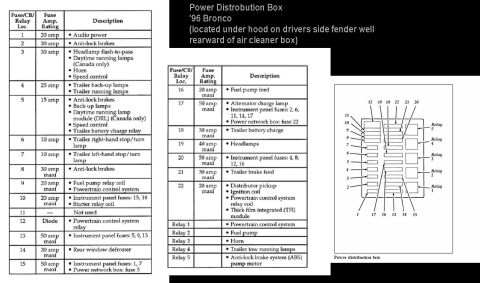

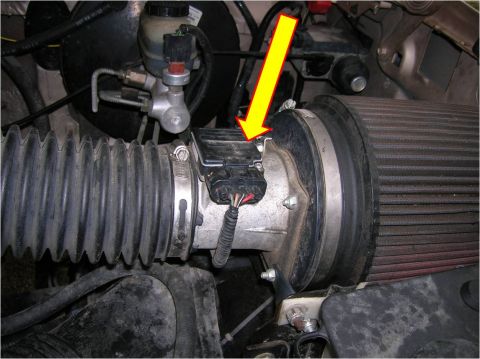

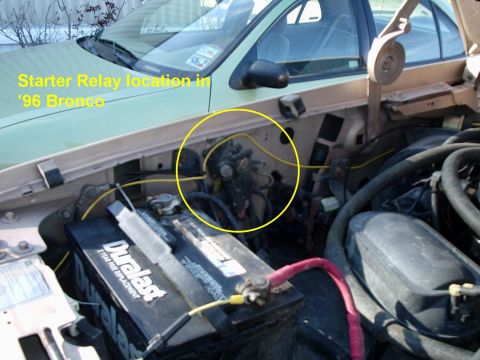

1996 Ford Bronco - Stock TTB Setup showing where Camber and Castor are measured. The only place for adjustment of Camber/Castor on the stock setup is by chang… 1996 Ford Bronco - When you use longer springs to lower the wheels with out lowering the axle pivot brackets and radius arm brackets, camber/castor angles can… 1996 Ford Bronco - This diagram is for the fusebox located inside the truck, on the lower left side of the dashbaord on a '96 Bronco. 1996 Ford Bronco - '96 Power Distrobution Box. Located under the hood on the drivers side fenderwell, behind the stock air cleaner location. 1996 Ford Bronco - These instructions are what comes with the Warn Premium hubs. If the original autolock covers have 3 screws, you will also need the spindle… 1996 Ford Bronco - If your original lockouts had 3 retaining screws, you will need the "conversion kit" which consists of replacement spindle nuts, washers, a… 1996 Ford Bronco - Starter relay is located on the inner fender, passenger side of truck. 1996 Ford Bronco - Close-up of a Ford Motor Co. certification/VIN label affixed to a tan door jamb, showing manufacture date 10/95, GVWR and tire specs, VIN e… 1996 Ford Bronco - Transmission Identification 1996 Ford Bronco - Engine bay of a tan/gold Ford Bronco with the hood raised, showing the black ribbed air intake tube running to a cylindrical air filter hou… 1996 Ford Bronco - Close-up of an engine bay showing an aluminum mass air flow (MAF) sensor housing with a black wiring connector, indicated by a yellow arrow… 1996 Ford Bronco - Tune up and routine maintenance data for varios years. 1996 Ford Bronco - Broncos with front wheel 4 wheel ABS have these cut outs on the front spindle for the ABS sensors.
