Rear Suspension

From 1996 Ford Bronco, documented by TommyR.

26 photos
← Back to this vehicle

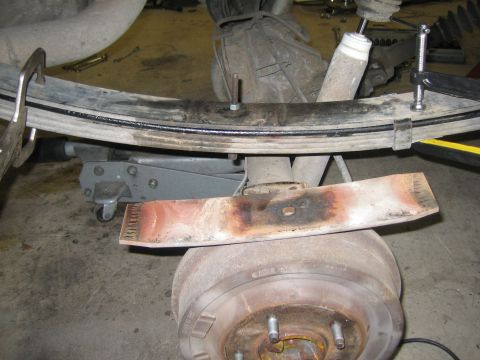

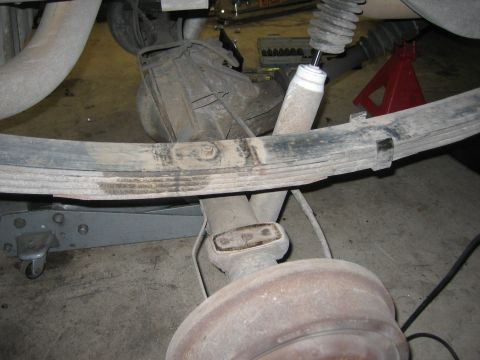

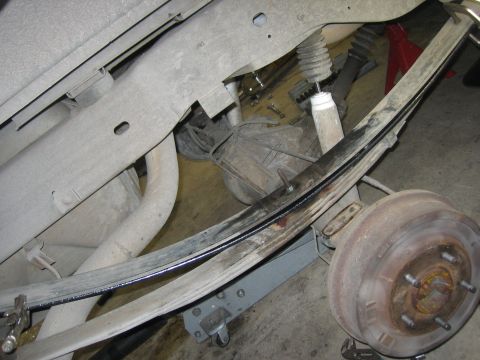

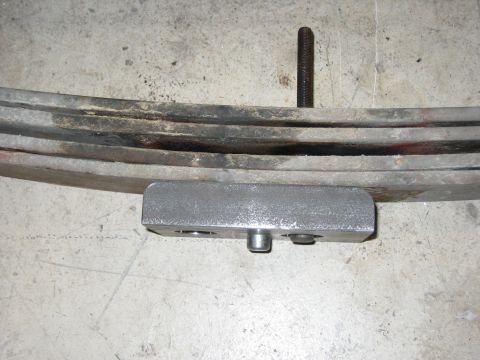

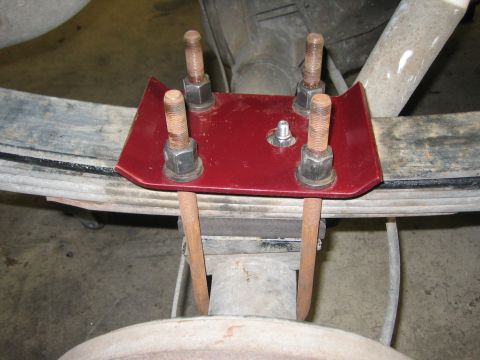

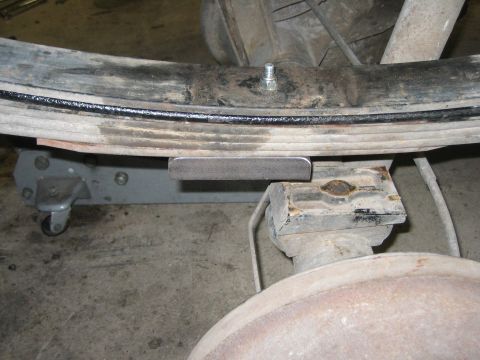

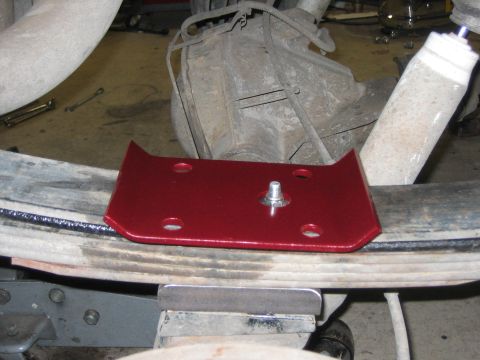

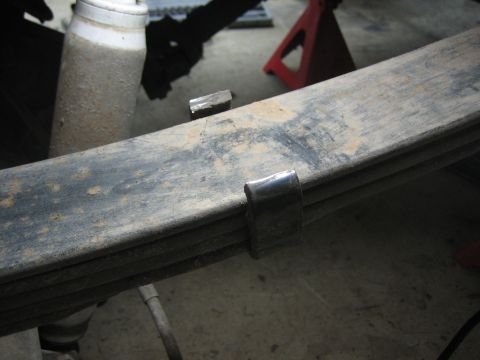

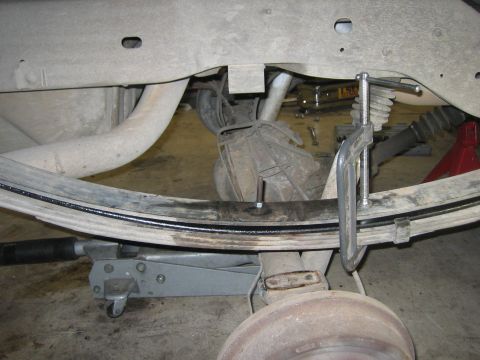

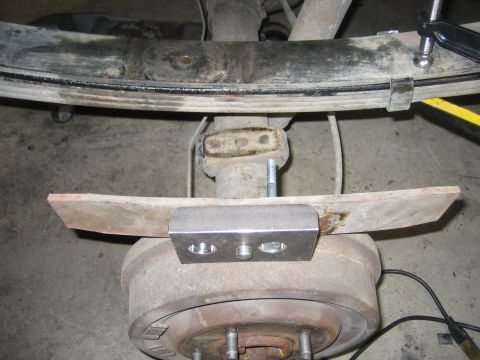

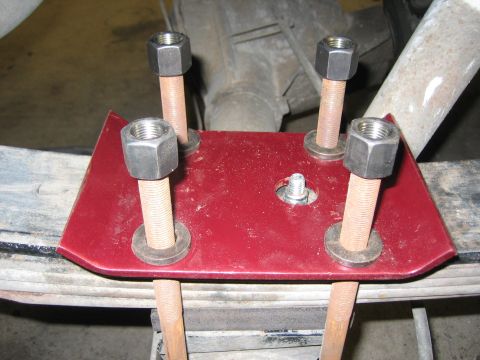

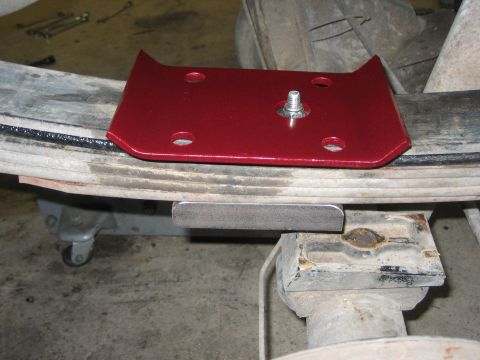

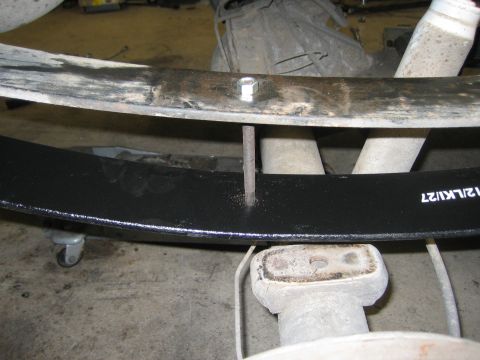

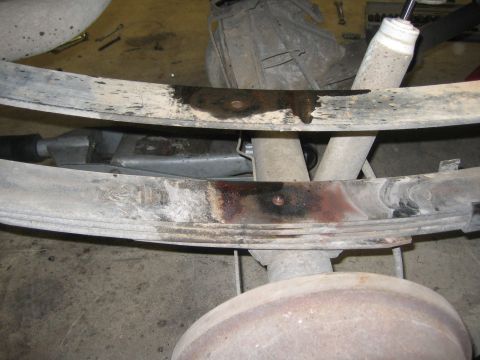

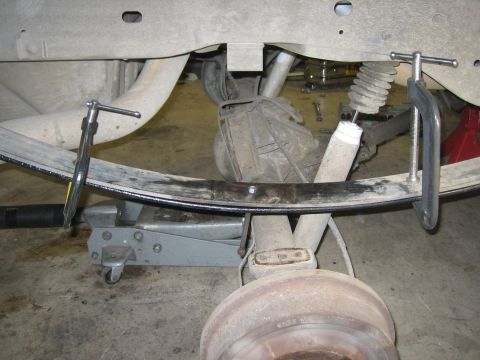

1996 Ford Bronco - Close-up view of the rear suspension system, including a leaf spring and shock absorber, with a floor jack providing support. 1996 Ford Bronco - Close-up of a vehicle's rear suspension components, including a leaf spring and shock absorber. 1996 Ford Bronco - Close-up view of the rear leaf springs and shock absorber, showing signs of fluid leakage. 1996 Ford Bronco - New leaf spring installed on vehicle suspension system, showing part number 12/LK127. 1996 Ford Bronco - Close-up view of vehicle's rear suspension components, including leaf springs and shock absorber, secured with clamps and a jack. 1996 Ford Bronco - Close-up of a metal bracket with a bolt and screw holes positioned on a brake rotor. 1996 Ford Bronco - Close-up of a vehicle's leaf spring assembly, showing a U-bolt and mounting bracket. 1996 Ford Bronco - Leaf springs and hardware are laid out on a concrete surface, possibly for repair or replacement. 1996 Ford Bronco - Close-up view of the rear suspension system, focusing on the leaf spring and associated components. 1996 Ford Bronco - Close-up of vehicle's rear suspension system, showing a leaf spring secured with a clamp and supported by a jack. 1996 Ford Bronco - Close-up view of a vehicle's rear suspension components, including a leaf spring and brake drum, with a metal blade placed on top. 1996 Ford Bronco - Rear axle and leaf spring assembly with a custom metal bracket installed. 1996 Ford Bronco - The rear suspension components of a vehicle are shown, including leaf springs and part of the axle. 1996 Ford Bronco - A single, weathered metal bracket with visible rust and dirt is shown from a top-down perspective on a floor. 1996 Ford Bronco - A red leaf spring plate is installed on a vehicle's leaf spring, with a metal shim positioned below. 1996 Ford Bronco - Close-up of a red suspension component installed on a leaf spring assembly. 1996 Ford Bronco - Close-up of a vehicle's rear suspension leaf spring U-bolt plate and hardware. 1996 Ford Bronco - Close-up of a vehicle's rear suspension components, including leaf springs and U-bolts. 1996 Ford Bronco - A torn CV axle boot reveals the splined shaft coated in blue grease, indicating potential wear or damage. 1996 Ford Bronco - Measuring the diameter of a CV axle shaft, likely for replacement or inspection. 1996 Ford Bronco - A tape measure is used to show the size of a driveshaft spline covered in grease. 1996 Ford Bronco - A close-up view of a driveshaft's splined end, showing blue grease and being measured with a tape measure. 1996 Ford Bronco - A close-up view shows a driveshaft with blue splines being measured with a tape measure. 1996 Ford Bronco - Rear axle assembly with leaf springs and shock absorber visible, tire shows BFGoodrich branding. 1996 Ford Bronco - Underside view of a vehicle's rear suspension components, including a leaf spring and fuel tank. 1996 Ford Bronco - A close-up view of a vehicle's rear suspension component, highlighting its construction and wear.
