Door Switches (Win/Lock)

From 1999 Ford Crown Victoria, documented by metallicvic.

20 photos
← Back to this vehicle

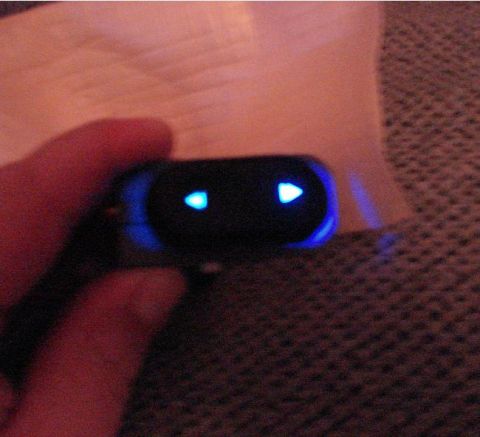

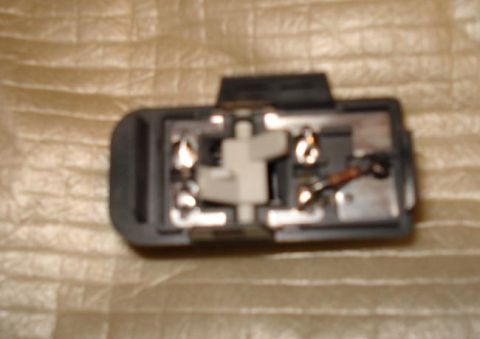

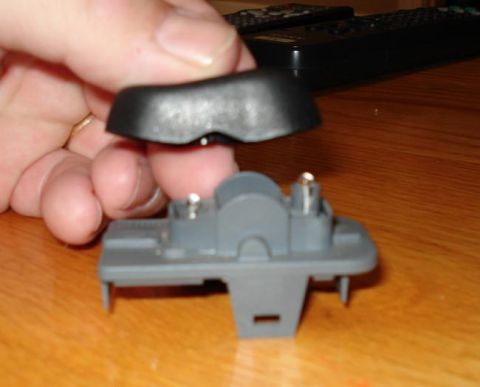

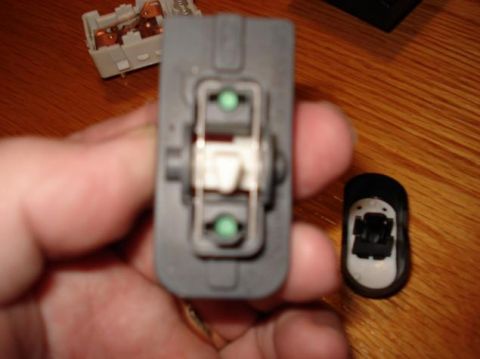

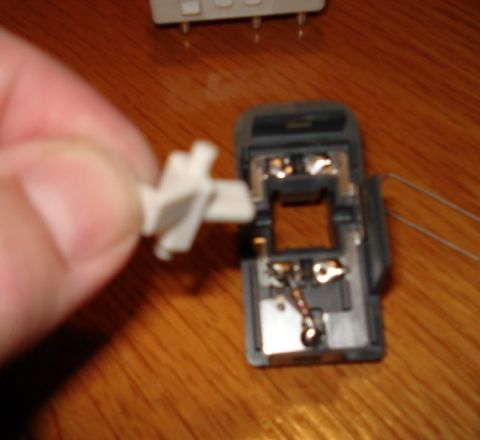

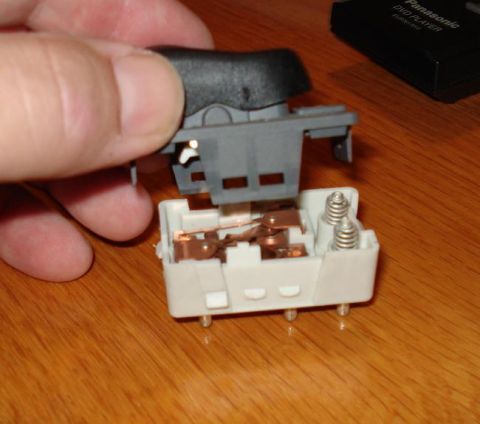

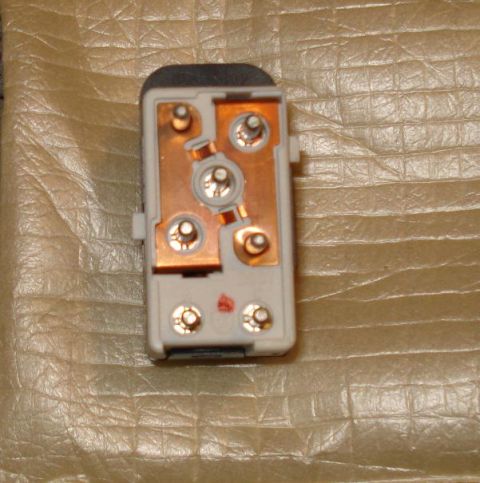

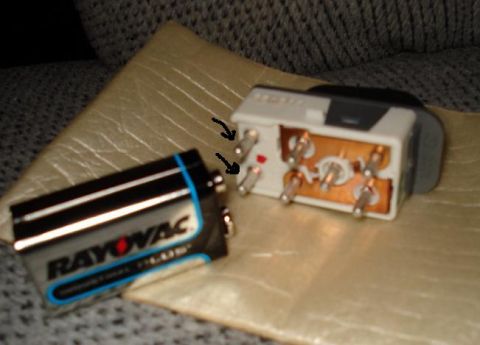

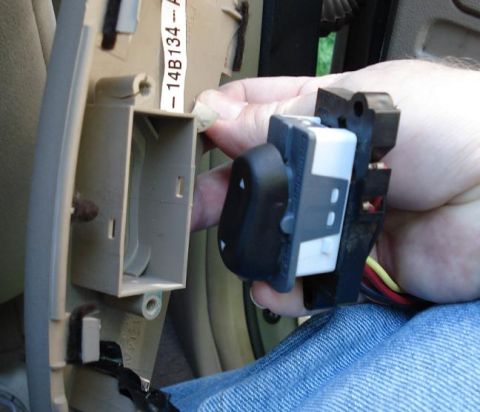

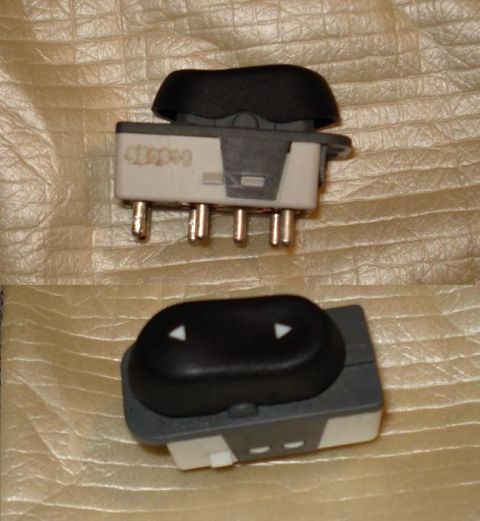

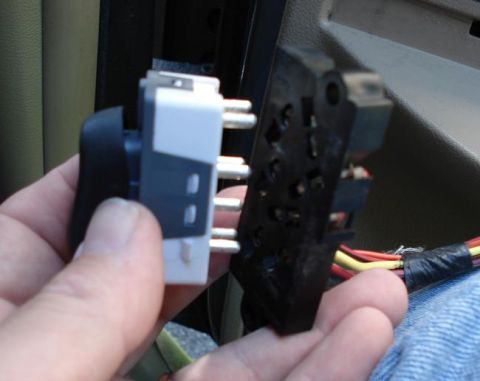

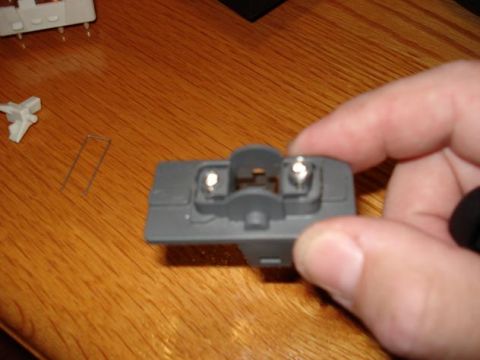

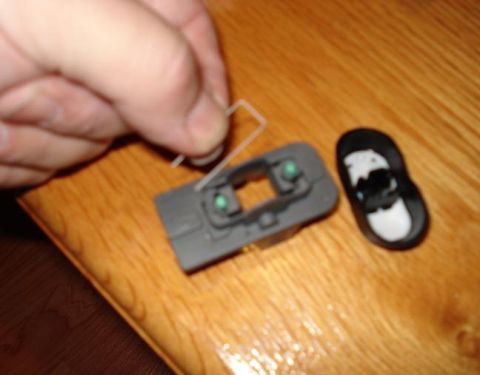

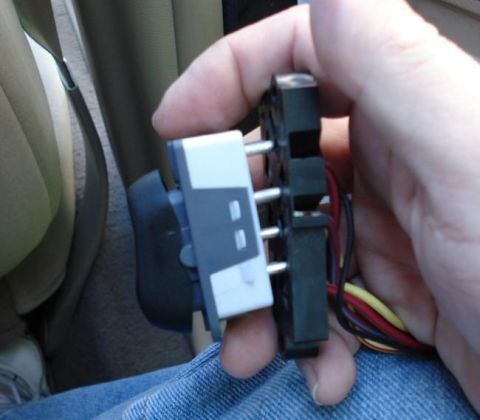

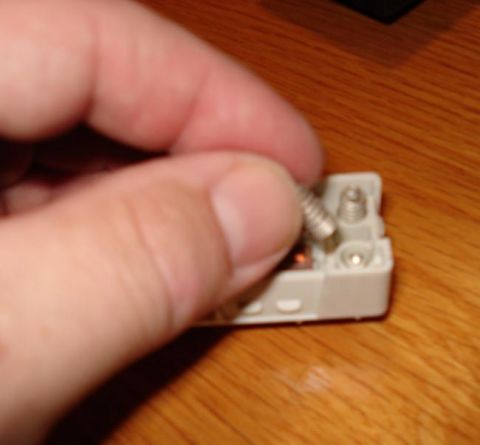

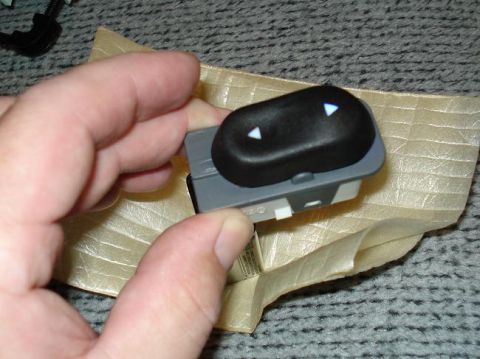

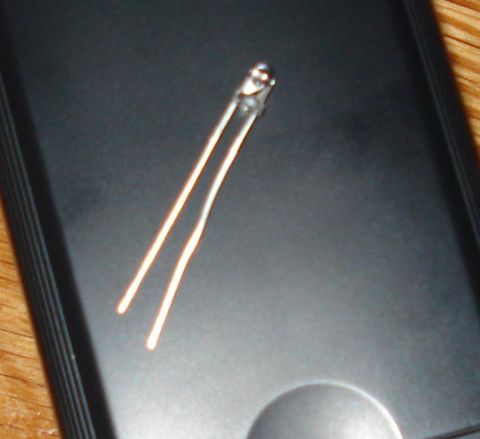

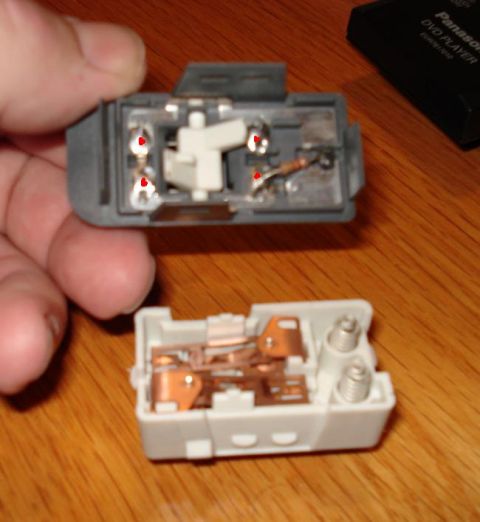

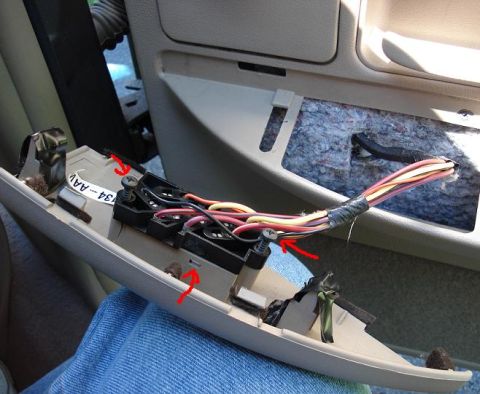

1999 Ford Crown Victoria - New blue 3MM LED I'm using for lighted switches 1999 Ford Crown Victoria - Connection Posts on back of switch 1999 Ford Crown Victoria - Separating the upper & lower switch sections 1999 Ford Crown Victoria - Showing both internal sections of switch 1999 Ford Crown Victoria - Showing the OEM green LEDs that light up the switch 1999 Ford Crown Victoria - The new blue LEDs lighting the switch 1999 Ford Crown Victoria - The new blue LEDs soldered in place of the green OEM ones 1999 Ford Crown Victoria - The Rocker part of the switch goes on one way. The thicker part goes over the raised LED for re-assembly 1999 Ford Crown Victoria - The spring may have fallen out during dissasembly it just lays in the boxed groove around the LEDs it keeps the rocker in the center positi… 1999 Ford Crown Victoria - To remove the switch from the wire harness its just pulled off the terminal block. Pry it off with a thin flat screwdriver and the pins wil… 1999 Ford Crown Victoria - inside the switch is two small springs that act as the connections that provide power to the LEDs 1999 Ford Crown Victoria - Couple views of the rocker switch 1999 Ford Crown Victoria - The switch back together make sure the locking tabs are engaged on all 4 sides 1999 Ford Crown Victoria - The white lever that actuates the contacts for the power window 1999 Ford Crown Victoria - Switch pulled off the terminal block on the wire harness 1999 Ford Crown Victoria - The switch removed from the door trim 1999 Ford Crown Victoria - Showing under the top section of the switch. The resistor for the LEDs and the LED leads are soldered on here too. (resistor is on the posi… 1999 Ford Crown Victoria - After the LEDs are replaced you can test them with a 9V battery on the 2 posts that power the LEDs. (the 2 posts without the copper strips… 1999 Ford Crown Victoria - With the trim popped off the switch is removed by 2 screws and then releasing 2 locking tabs (one on each side) and slide the switch out 1999 Ford Crown Victoria - Swich in place and working with new blue LEDs
