abcdefg 068.JPG
1852 hits | 65.7 KB | Posted: 12/20/08
this is where I cut out the passenger side to get a beter look
abcdefg 066.JPG
1369 hits | 74.89 KB | Posted: 12/20/08
inside drivers side tub fender welded in
abcdefg 067.JPG
1067 hits | 61.73 KB | Posted: 12/20/08
inside passenger side tub fender welded in
abcdefg 069.JPG
1119 hits | 63.91 KB | Posted: 12/20/08
my new gas tank showed up while welding on the Bronco so I thought Id put it under this nice flag I ...
abcdefg 013.JPG
1141 hits | 72.95 KB | Posted: 12/20/08

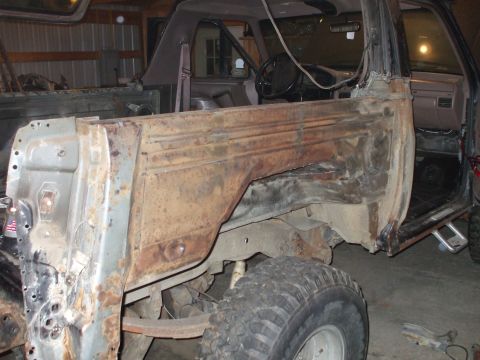

passenger rear quarter gone
abcdefg 070.JPG
1058 hits | 70.89 KB | Posted: 12/20/08
Piece of copper plate I cut out & beat a radius in to fill in the holes I drilled to cut spot welds....
abcdefg 071.JPG
1056 hits | 64.58 KB | Posted: 12/20/08
pic of holes with copper backing(weld wont stick to the copper)
abcdefg 072.JPG
1004 hits | 59.46 KB | Posted: 12/20/08
drivers rear quater gone
abcdefg 074.JPG
1004 hits | 85.95 KB | Posted: 12/20/08

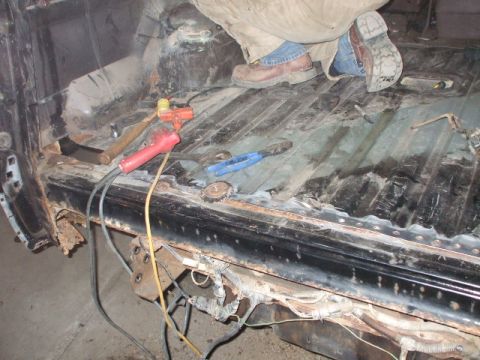

spot welds cut off rear support and a little bad metal off floor
abcdefg 010.JPG
1305 hits | 70.97 KB | Posted: 12/20/08

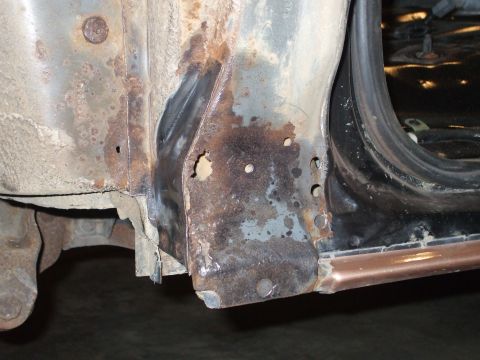

rusty b-pillar on passenger side
abcdefg 012.JPG
1040 hits | 76.72 KB | Posted: 12/20/08

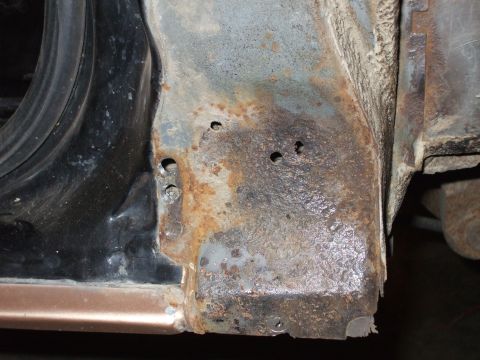

rusty b- pilar on drivers side
abcdefg 015.JPG
1030 hits | 68.53 KB | Posted: 12/20/08

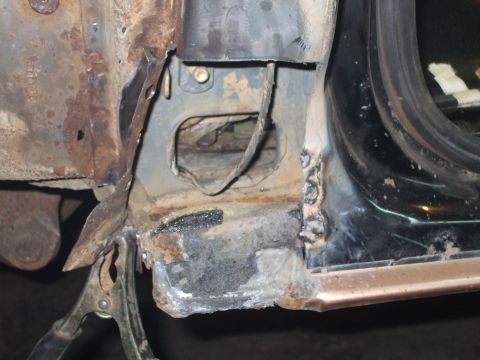

passenger side b-pilar cut out
abcdefg 017.JPG
1023 hits | 53 KB | Posted: 12/20/08

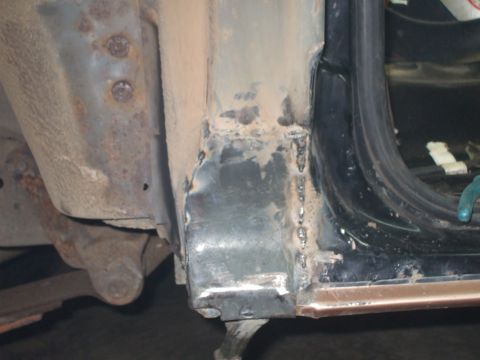

passenger b-pilar welded in
abcdefg 018.JPG
1005 hits | 68.39 KB | Posted: 12/20/08

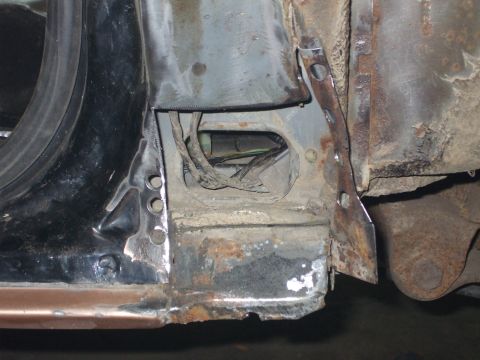

drivers side b-pilar cut out

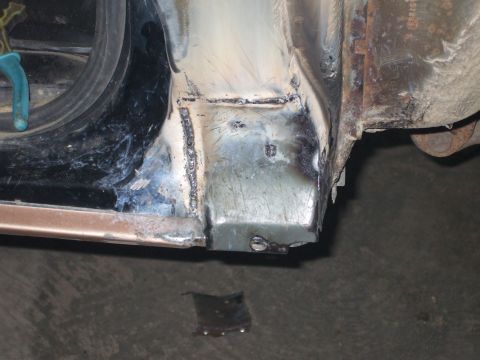

abcdefg 019.JPG
1069 hits | 61.52 KB | Posted: 12/20/08
drivers side b-pilar welded in
abcdefg 011.JPG
1056 hits | 73.06 KB | Posted: 12/20/08

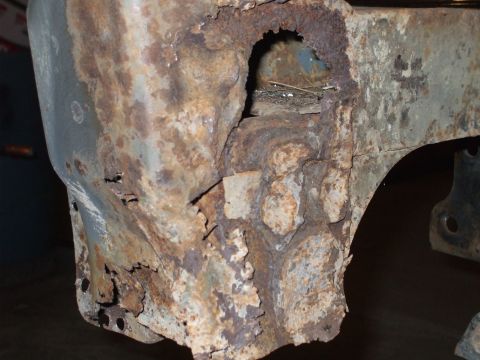

more rusty pics of rear support
mo pics 017.JPG
1005 hits | 68.59 KB | Posted: 12/20/08

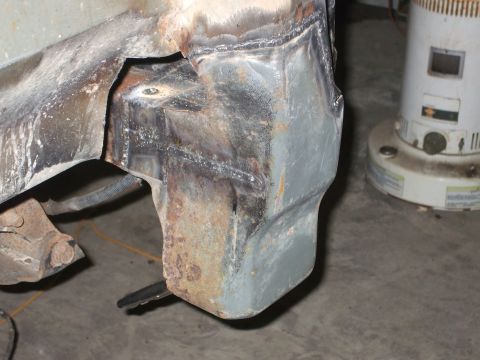

drivers side rear support cut out and better support welded back in
abcdefg 075.JPG
984 hits | 69.12 KB | Posted: 12/20/08

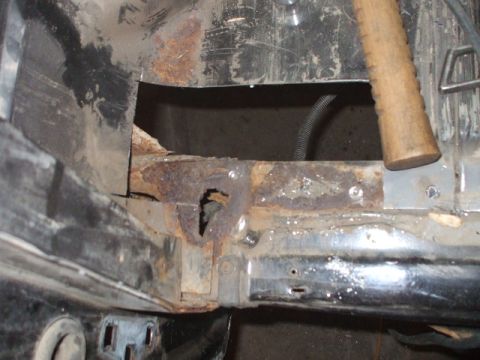

rust floor over drivers side rear support
mo pics 018.JPG
941 hits | 45.92 KB | Posted: 12/20/08

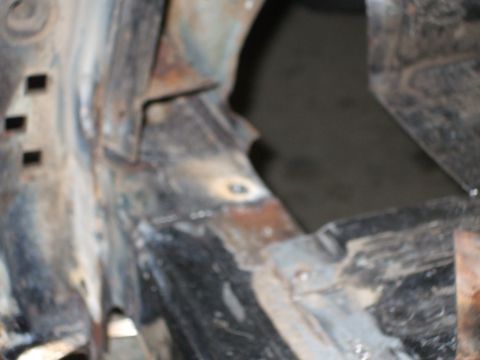

top view of drivers rear support and big hole in my floor
abcdefg 073.JPG
929 hits | 70.6 KB | Posted: 12/20/08
rusty rear support
abcdefg 076.JPG
1217 hits | 81.21 KB | Posted: 12/20/08

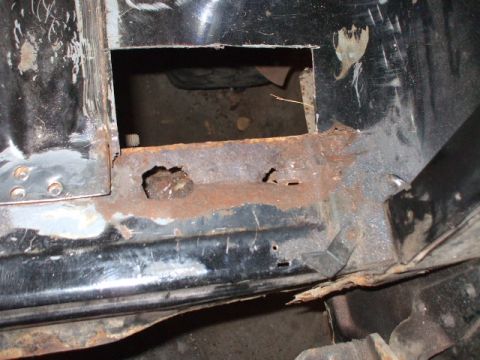

rusty floor over passenger rear support

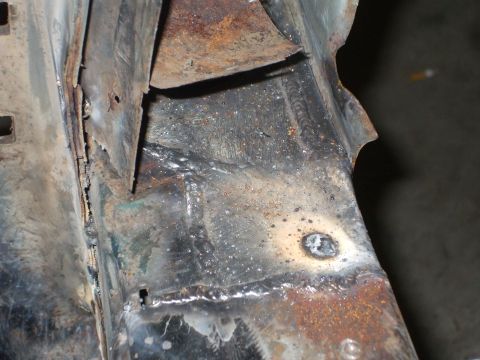

mo pics 019.JPG
974 hits | 74.91 KB | Posted: 12/20/08
closer pic of driver side top of rear support ,I just have a little more to do on this side
mo pics 001.JPG
1037 hits | 56.99 KB | Posted: 12/22/08

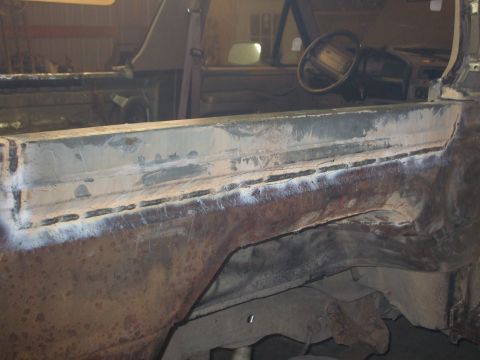

I cut out and replaced the rusted passenger rail
mo pics 002.JPG
1003 hits | 54.59 KB | Posted: 12/22/08

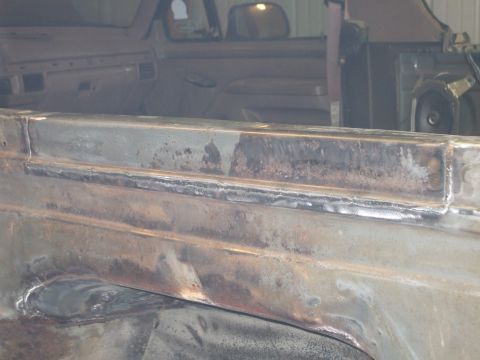

drivers side rail cut out and repaired, this side had holes in it on the top
mo pics 003.JPG
996 hits | 77.99 KB | Posted: 12/22/08

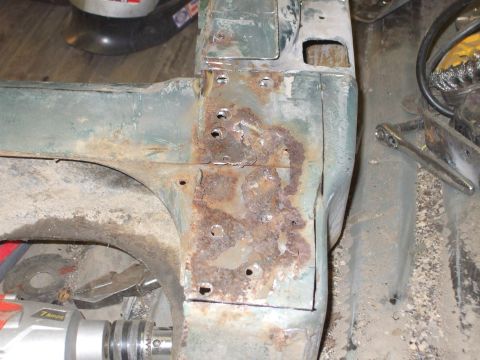

passenger rear support corner I'm putting in after the rust is repaired here
mo pics 004.JPG
1050 hits | 75.28 KB | Posted: 12/22/08

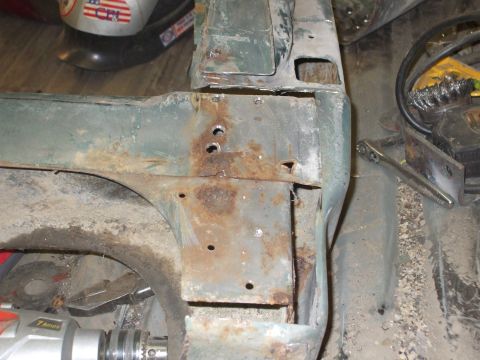

rust cut out
mo pics 005.JPG
936 hits | 73.24 KB | Posted: 12/22/08

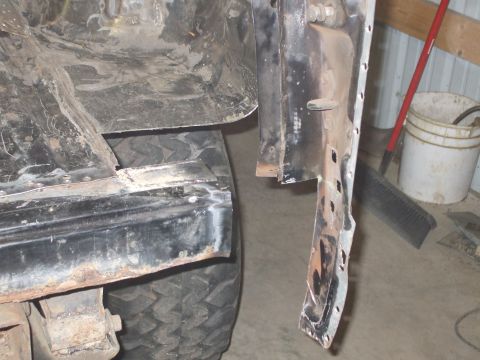

passenger rear support cut out of the Bronco
mo pics 006.JPG
957 hits | 67.87 KB | Posted: 12/22/08

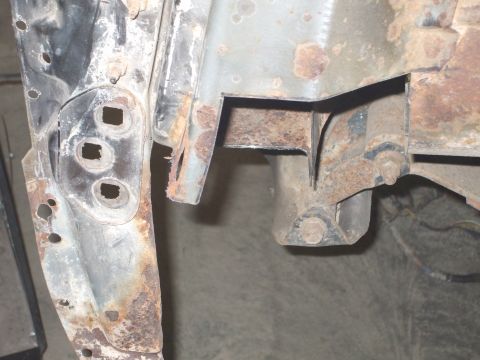

another shot of the passenger rear support cut out
mo pics 007.JPG
1051 hits | 73.75 KB | Posted: 12/22/08

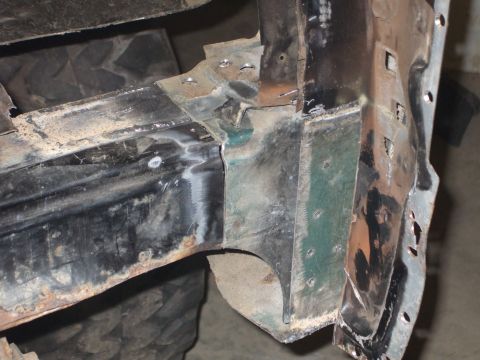

new passenger rear support moched up in place,just a little more trimming to do
mo pics 008.JPG
958 hits | 69.31 KB | Posted: 12/22/08

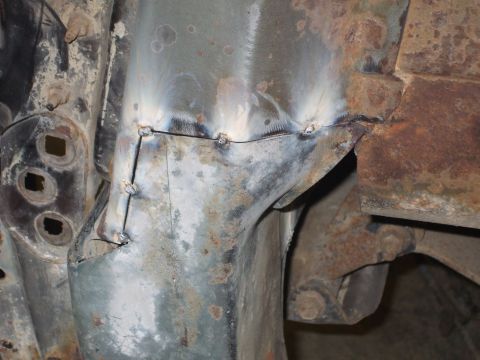

rear support tacked in place
mo pics 009.JPG
1003 hits | 58.4 KB | Posted: 12/22/08

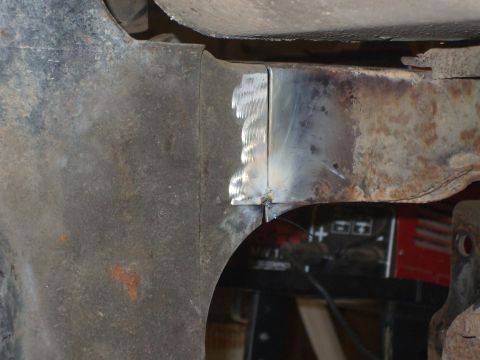

a little more fit up to do
mo pics 010.JPG
906 hits | 71.19 KB | Posted: 12/22/08

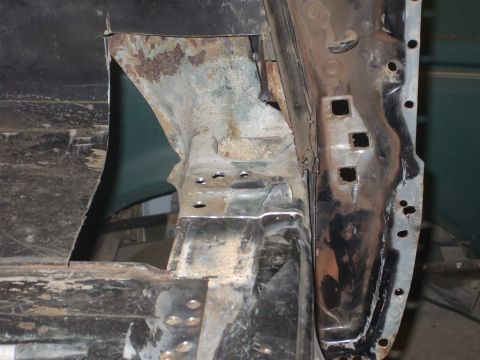

top view of new rear support
mo pics 011.JPG
1008 hits | 77.45 KB | Posted: 12/22/08

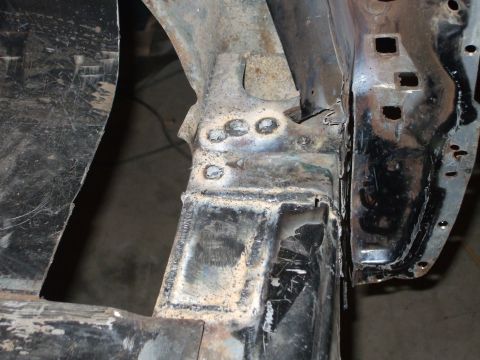

top side welded
mo pics 012.JPG
1159 hits | 61.64 KB | Posted: 12/22/08

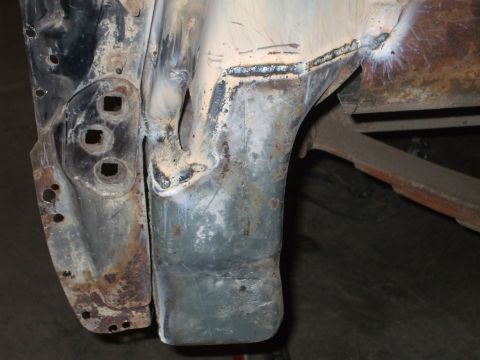

side of the passenger rear support welded in
mo pics 013.JPG
988 hits | 48.68 KB | Posted: 12/22/08

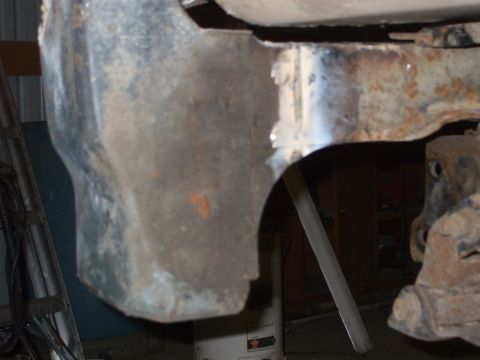

passenger rear support welded in, now for a coat of rust bullet befor the floor gets welded back dow...

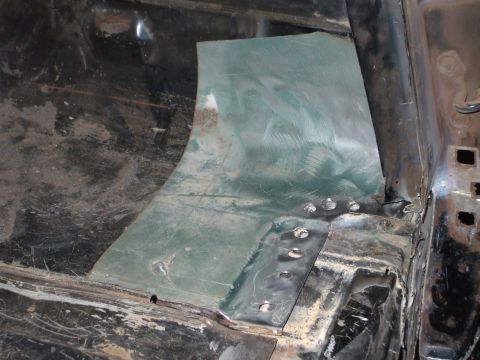

mo pics 014.JPG
1024 hits | 73.95 KB | Posted: 12/22/08
passenger rear corner floor patch pannel in place
mo pics 015.JPG
1042 hits | 41.64 KB | Posted: 12/22/08

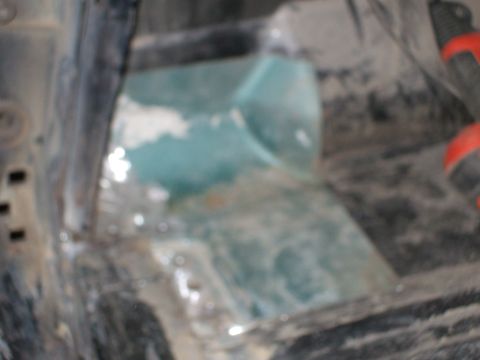

drivers rear corner floor patch pannel in place
more pics 110.jpg
958 hits | 38.99 KB | Posted: 1/3/09
passenger side welded in place
more pics 109.jpg
898 hits | 63.71 KB | Posted: 1/3/09
drivers side welded in place
more pics 111.jpg
933 hits | 58.99 KB | Posted: 1/3/09
drivers side seat belt repad welded on fender
more pics 112.jpg
888 hits | 53.38 KB | Posted: 1/3/09
passenger side repad welded on fender
more pics 106.jpg
909 hits | 48.02 KB | Posted: 1/3/09
all the bolts rusted solid, I broke 6 out of 8 so I replaced all the seat and seat belts with grade ...
more pics 108.jpg
907 hits | 65.05 KB | Posted: 1/3/09
rear floor welded back to the rear support
more pics 113.jpg
897 hits | 44.99 KB | Posted: 1/3/09
outside drivers tub prepped for rust bullet
more pics 114.jpg
1105 hits | 63.07 KB | Posted: 1/3/09
outside passengers tub prepped for rust bullet
more pics 2 004.jpg
1335 hits | 44.12 KB | Posted: 1/6/09

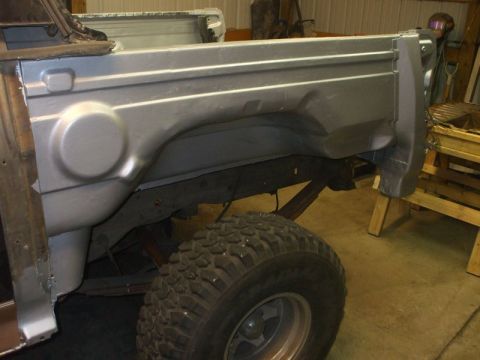

first coat of rust bullet on drivers side tub
more pics 2 005.jpg
974 hits | 42.58 KB | Posted: 1/6/09

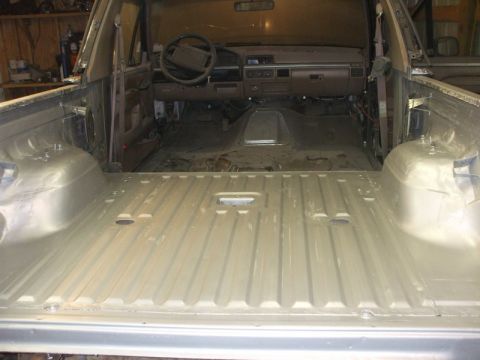

first coat of rust bullet inside tub
more pics 2 006.jpg
992 hits | 46.75 KB | Posted: 1/6/09

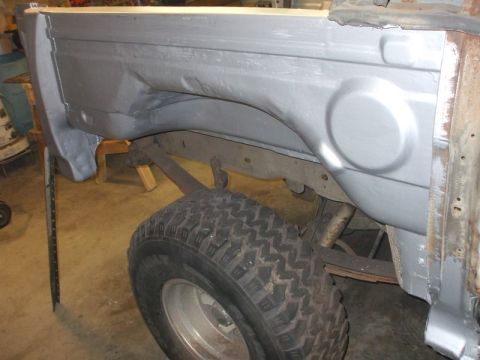

first coat of rust bullet on passenger side tub
more pics 2 009.jpg
930 hits | 39.5 KB | Posted: 1/6/09
more pics 2 008.jpg
918 hits | 45.42 KB | Posted: 1/6/09
more pics 2 010.jpg
875 hits | 39.25 KB | Posted: 1/6/09

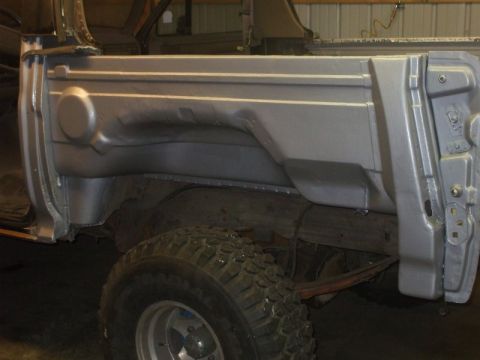

drivers side second coat
more pics 2 011.jpg
943 hits | 46.46 KB | Posted: 1/6/09

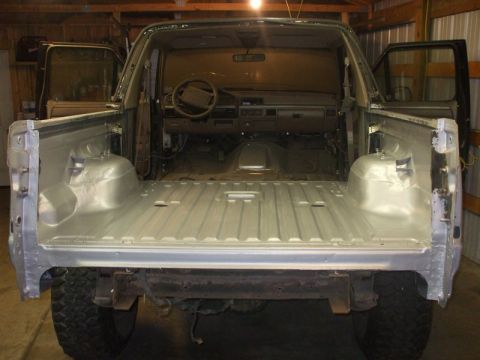

inside tub second coat
more pics 2 014.jpg
810 hits | 41.17 KB | Posted: 1/6/09

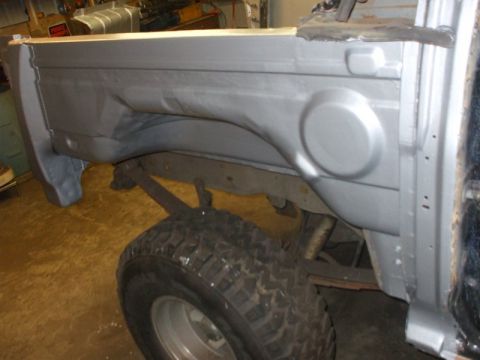

passenger side second coat
more pics 2 012.jpg
865 hits | 37.13 KB | Posted: 1/6/09

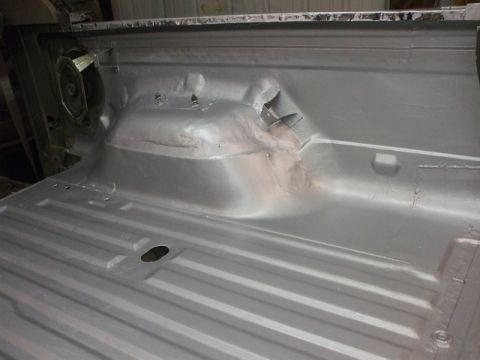

passenger side inner fender close up of second coat
more pics 2 013.jpg
860 hits | 39.04 KB | Posted: 1/6/09

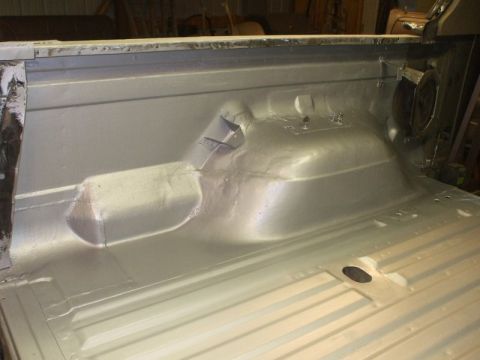

drivers side inner fender close up of second coat
more pics 2 015.jpg
888 hits | 45.05 KB | Posted: 1/6/09

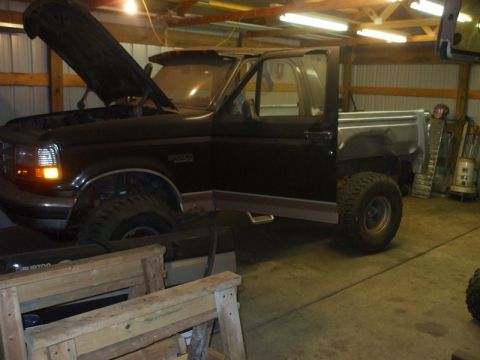

picture of the bronco befor the rear quarters go back on
bronco fenders 007.jpg
903 hits | 50.25 KB | Posted: 1/8/09

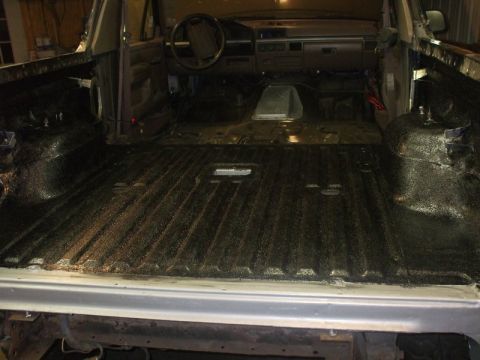

got the first coat of herculiner put on
bronco fenders 008.jpg
1079 hits | 87.51 KB | Posted: 1/8/09

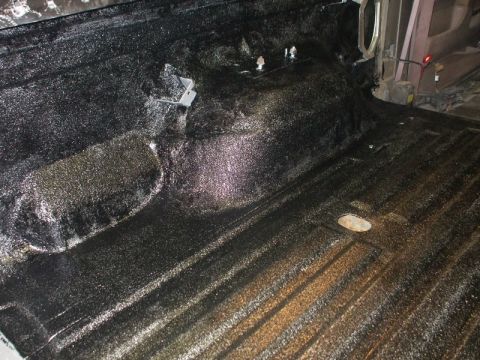

shot of drivers side herculiner/first coat
bronco fenders 009.jpg
1186 hits | 65.2 KB | Posted: 1/8/09

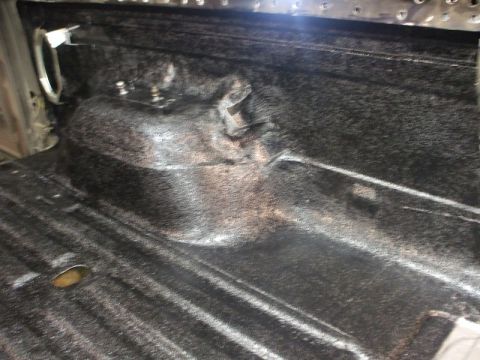

shot of passengers side herculiner/first coat
bronco fenders 004.jpg
1792 hits | 55.71 KB | Posted: 1/8/09

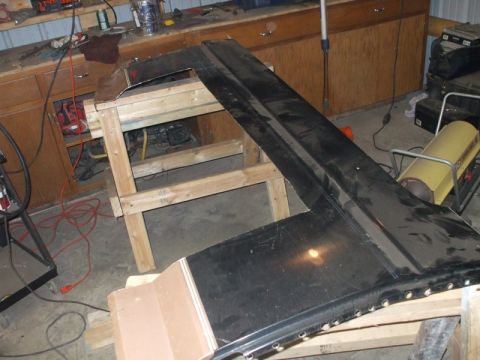

fender on horses with hole cut out enough for new fender to lay on top
bronco fenders 005.jpg
1150 hits | 55.95 KB | Posted: 1/8/09

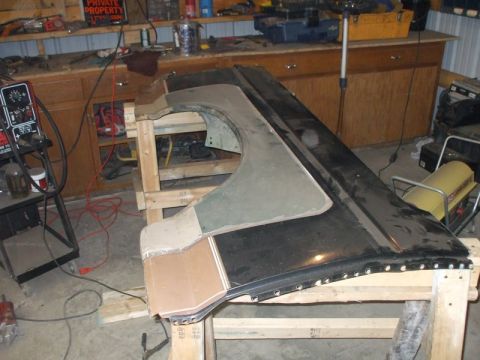

traced around the fender with sharpie, then cut out inside of sharpie mark for good fit

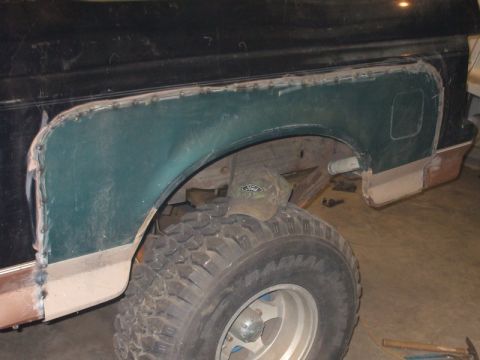

bronco fenders 002.jpg
1725 hits | 43.62 KB | Posted: 1/8/09
drivers side tacked in place
bronco fenders 001.jpg
1496 hits | 47.75 KB | Posted: 1/8/09

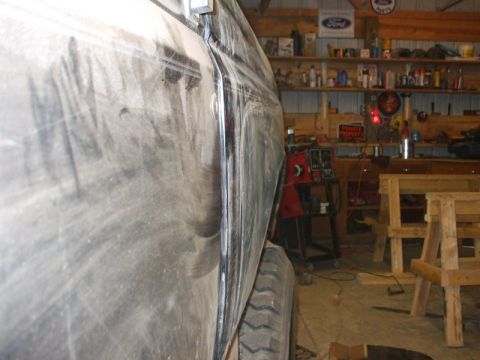

good fit, no peaks or valleys
1054 hits | 63.12 KB | Posted: 12/4/09

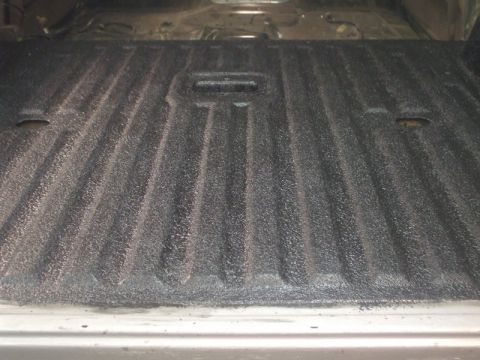

second coat of herculiner
bronco fenders 006.jpg
2379 hits | 56.07 KB | Posted: 1/8/09
passenger side tacked in place
bronco fenders 003.jpg
1239 hits | 40.36 KB | Posted: 1/8/09

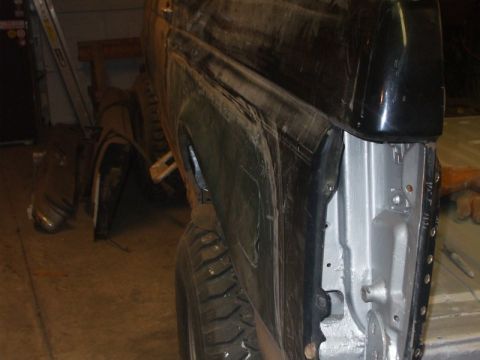

passenger side had small valley in the horizontal cut to the rear, not to bad I think I can get it o...
orie 001.jpg
872 hits | 64.44 KB | Posted: 9/16/09

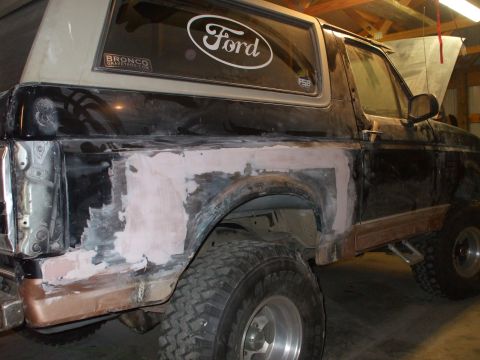

passengers side with filler, ready for primer and paint
orie 003.jpg
754 hits | 54.8 KB | Posted: 9/16/09

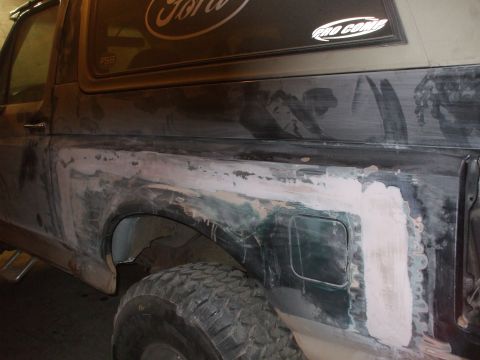

drivers side with filler, ready for primer and paint
orie 011.jpg
753 hits | 65.19 KB | Posted: 9/16/09

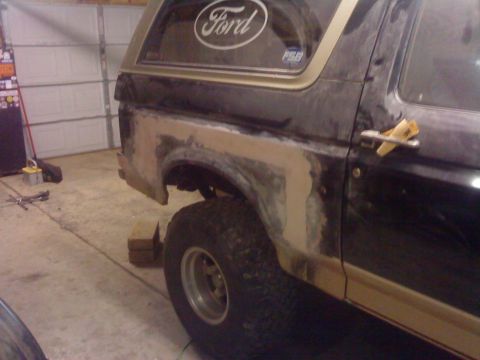

another shot of the passenger side
767 hits | 61.61 KB | Posted: 12/4/09

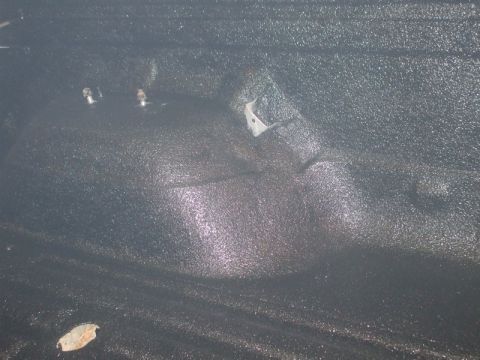

one more shot of the herculiner
orie 012.jpg
765 hits | 60.15 KB | Posted: 9/16/09

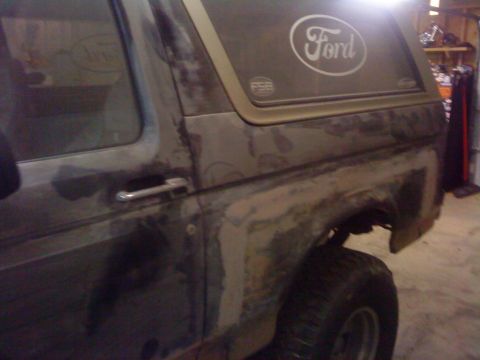

another shot of the drivers side
orie 013.jpg
776 hits | 48.02 KB | Posted: 9/16/09

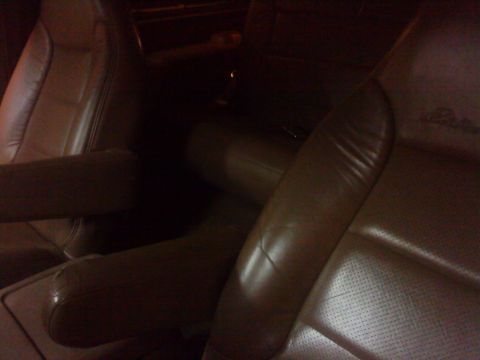

interior put in

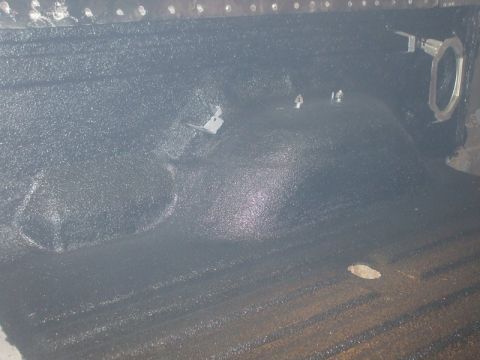

808 hits | 49.19 KB | Posted: 12/4/09
another shot of the second coat
eric 016.jpg
797 hits | 56.31 KB | Posted: 9/18/09

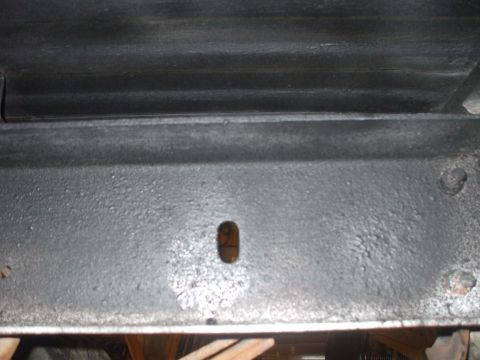

cross members cleaned up with 2 coats of rust bullet and 2 coats of rubberized undercoating

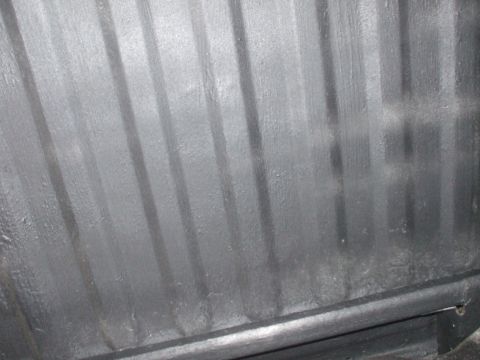

eric 014.jpg
765 hits | 53.25 KB | Posted: 9/18/09
underneath cleaned with 2 coats of rust bullet and 2 coats of ruberized undercoating
eric 017.jpg
783 hits | 50.18 KB | Posted: 9/18/09

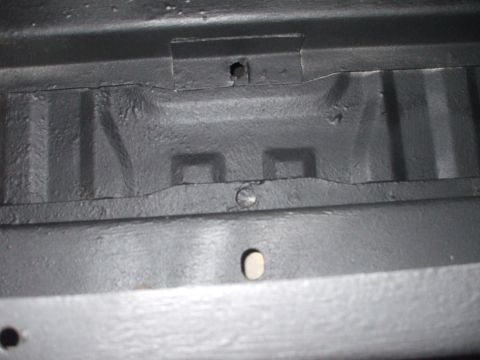

more undercoating underneath
eric 015.jpg
774 hits | 54.21 KB | Posted: 9/18/09

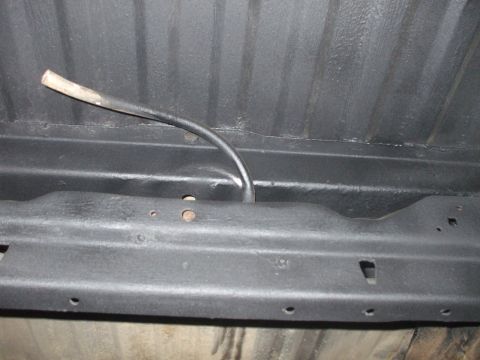

more undercoating

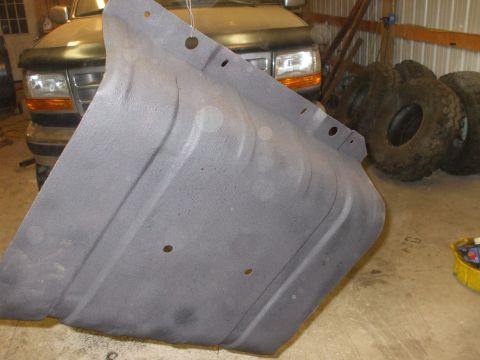

eric 018.jpg
954 hits | 54.06 KB | Posted: 9/18/09
gas tank skidplate painted with 2 coats of rust bullet and ruberized undercoating
778 hits | 37.92 KB | Posted: 12/4/09
859 hits | 37.23 KB | Posted: 12/4/09
513 hits | 90.75 KB | Posted: 3/14/13
534 hits | 66.81 KB | Posted: 3/14/13
rust repair
