“Series III”1987 Jaguar XJ6

documented by bbarcher 34 photos documented since 2 years documented ♡ Follow this build

Photos

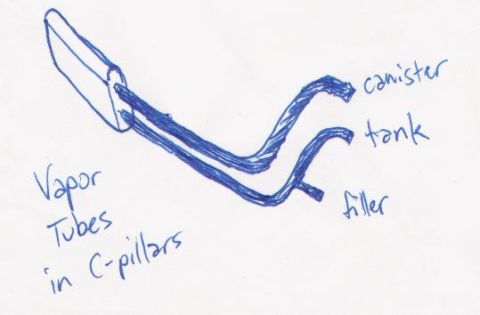

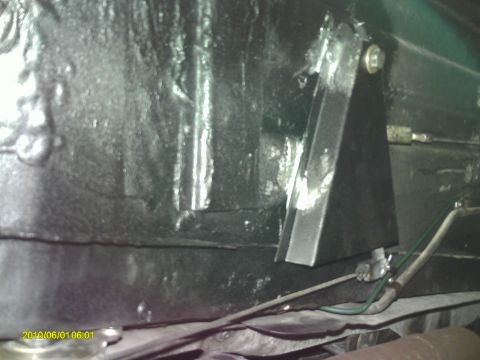

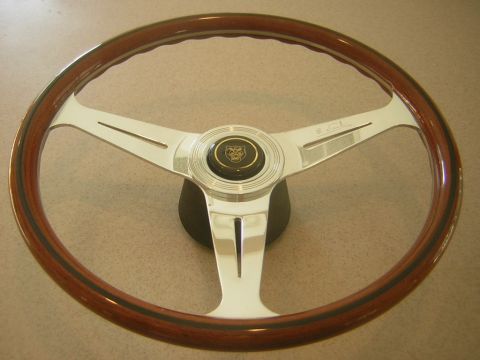

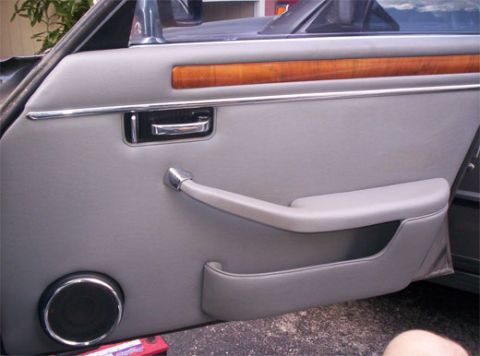

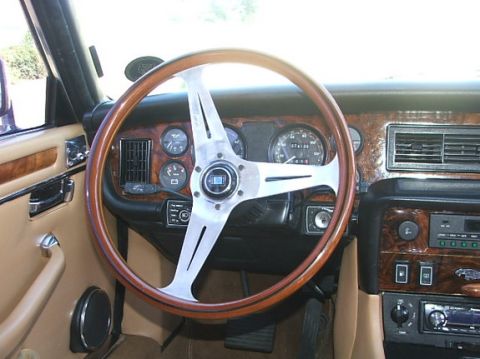

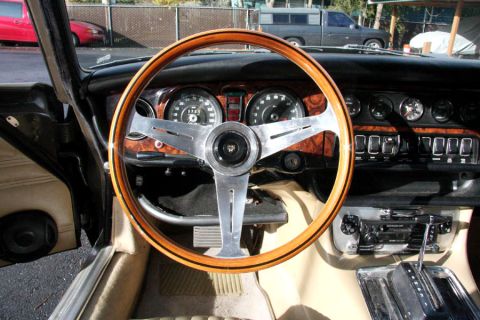

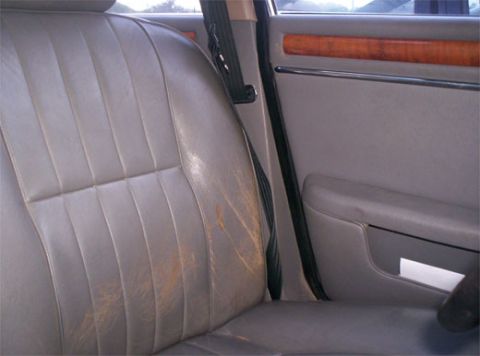

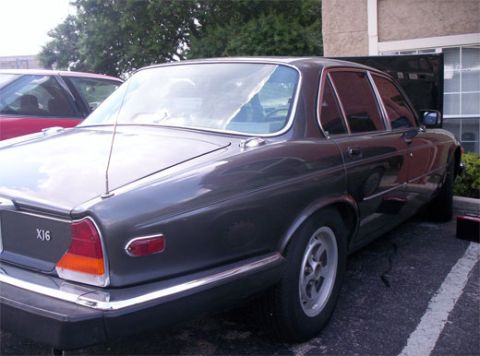

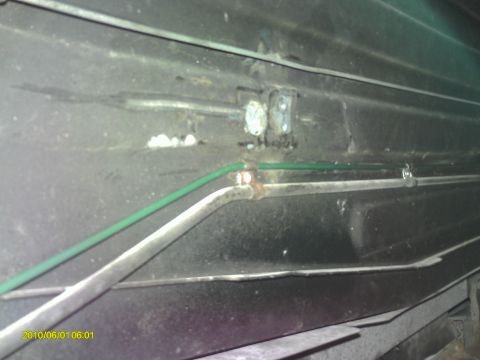

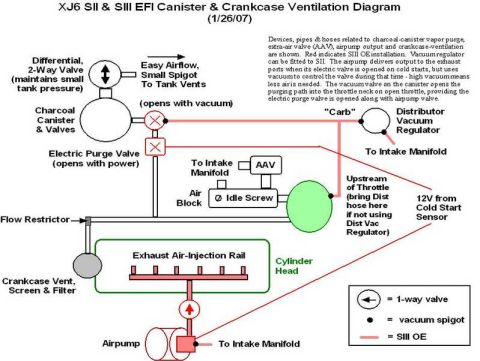

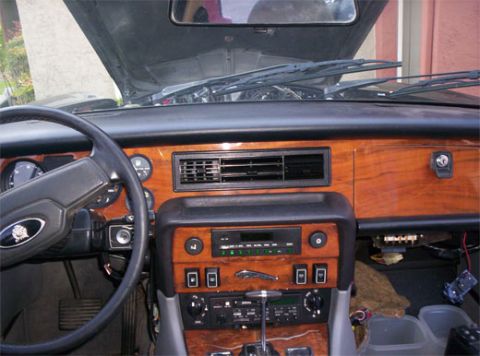

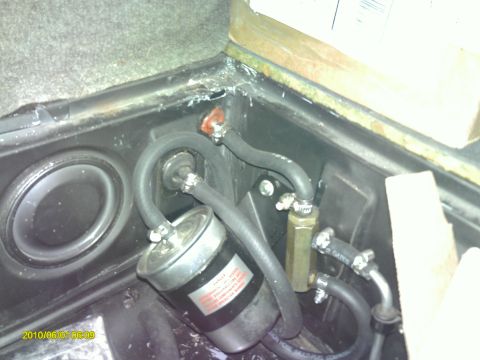

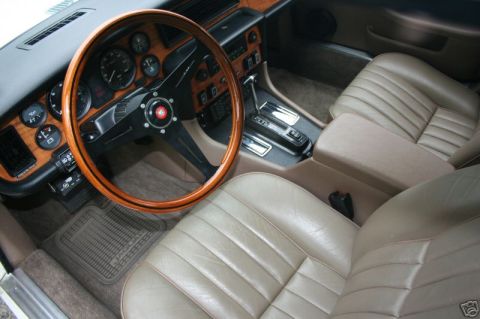

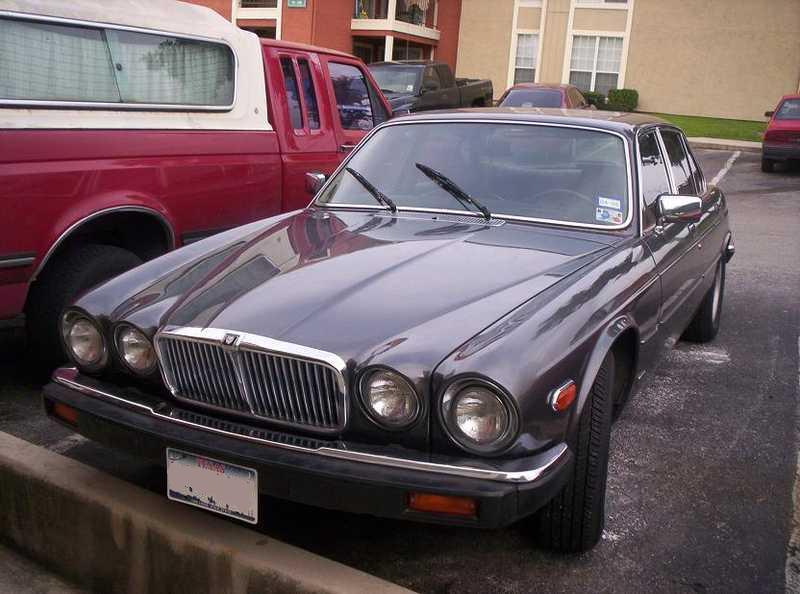

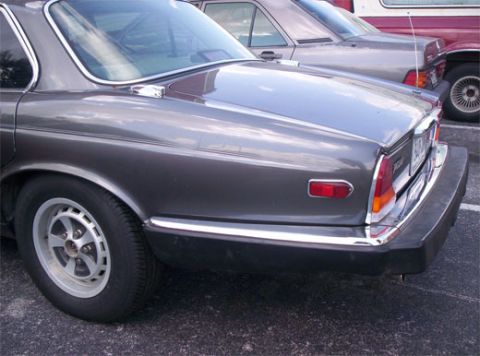

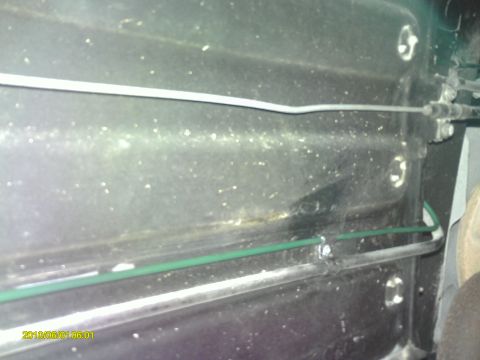

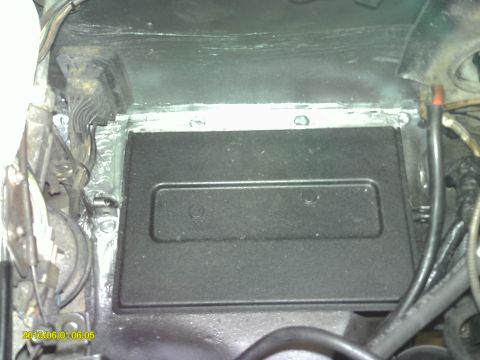

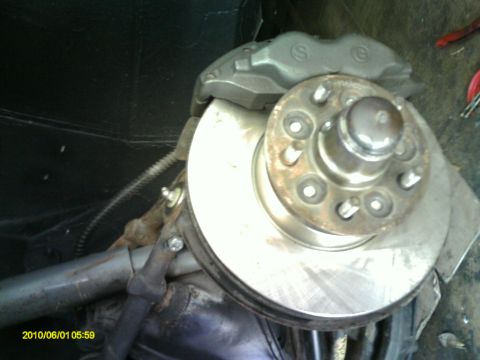

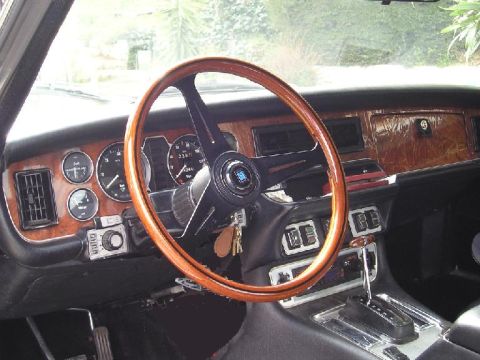

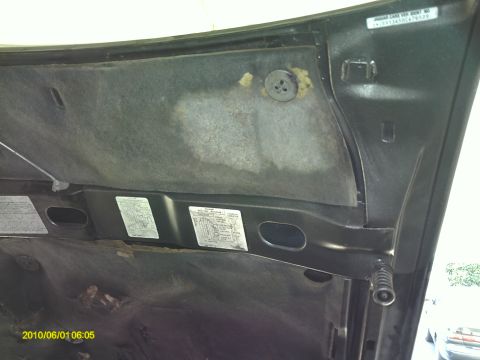

1987 Jaguar XJ6: Tappet guide stakedown kit keeps the tappet guide from coming out. 1987 Jaguar XJ6: 1987 XJ-6 in Dorchester Grey shortly after purchase 7/21/07 Black Nardi in Series III XJ6 1987 Jaguar XJ6: Black Nardi on low mileage Jag 1987 Jaguar XJ6: Wood-rimmed aftermarket steering wheel and woodgrain dashboard 1987 Jaguar XJ6: Nardi with Jag button 1987 Jaguar XJ6: Nardi with hub Hand-drawn sketch of fuel vapor tube routing in C-pillars to canister, tank and filler Jaguar XJ6 SII/SIII EFI charcoal canister and crankcase ventilation vacuum diagram 1987 Jaguar XJ6: New fuel hoses in trunk Gates fuel injection rated hose from Carquest 1987 Jaguar XJ6: Shifter surround peeling wood before repairs 1987 Jaguar XJ6: Dash when first acquired 1987 Jaguar XJ6: Driver seat wear 1987 Jaguar XJ6: right front door panel 1987 Jaguar XJ6: right rear quarter 1987 Jaguar XJ6: Gray Jaguar XJ luxury sedan rear quarter in a parking lot 1987 Jaguar XJ6: new PBR brake rotors, previous owner replaced calipers and pads but not rotors 1987 Jaguar XJ6: under car parking brake cable shield was missing, replaced and sprayed with truck bed liner 1987 Jaguar XJ6: Replaced rear brake line that was all bent from hitting something apparently. The new green line is from a Ja… 1987 Jaguar XJ6: New brake line looks way better. 1987 Jaguar XJ6: Cleaned spark plug wires and valley between cam covers. 1987 Jaguar XJ6: Replaced a bunch of broken clips holding the fuel line. 1987 Jaguar XJ6: Fuel line clips were replaced by 1/4" diameter cable clamps from Home Depot. 1987 Jaguar XJ6: Upper corner of the hood was rusting from battery acid, cleaned and refinished with Dupli-Color wheel paint i… 1987 Jaguar XJ6: Took out battery tray, removed rust and refinished with truck bed liner from aerosol can. Silicone sealer in… 1987 Jaguar XJ6: After re-gluing the peeling wood and refinishing with Helmsman Spar Urethane gloss. Very tedious process of g… 1987 Jaguar XJ6: Looking up from passenger side footwell, the square cuts in the sound deadener panel were made for access to… 1987 Jaguar XJ6: Five labeled brass/metal automotive sensors and switches on a wooden board Fueling control and metering schematic locating air flow meter, injectors, cold start injector and sensors 1987 Jaguar XJ6: Glyco cam bearings for Jaguar. 1987 Jaguar XJ6: Cam cover removed on exhaust camto install tappet guide hold down kit. 1987 Jaguar XJ6: Exhaust cam removed, hold down kit installed. 1987 Jaguar XJ6: Removing lower half of cam bearing with pick tool. 1987 Jaguar XJ6: off comes the cam bearing shell.
