1363 hits | 72.48 KB | Posted: 8/16/09

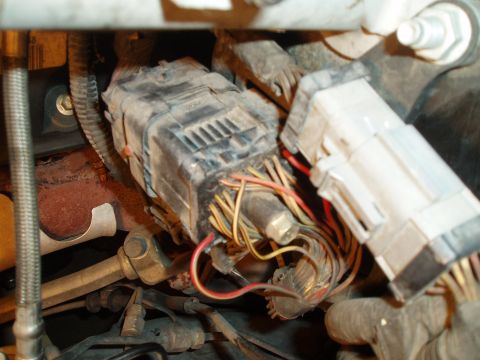

cut the red/green wire, a few inches away from the connector, on that side (towards fender)


run...

942 hits | 60.23 KB | Posted: 8/16/09

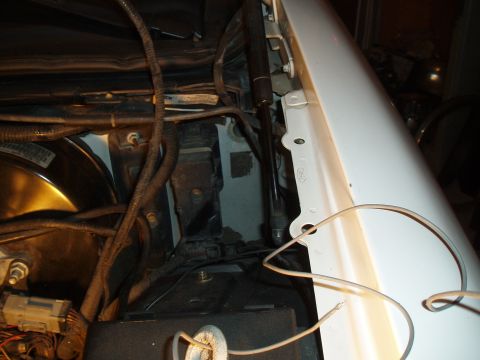

gray wire is the tach feed, installed through firewall into the marauder cluster

** through the r...

872 hits | 72.92 KB | Posted: 8/16/09

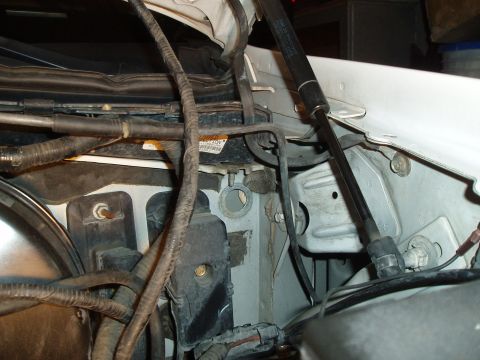

that is the hole i ran the wiring though.

808 hits | 49.08 KB | Posted: 8/16/09

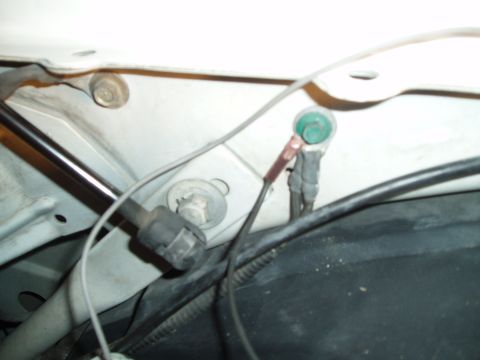

ground wire

1263 hits | 63.35 KB | Posted: 8/16/09
installed

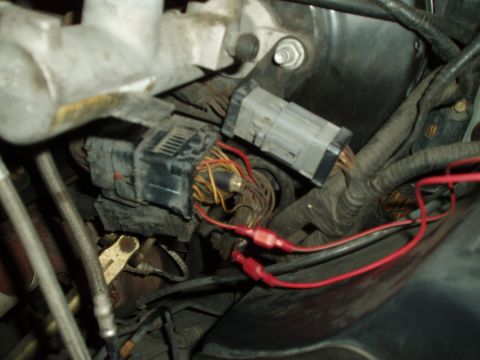

The 9117 tach adapter is designed to have the ignition coil(s) power feed go THROUGH it...

825 hits | 63.56 KB | Posted: 8/16/09
installed

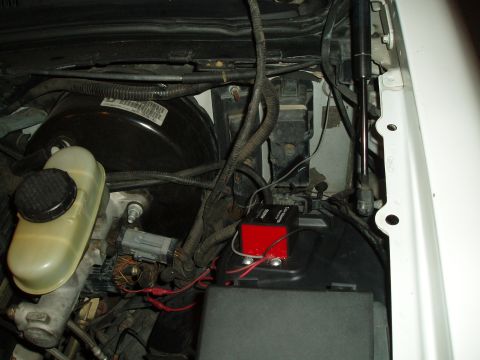

** car doesn't have cruise control, so thats were i mounted it and for those of you wh...

1440 hits | 69.58 KB | Posted: 8/16/09

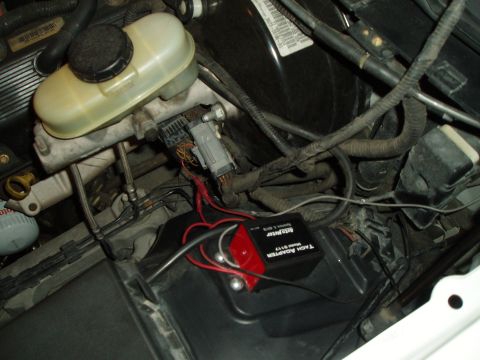

Autometer 9117 Tach Adapter

860 hits | 36.19 KB | Posted: 8/16/09

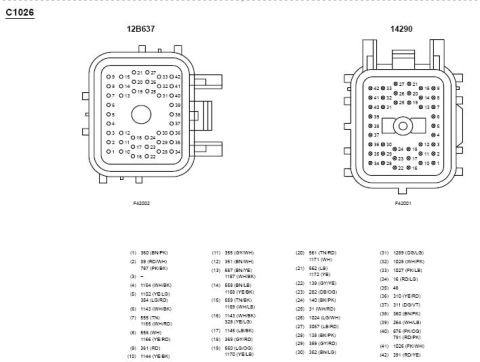

pin 34 RD/LG

lower left

** that is the one you cut.
