More fab/different rod ends

From 1994 Ford Bronco “Canyonaro”, documented by dogonmut.

9 photos
← Back to this vehicle

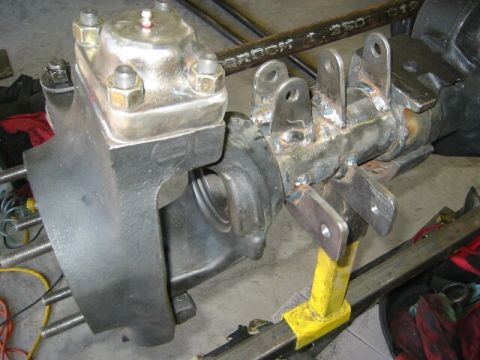

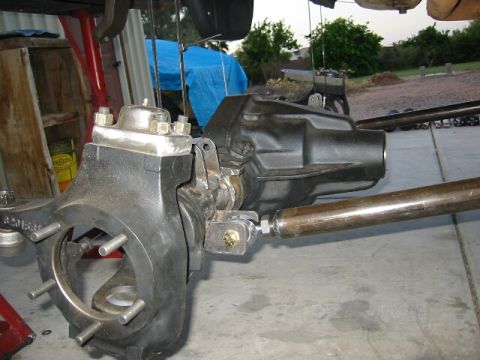

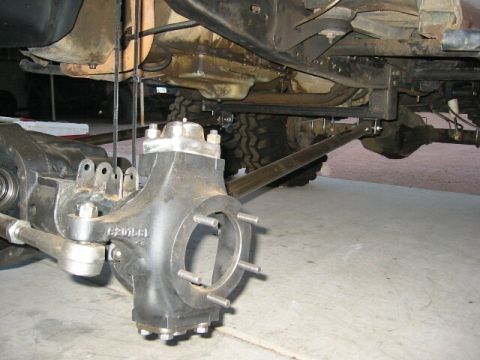

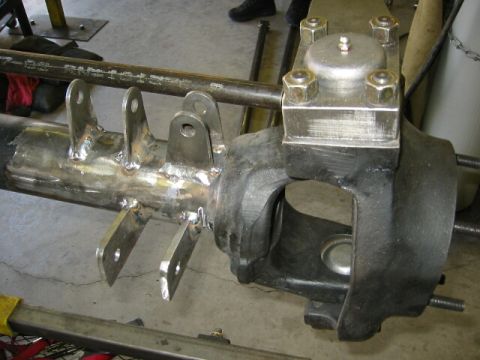

1994 Ford Bronco - Close-up of a front axle housing tube with multiple freshly welded steel mounting tabs and brackets on the passenger side, next to a cast s… 1994 Ford Bronco - Fabrication shot of a solid front axle end on a garage floor, with a kingpin-style steering knuckle capped by a polished, bolt-studded top… 1994 Ford Bronco - A complete solid front axle assembly with steering knuckles, tie rod, and differential housing clamped to a steel work stand with yellow cl… 1994 Ford Bronco - Freshly fabricated bare-steel shock hoop welded to the frame rail inside a front wheel well, braced with triangular gusset plates and toppe… 1994 Ford Bronco - A newly fabricated bare-metal tubular hoop bracket welded to the front frame crossmember of a truck, photographed from below in the engine… 1994 Ford Bronco - Close-up of two polished stainless steel suspension links or tie rods fitted with spherical rod ends (heim joints) secured by jam nuts. The… 1994 Ford Bronco - A solid front axle end with a large bare-cast kingpin-style steering knuckle and eight wheel studs, with the tie rod attached, positioned b… 1994 Ford Bronco - Rebuilt solid front axle on stands in a driveway at dusk, with a black-painted differential housing and a bare steering knuckle showing exp… 1994 Ford Bronco - Four steel and brass rod-end / heim-style joints arranged on a worn metal workbench next to a length of steel tubing, likely suspension lin…
