transmission cooler and auxillary filter

From 1994 Ford Bronco, documented by pfun41.

42 photos

← Back to this vehicle

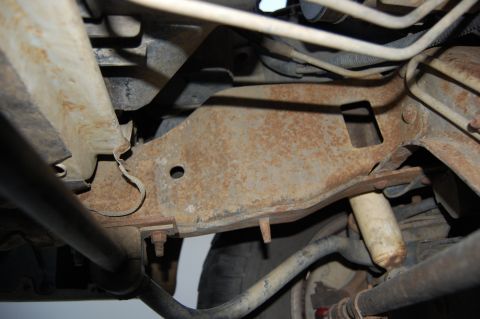

1994 Ford Bronco - Auxillary filter mounting location.

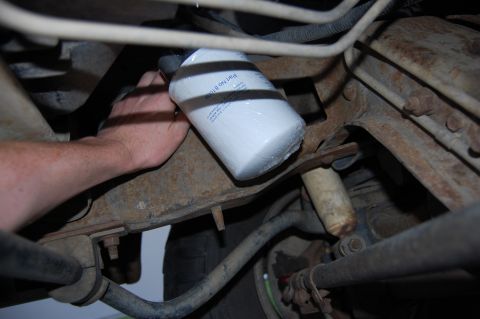

1994 Ford Bronco - Sizing up the mounting location.

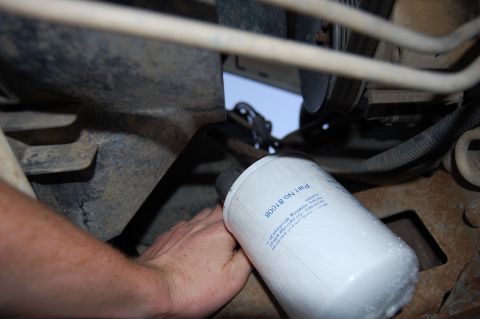

1994 Ford Bronco - A bare hand threading a white spin-on oil filter marked Part No 81008 onto the engine from underneath the vehicle during an oil change. The…

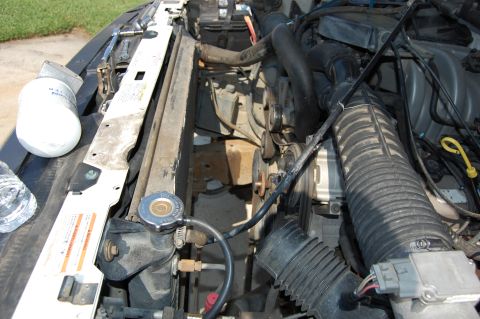

1994 Ford Bronco - Radiator fan and shroud removed for better access. First hole started.

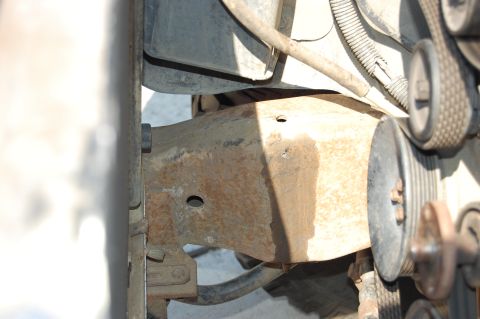

1994 Ford Bronco - First mounting hole started.

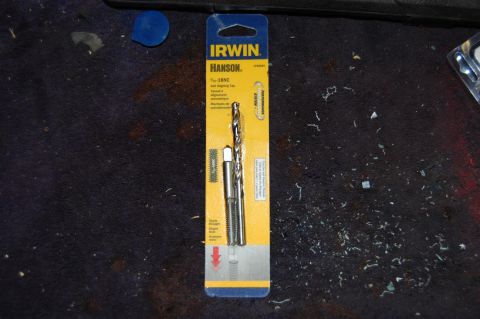

1994 Ford Bronco - Drill bit and tap set I used.

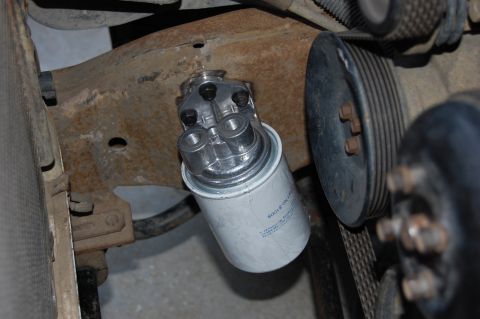

1994 Ford Bronco - Auxillary Filter mounted.

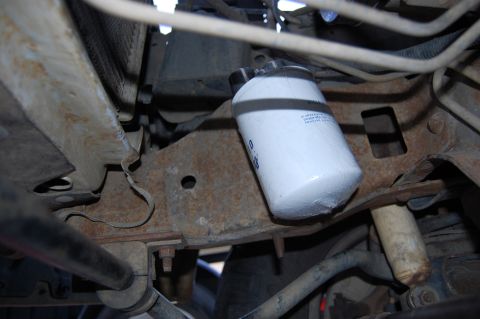

1994 Ford Bronco - Another View.

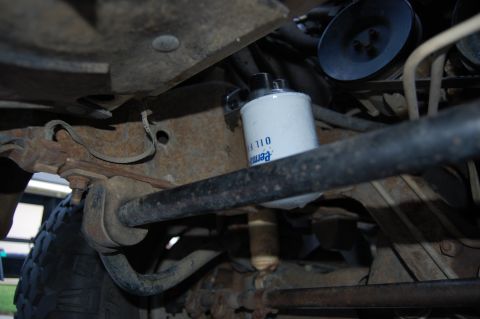

1994 Ford Bronco - And another.

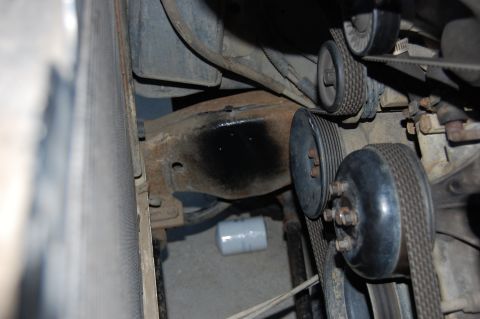

1994 Ford Bronco - A quick shot of paint to prevent rust.

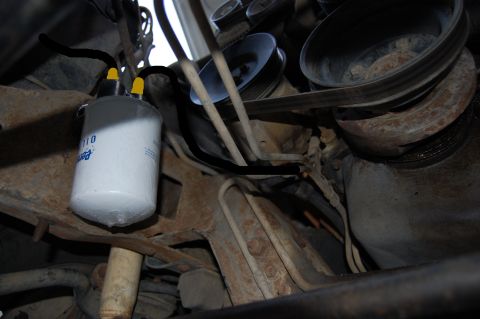

1994 Ford Bronco - Hose routing.

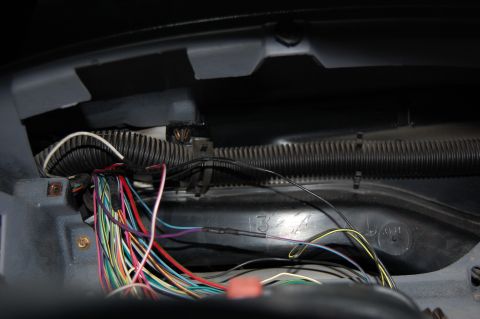

1994 Ford Bronco - Wires tapped for Transmission Temperature Gauge. RD/WHT - Coolant temperature signal BLK - Instrument cluster ground BLU/RD - Instrument pa…

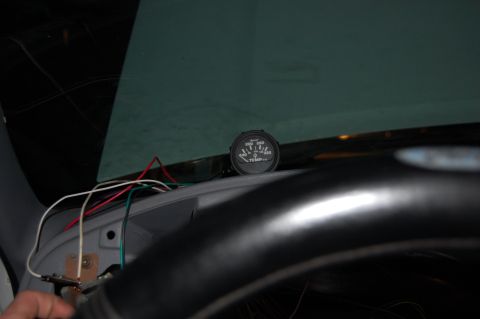

1994 Ford Bronco - Gauge test.

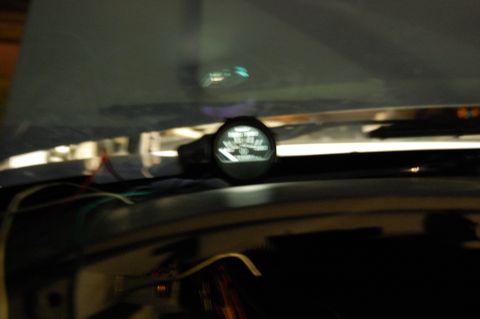

1994 Ford Bronco - Gauge illuminated.

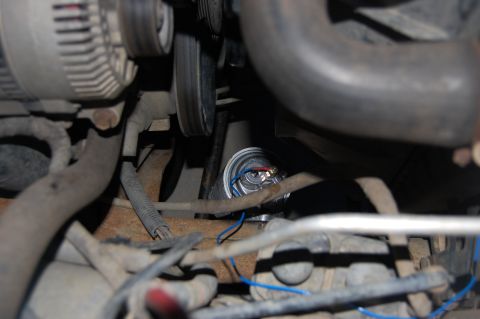

1994 Ford Bronco - Trans temperature sender connection.

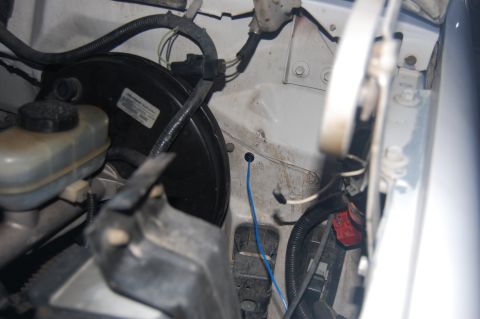

1994 Ford Bronco - Trans temperature signal wire entering cab through a grommet I added in the firewall.

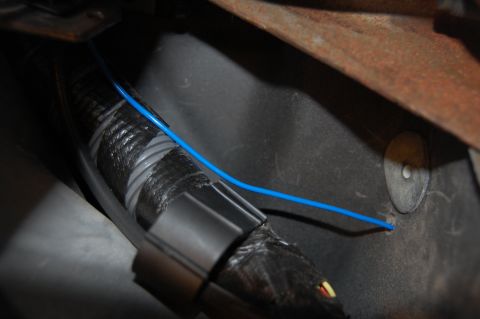

1994 Ford Bronco - Trans temp signal wire entering cab.

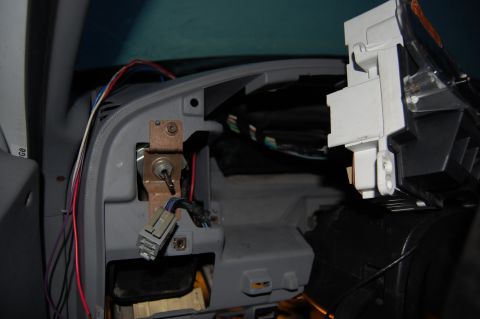

1994 Ford Bronco - Intrument panel harness wrapped up. gauge wires: RD - hot in run BLK - ground BLU - trans temp signal WHT - coolant temp signal PRP - illum…

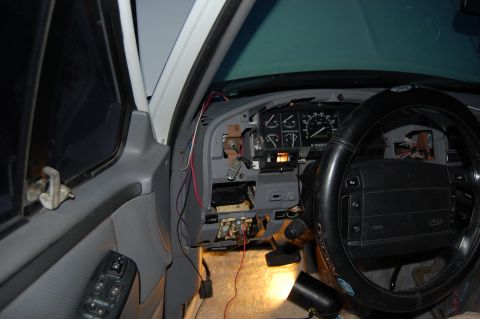

1994 Ford Bronco - Buttoning up the instrument panel.

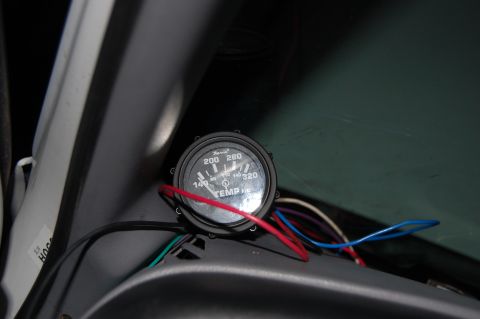

1994 Ford Bronco - Gauge temporarily set up.

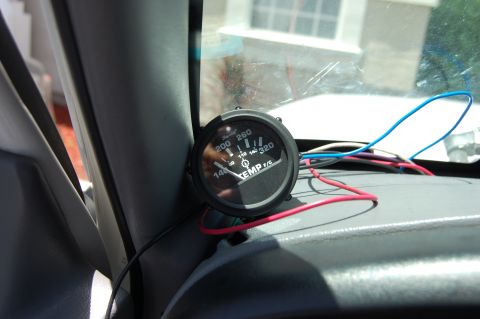

1994 Ford Bronco - After a short run with an empty trailer.

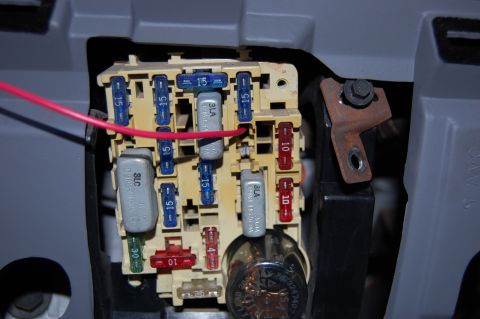

1994 Ford Bronco - This image shows a vehicle's interior fuse box with various fuses and a red wire attached.

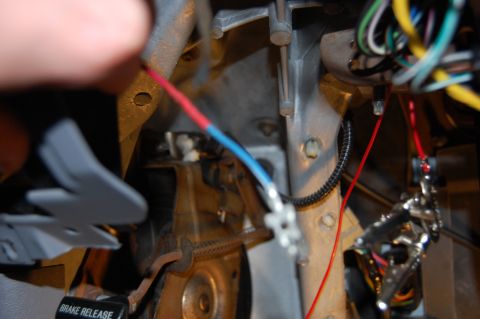

1994 Ford Bronco - Wiring work under a dash, with a hand pulling a red-and-blue wire pair spliced with white butt connectors near the parking brake pedal asse…

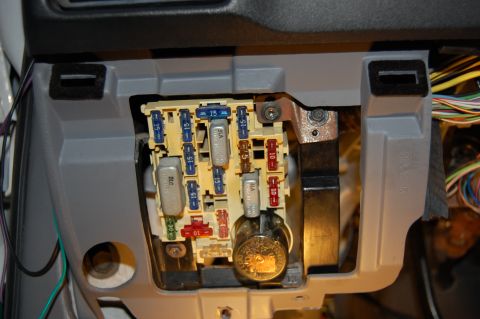

1994 Ford Bronco - 5 amp gauge power fuse installed in unused slot. Slot already contained a terminal that was hot in run.

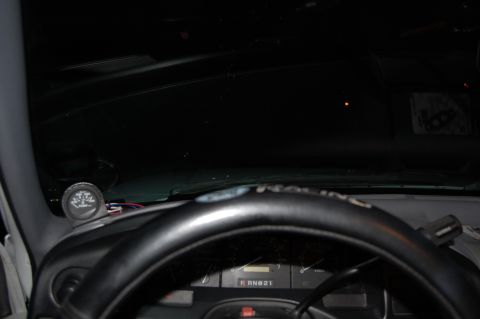

1994 Ford Bronco - Gauge wired up and mounted in modified flange (included with gauge).

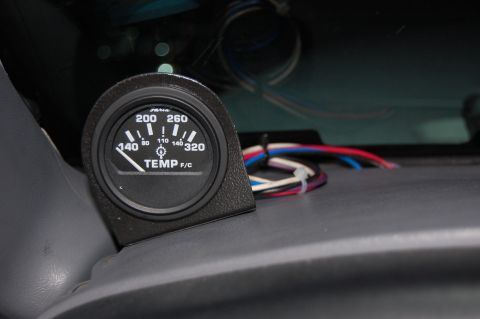

1994 Ford Bronco - Close-up of an aftermarket temperature gauge and its wiring, likely installed in a vehicle's interior.

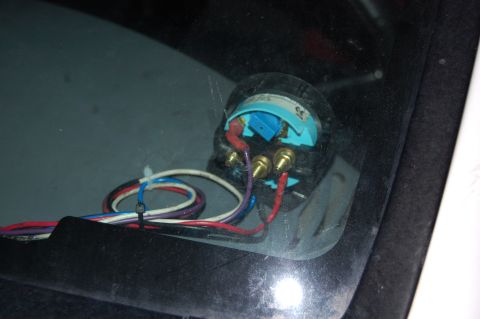

1994 Ford Bronco - Gauge wiring. All terminals soldered, dielectric grease, and heat shrinked. gauge wires: RD - hot in run BLK - ground BLU - trans temp sign…

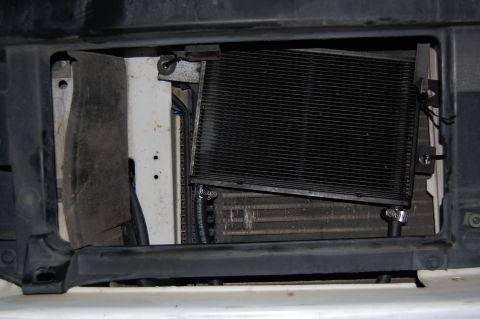

1994 Ford Bronco - Explorer stacked plate cooler temporarily installed.

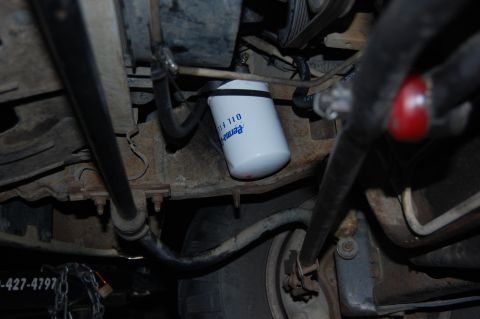

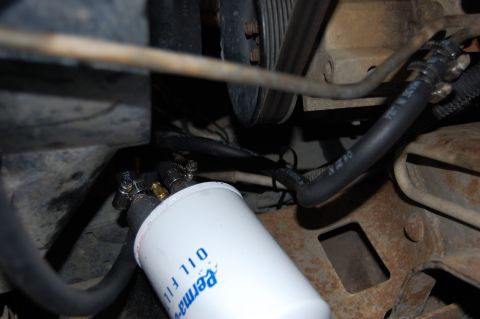

1994 Ford Bronco - Filter plumbing.

1994 Ford Bronco - Filter plumbing.

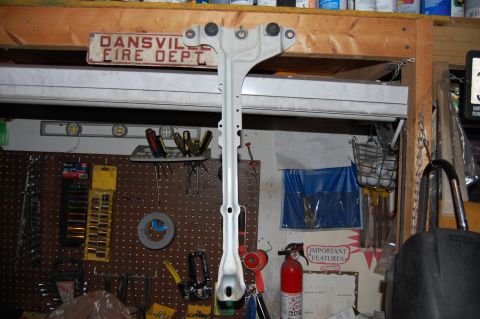

1994 Ford Bronco - Radiator core support modified for Explorer cooler.

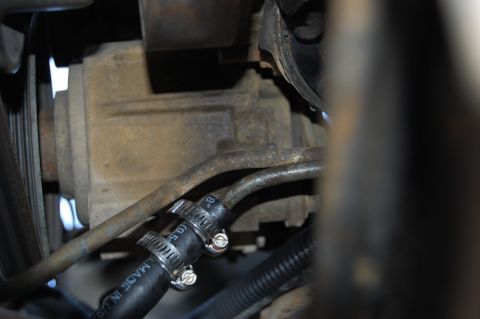

1994 Ford Bronco - Close-up view of transmission cooler lines and a hose clamp on a vehicle part.

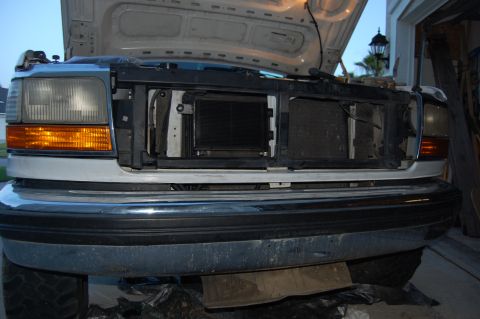

1994 Ford Bronco - Eplorer cooler mounted.

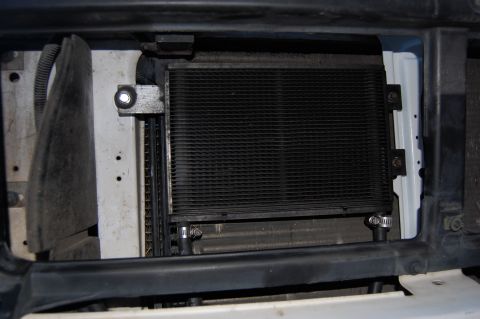

1994 Ford Bronco - Close-up view of a transmission cooler and auxiliary filter assembly, likely installed in the front grille area of a vehicle.

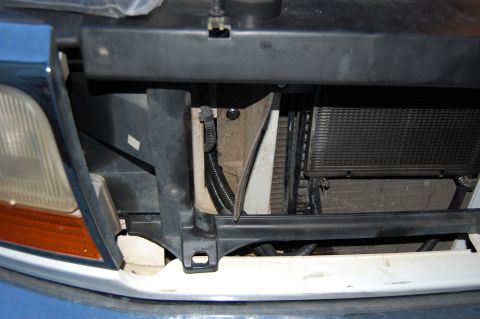

1994 Ford Bronco - Cooler hoses run through holes drilled in the rubber air dam and an existing hole in the core support. Hoses are wrapped in wire loom to pr…

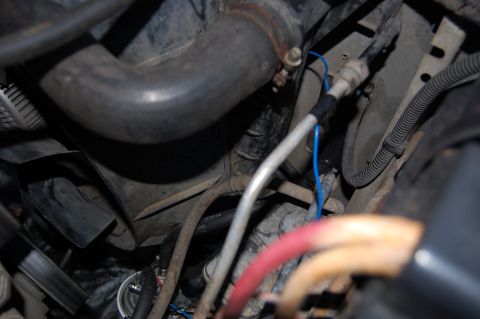

1994 Ford Bronco - Hoses entering engine bay through existing hole in core support. Trans temp signal wire also visible. (temporary routing)

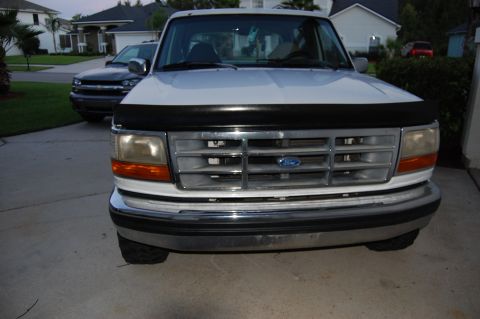

1994 Ford Bronco - Grill reinstalled. Cooler visible.

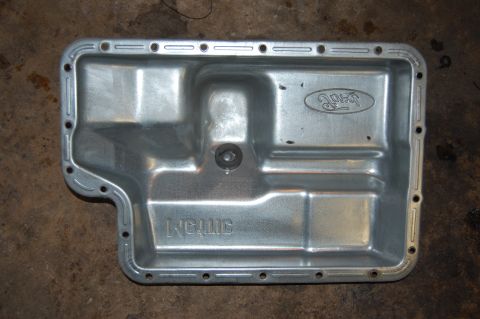

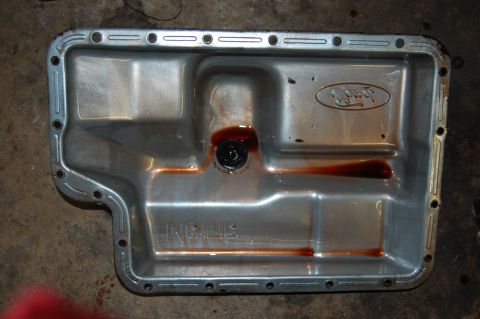

1994 Ford Bronco - A transmission pan, likely from a Ford vehicle, shows signs of fluid and wear.

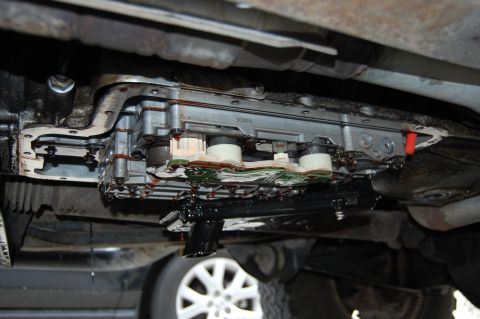

1994 Ford Bronco - Transmission valve body showing circuit board and fluid leaks. Part number 500914 is visible.

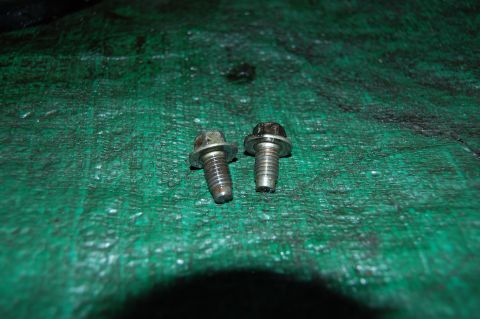

1994 Ford Bronco - Two bolts are shown resting on a green, textured surface, possibly a tarp.

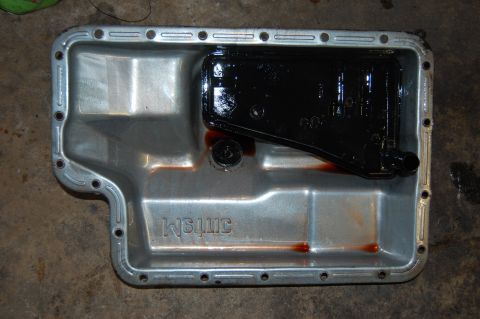

1994 Ford Bronco - A transmission pan with a filter and fluid residue, embossed text. The registry claims 1994 Ford Bronco.
