3g alternator

From 1994 Ford Bronco, documented by pfun41.

15 photos
← Back to this vehicle

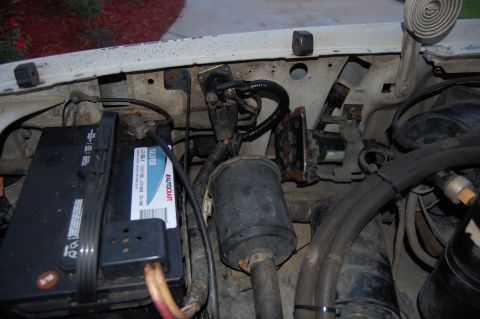

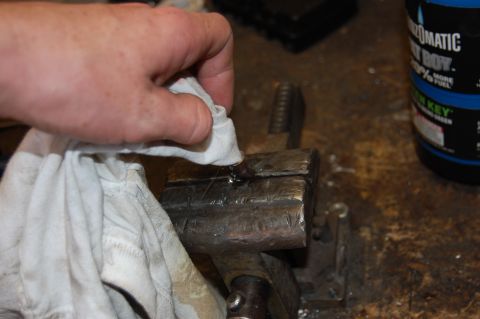

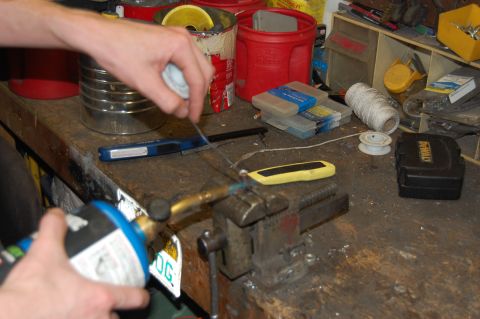

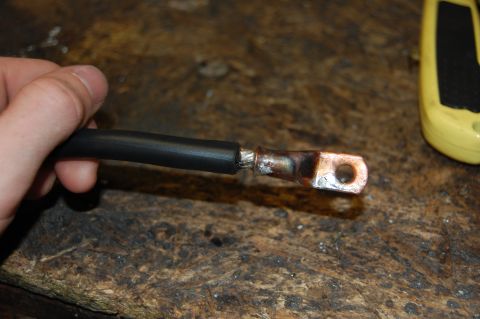

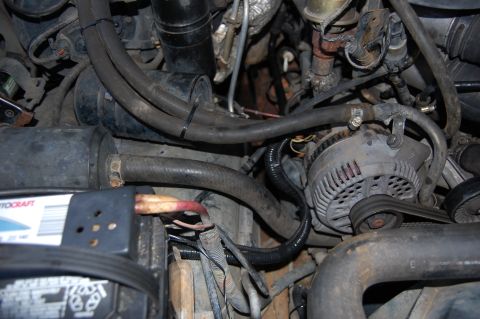

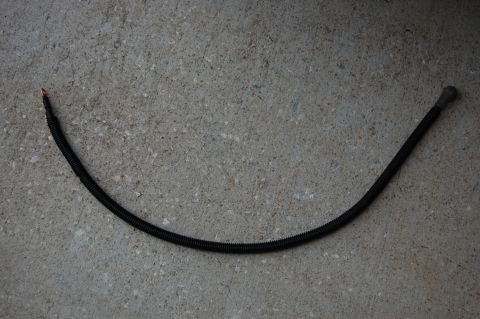

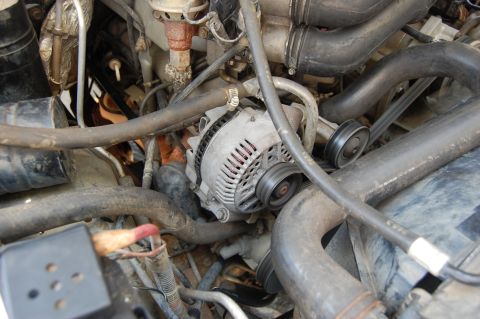

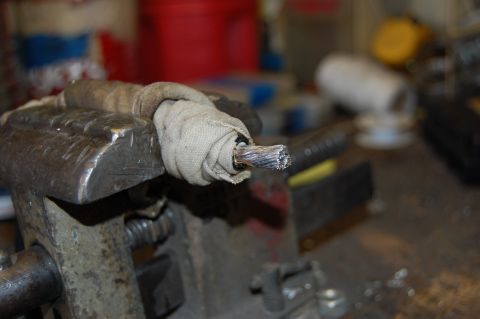

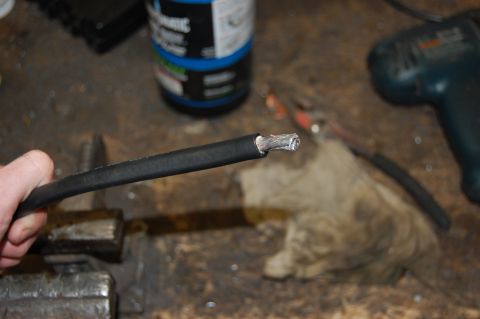

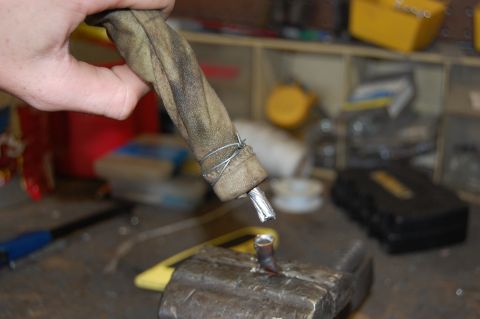

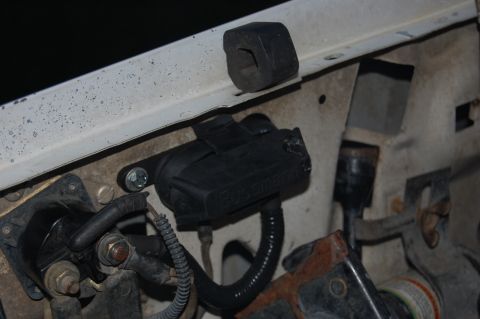

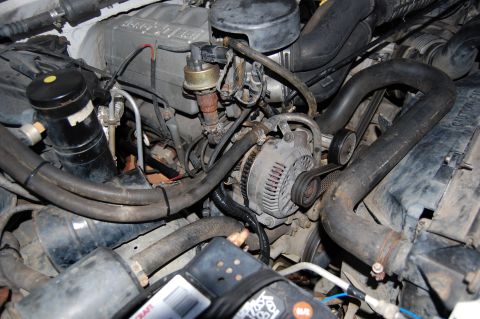

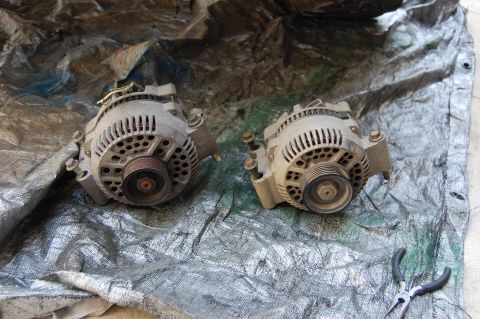

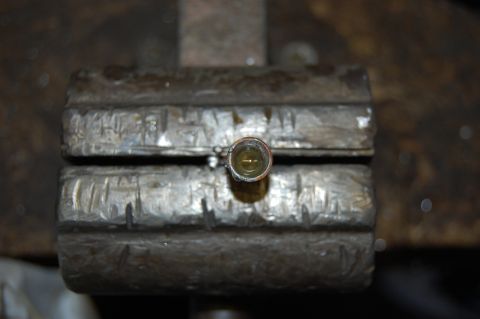

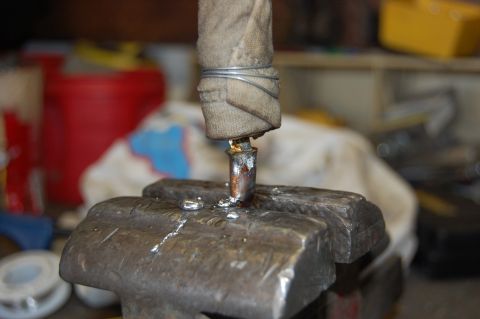

1994 Ford Bronco - should've checked for clearance first. The hood hinge hit the fuse holder when the hood was closed, causing this damage. 1994 Ford Bronco - Stock 95 amp 3G on the right. 130 amp 3G on the left. came from a cash for clunkers explorer. I saved the terminal boot for the new charge… 1994 Ford Bronco - Test run with the alt bolted up. 1994 Ford Bronco - 4 gauge Welding cable. A damp cloth is wrapped around the insulation while tinning and soldering to prevent burning. 1994 Ford Bronco - Cable end tinned with flux core solder. 1994 Ford Bronco - Filling the copper lug with flux core solder. 1994 Ford Bronco - Flux gathered on top of the solder. 1994 Ford Bronco - Dabbing the excess flux out with a drill bit wrapped in a rag. 1994 Ford Bronco - Inserting the cable into the lug. this is done while heating the lug. 1994 Ford Bronco - Close-up of a wire-wrapped, cloth-taped shift lever or rod clamped upright in the jaws of a bench vise, with fresh silver solder or braze b… 1994 Ford Bronco - Soldered lug. 1994 Ford Bronco - Completed charge cable. dielectric grease and 2 layers of heat shrink on both ends. cable wrapped in wire loom and boot installed. 1994 Ford Bronco - Charge cable installed. The stock exciter wire runs in the small wire loom taped to the charge cable. 1994 Ford Bronco - Balkamp Mega fuse holder installed with 175 amp mega fuse. 1994 Ford Bronco - Close-up view of an engine bay, focusing on the alternator and associated hoses. Text on the image indicates 'SUPERMOTORS'.
