Dissasembly

From 1994 Ford Bronco, documented by pfun41.

32 photos
← Back to this vehicle

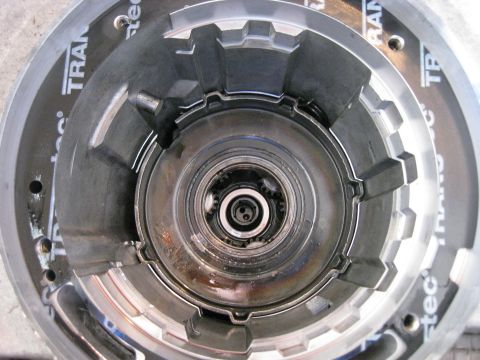

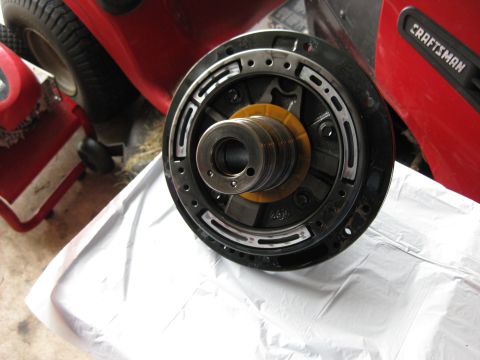

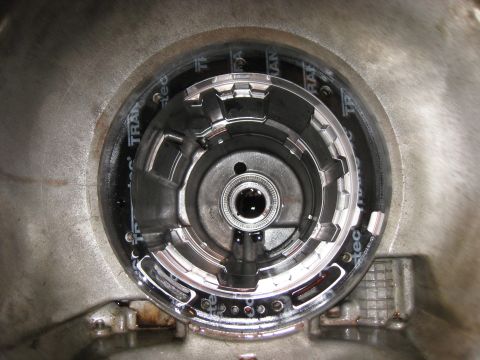

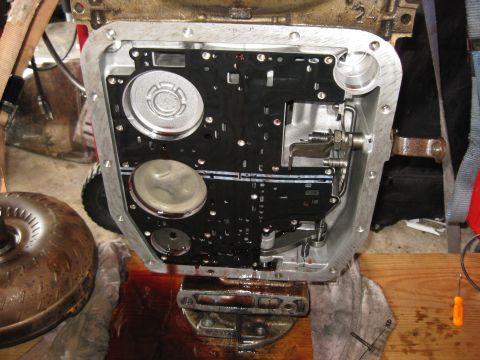

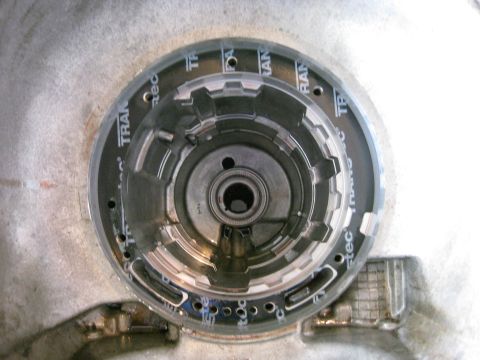

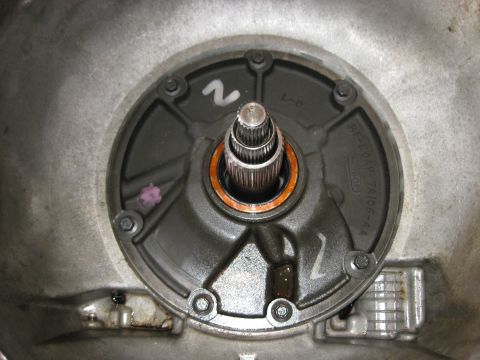

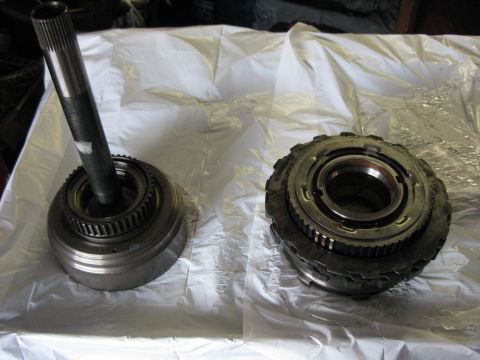

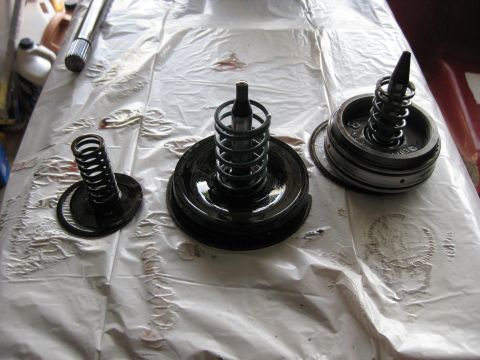

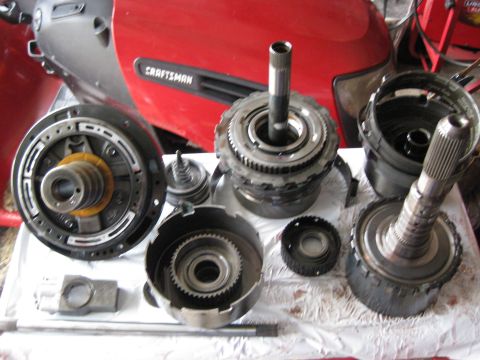

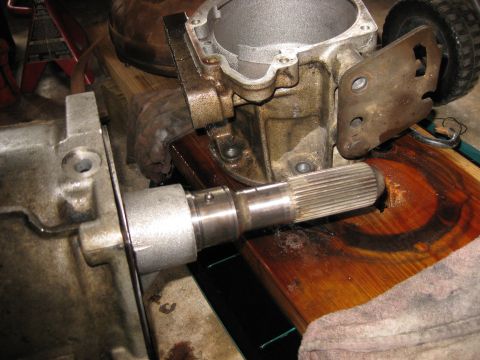

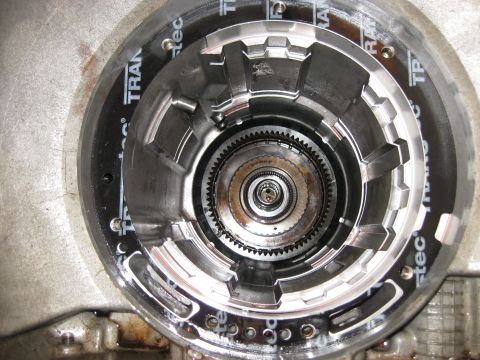

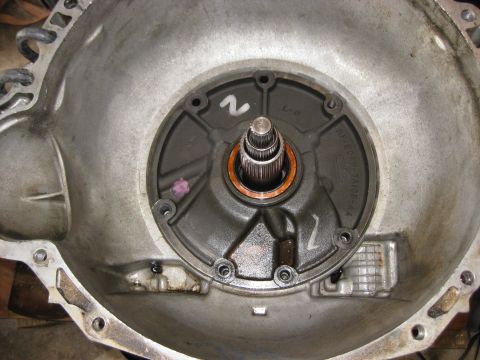

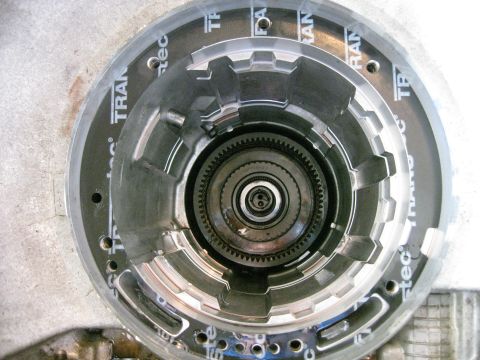

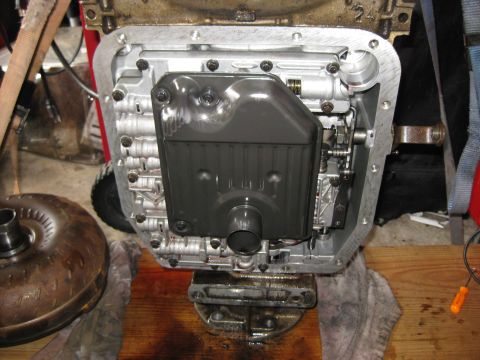

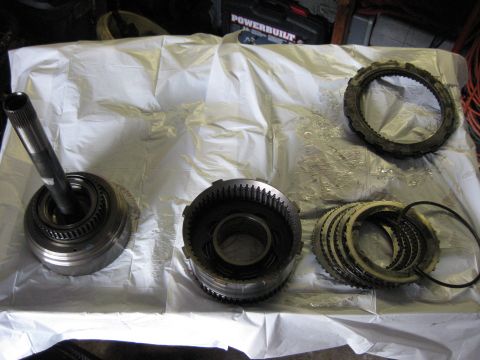

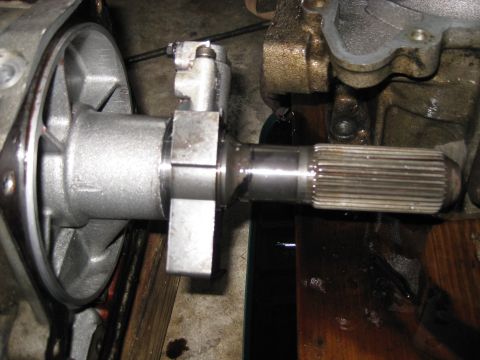

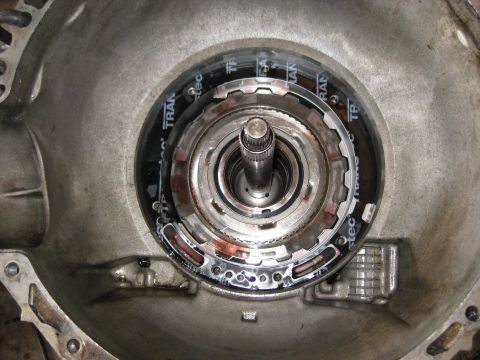

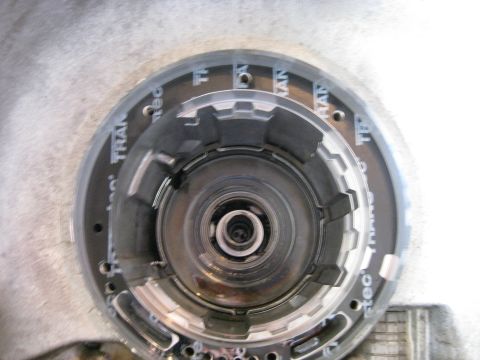

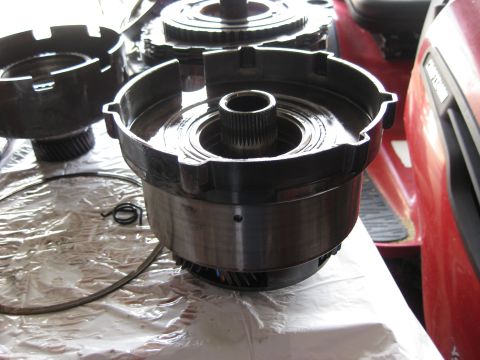

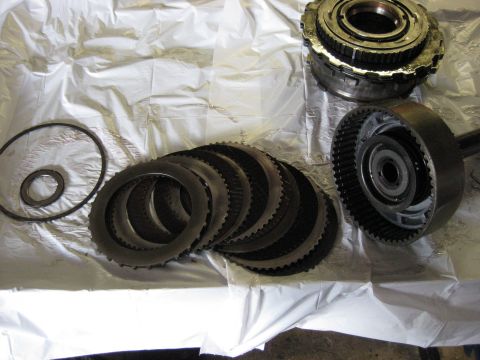

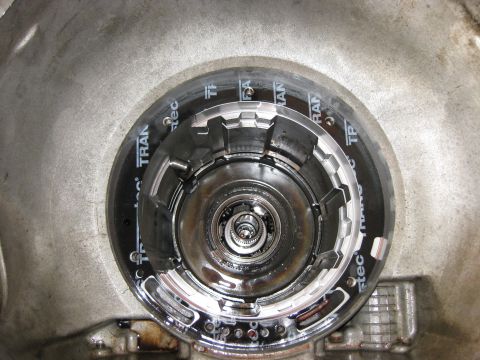

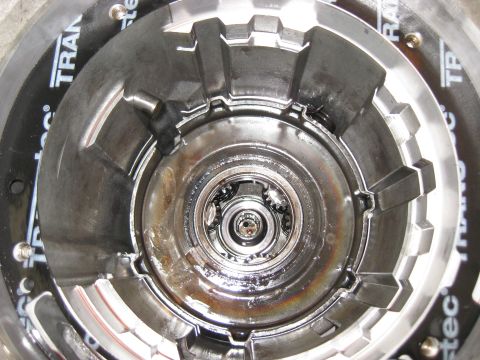

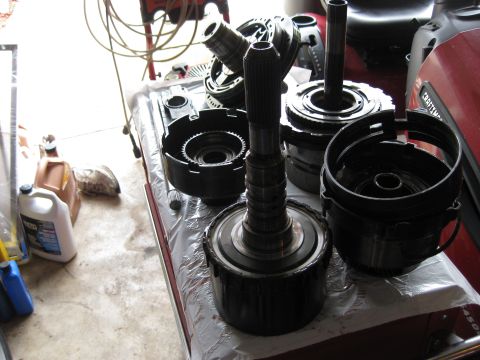

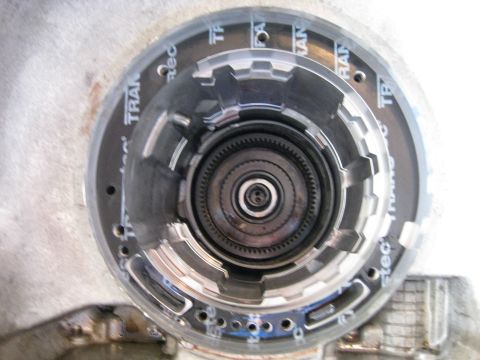

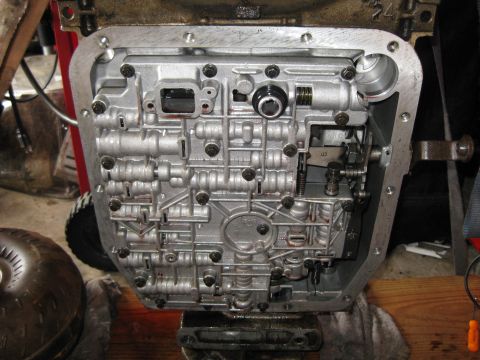

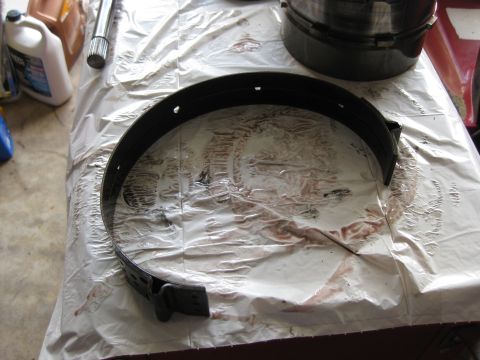

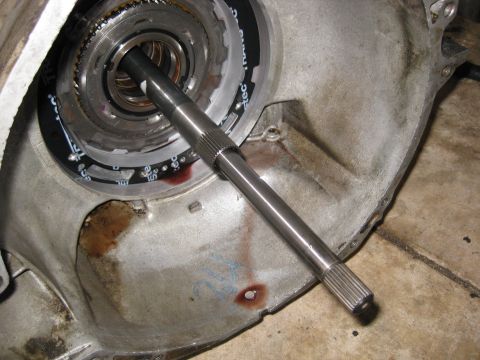

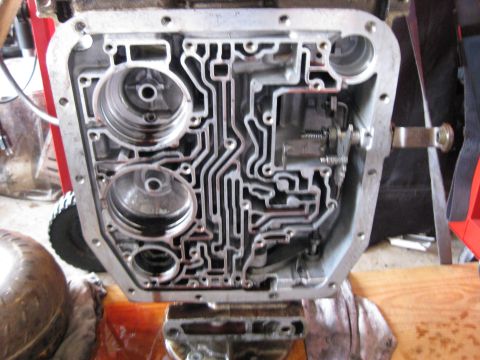

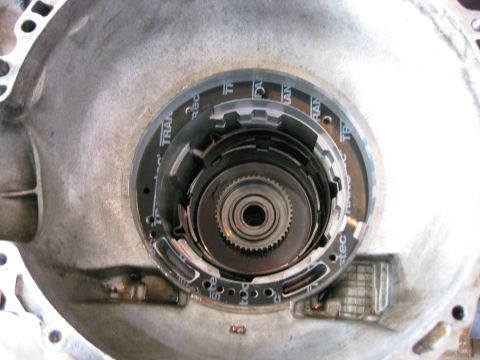

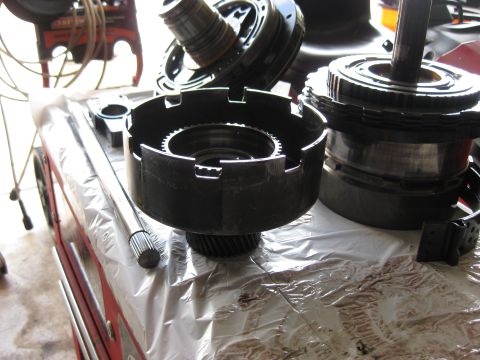

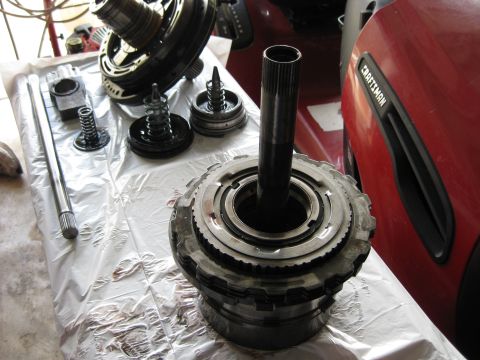

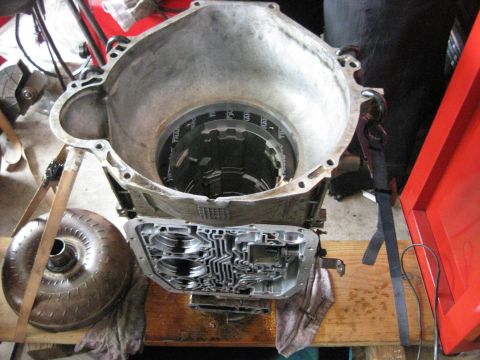

1994 Ford Bronco - With the trans laying flat and the tailshaft/adapter housing removed the governer can be seen. 1994 Ford Bronco - The governer is held onto the tailshaft by a snap ring. when removed there is a small metal ball left behind. It may pop out when the gover… 1994 Ford Bronco - With the governer removed the direct driveshaft can be removed from the front. 1994 Ford Bronco - The transmission is standing on its end on a stand with cutouts for the tailshaft and dowel pin. it is strapped to the the stand with tie d… 1994 Ford Bronco - Transmission filter removed. 1994 Ford Bronco - The gasket, spacer, and check balls stay with the Valve body when it is removed. The cylinders on the left are, from top to bottom; Overdri… 1994 Ford Bronco - Overdrive servo, Low / Reverse servo, and 2-3 Accumulator removed. Valve body gasket also removed. 1994 Ford Bronco - From left to right; 2-3 accumulator Low / Reverse servo Overdrive servo Note: there is a piece missing from the 2-3 Accumulator in this pic… 1994 Ford Bronco - Transmission pump 1994 Ford Bronco - With the bolts removed there are two holes which are threaded into the pump body. In this picture they are at about the 1 o clock and 9 o c… 1994 Ford Bronco - Pump removed from the transmission. 1994 Ford Bronco - Tranmission with the pump removed. Note: the direct drive shaft is still installed in this picture. It should have been removed before the… 1994 Ford Bronco - As removed from the trans body. This assembly includes: Intermediate clutches Intermediate one way clutches Reverse clutches Forward clutch… 1994 Ford Bronco - The Overdrive band can be seen in this picture. 1994 Ford Bronco - Overdrive Band Removed. The friction material Is black indicating it is burnt. It should be brown. 1994 Ford Bronco - As removed from trans. Drive shell and Reverse gear 1994 Ford Bronco - A snap ring holds the rest of the assembly in the housing. 1994 Ford Bronco - Another shot 1994 Ford Bronco - Transmission torque converter interior view with visible text on gasket. 1994 Ford Bronco - Planetary gearset with snap ring removed. Note the anit-clunk spring located in the upper right between the planetary gearset and the case. 1994 Ford Bronco - Planetary Gearset removed. 1994 Ford Bronco - Planetary Gearset and anti rattle spring removed. If you look closely you can see the reverse band still installed. 1994 Ford Bronco - Reverse Band removed. 1994 Ford Bronco - Another shot. The direct clutch (3rd gear) is visible. 1994 Ford Bronco - Direct clutch (3rd gear) removed. 1994 Ford Bronco - Another shot. 1994 Ford Bronco - Parts removed from the transmission. 1994 Ford Bronco - Empty transmission body. all that remains is the shifter and TV linkages and parking pawl. 1994 Ford Bronco - Another View of the Parts. From left to right (Top): Pump assembly Overdrive servo assembly intermediate band Intermediate clutches / rever… 1994 Ford Bronco - From left to Right; Forward clutch Reverse clutch drum Reverse clutches Top Right: Intermediate clutches The reverse clutches and intermedi… 1994 Ford Bronco - Two disassembled transmission parts are laid out on a white surface. 1994 Ford Bronco - Forward clutches. The black disks are friction disks. The material should be brown. Much of these are black. These clutches are burnt and n…
