pfun41 > 1994 Ford Bronco > open folder Speakers

Here's one of the 20 year old speakers. I'm using the connector on the new speakers.
127 hits | 113.34 KB | Posted: 1/22/14
Here's one of the 20 year old speakers. I'm using the connector on the new speakers.
Connector remove from the old speaker. This connector is from the standard level speaker. The "...
140 hits | 113.3 KB | Posted: 1/22/14
Connector remove from the old speaker. This connector is from the standard level speaker. The "...

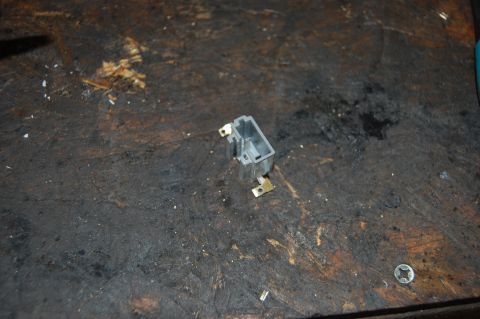

Trim the terminals and use a grinder to remove the layer of oxidation. This is necessary to get a go...
116 hits | 112.55 KB | Posted: 1/22/14
Trim the terminals and use a grinder to remove the layer of oxidation. This is necessary to get a go...

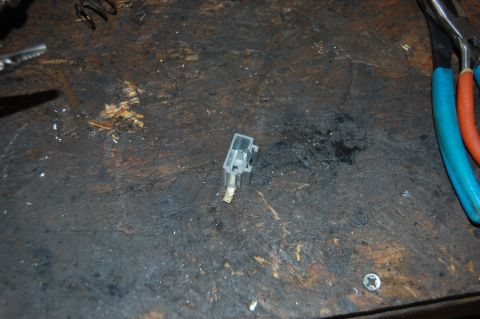

Bend the terminals over themselves creating a C shape for the wires to go into.
106 hits | 118.25 KB | Posted: 1/22/14
Bend the terminals over themselves creating a C shape for the wires to go into.

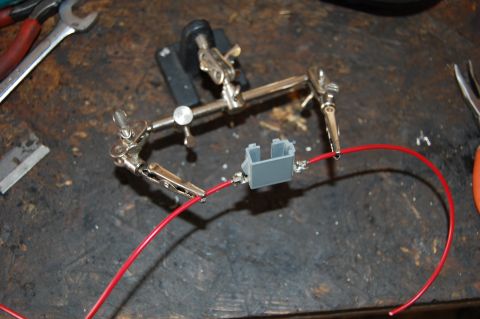

Solder on some wire. Careful not to melt the connector.
165 hits | 111.5 KB | Posted: 1/22/14
Solder on some wire. Careful not to melt the connector.

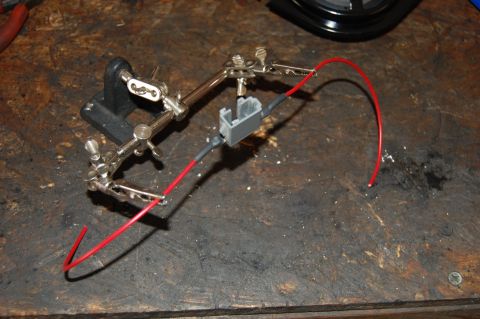

Some adhesive lined heat shrink finishes the new adapter. This is neater than crimping on connectors...
106 hits | 119.2 KB | Posted: 1/22/14
Some adhesive lined heat shrink finishes the new adapter. This is neater than crimping on connectors...

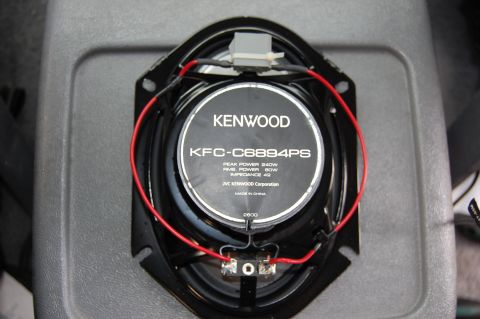

The newly made adapter on a new speaker. The connector provides a way to disconnect the speaker when...
130 hits | 108.44 KB | Posted: 1/22/14
The newly made adapter on a new speaker. The connector provides a way to disconnect the speaker when...
