Leaf Spring Bushings

From 1994 Ford Bronco, documented by pfun41.

22 photos
← Back to this vehicle

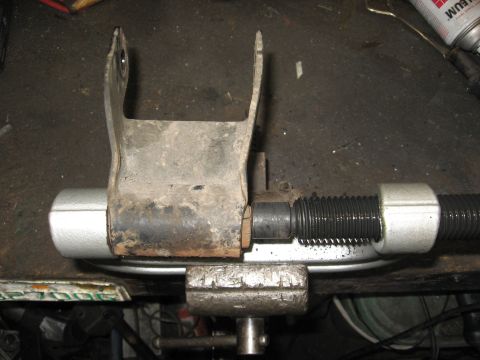

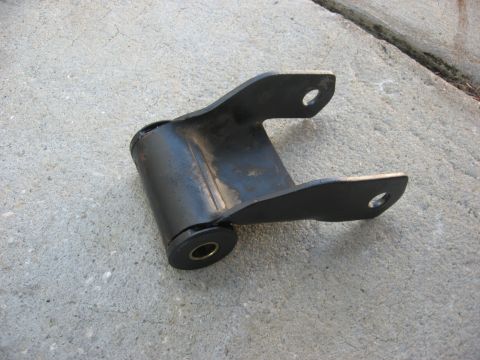

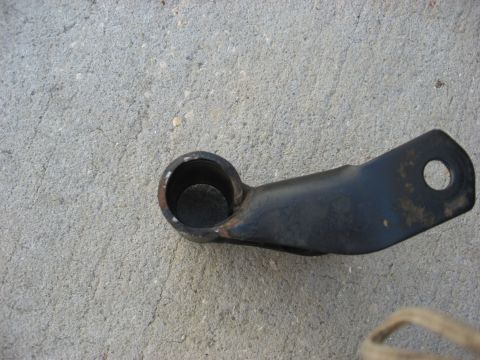

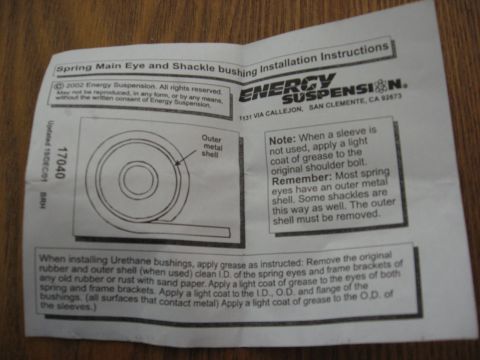

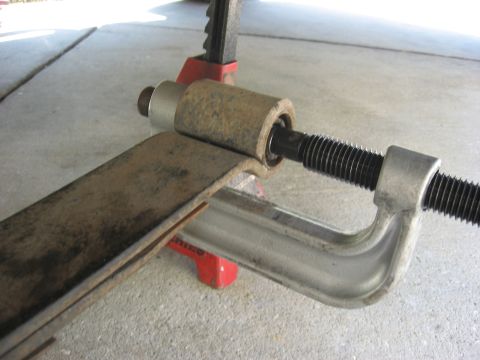

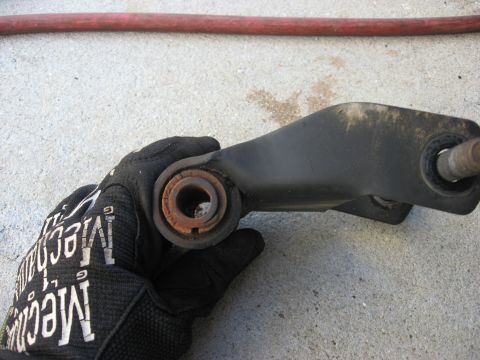

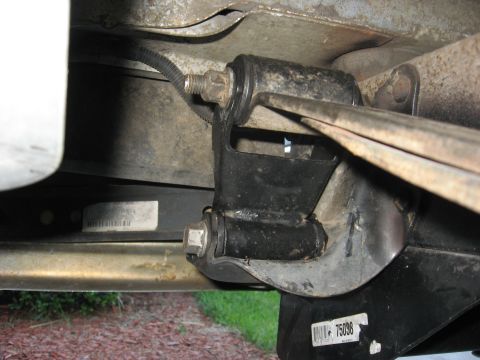

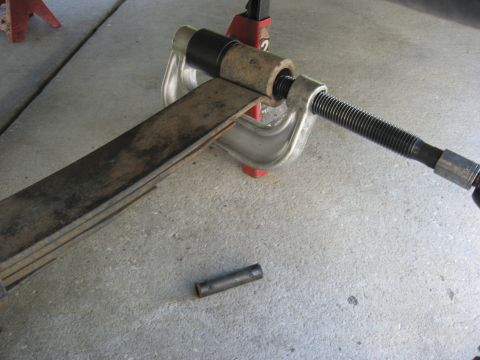

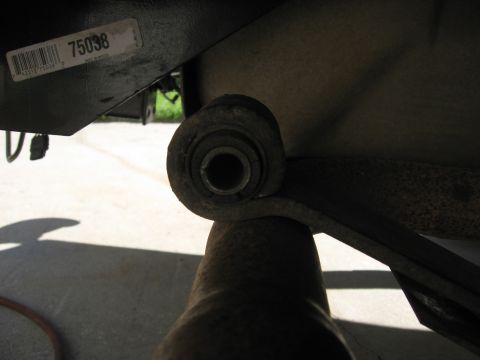

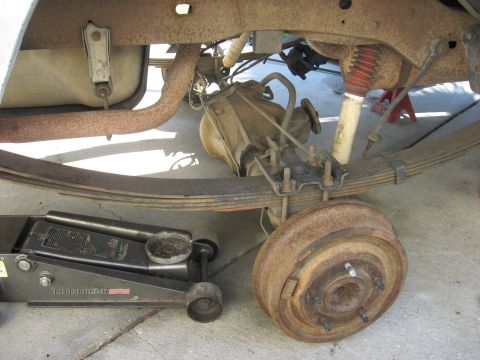

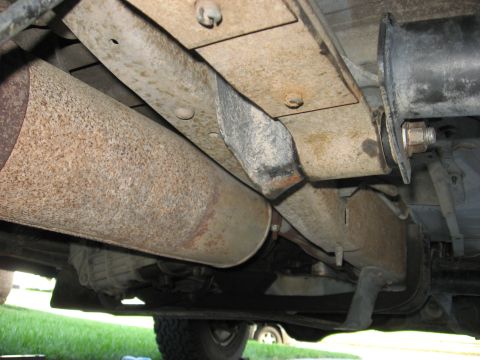

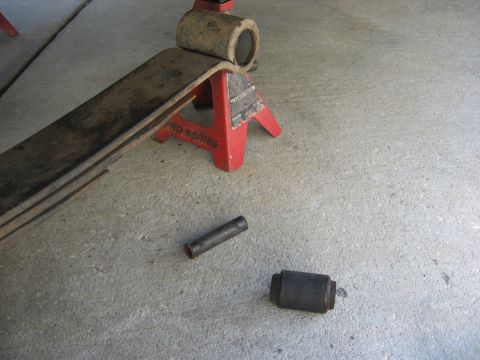

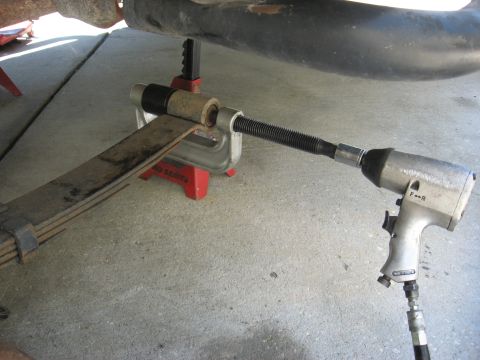

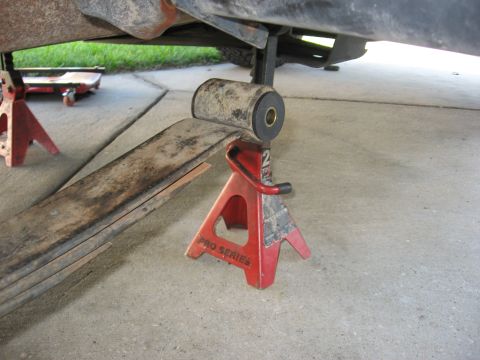

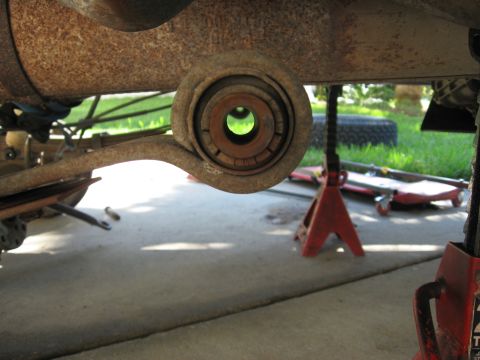

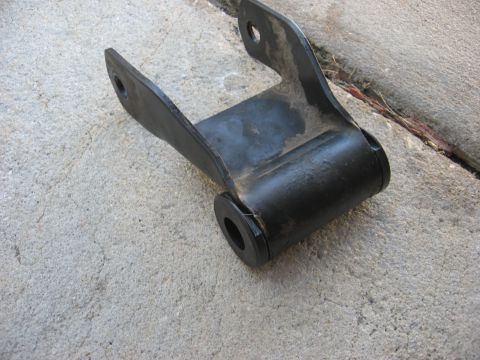

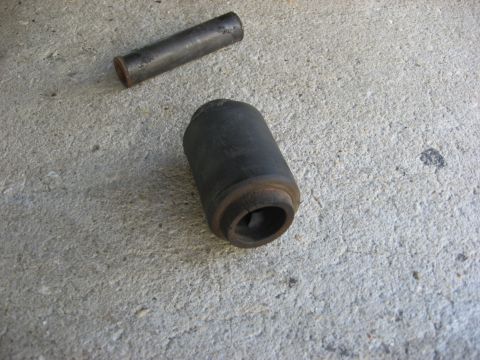

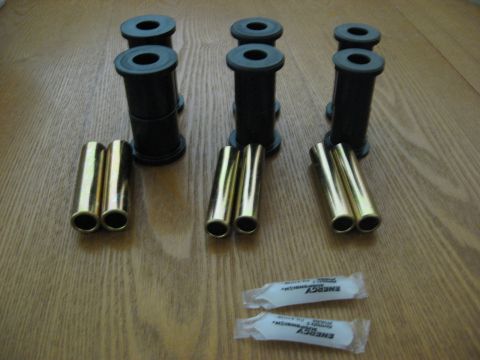

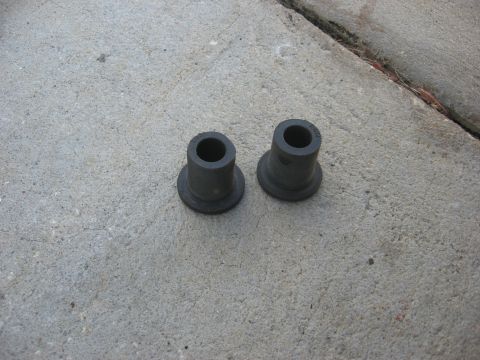

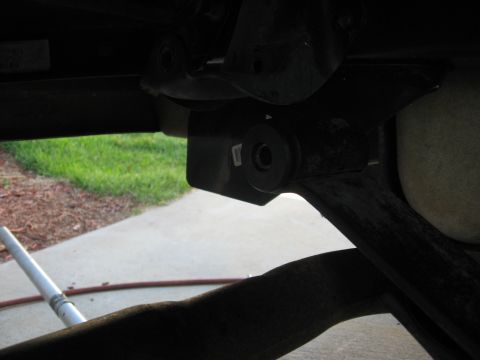

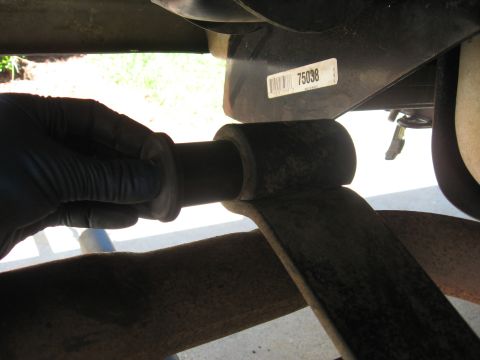

1994 Ford Bronco - This photo shows a set of leaf spring bushings and associated hardware, not a vehicle. 1994 Ford Bronco - Document details the installation of leaf spring and shackle bushings, including diagrams and notes. 1994 Ford Bronco - The rear suspension and axle assembly of a vehicle are shown, with a floor jack supporting the frame. 1994 Ford Bronco - Close-up view of a vehicle's rusty leaf spring bushing, with jack stands visible. 1994 Ford Bronco - Close-up of a leaf spring bushing, with a part number sticker visible on the frame. 1994 Ford Bronco - Close-up of a worn leaf spring bushing being held by a gloved hand. 1994 Ford Bronco - A single automotive part, likely a bracket, rests on a textured concrete surface. 1994 Ford Bronco - A tool is used to remove a leaf spring bushing, held securely in a vise. 1994 Ford Bronco - Removing a leaf spring bushing using a C-clamp tool and an impact wrench. 1994 Ford Bronco - Using a C-clamp to remove a leaf spring bushing, supported by a jack stand. 1994 Ford Bronco - A C-clamp is used to compress a leaf spring, with a small metal cylinder nearby. 1994 Ford Bronco - Leaf spring and bushings are shown on a concrete surface, supported by a red jack stand. 1994 Ford Bronco - A worn leaf spring bushing and its metal sleeve are shown resting on a concrete surface. 1994 Ford Bronco - Replacing a leaf spring bushing on a vehicle's suspension system. 1994 Ford Bronco - Two new leaf spring bushings are shown on a concrete surface. 1994 Ford Bronco - A black metal leaf spring shackle with rubber bushings is shown on a concrete surface. 1994 Ford Bronco - A close-up view of a leaf spring bushing supported by a red jack stand, indicating maintenance work on the vehicle's suspension. 1994 Ford Bronco - Close-up of a leaf spring bushing mount, likely from a truck or SUV. 1994 Ford Bronco - A black metal leaf spring shackle with a rubber bushing sits on a concrete surface. 1994 Ford Bronco - Underside view of a 1994 Ford Bronco, focusing on the leaf spring bushings and exhaust components. 1994 Ford Bronco - Close-up view of a leaf spring bushing, a component of the vehicle's suspension system. 1994 Ford Bronco - This Haynes Repair Manual covers Ford Pick-ups and Broncos from 1980 through 1996.
