2004 Dodge Ram 1500

From 1994 Ford Bronco, documented by pfun41.

97 photos
← Back to this vehicle

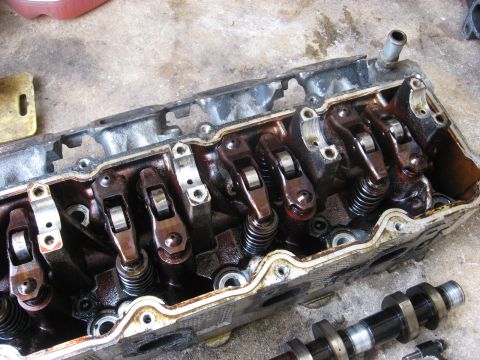

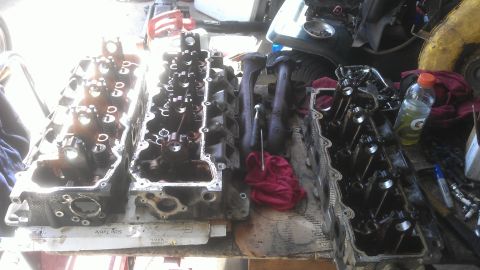

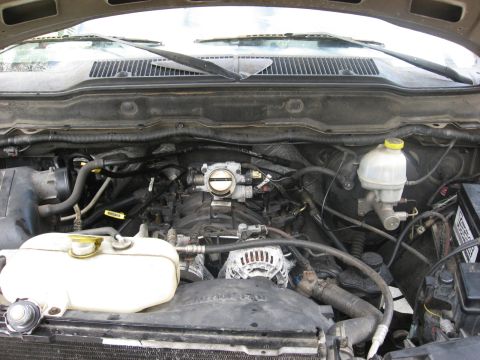

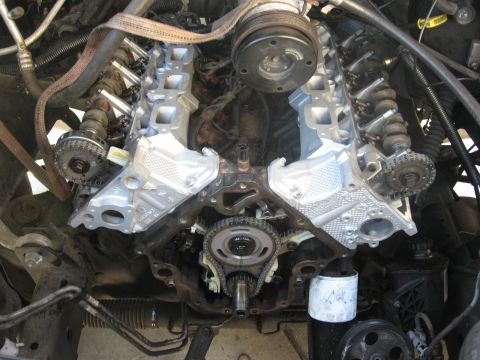

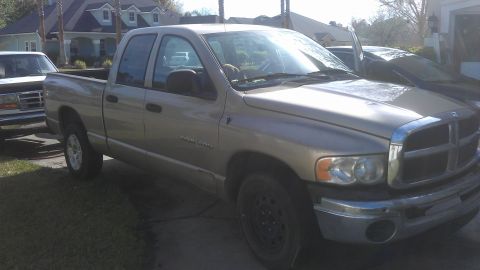

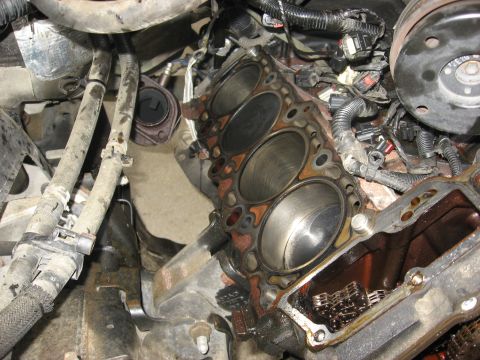

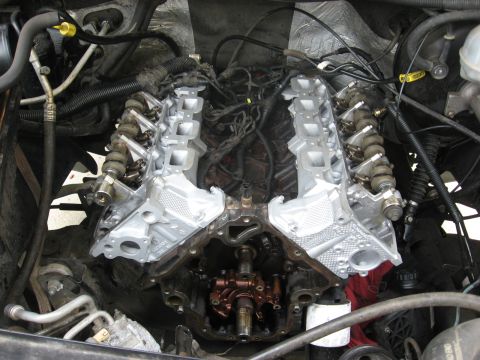

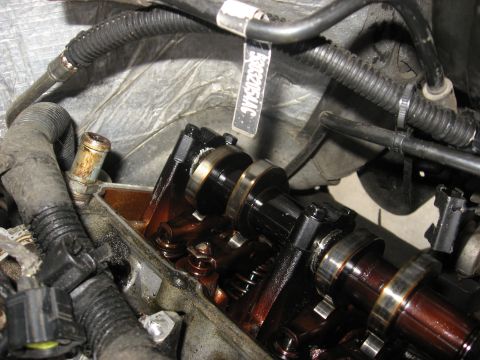

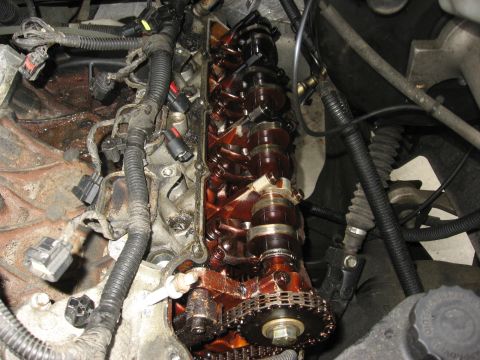

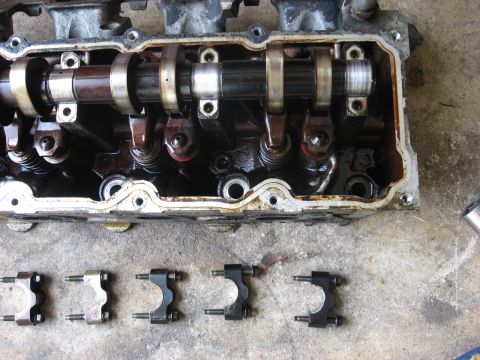

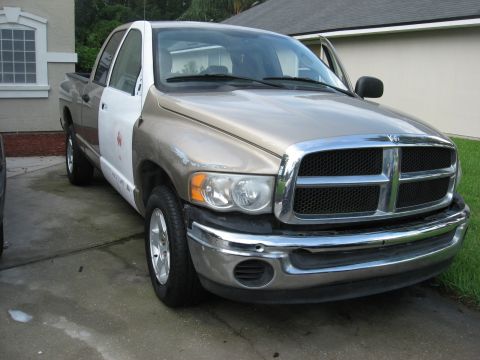

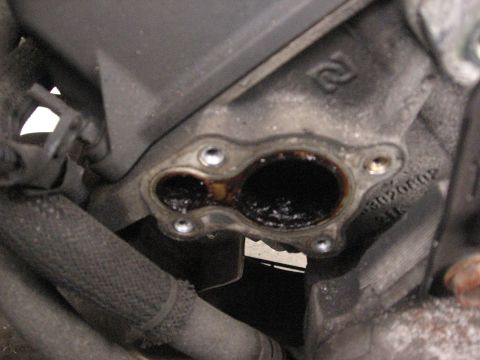

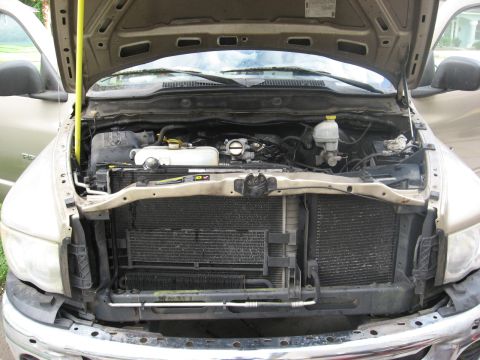

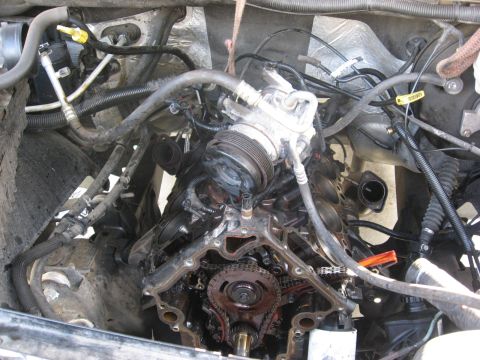

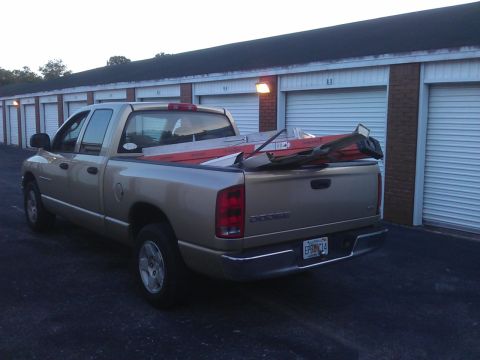

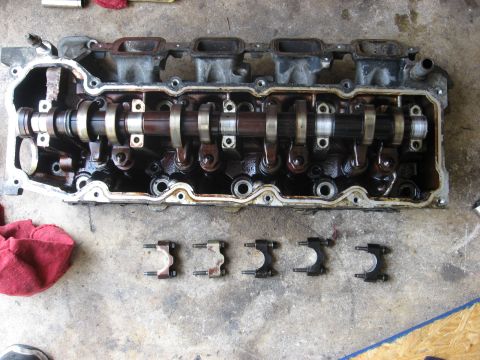

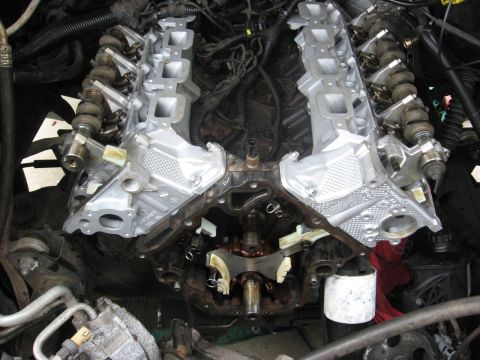

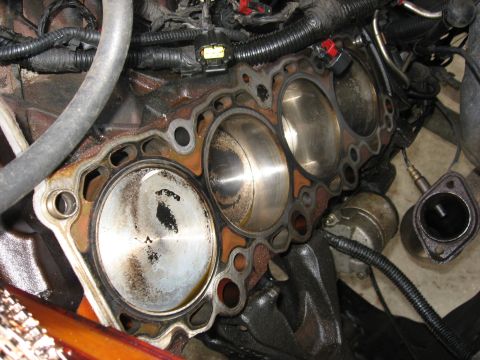

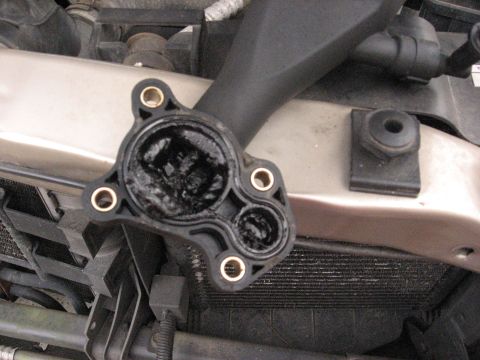

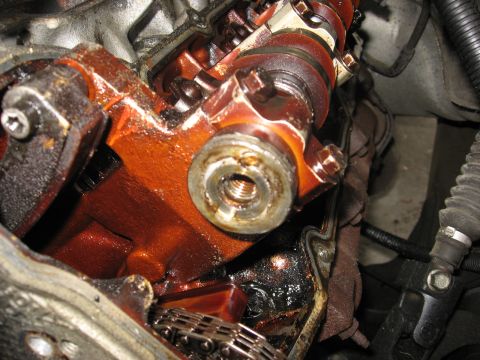

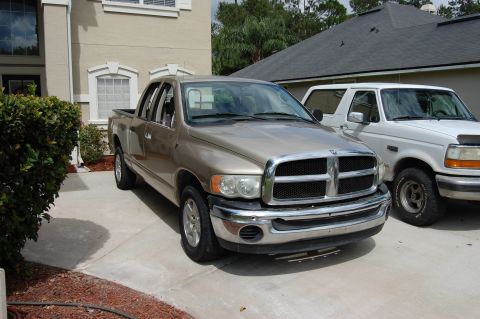

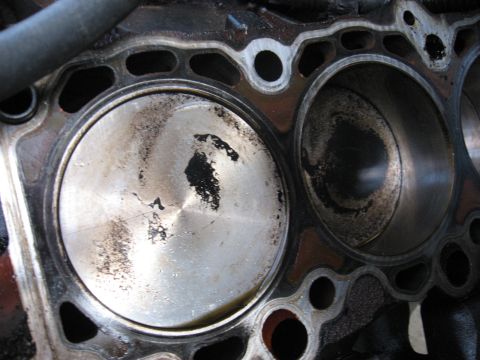

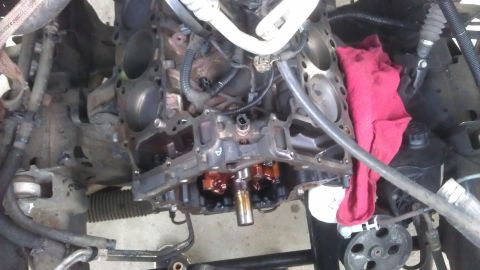

1994 Ford Bronco - I bought this 2004 Dodge Ram 1500 Quad cab for $2100. The Guy I bought it from had bought it from the previous owner with jumped timing. He… 1994 Ford Bronco - This is the first time I've ever seen a setup like this. Instead of the A/C condensor being in front of the radiator they are side by side… 1994 Ford Bronco - Oil sludge in the oil fill. The first sign of problems. 1994 Ford Bronco - This image shows a close-up of a dirty engine component with significant carbon buildup, obscuring internal details. 1994 Ford Bronco - Passenger side cam looks normal, aside from the excessive sludge. 1994 Ford Bronco - The driver side camshaft sprocket appears to be held on with a ordinary hardware store bolt. 1994 Ford Bronco - Upon closer inspection there is metal around the rear camshaft bearings and the metal is blackened from excessive heat. 1994 Ford Bronco - When the camshaft bearings seized the centering pin broke and the sprocket spun on the cam, throwing 4 of the 8 cylinders out of time. 1994 Ford Bronco - Driver side head removed, one valve has hit the piston but aside from an indentation the piston and bore appear unharmed. 1994 Ford Bronco - Passenger side head removed, everything checks out here. 1994 Ford Bronco - Engine block with pistons and cylinder bores, showing signs of wear and carbon deposits. 1994 Ford Bronco - The engine's timing components are visible in this close-up view of the engine bay. 1994 Ford Bronco - The interior of a vehicle is cluttered with various personal items, including books and blankets. 1994 Ford Bronco - Disassembled engine cylinder head with camshaft and rocker arms visible, parts laid out on a concrete surface. 1994 Ford Bronco - Disassembled engine cylinder head with camshaft and rocker arms, with separate rocker arm assemblies laid out. 1994 Ford Bronco - Close-up view of an engine cylinder head, showing rocker arms and springs. Text from Supermotors.net is visible. 1994 Ford Bronco - Jeep Grand Cherokee engine bay with transmission removal in progress, with another vehicle visible. 1994 Ford Bronco - A vehicle's engine bay is open with a component being lifted out by a hoist, and tools are resting on the radiator. 1994 Ford Bronco - Fast food leftovers and trash are visible on the passenger seat and in the cup holder of a vehicle's interior. 1994 Ford Bronco - The interior of a Dodge Ram 1500 shows a dirty floor and dashboard, with the driver's door ajar. 1994 Ford Bronco - The interior rear cargo area shows cup holders and seat belts, with grass visible outside. 1994 Ford Bronco - Vehicle seats and center console removed from a vehicle, placed on a concrete surface. 1994 Ford Bronco - Debris and wiring are visible along the interior door jamb of a vehicle. 1994 Ford Bronco - Coins and a q-tip litter the carpeted floor of a vehicle's interior. 1994 Ford Bronco - A pink camcorder and a rose gold Nintendo DS are placed on a rug with a circular pattern. 1994 Ford Bronco - Removed gray carpet from a vehicle's interior, lying on grass. 1994 Ford Bronco - Car carpet removed from vehicle, showing signs of wear and rust. 1994 Ford Bronco - Liquid streaks down wooden fence posts from an overhead textured surface. 1994 Ford Bronco - Disassembled engine components are laid out on a workbench, suggesting a repair or rebuild process. 1994 Ford Bronco - A silver pickup truck is shown with its doors open and interior carpet removed, parked next to another vehicle. 1994 Ford Bronco - Decal reads Kingsland Used Cars, Kingsland Georgia. 1994 Ford Bronco - A cracked yellow bumper sticker with black text is affixed to a dark vehicle bumper. 1994 Ford Bronco - A service sticker indicates the next oil change is due January 14, 2005, at 23,026 miles. 1994 Ford Bronco - A tan Dodge Ram pickup truck is parked in a driveway next to another vehicle. The truck's grille and headlights are visible. 1994 Ford Bronco - A truck door with '7602' marked on the window sits in a junkyard, surrounded by other vehicles and parts. 1994 Ford Bronco - Various car seat covers and interior parts are hung on a weathered wooden fence to dry or air out. 1994 Ford Bronco - Close-up view of a disassembled engine block, revealing internal mechanisms and a red rag. 1994 Ford Bronco - Engine parts are stored in the cargo area of a vehicle, alongside a spare tire and various supplies. 1994 Ford Bronco - Torque wrench being used to tighten valve cover bolts on an engine. 1994 Ford Bronco - Engine block with intake manifolds removed, exposing internal components for maintenance or repair. 1994 Ford Bronco - A box of automotive timing components is shown on a concrete surface. 1994 Ford Bronco - Engine timing components are neatly arranged in a cardboard box, ready for installation. 1994 Ford Bronco - Close-up view of a disassembled engine, showing the intake manifolds and internal components. 1994 Ford Bronco - Custom metal bracket and an air impact wrench are shown on a concrete surface. 1994 Ford Bronco - The engine compartment of a vehicle is shown with many components and wiring. 1994 Ford Bronco - Close-up view of an engine bay with mechanical components visible. 1994 Ford Bronco - Close-up of a metal bracket with visible welds and mounting holes, resting on a concrete surface. 1994 Ford Bronco - Close-up of engine work, showing a timing chain and repair tools. 1994 Ford Bronco - Close-up view of an engine's internal components, showing the timing chain and gears. 1994 Ford Bronco - Close-up view of a vehicle's engine bay, showing various components and wiring. 1994 Ford Bronco - View of a vehicle's engine bay, showing various components like the alternator and AC compressor. 1994 Ford Bronco - View of the engine bay, showing various components under the hood. 1994 Ford Bronco - The engine bay of a 2004 Dodge Ram 1500 is exposed with the hood raised, revealing the radiator and engine components. 1994 Ford Bronco - The dashboard gauges indicate a 2004 Dodge Ram 1500, contradicting the registry's claim. 1994 Ford Bronco - Close-up of a vehicle's interior dashboard gauges, showing the odometer, tachometer, and gear indicator. 1994 Ford Bronco - Dodge Ram pickup truck parked in a driveway with all doors open, emitting exhaust smoke. 1994 Ford Bronco - The interior of a pickup truck is shown with the doors open and a fan placed on the floor. 1994 Ford Bronco - The interior of a 2004 Dodge Ram 1500 shows extensive disassembly, with doors off and interior panels removed. 1994 Ford Bronco - The interior of a vehicle is shown with its doors removed, a fan and a shop vac on the floor. 1994 Ford Bronco - Interior of a 2004 Dodge Ram 1500, showing the driver's side and center console. 1994 Ford Bronco - The interior of a Dodge Ram pickup truck is shown with the driver's side door open and the door panel removed. 1994 Ford Bronco - Interior view of a truck's rear seating area, showing gray cloth upholstery and door panel details. 1994 Ford Bronco - The rear interior of a vehicle shows a cup holder, tools, and carpeted floor. 1994 Ford Bronco - Close-up of a vehicle's front wheel brake assembly, showing the rotor and caliper. 1994 Ford Bronco - This image shows a close-up view of a vehicle's brake assembly, including the caliper, pads, and rotor. 1994 Ford Bronco - This image shows a close-up of a vehicle's suspension system, focusing on a rusty mechanical part and coil spring. 1994 Ford Bronco - A disassembled front suspension component rests on a green tarp next to a floor jack, indicating repair work. 1994 Ford Bronco - Truck front end disassembled for repair, with a tool kit and jack visible on a tarp. 1994 Ford Bronco - This image shows a close-up of a vehicle's suspension system undergoing repair or maintenance. 1994 Ford Bronco - Various automotive parts and tools are laid out on a green tarp, suggesting a repair or maintenance session. 1994 Ford Bronco - Close-up of a vehicle's front suspension ball joint, resting on a green tarp. 1994 Ford Bronco - Front suspension components, including brake rotor and ball joint, are visible. 1994 Ford Bronco - This image shows the suspension and brake components of a vehicle, not a complete vehicle. 1994 Ford Bronco - Close-up of a rusty rear axle brake assembly, showing wear on the rotor and caliper. 1994 Ford Bronco - Engine bay with a pressure gauge connected to the brake fluid reservoir for testing. 1994 Ford Bronco - Laptop on the center console inside a vehicle with the door panel removed. 1994 Ford Bronco - This oil pan is filled with thick sludge and old oil, indicating potential engine issues. 1994 Ford Bronco - This is an oil pan with sludge inside, placed on a green tarp. 1994 Ford Bronco - Close-up view of an engine oil pan showing signs of an oil leak. 1994 Ford Bronco - Close-up view of an engine's oil pan and pickup tube, indicating potential maintenance or repair needs. 1994 Ford Bronco - This oil pump screen is clogged with metal particles, indicating potential engine wear. 1994 Ford Bronco - An oil pan and its associated pickup tube are displayed on a concrete surface, indicating they are automotive parts. 1994 Ford Bronco - Close-up of an oil pump pickup tube with a metal screen, resting on a concrete surface. 1994 Ford Bronco - A close-up view of a U.S. General pressure gauge connected to a hose with purple zip ties. The gauge is measuring pressure in psi and bar,… 1994 Ford Bronco - A close-up view of a U.S. General pressure gauge connected to an engine component with a purple zip tie. The gauge shows a reading between… 1994 Ford Bronco - A tan pickup truck is parked in a driveway with its doors open, and an engine hoist is attached to the front. 1994 Ford Bronco - The bed of a white Ford Bronco is filled with four tires. Two tires are stacked in the front, and two are laid flat in the back. 1994 Ford Bronco - A tan and white Dodge Ram pickup truck is parked on a concrete driveway in front of a house. The truck has a chrome grille and bumper, and… 1994 Ford Bronco - A tan pickup truck is parked on a gravel surface with a ladder rack extending from the bed. The truck bed contains an orange ladder and oth… 1994 Ford Bronco - Two trucks, a Dodge Ram and a Ford Bronco, are parked in a driveway. 1994 Ford Bronco - A silver Dodge Ram and a white Ford Bronco are parked in a driveway in front of a house. 1994 Ford Bronco - A close-up view of a tire on a tan SUV, showing a small, square sticker adhered to the sidewall. The vehicle is parked on an asphalt surfac… 1994 Ford Bronco - A nail is embedded in the tread of a vehicle tire. 1994 Ford Bronco - A gold Dodge Ram pickup truck is parked next to a white Ford Bronco, with large cardboard boxes loaded in the bed of the Dodge. The boxes e… 1994 Ford Bronco - The interior of a gold pickup truck is filled with cardboard boxes and other items. The driver's side door is open, revealing the contents… 1994 Ford Bronco - A gold Dodge pickup truck is parked in front of a row of storage units. The truck bed contains several long items, possibly construction ma… 1994 Ford Bronco - The interior of a vehicle shows a dashboard with glowing green gauges and a digital odometer displaying "10119". The speedometer is illumin…
