Transmission fluid change

From 1994 Ford Bronco, documented by pfun41.

14 photos
← Back to this vehicle

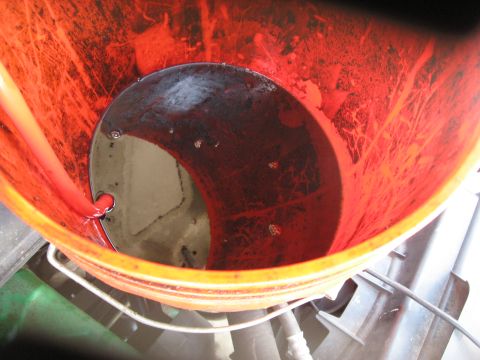

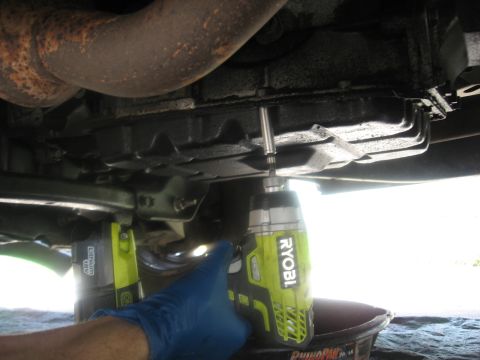

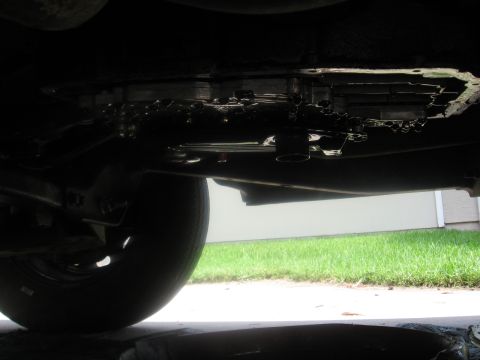

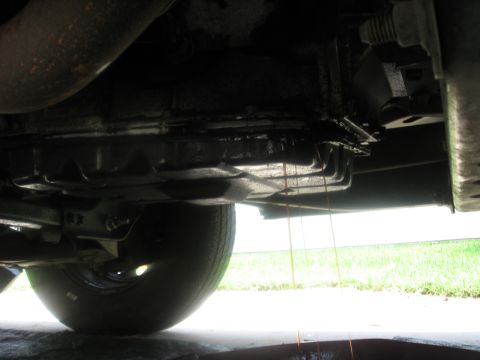

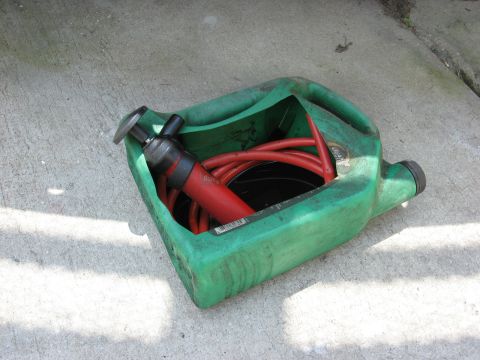

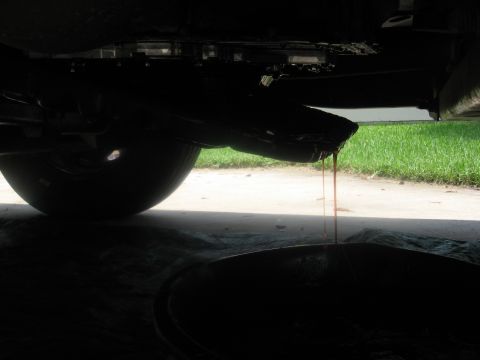

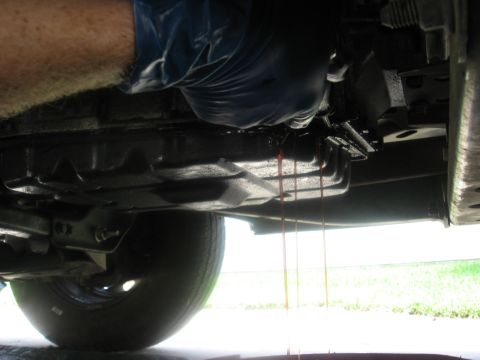

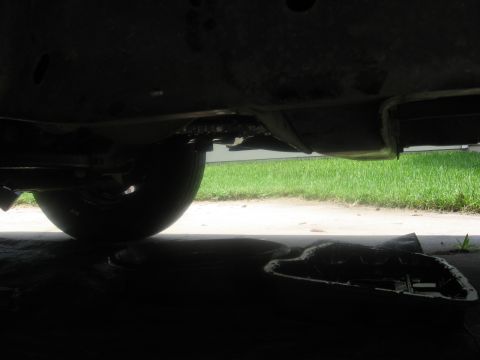

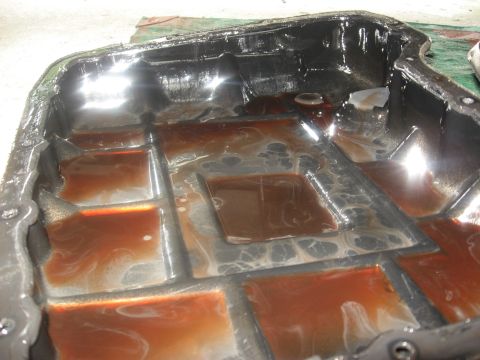

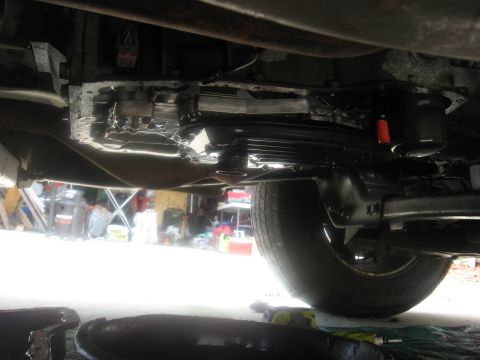

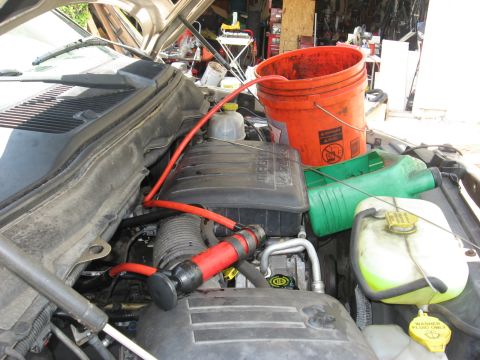

1994 Ford Bronco - Fluid transfer pump and hose stored in a green drain pan on a concrete surface. 1994 Ford Bronco - Fluid transfer pump in use within the engine bay, with an orange bucket and green jug nearby. 1994 Ford Bronco - Dark red transmission fluid fills an orange bucket, with a red hose visible. 1994 Ford Bronco - Removing the transmission pan on a 1994 Ford Bronco for a fluid change. 1994 Ford Bronco - Transmission fluid is draining from the pan. A gloved hand is visible working on the vehicle. 1994 Ford Bronco - Transmission fluid is draining from the pan of an unidentified vehicle. 1994 Ford Bronco - Transmission fluid is being drained from a vehicle into a collection pan. 1994 Ford Bronco - Transmission fluid drain pan positioned under the undercarriage of a 1994 Ford Bronco. 1994 Ford Bronco - Transmission pan removed for fluid change, showing internal components and dripping fluid. 1994 Ford Bronco - Underside view of a vehicle's transmission and a tire, with a drip pan underneath. 1994 Ford Bronco - Transmission pan filled with fluid, showing signs of use and potential wear. 1994 Ford Bronco - A transmission filter kit, including a gasket and fluid filter, is laid out on a concrete surface. 1994 Ford Bronco - Transmission pan and filter assembly shown during a fluid change service. 1994 Ford Bronco - Underside view shows the transmission pan and part of the exhaust system.
