1957 hits | 98.02 KB | Posted: 10/23/10
parts needed:

5w7z-3530-ayf filler trim (med. stone)

6w1z-3f719-a 05 interlock cable

7w7z-3c529-...

1054 hits | 63.81 KB | Posted: 8/12/11
center console parts break down. does not included the mounting plate.

371 hits | 39.76 KB | Posted: 4/19/13

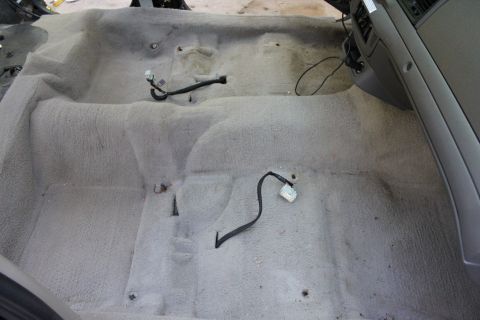

light stone police carpet.

330 hits | 58.16 KB | Posted: 4/19/13

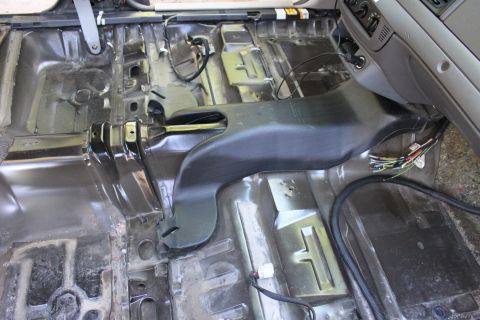

a/c duct for column shift. need to remove this part.

319 hits | 51.02 KB | Posted: 4/19/13

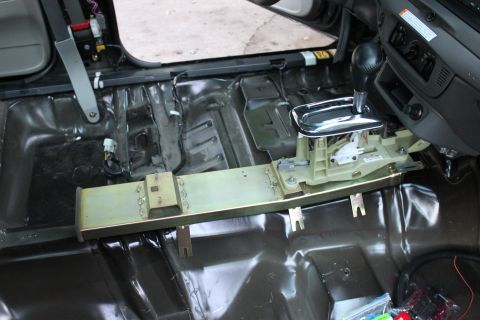

test mount for alignment.

299 hits | 41.29 KB | Posted: 4/19/13

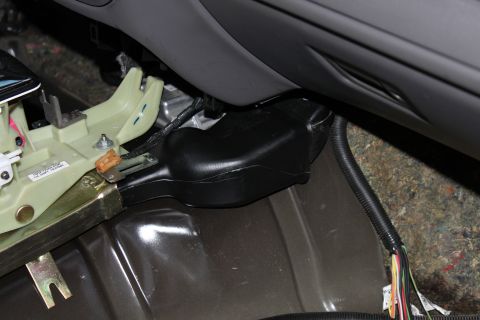

test mount for alignment, with a/c duct attached.

306 hits | 41.92 KB | Posted: 4/19/13

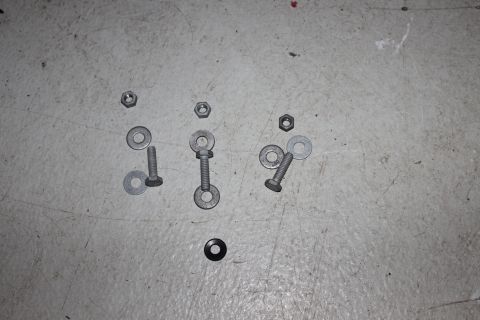

home depot galvanized nuts, washers, bolts and rubber washers.

299 hits | 36.57 KB | Posted: 4/19/13

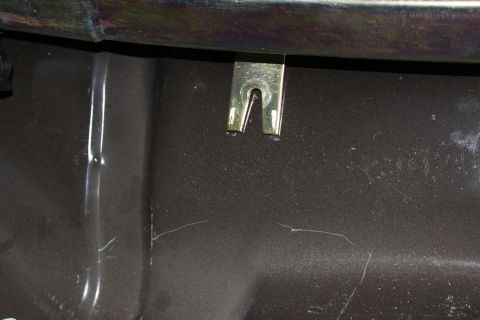

test mount for alignment.

313 hits | 39.01 KB | Posted: 4/19/13

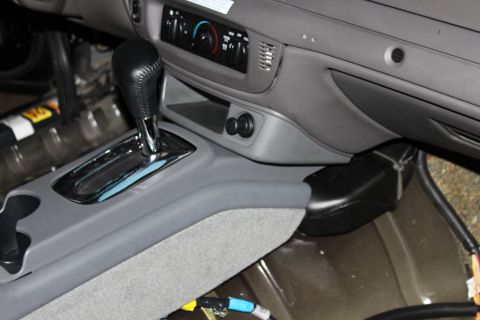

full test mount for alignment.

308 hits | 33.52 KB | Posted: 4/19/13

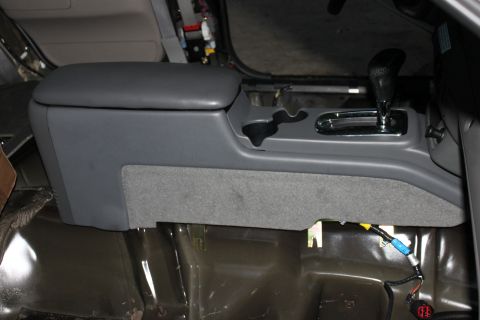

full and final test mount for alignment.

313 hits | 41.23 KB | Posted: 4/19/13

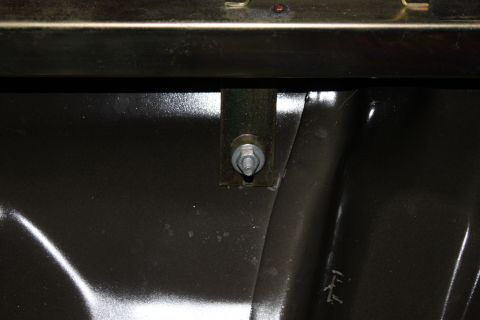

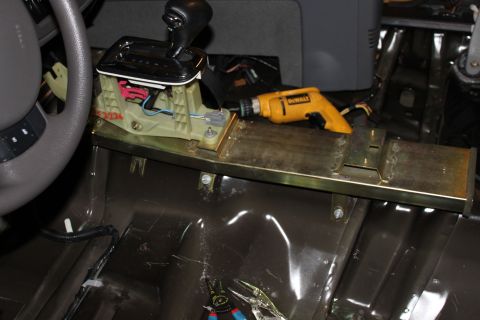

drilled in place.

289 hits | 27.38 KB | Posted: 4/19/13

318 hits | 31.61 KB | Posted: 4/19/13

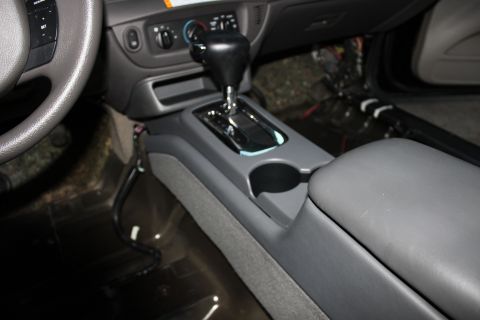

meets or exceeds OEM standards. very secure.

443 hits | 55.64 KB | Posted: 4/8/13
7w7z-3c529a OEM 2005 steering column.

906 hits | 53.73 KB | Posted: 10/8/12
7w7z-3c529a (from a used parts dealer) with the floor shift interlock slide (which is part of the co...

481 hits | 46.42 KB | Posted: 10/8/12
floorshift interlock resting in place on the 7w7z-3c529a column.

468 hits | 51.77 KB | Posted: 4/8/13

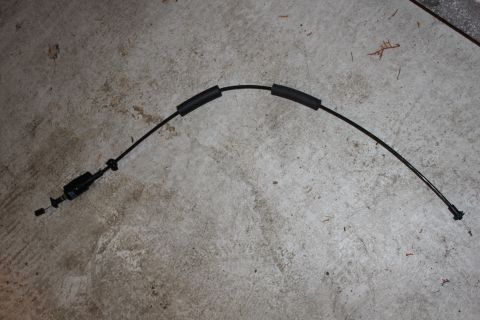

6w1z-3f719-a 05 interlock cable

378 hits | 73.31 KB | Posted: 4/20/13

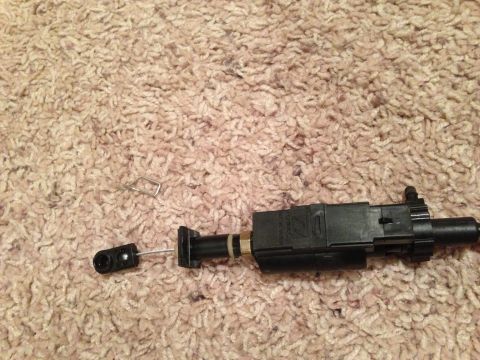

6w1z-3f719-a close up.

627 hits | 28.85 KB | Posted: 10/8/12
This is a floor shift interlock cable 6w1z-3f719-a from a factory 2006 LX Sport, the interlock conne...

342 hits | 24.19 KB | Posted: 4/8/13

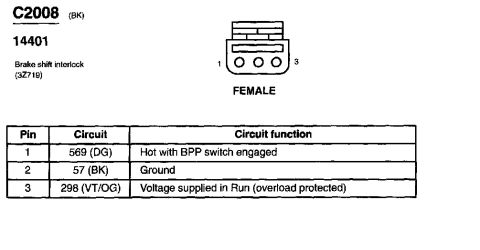

here is the connector view of the 98-04 interlock also used on sport models 05-07, pin 3 is powered ...

301 hits | 15.82 KB | Posted: 4/8/13
this is the standard interlock for 05-11 models. non-sport LX, pins 1 and 2 are found on all models.

363 hits | 48.61 KB | Posted: 4/20/13

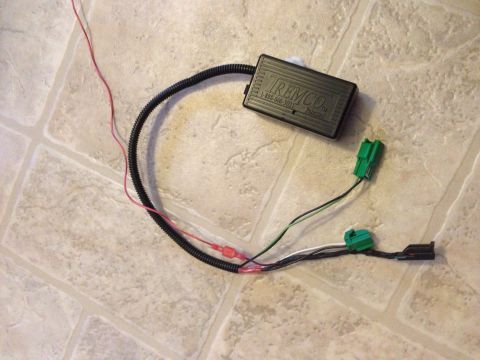

hybrid tremco 05 plus interlock to 98-04 interlock.

322 hits | 58.33 KB | Posted: 4/8/13
police column shift steering column removed.

377 hits | 54.58 KB | Posted: 4/8/13
on the left is the new floor shift column with 07 parts and the old column on the right.

i used the...

295 hits | 28.71 KB | Posted: 4/8/13

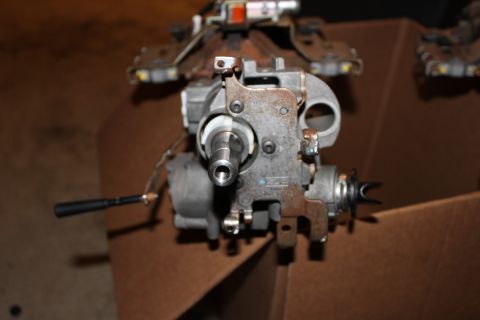

close up of the floor shift column

371 hits | 36.72 KB | Posted: 4/8/13
close up of the 07 column shift column. although the columns look the same and appear like you could...

383 hits | 48.5 KB | Posted: 4/8/13
stripped

621 hits | 60.4 KB | Posted: 4/20/13

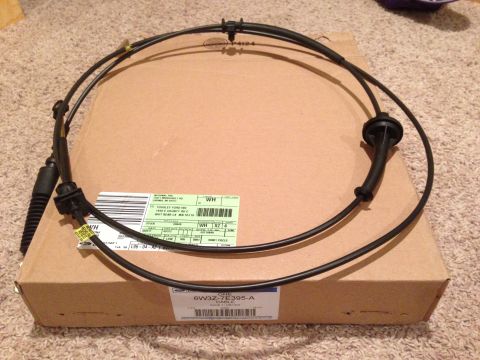

floor shift cable. 6w3z-7e395-a

433 hits | 52.33 KB | Posted: 4/8/13

292 hits | 49.36 KB | Posted: 4/8/13

339 hits | 44.61 KB | Posted: 4/8/13

365 hits | 57.85 KB | Posted: 4/20/13

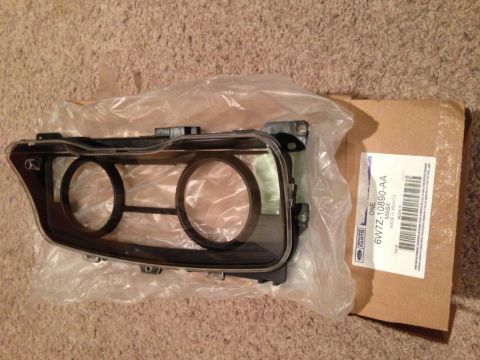

new police speedo "mask".

341 hits | 60.88 KB | Posted: 4/20/13

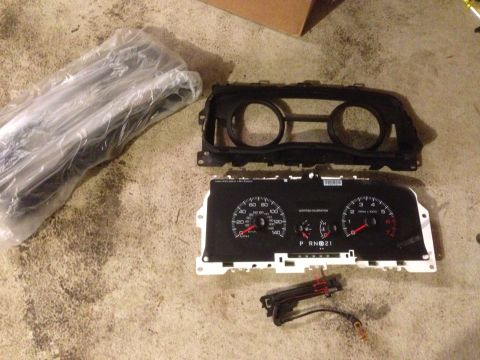

remove column gear selector and just high strength black tape to cover the gears.

336 hits | 49.06 KB | Posted: 4/8/13

439 hits | 43.16 KB | Posted: 4/8/13

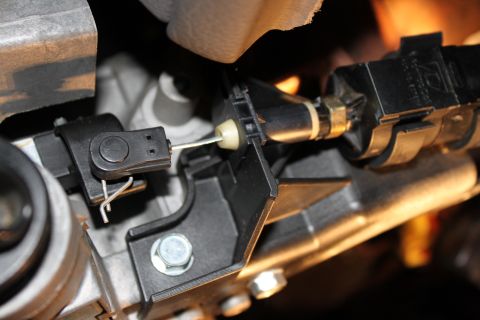

6w1z-3f719-a mounted in place with the retainer pin, very important, pin must be used.

276 hits | 47.14 KB | Posted: 2/23/14

268 hits | 51.11 KB | Posted: 2/23/14

290 hits | 41.86 KB | Posted: 2/23/14

283 hits | 49.2 KB | Posted: 2/23/14
