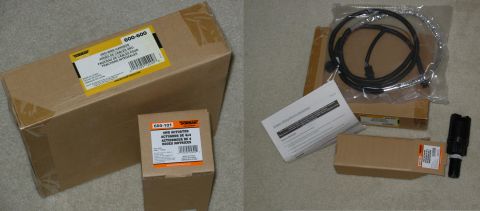

I don't know why these are sold separately - neither will work without the other. Note that the ste...
1240 hits | 32.42 KB | Posted: 4/4/12
I don't know why these are sold separately - neither will work without the other. Note that the ste...
This is GM's crappy idea - basically a light bulb filled with oil that swells & pushes a lever insid...
1412 hits | 105 KB | Posted: 4/4/12
This is GM's crappy idea - basically a light bulb filled with oil that swells & pushes a lever insid...

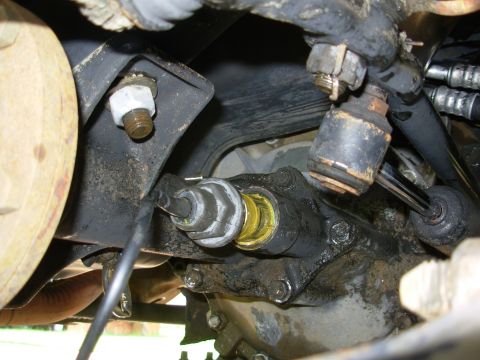

As soon as the threads were exposed, I could see there was a problem - the bright yellow oil from th...
1217 hits | 94.1 KB | Posted: 4/4/12
As soon as the threads were exposed, I could see there was a problem - the bright yellow oil from th...

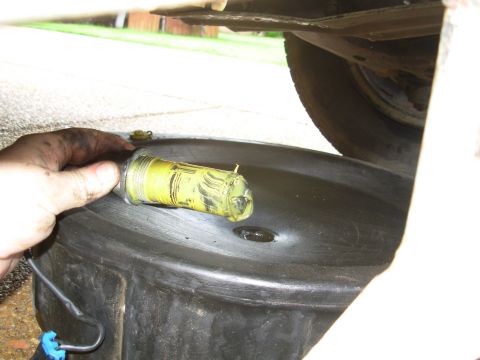

The rubber boot on the tip has also ruptured & become entangled in the piston.
1140 hits | 76.43 KB | Posted: 4/4/12
The rubber boot on the tip has also ruptured & become entangled in the piston.

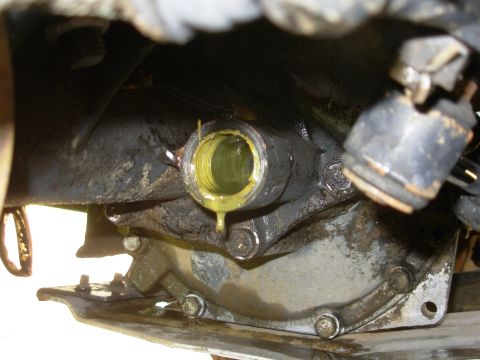

This is just actuator oil - none of the differential oil came out.
1116 hits | 83.56 KB | Posted: 4/4/12
This is just actuator oil - none of the differential oil came out.

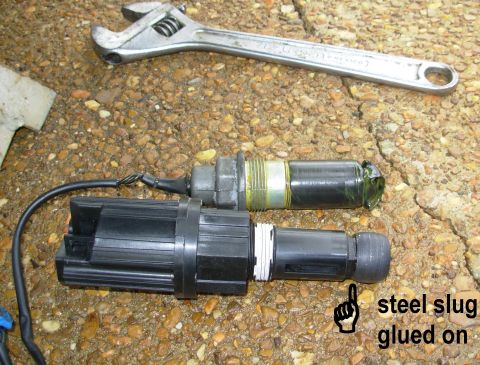

The new actuator is much larger outside, but for some reason, it's shorter inside, requiring this sl...
1881 hits | 90.53 KB | Posted: 4/4/12
The new actuator is much larger outside, but for some reason, it's shorter inside, requiring this sl...

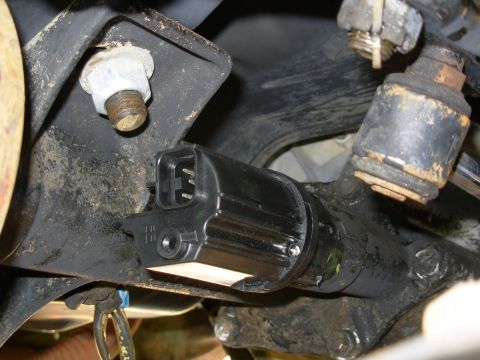

The body of the actuator is VERY close to the axle housing, but mine had no interference. It took s...
1263 hits | 93.46 KB | Posted: 4/4/12
The body of the actuator is VERY close to the axle housing, but mine had no interference. It took s...

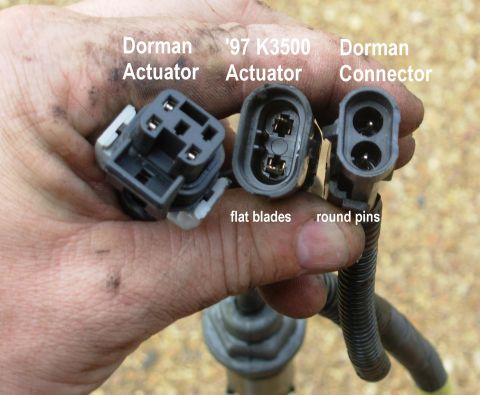

I didn't check this before beginning, so I was surprised to find the new harness DOESN'T FIT the tru...
1244 hits | 57.88 KB | Posted: 4/4/12
I didn't check this before beginning, so I was surprised to find the new harness DOESN'T FIT the tru...

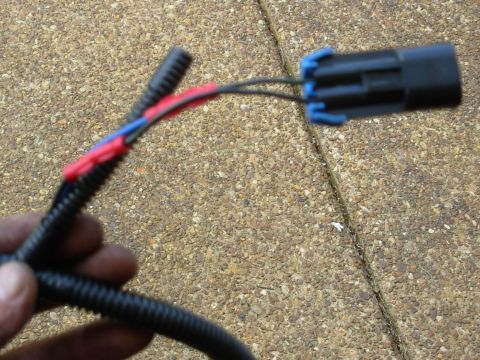

Since 600-600 is the only harness available, I simply cut the old actuator's connector off & attache...
1352 hits | 92.08 KB | Posted: 4/4/12
Since 600-600 is the only harness available, I simply cut the old actuator's connector off & attache...

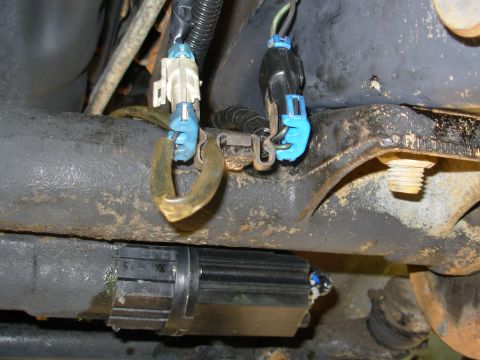

If I hadn't cut & spliced the connector, I suspect I would have been forced to route the wiring UNDE...
1249 hits | 96.18 KB | Posted: 4/4/12
If I hadn't cut & spliced the connector, I suspect I would have been forced to route the wiring UNDE...

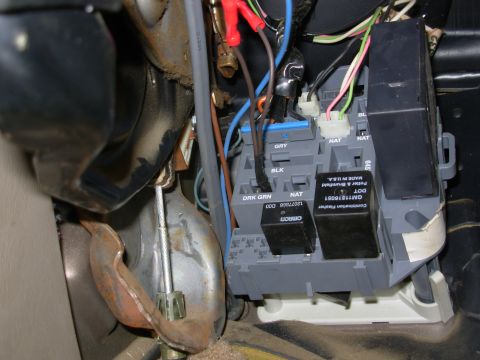

The instructions say to route the Br wire over the transmission & then splice it into the truck wiri...
1343 hits | 86.96 KB | Posted: 4/4/12
The instructions say to route the Br wire over the transmission & then splice it into the truck wiri...

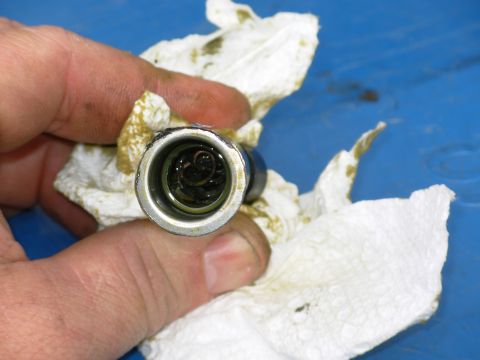

Just for curiousity, I cut the old actuator open. My best guess is that the oil leaked out, allowin...
1226 hits | 73.58 KB | Posted: 4/4/12
Just for curiousity, I cut the old actuator open. My best guess is that the oil leaked out, allowin...

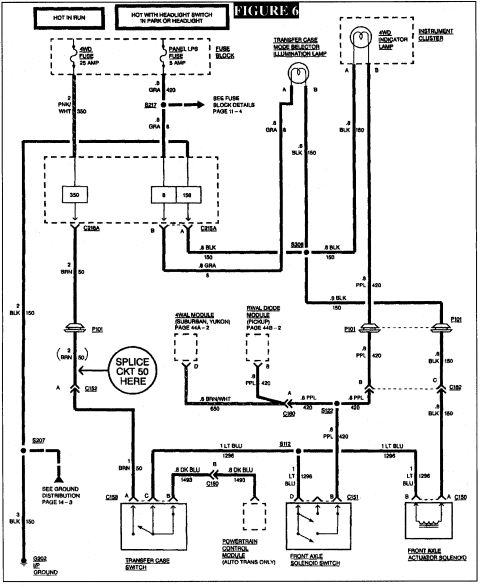

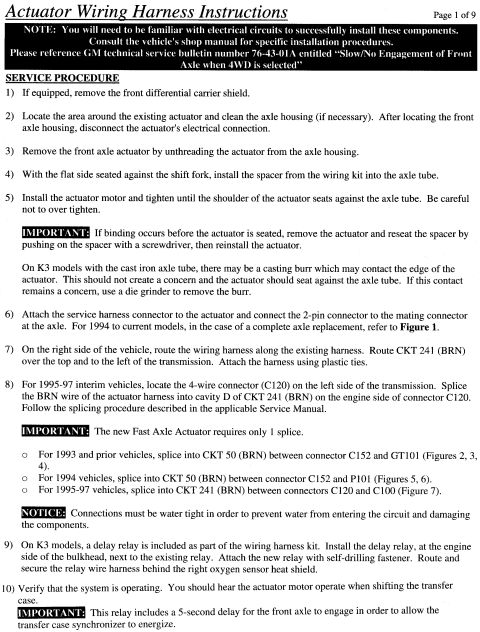

Instruction sheet (packaged with Dorman 600-600)IF THE TEXT IS TOO SMALL, click it.
1981 hits | 54.86 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE TEXT IS TOO SMALL, click it.
Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
1637 hits | 32.16 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.
Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
1829 hits | 70.51 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.

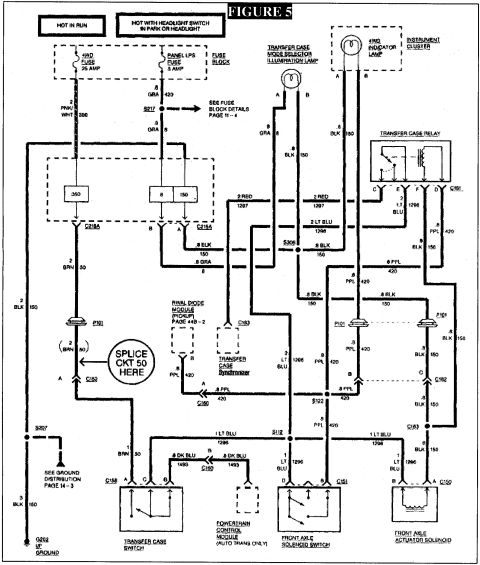

Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
1235 hits | 64.4 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.
Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
1168 hits | 56.26 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.

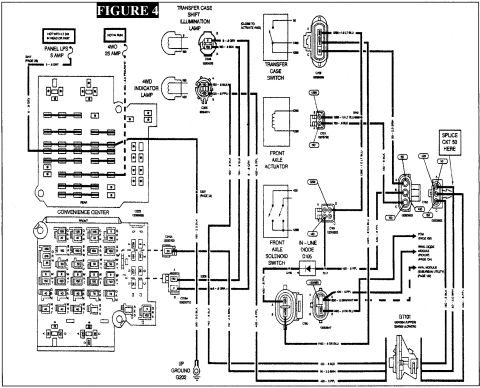

Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
1223 hits | 48.46 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.

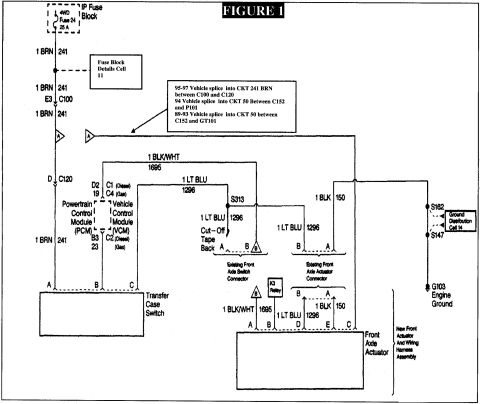

Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
1308 hits | 40.43 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.

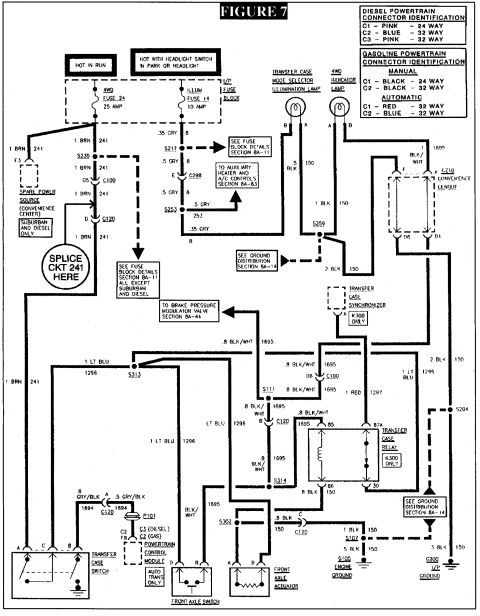

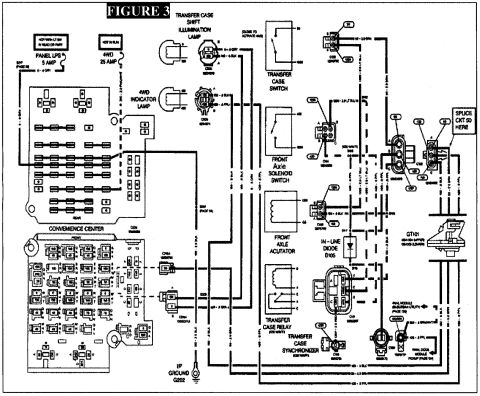

Instruction sheet (packaged with Dorman 600-600)IF THE IMAGE IS TOO SMALL, click it.
6520 hits | 48.45 KB | Posted: 4/5/12

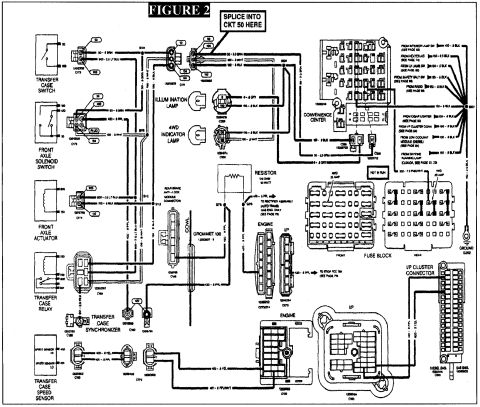

Instruction sheet (packaged with Dorman 600-600)
