Custom X-Member

From 1976 Ford F-150 “custom BUILT” — documented by Aren Hansen.

9 photos
← Back to this vehicle

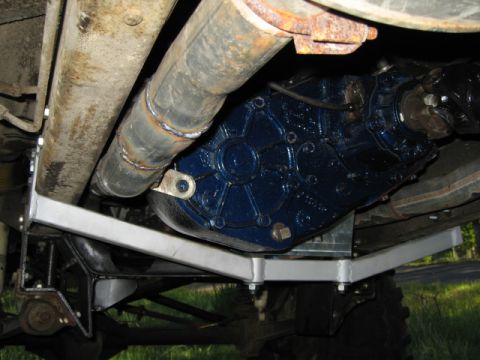

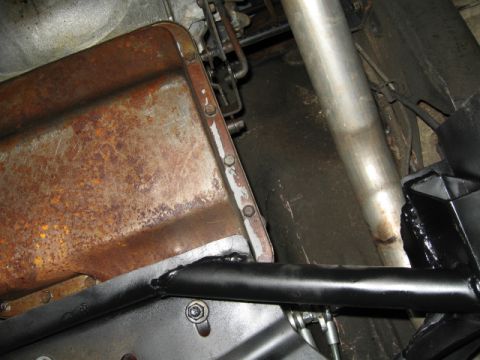

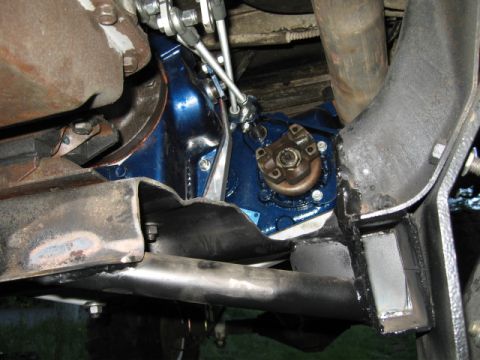

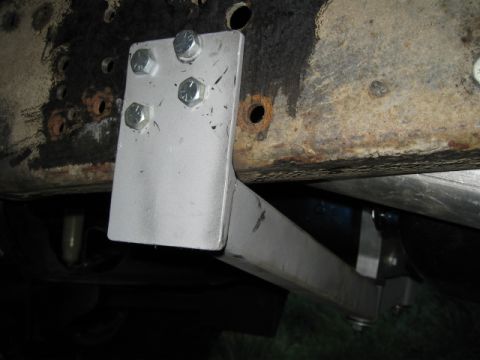

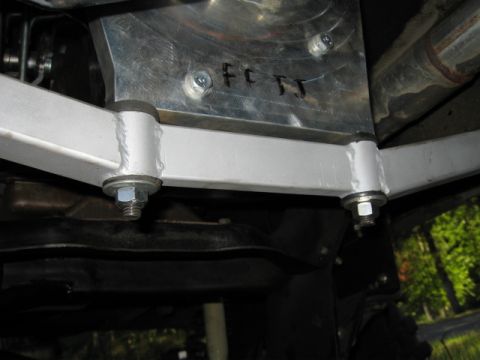

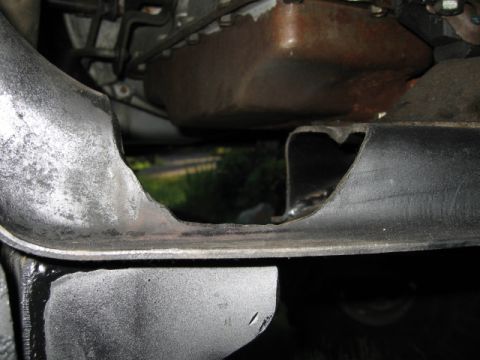

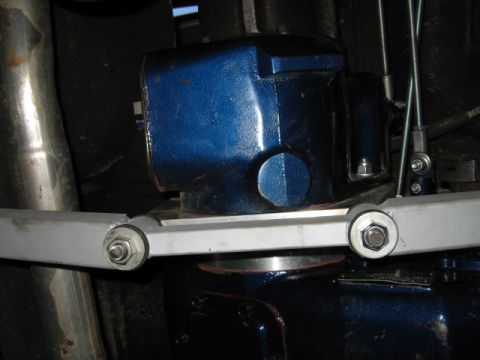

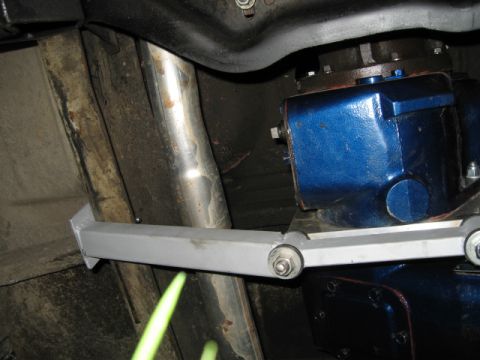

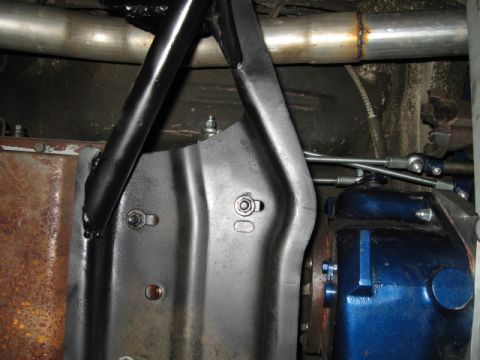

1976 Ford F-150 - Here is a picture from the rear of the stock Xmember, see how much material is cut out? 1976 Ford F-150 - A front shot, again WOW it is cut! 1976 Ford F-150 - A bad shot, but here is the brace added in. It is NOT mounted to the lower Radius arm mount, so I can still remove it. 1976 Ford F-150 - A better shot of the brace... 1976 Ford F-150 - Here is a nice rear shot of the second Xmember holding up the weight of the tcases. 1976 Ford F-150 - A close up of how it is mounted to the adapter. Notice how there are studs not bolts, there won't be any trouble trying to thread in bolts… 1976 Ford F-150 - Again, bolted not welded to the frame for ease of removal, installation. 1976 Ford F-150 - An undershot, see how much space is between the two Xmembers, imagine if I didn't have the second one! 1976 Ford F-150 - Second shot from down under, shows the whole span.
