AC system

From 1994 Ford Bronco “Eddie Bauer”, documented by jowens1126.

101 photos
← Back to this vehicle

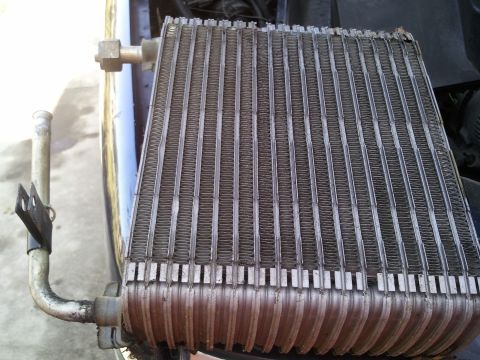

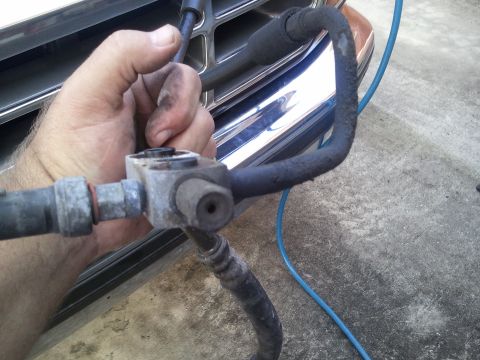

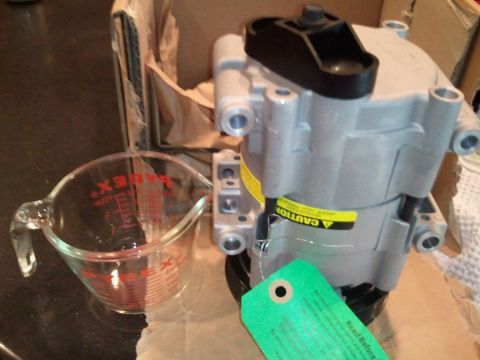

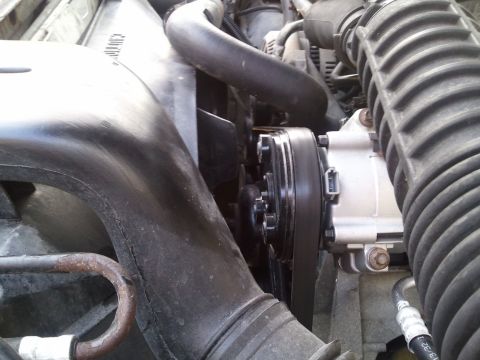

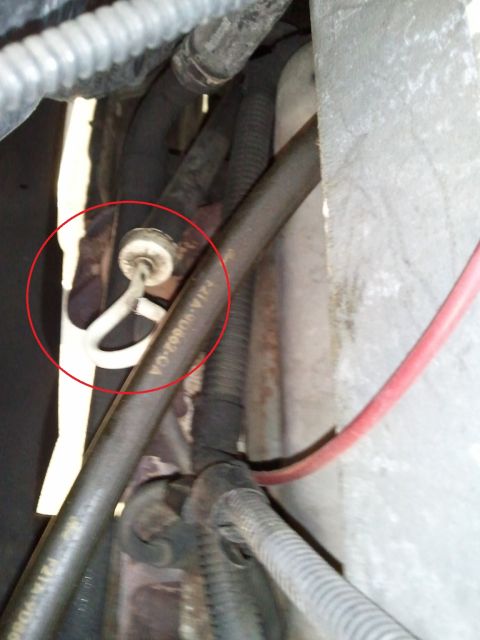

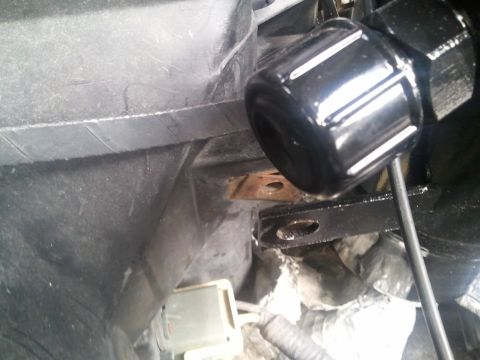

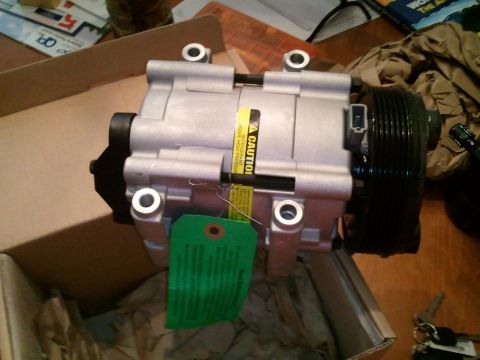

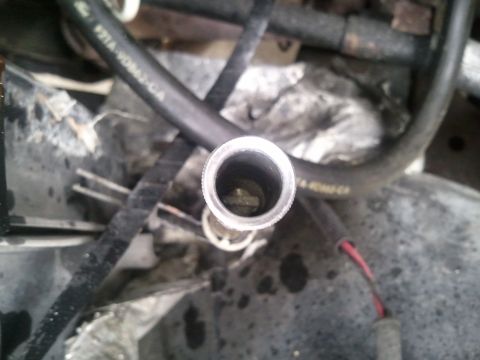

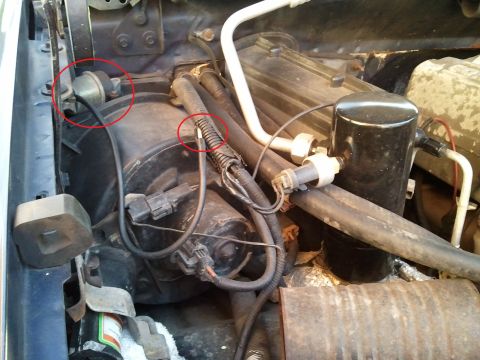

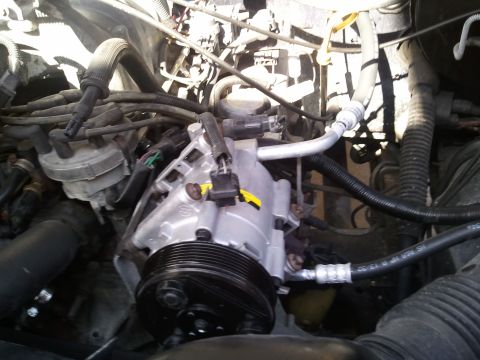

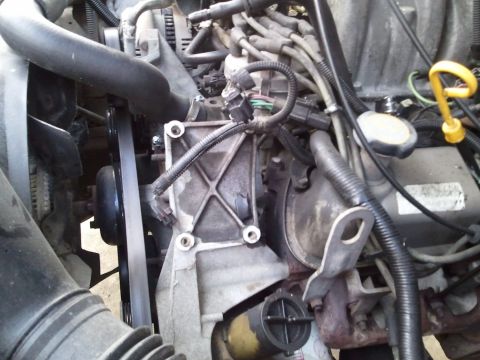

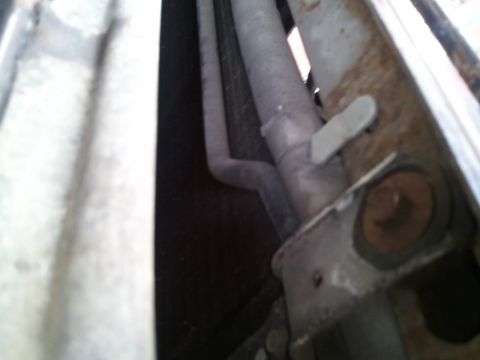

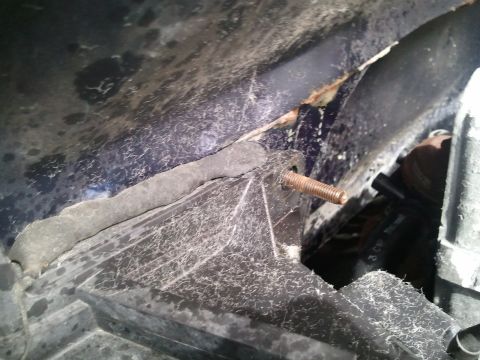

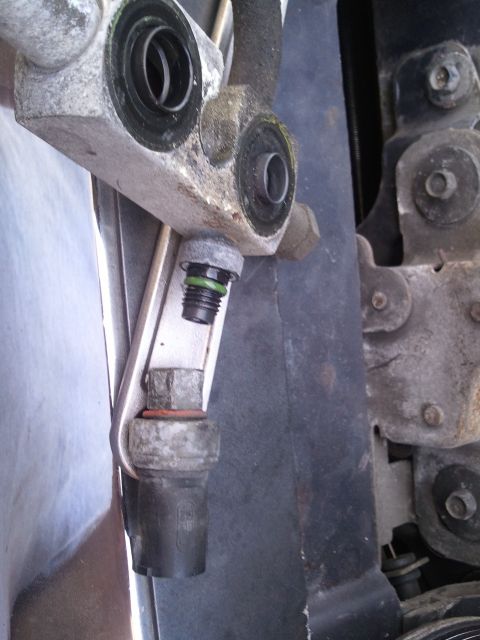

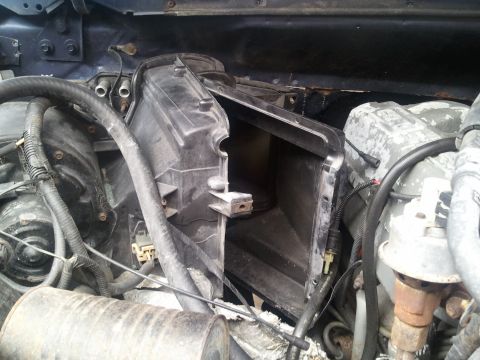

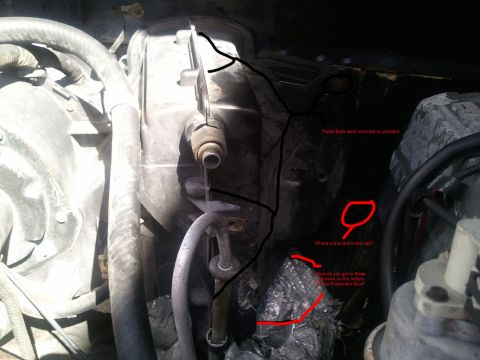

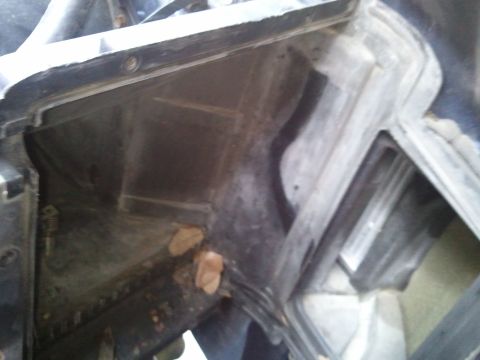

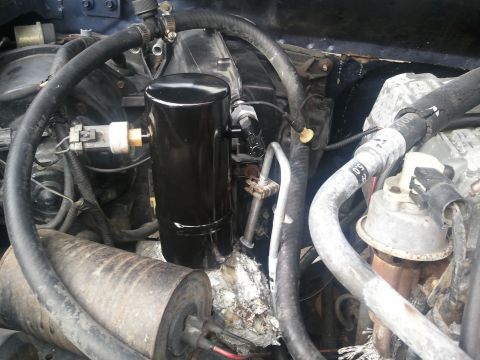

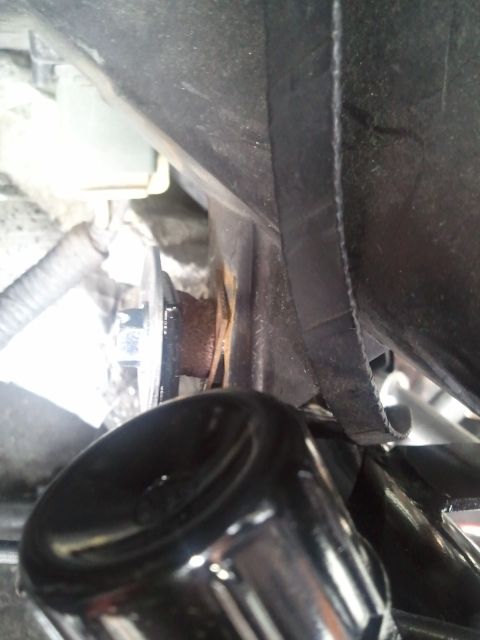

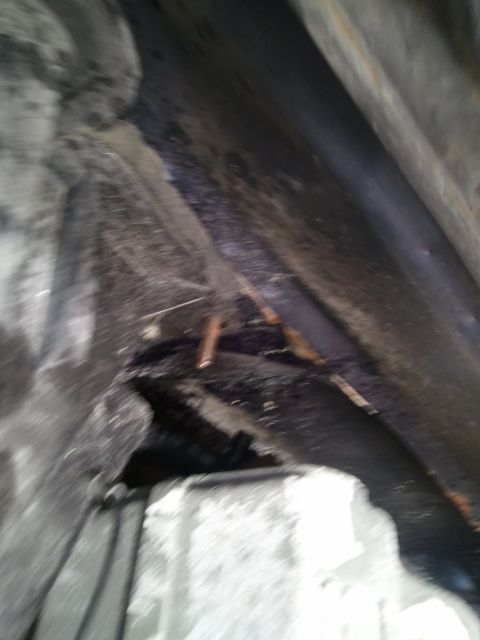

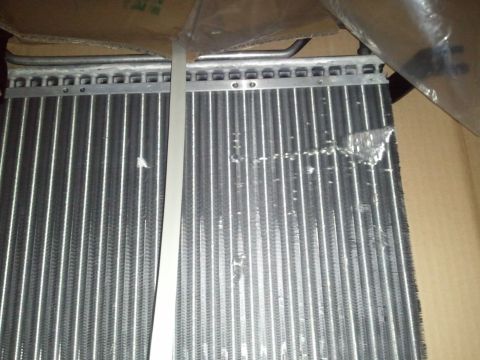

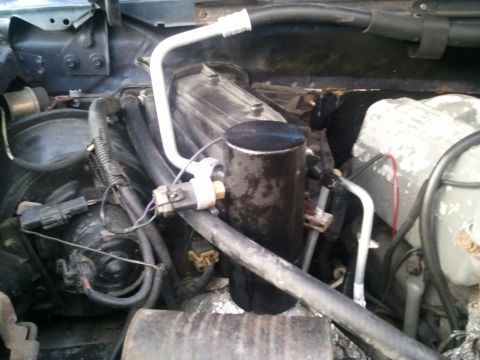

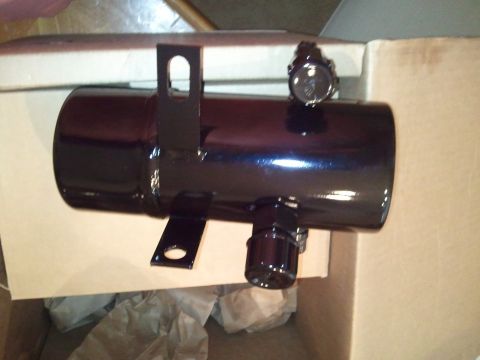

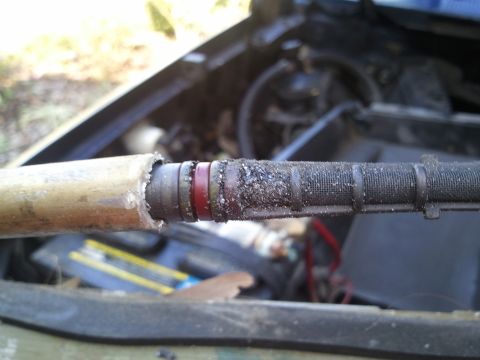

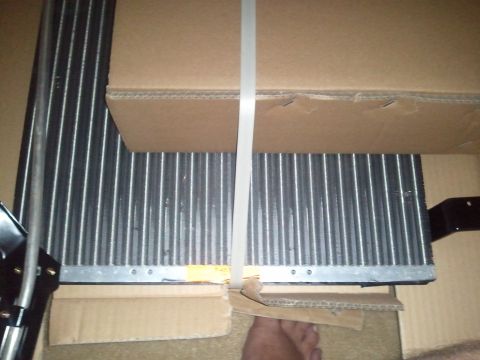

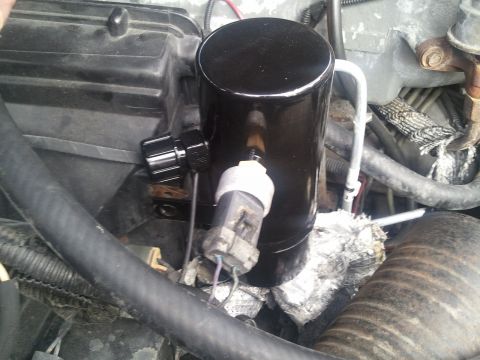

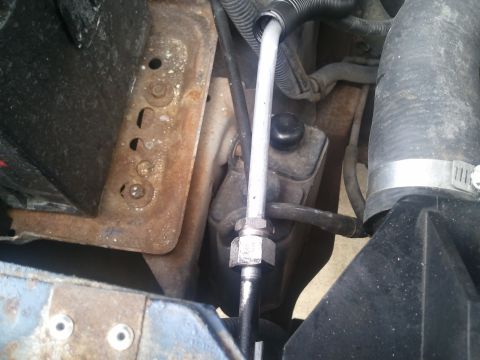

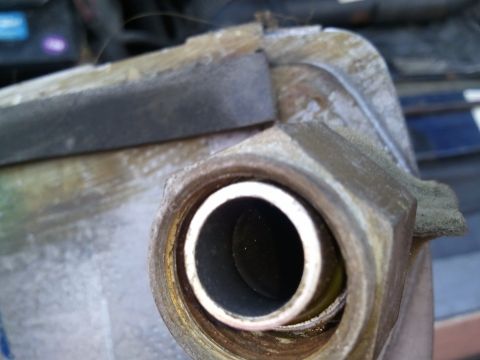

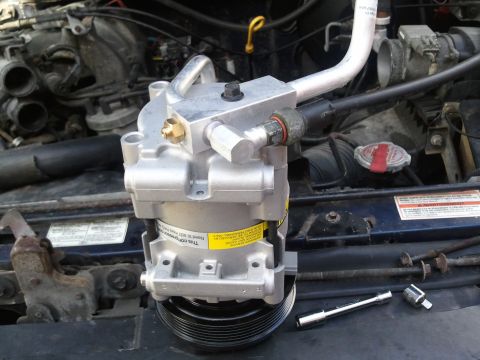

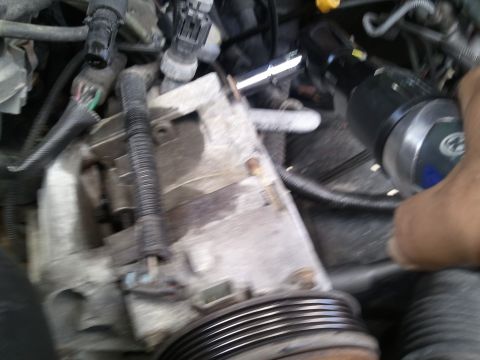

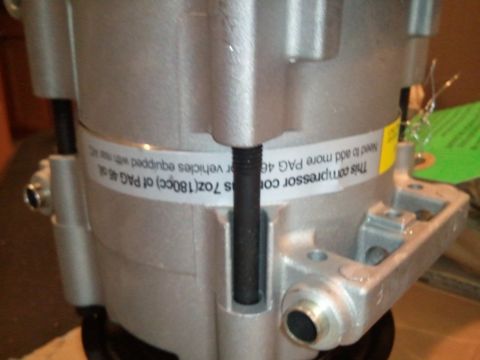

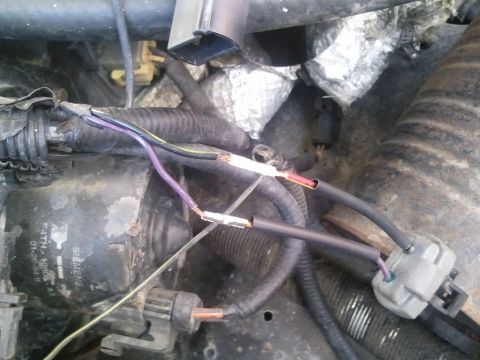

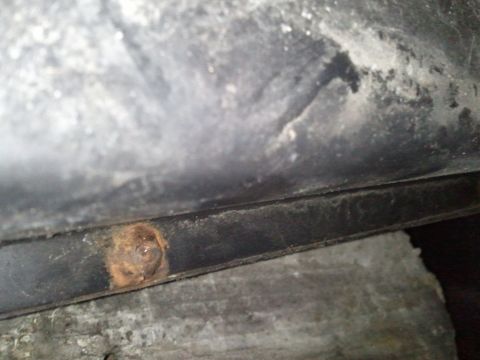

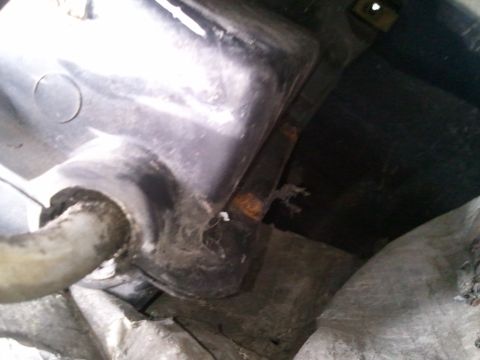

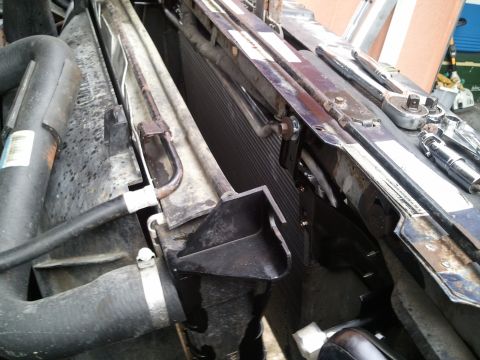

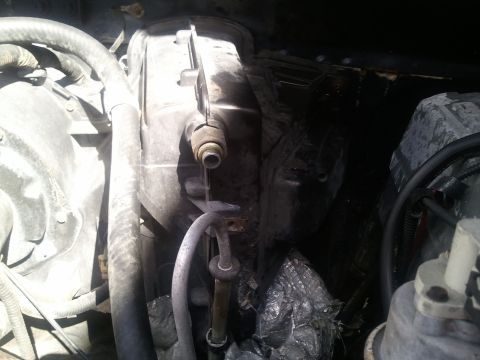

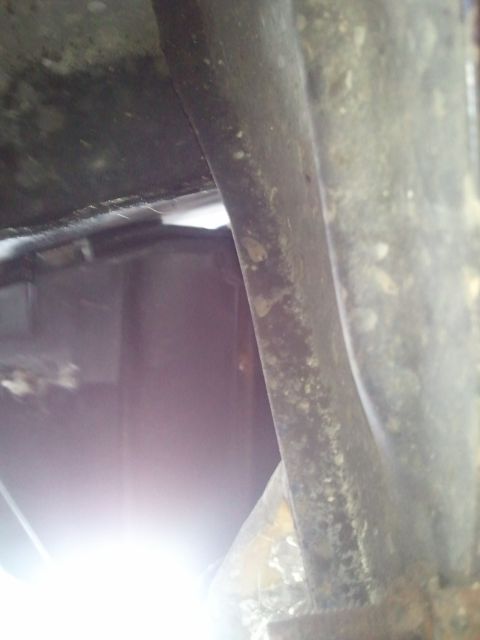

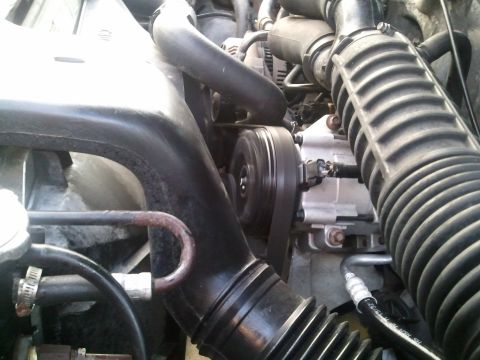

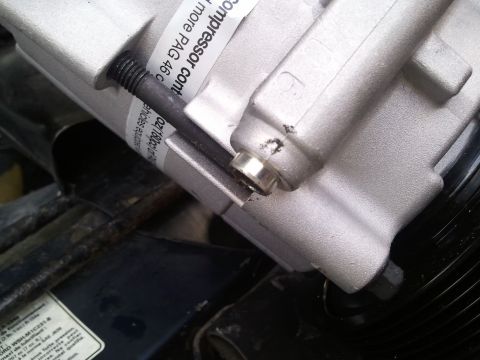

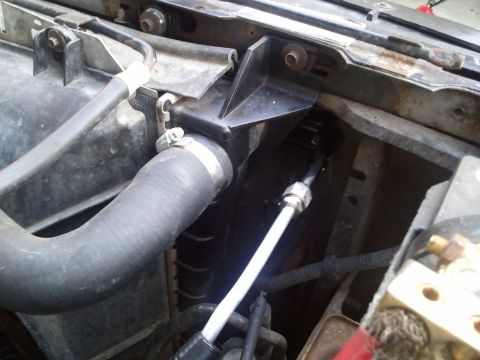

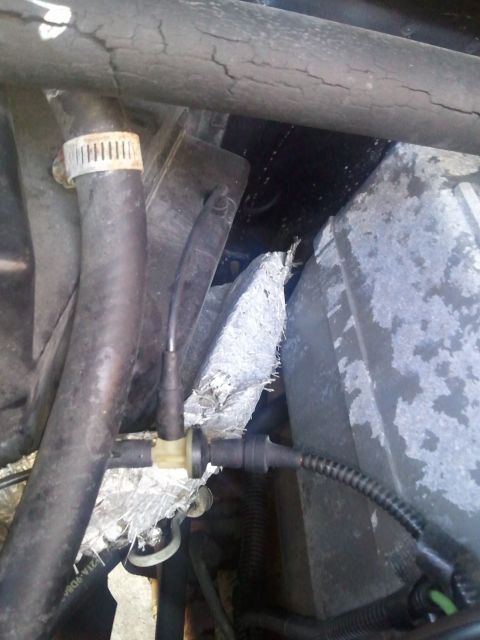

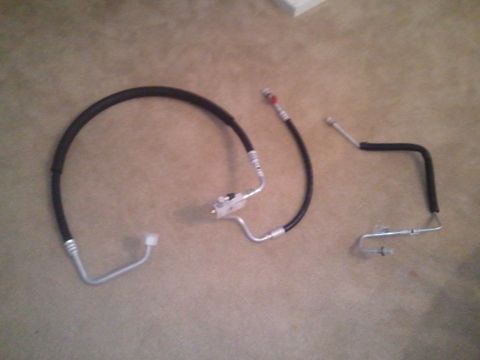

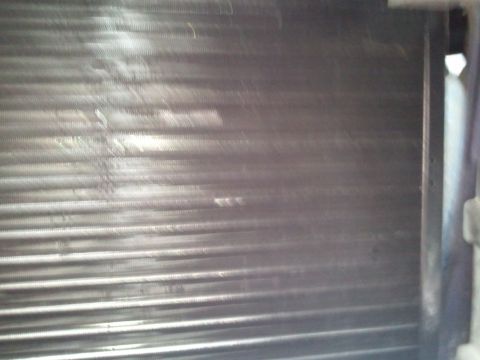

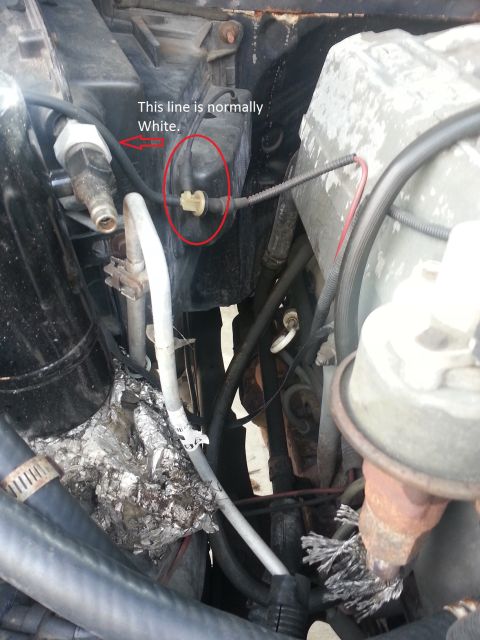

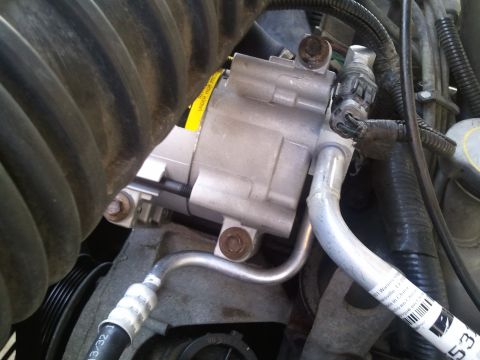

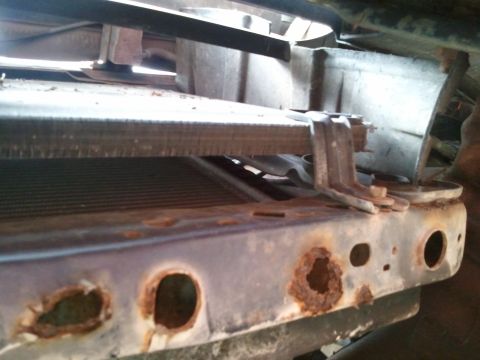

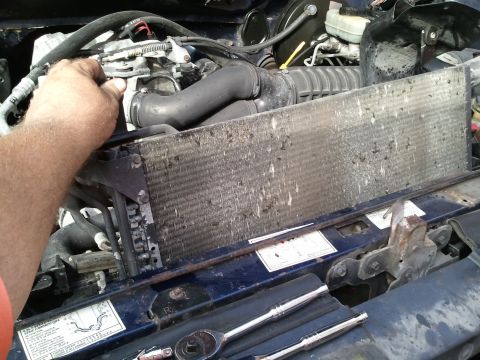

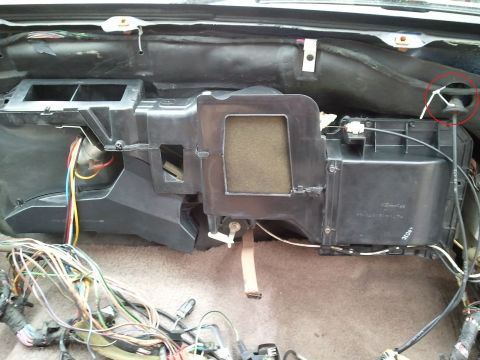

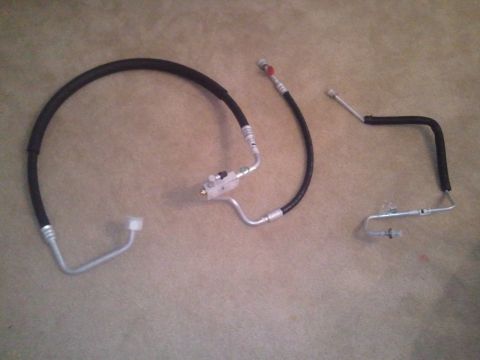

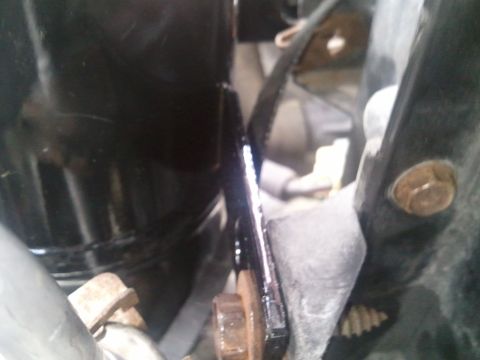

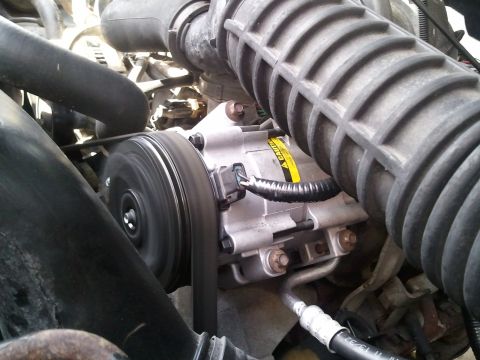

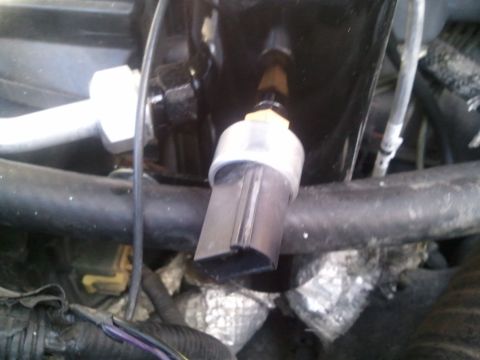

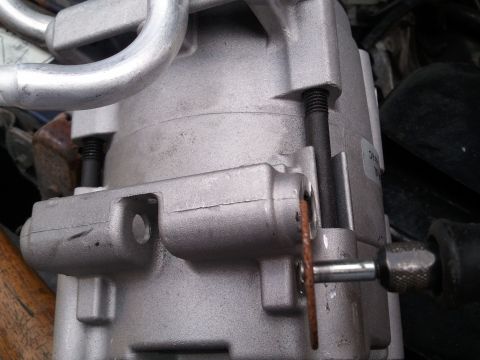

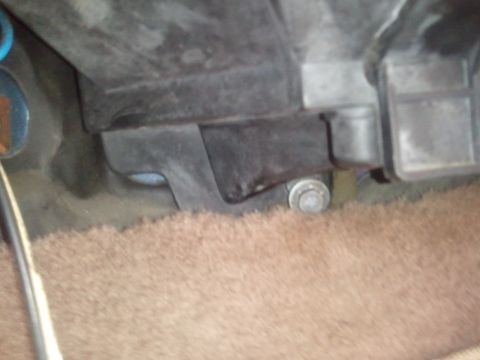

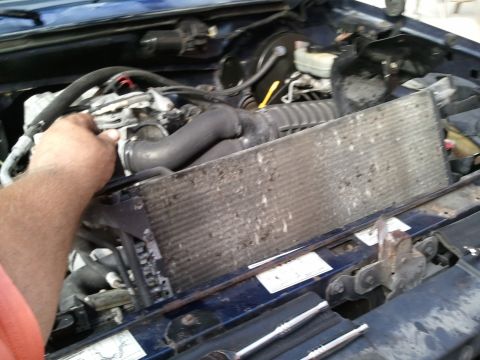

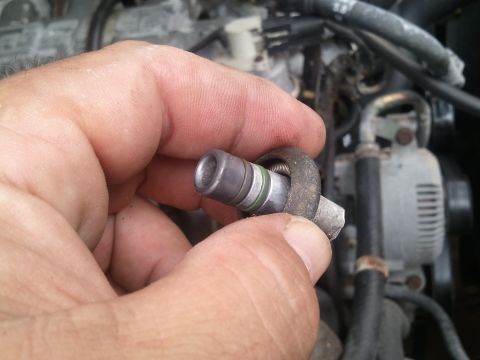

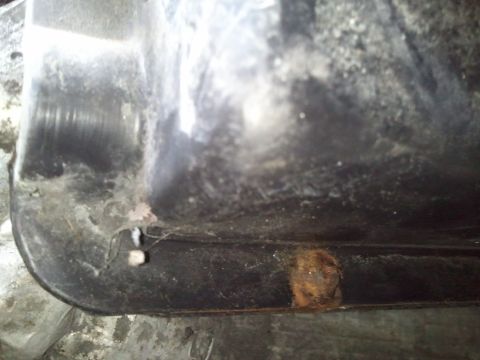

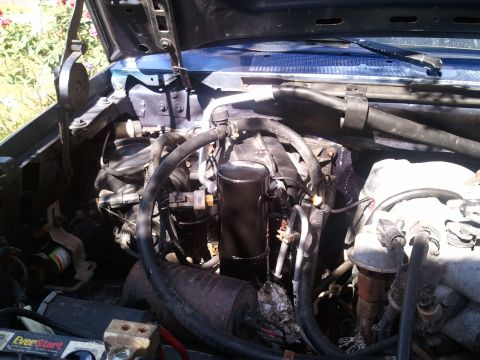

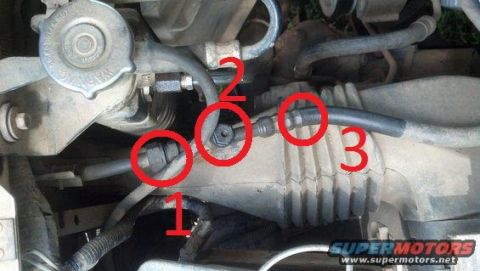

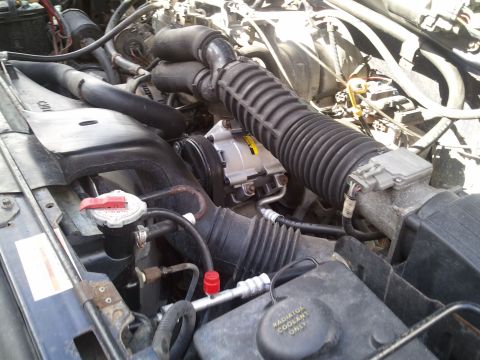

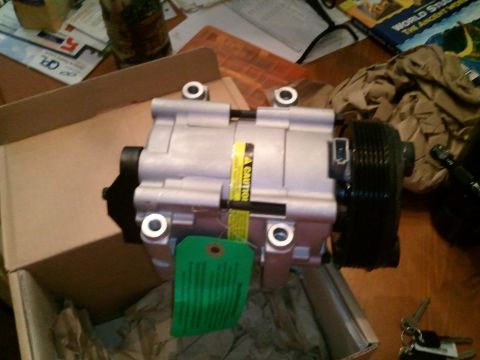

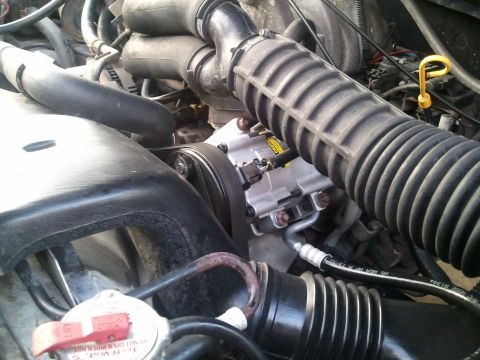

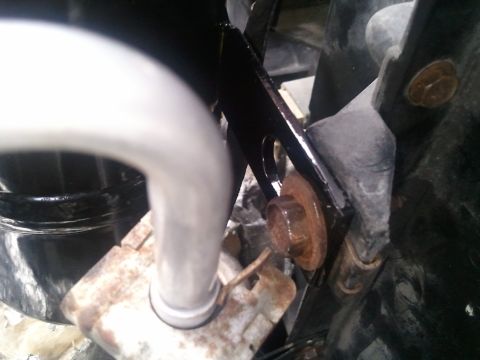

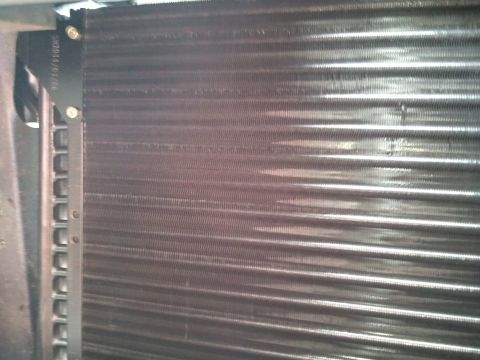

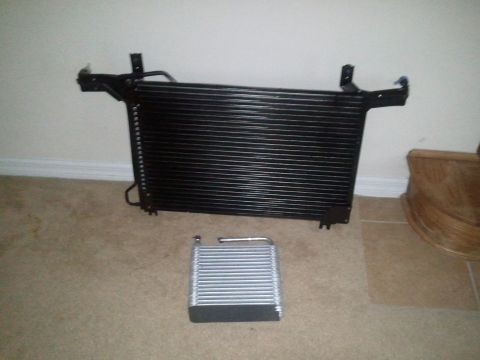

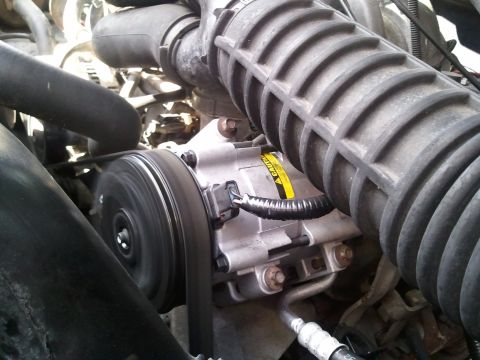

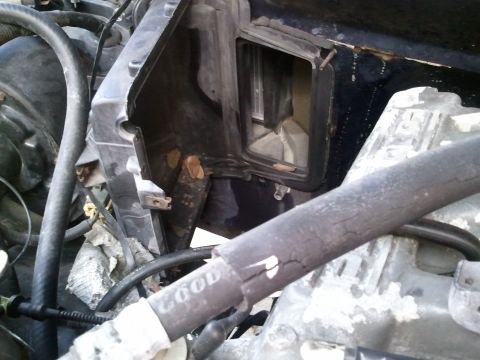

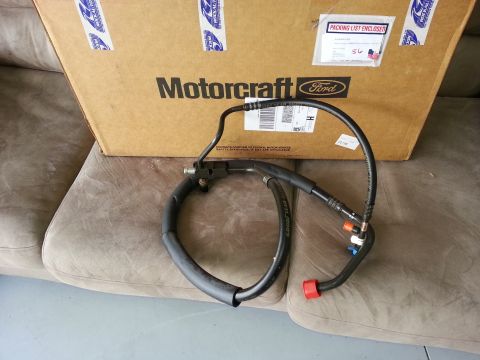

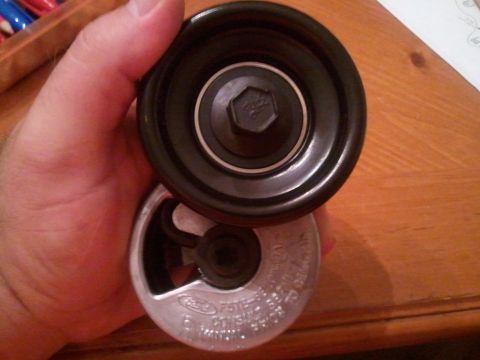

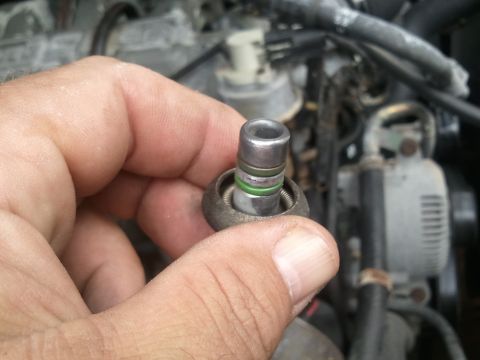

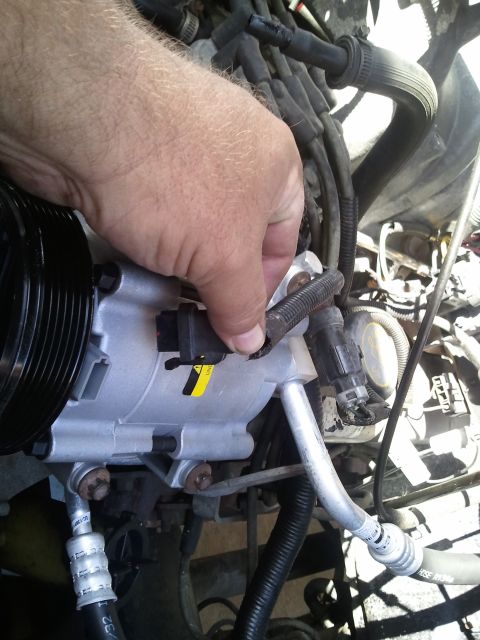

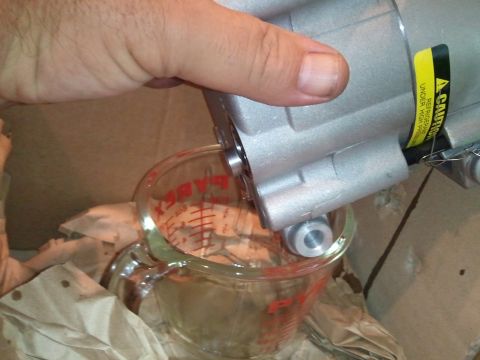

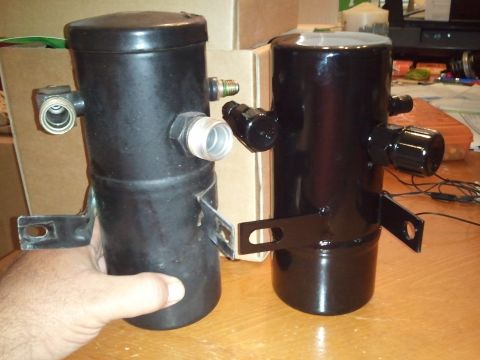

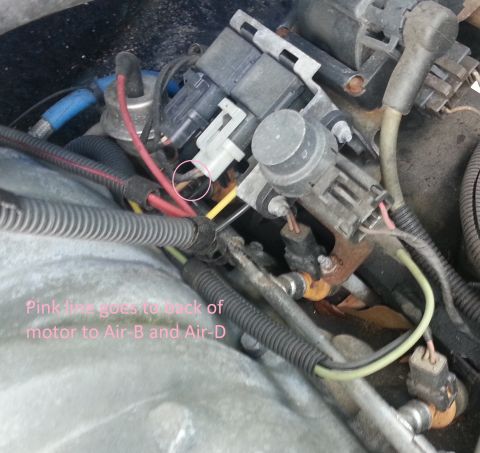

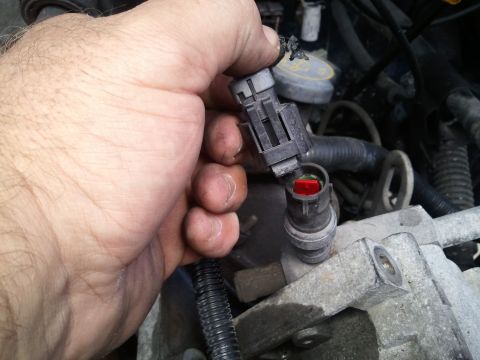

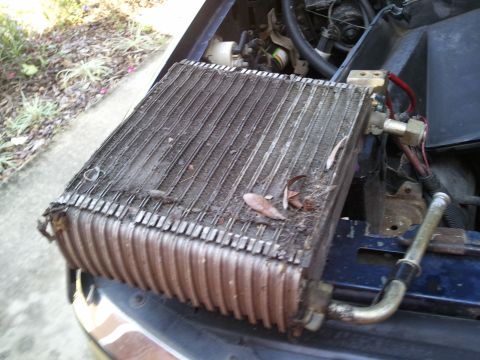

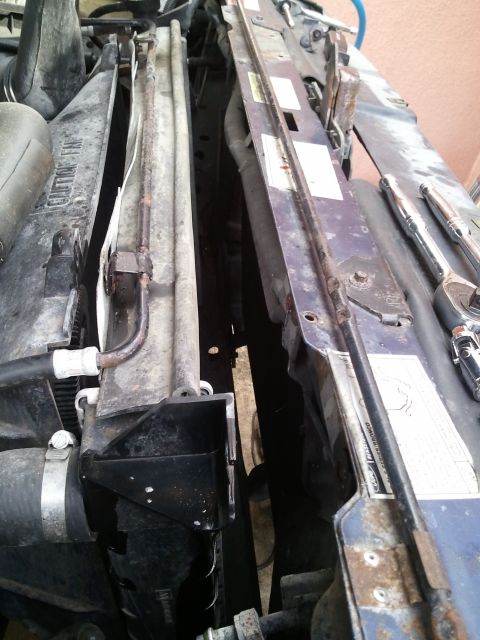

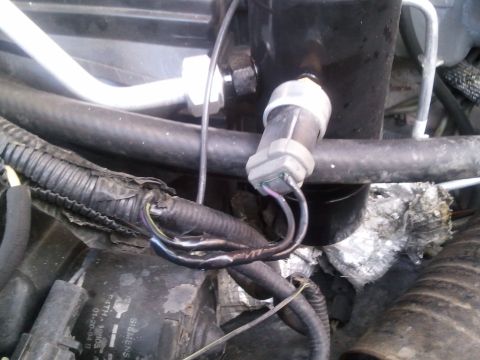

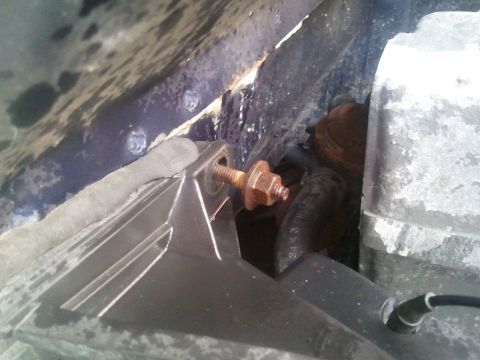

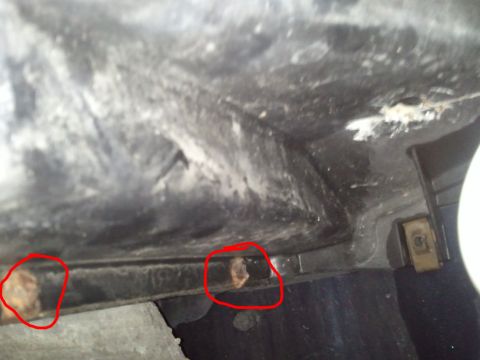

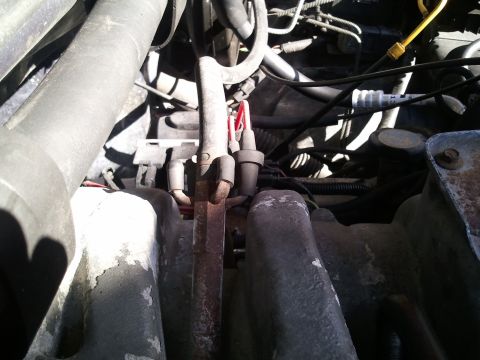

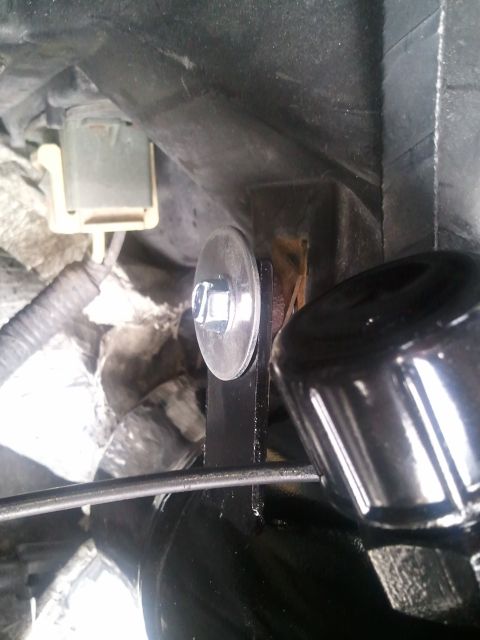

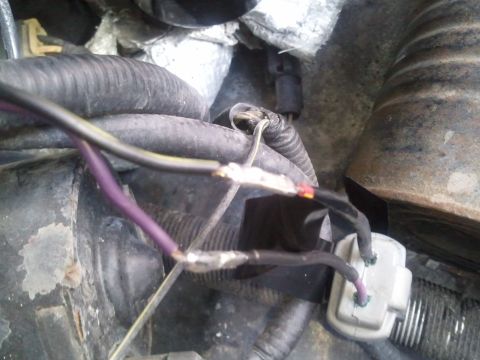

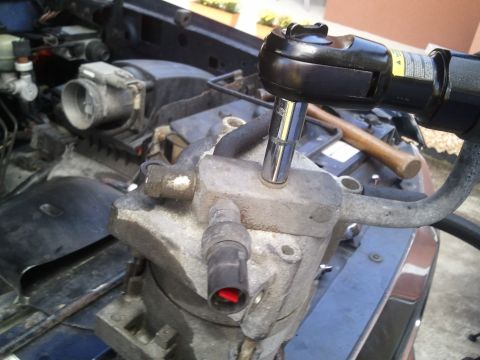

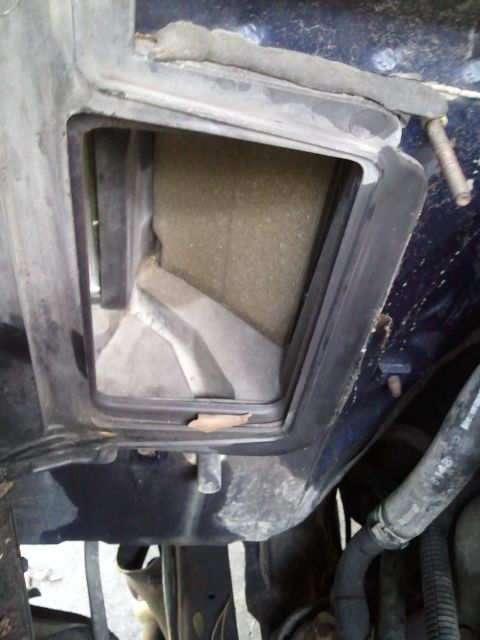

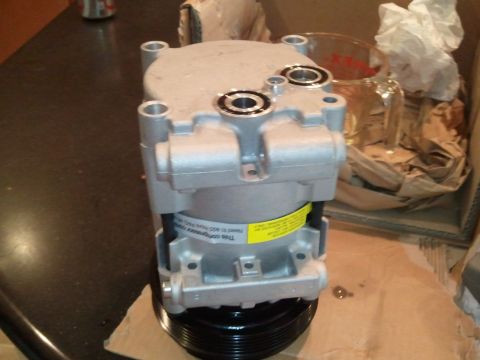

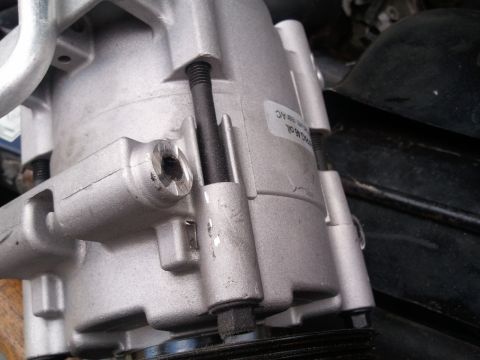

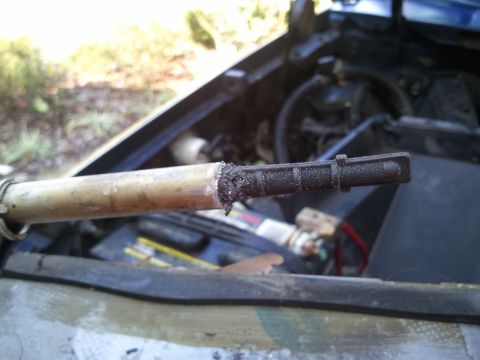

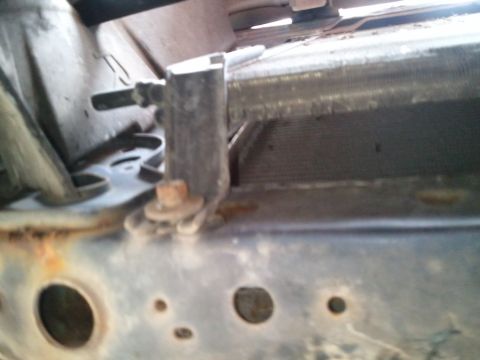

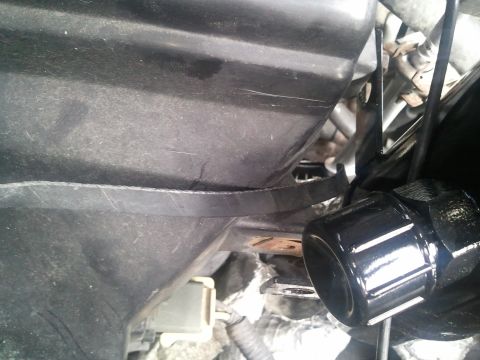

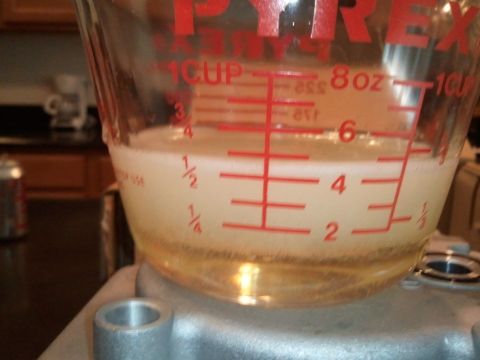

1994 Ford Bronco - This is made by 4 seasons. DO NOT EVER get this hose. Its total garbage. I replaced it with a Motorcraft hose. The hard line is ok. 1994 Ford Bronco - Three AC hoses and associated fittings are laid out on a carpeted surface. 1994 Ford Bronco - Close-up view of the fins on a vehicle's AC system component. 1994 Ford Bronco - A close-up view of a vehicle's AC condenser unit, secured within its packaging. 1994 Ford Bronco - Two car AC system parts, a condenser and an evaporator, are displayed on a carpeted floor. 1994 Ford Bronco - A hand holds a pulley and tensioner assembly, identified by a Ford logo and part number F5TE-6B209-BA. 1994 Ford Bronco - Close-up view of engine bay components, including hoses and insulation. 1994 Ford Bronco - Close-up view of the air conditioning system components within a vehicle's engine bay. 1994 Ford Bronco - A close-up view of a rusty bolt and bracket within the engine bay, with various hoses and components partially visible. 1994 Ford Bronco - Close-up view of an AC system component mounted above a carpeted floor, showing a bolt securing the part. 1994 Ford Bronco - Engine-bay firewall view showing the HVAC evaporator box housing with AC lines and heater hoses, annotated with red and black marker for a… 1994 Ford Bronco - Close-up of a rusted bolt on the underside of a vehicle, suggesting potential corrosion issues. 1994 Ford Bronco - This image shows a close-up view of a corroded metal component, likely a vehicle part. 1994 Ford Bronco - This image shows a close-up view of a vehicle's undercarriage, revealing a section with rust and dirt accumulation. 1994 Ford Bronco - Close-up view of the underside of a vehicle component, revealing rust and dirt. 1994 Ford Bronco - Close-up view of underbody AC system components, possibly from a 1994 Ford Bronco, showing lines and copper fittings. 1994 Ford Bronco - Detail of an automotive part, possibly from an AC system, showing a bolt and hose. 1994 Ford Bronco - A close-up view of a vehicle's undercarriage, focusing on a specific component and attached hose. 1994 Ford Bronco - A hand holds a metal AC system part with green O-rings against a blurred engine background. 1994 Ford Bronco - Close-up of an AC Schrader valve being held, with engine parts visible in the blurred background. 1994 Ford Bronco - Engine bay detail showing a metal fitting, hoses, and wiring. 1994 Ford Bronco - Close-up view of the undercarriage, revealing structural elements and a dark tank. 1994 Ford Bronco - This image shows the underside of a vehicle, not clearly identifiable to a specific model year. 1994 Ford Bronco - Close-up of a radiator mounting bracket, showing rust on the vehicle frame. 1994 Ford Bronco - The front radiator support shows significant rust damage with holes visible. 1994 Ford Bronco - This image shows a heavily corroded metal frame, with no clear year identification visible. 1994 Ford Bronco - The image shows a dark, out-of-focus interior of a vehicle, making specific identification impossible. 1994 Ford Bronco - Radiator and fan assembly with tools nearby, likely for repair or maintenance. 1994 Ford Bronco - A close-up view shows an exhaust pipe secured by a metal bracket, with visible rust on the components. 1994 Ford Bronco - Close-up view of a vehicle's engine bay, focusing on the radiator and associated hoses. 1994 Ford Bronco - Mechanic works on a dirty radiator in the engine bay of a 1994 Ford Bronco. 1994 Ford Bronco - Vehicle radiator and AC condenser assembly with associated hoses and hardware. Tools are present on the upper frame. 1994 Ford Bronco - The image shows a close-up view of the fins on an air conditioning condenser unit, with some dirt and debris visible. 1994 Ford Bronco - Close-up of a car's AC condenser unit, showing the fins and a date stamp. 1994 Ford Bronco - Close-up view of rust spots on the underside of a vehicle, possibly related to the AC system. 1994 Ford Bronco - A cardboard box containing packing paper is shown from above. 1994 Ford Bronco - AC system parts including PAG46 oil for R134a systems and a desiccant bag with a Schrader valve, likely for a vehicle repair. 1994 Ford Bronco - Black metal canister with gauge and mounting brackets, likely an aftermarket automotive part. 1994 Ford Bronco - A new AC compressor is shown, complete with a caution label and a green inspection tag attached. 1994 Ford Bronco - An AC compressor is shown, not a 1994 Ford Bronco. 1994 Ford Bronco - Two black AC receiver-driers are shown, one appearing older and the other recently painted. 1994 Ford Bronco - The AC condenser unit is shown removed from the vehicle, revealing its internal fins and external connections. 1994 Ford Bronco - The AC evaporator core is shown removed from the vehicle's engine bay, revealing its dirty and damaged condition. 1994 Ford Bronco - Close-up of an AC system component in an engine bay, a cracked hose with 'COOL' visible. 1994 Ford Bronco - Dust and debris are visible inside this vehicle's HVAC ductwork. 1994 Ford Bronco - The AC system's filter housing is visible, with some debris inside the duct. 1994 Ford Bronco - A car's AC evaporator core is shown, a component of the vehicle's climate control system. 1994 Ford Bronco - Close-up view of an AC system component, showing a threaded fitting and internal tube. The registry claims it is from a 1994 Ford Bronco. 1994 Ford Bronco - Radiator hose connection detail, with a Wal-Mart battery visible in the background. 1994 Ford Bronco - The oil dipstick appears to be heavily soiled and possibly damaged. 1994 Ford Bronco - Close-up of a worn automotive AC hose with visible damage and debris, set against an engine bay background. 1994 Ford Bronco - Close-up view of the AC system housing within the engine compartment, showing various hoses and electrical connections. 1994 Ford Bronco - Engine component detail shot showing a black, ribbed part with surrounding hoses and wiring. 1994 Ford Bronco - A close-up view of a component within the AC system, showing a black, ribbed cap and metal bracketry. 1994 Ford Bronco - Detail of engine bay components, including a black housing and a rusty bolt, with visible text at the bottom right. 1994 Ford Bronco - Close-up view of a metal pipe and bracket, likely part of a vehicle's AC system, showing signs of rust on a bolt. 1994 Ford Bronco - Close-up of an AC accumulator, a component in a vehicle's air conditioning system. 1994 Ford Bronco - under-hood view showing a black cylindrical canister, tangled vacuum hoses and wiring harnesses near a dark blue firewall. 1994 Ford Bronco - Close-up view of engine bay components, including a rusty bracket and hoses, with visible website text. 1994 Ford Bronco - Detail of an AC system component, showing rust on a bolt and surrounding wiring. 1994 Ford Bronco - Detail shot of a bolted bracket and AC system part, likely from a vehicle's engine bay. 1994 Ford Bronco - Close-up view of an engine component, possibly an AC compressor, with a pulley and wiring harness visible. 1994 Ford Bronco - Disconnecting an electrical connector from an engine component, likely for AC system maintenance. 1994 Ford Bronco - Removing the AC compressor from an engine bay with a socket wrench. 1994 Ford Bronco - Close-up of a vehicle's AC hose assembly being held by a hand, with a chrome grille in the background. 1994 Ford Bronco - Close-up of an AC system component, showing a connection point and a hex bolt. 1994 Ford Bronco - An air conditioning compressor is shown next to a Pyrex measuring cup, with a green tag attached to the compressor. 1994 Ford Bronco - Draining fluid from an automotive AC compressor into a measuring cup. 1994 Ford Bronco - A Pyrex measuring cup contains a foamy liquid, with clear liquid and sediment settled at the bottom. 1994 Ford Bronco - AC compressor part with label detailing oil capacity and R134a system requirements. 1994 Ford Bronco - An air conditioning compressor is shown, likely a replacement part, with visible text on a yellow label. 1994 Ford Bronco - AC compressor replacement in progress, showing the new part installed in the engine bay. 1994 Ford Bronco - This image shows various engine components, including hoses, wiring, and a belt system. 1994 Ford Bronco - A close-up view of an AC compressor, showing a bolt and a label with part information. 1994 Ford Bronco - Close-up view of an AC compressor, showing a label with some readable text. 1994 Ford Bronco - AC compressor part shown in detail, with attached metal lines and a tool nearby. 1994 Ford Bronco - A hand is shown connecting a wire to the AC compressor unit in an engine bay. 1994 Ford Bronco - Close-up of the AC compressor and associated hoses within the engine bay of a 1994 Ford Bronco. 1994 Ford Bronco - Close-up view of the AC compressor and associated hoses within an engine bay. The radiator coolant reservoir is also visible. 1994 Ford Bronco - Engine bay view of the AC system in a 1994 Ford Bronco. 1994 Ford Bronco - The photo shows a section of the engine bay, focusing on hoses and the radiator support structure. 1994 Ford Bronco - Close-up view of AC system components, including hoses and a compressor. 1994 Ford Bronco - Close-up view of an AC compressor and associated lines within an engine compartment. A yellow warning sticker is partially visible on the u… 1994 Ford Bronco - Close-up of an AC compressor and fan assembly in an engine bay. 1994 Ford Bronco - Close-up view of engine components, including the AC compressor and associated plumbing. 1994 Ford Bronco - Close-up view of the AC system components within a vehicle's engine bay. 1994 Ford Bronco - Close-up of the AC compressor and belt system in an engine bay. 1994 Ford Bronco - Close-up of an engine wiring harness showing exposed wires and connectors, with some text visible on a component. 1994 Ford Bronco - Close-up of an AC system pressure sensor and associated plumbing. 1994 Ford Bronco - This image shows a close-up view of electrical wiring and connectors within a vehicle's engine compartment. 1994 Ford Bronco - Close-up of an AC system component, possibly a pressure switch, with visible wiring and a Siemens part number. 1994 Ford Bronco - Close-up view of AC system components within an engine bay. 1994 Ford Bronco - Vehicle AC compressor and drive belt shown in detail within the engine compartment. 1994 Ford Bronco - The AC compressor and drive belt are visible in this engine bay detail shot. 1994 Ford Bronco - Close-up of AC system parts in a vehicle's engine bay. 1994 Ford Bronco - Detail of an automotive AC system component, possibly a hose clamp or clip. 1994 Ford Bronco - Motorcraft Ford AC hose assembly shown with its original packaging. 1994 Ford Bronco - Close-up of an engine bay AC line, with a note indicating the line is normally white and a yellow clip circled. 1994 Ford Bronco - Engine wiring harness and components are shown, with a pink line indicated to go to the back of the motor. 1994 Ford Bronco - Disassembled HVAC unit with numerous wires and cables visible, indicating interior work. 1994 Ford Bronco - Close-up view of AC system components in a vehicle, with specific connection points highlighted.
