Plenum Porting

From 2000 Mercury Grand Marquis, documented by djs2000mgm.

15 photos

← Back to this vehicle

2000 Mercury Grand Marquis - Intake manifold port shows unevenness, requiring careful grinding for symmetry.

2000 Mercury Grand Marquis - This is a close-up view of an engine's intake manifold port, revealing the internal passage.

2000 Mercury Grand Marquis - Close-up view of an engine intake manifold, revealing internal porting and signs of use.

2000 Mercury Grand Marquis - Close-up view of an intake manifold port, showing the internal passage.

2000 Mercury Grand Marquis - Intake manifold port detail, likely from a V8 engine.

2000 Mercury Grand Marquis - Close-up view of the internal passages of an engine intake manifold.

2000 Mercury Grand Marquis - Close-up view of a metal throttle body, showing its internal structure and a central opening.

2000 Mercury Grand Marquis - View through an engine intake manifold port, showing internal components.

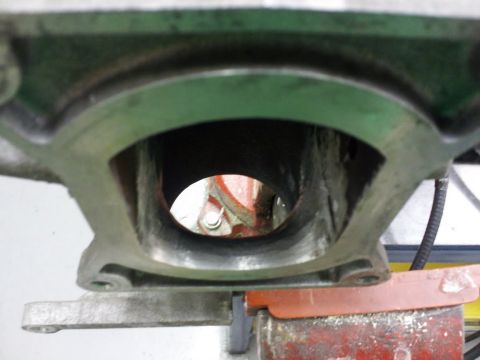

2000 Mercury Grand Marquis - View inside an engine's intake manifold port, likely during modification or inspection.

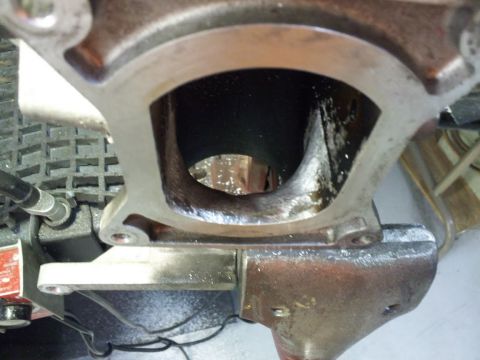

2000 Mercury Grand Marquis - A close-up view of an engine cylinder, possibly undergoing maintenance or modification.

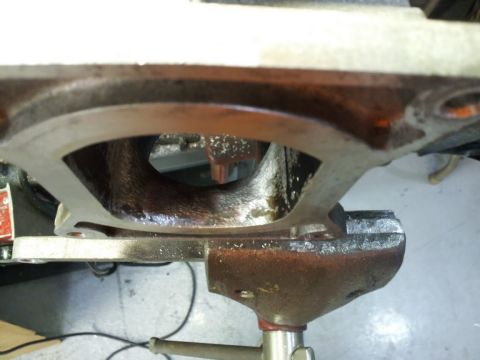

2000 Mercury Grand Marquis - Close-up view of an engine intake manifold being worked on in a vise.

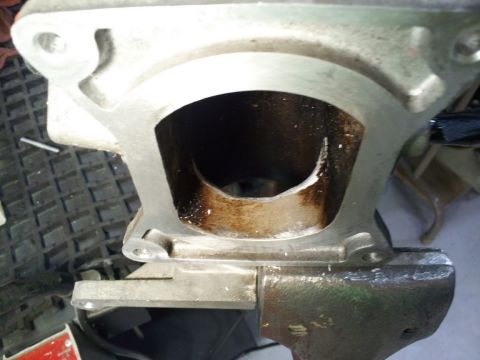

2000 Mercury Grand Marquis - Close-up view of an intake manifold port showing significant carbon deposits, secured in a vise for work.

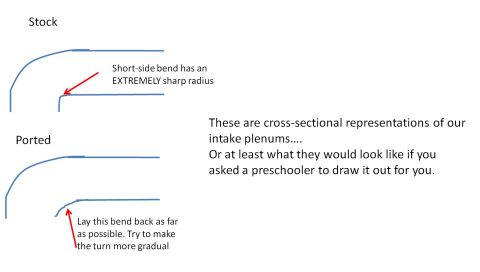

2000 Mercury Grand Marquis - Cross-sectional schematic comparing stock and ported intake plenum bend radius with annotations on softening the bend.

2000 Mercury Grand Marquis - This photo shows a modified engine intake manifold port, with instructions to alter its shape.

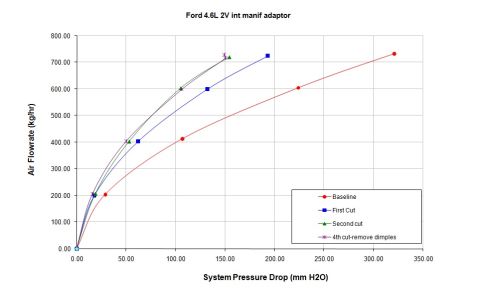

2000 Mercury Grand Marquis - Flow-bench data chart plotting air flowrate against system pressure drop for successive cuts of a Ford 4.6L 2V intake manifold adaptor.
