Line chart of air flowrate versus pressure drop for a Ford 4.6L…

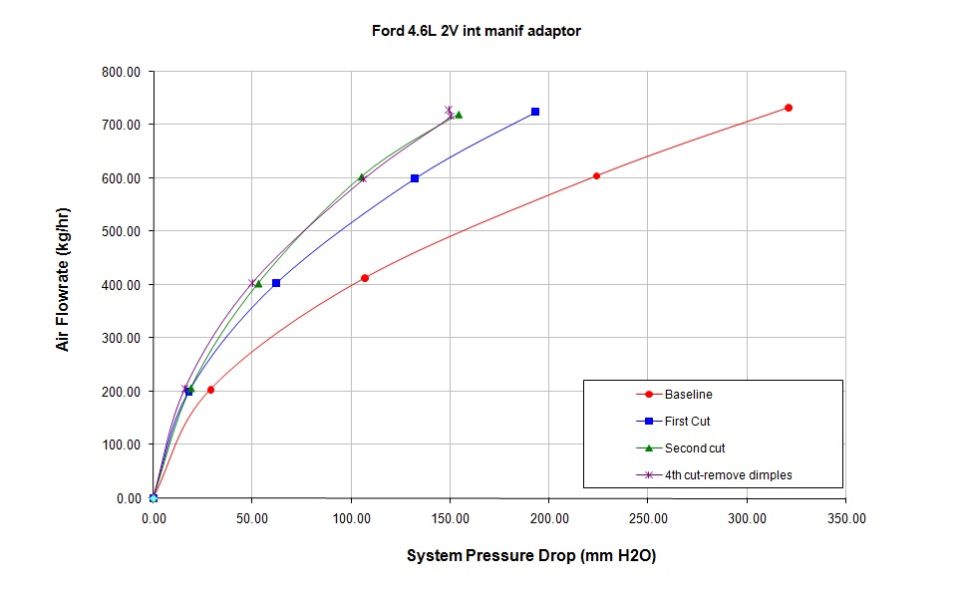

Line chart of air flowrate versus pressure drop for a Ford 4.6L intake adaptor
Line chart of air flowrate versus pressure drop for a Ford 4.6L intake adaptorOriginal file
Line chart of air flowrate versus pressure drop for a Ford 4.6L intake adaptor

Plenum PortingView all 15

Close-up of an engine intake manifold port with red arrows pointing to unevenness and text explaining grinding Close-up of an engine intake manifold port, showing the internal passage Engine intake manifold with internal passages visible, showing wear and discoloration Intake manifold port, close-up view Close-up of an engine intake manifold port, showing internal casting Inside of an engine intake manifold with ports visible. Some wear and tear inside Metal throttle body interior with visible machining marks and a central hole Engine intake manifold port viewed from inside Close-up view into an engine intake manifold port, showing the internal passage Close-up of an engine cylinder being held in a vise Engine intake manifold held in a vise, showing internal ports Intake manifold port with carbon buildup, held in a vise Cross-section diagram comparing stock and ported intake plenum bend radius Close-up of an engine intake manifold port with red arrows pointing to the U-shape and text indicating to redu Line chart of air flowrate versus pressure drop for a Ford 4.6L intake adaptor 15photos in this albumView all

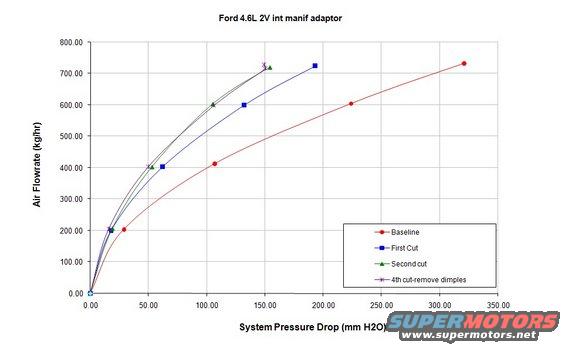

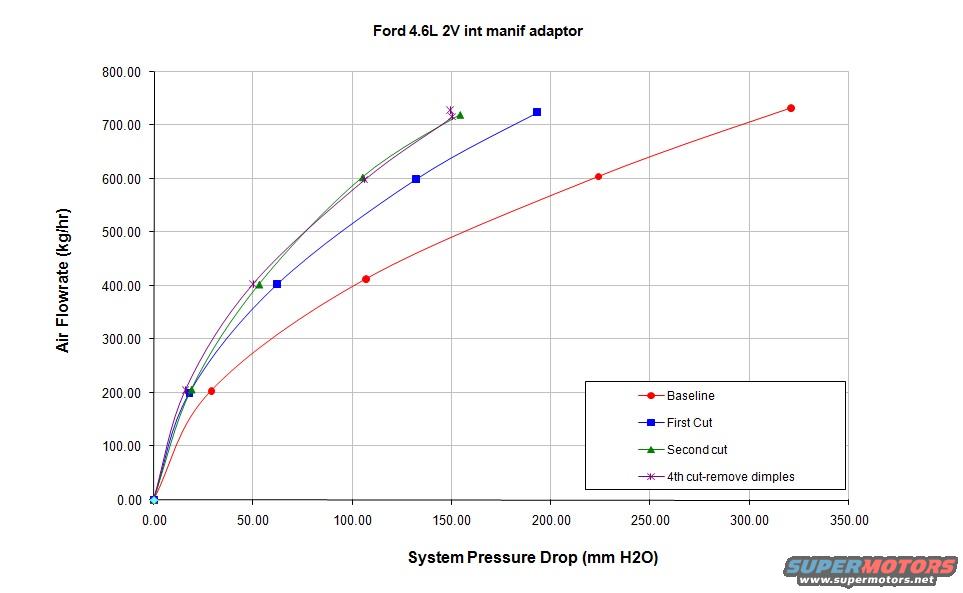

Flow-bench data chart plotting air flowrate against system pressure drop for successive cuts of a Ford 4.6L 2V intake manifold adaptor.

AI caption · Photo 15 of 81

Air Flowlate (kglhv) Ford 4.5L 2V in: manif adaptor Hun nu mu nu sun nu sun nu Ann nu 300 an 200 an +Easehne +chm 1 DU +5ecnnacm +40: cuHemuve mmmes u an u an 50 an mu an 150 an 200 an 250 an sun nu System Pressure Drop (mm H20) 350 an

Is this accurate? Sign in to help verify it.
