bronco console 007.JPG
108 hits | 72.86 KB | Posted: 3/2/14
Console just sitting for location

bronco console 011.JPG
108 hits | 61.55 KB | Posted: 3/2/14

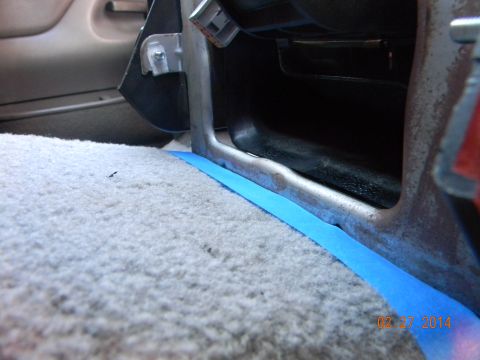

Bolted up the front mounting bracket, located console and marked location with tape. Removed bracket...

bronco console 029.JPG
101 hits | 82.31 KB | Posted: 3/2/14
Interior view of console. I purchased the console and shifter separately, each as it's own harness. ...

bronco console 012.JPG
100 hits | 66.32 KB | Posted: 3/2/14

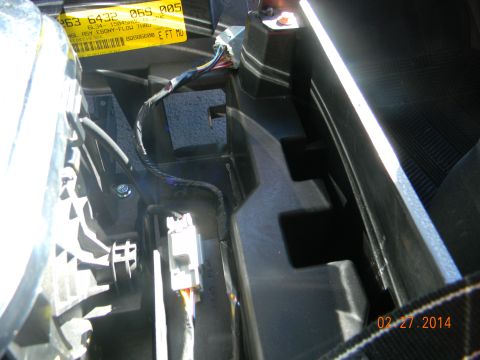

interior view

bronco console 009.JPG
130 hits | 78.15 KB | Posted: 3/2/14

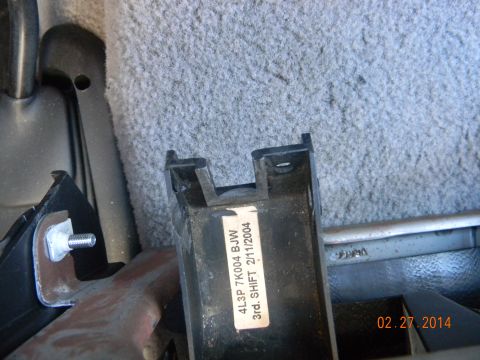

ground off the face so the shift cable would push down into the slot

bronco console 010.JPG
106 hits | 54.45 KB | Posted: 3/2/14

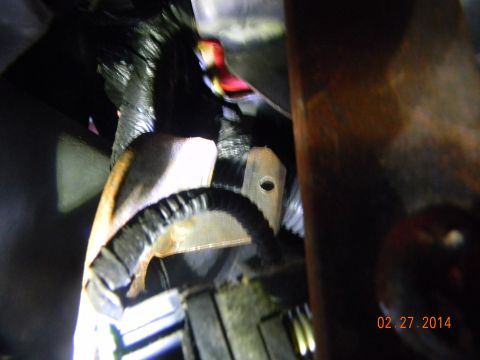

this is stock bracket for shifter cable, to remove cable you push a screwdriver into the hole to rel...

bronco console 008.JPG
102 hits | 60.65 KB | Posted: 3/2/14

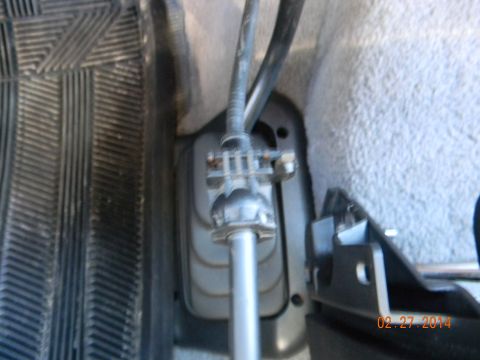

kind of hard too see, but I filed down the sides behind the front flange square to fit into the slot

bronco console 017.JPG
108 hits | 60.71 KB | Posted: 3/2/14

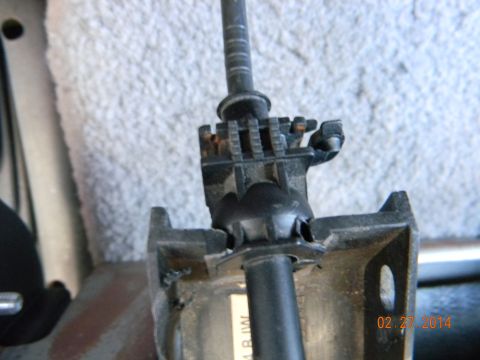

cable inserted in slot

bronco console 016.JPG
96 hits | 76.2 KB | Posted: 3/2/14

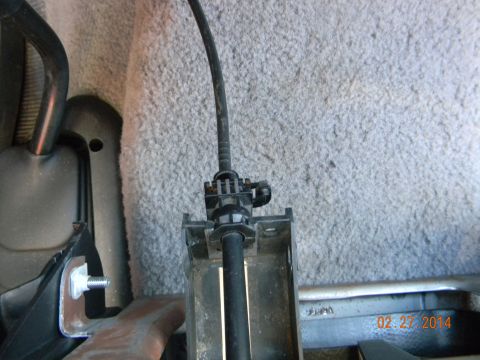

shift cable in place

bronco console 019.JPG
106 hits | 73.87 KB | Posted: 3/2/14

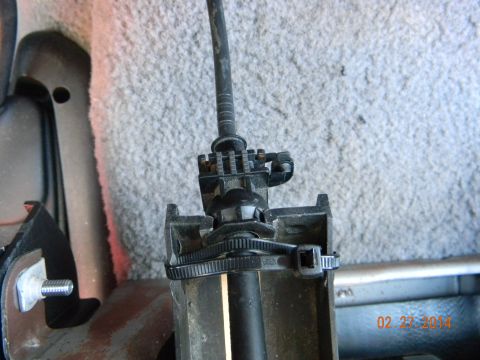

drilled a hole on the left, used quick tie to hold the shift cable in, cable was a tight fit but don...

bronco console 014.JPG
109 hits | 48.52 KB | Posted: 3/2/14

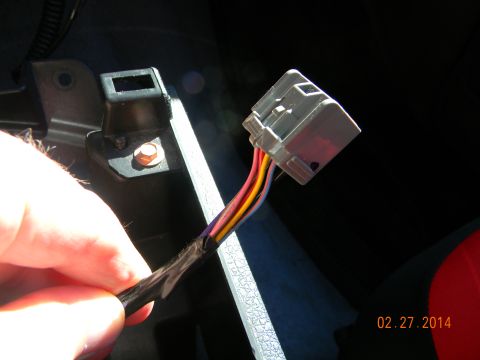

Console wire harness connector. I didn't have the male plug from the dash so I cut the plug off and ...

bronco console 022.JPG
98 hits | 68.54 KB | Posted: 3/2/14

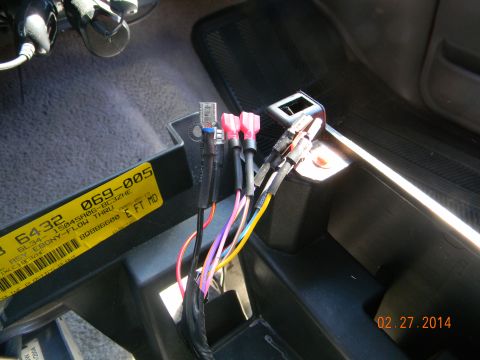

Cut off the plug, used these connectors.
Used the cig lighter ground. Used the light for the cig ash...

bronco console 023.JPG
111 hits | 77.6 KB | Posted: 3/2/14
these 3 wires are from the connector that the OD button plugged into from the column shifter, cut of...

bronco console 026.JPG
91 hits | 85.11 KB | Posted: 3/2/14
connections, I put heat shrink so they wouldn't come apart easily.
the purple/orange wire is for the...

bronco console 028.JPG
96 hits | 79.05 KB | Posted: 3/2/14
OD Off Light. (positive ) from red/yellow ,(negative) from white/green

I will be relocating the li...

bronco console 027.JPG
93 hits | 77.11 KB | Posted: 3/2/14
Just a pic of the finished wiring

bronco console 025.JPG
113 hits | 68.68 KB | Posted: 3/2/14
OD light, will relocate once the end of the console is completed

bronco console 024.JPG
110 hits | 87.12 KB | Posted: 3/2/14
OD LED, shift cable and wire way

bronco console 004.JPG
182 hits | 67.62 KB | Posted: 3/3/14

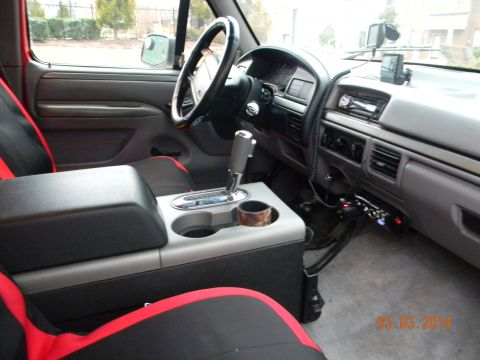

Console installed

bronco console 003.JPG
153 hits | 74.44 KB | Posted: 3/3/14

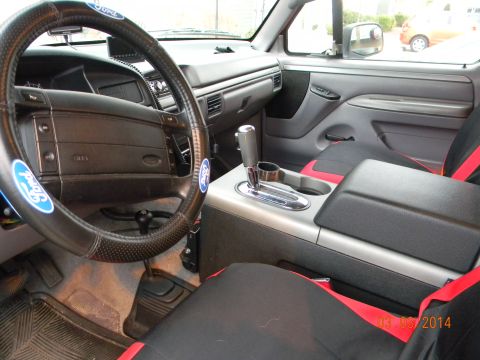

Console installed.

122 hits | 27.47 KB | Posted: 3/9/14

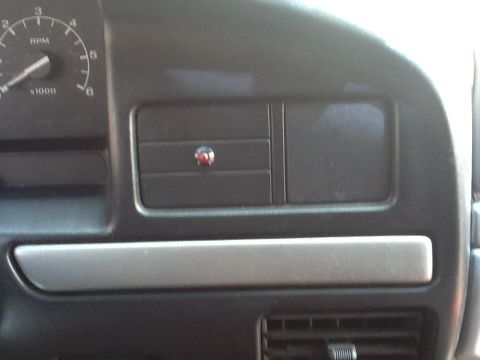

Located OD light in dash bezel

130 hits | 28.51 KB | Posted: 3/9/14
4 pole relay wiring diagram

121 hits | 48.84 KB | Posted: 3/9/14

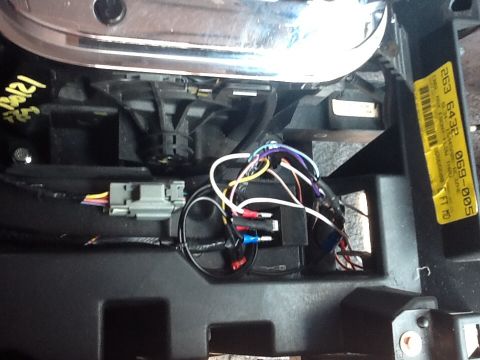

4 pole relay connections

110 hits | 38.45 KB | Posted: 3/9/14

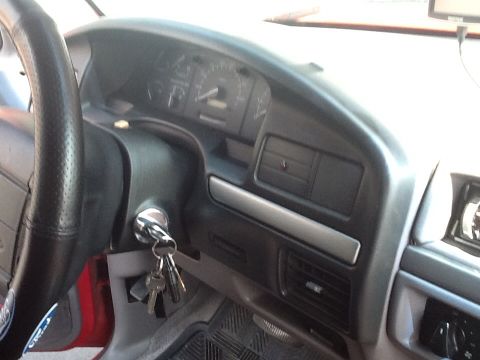

Replaced the column cover with one without the shifter hole. Found on eBay. From a similar year.
Rem...

116 hits | 46.91 KB | Posted: 3/9/14

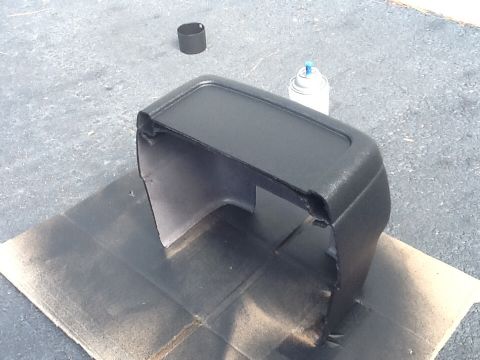

Cut the end off my stock center console

129 hits | 57.51 KB | Posted: 3/9/14

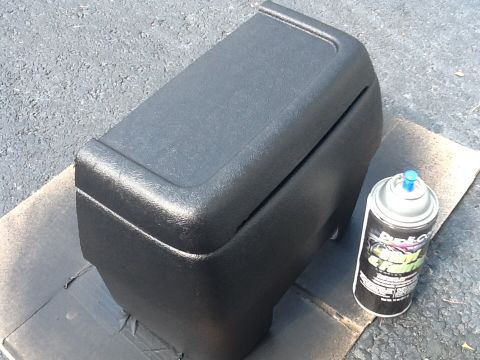

Painted

121 hits | 35.39 KB | Posted: 3/9/14

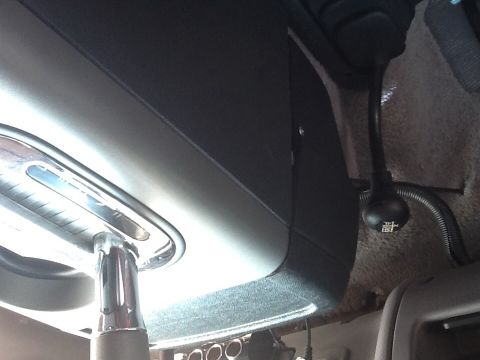

Fits, but not perfect. Only held on with 1 screw on each side. Gotta do some more work on it

120 hits | 44.25 KB | Posted: 3/9/14

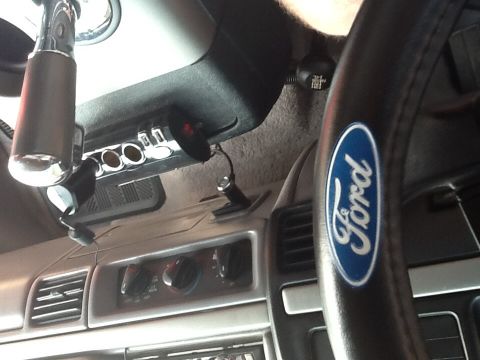

Mounted a power point on top. Not sure I like it. May end up mounting a CB in it.

161 hits | 25.88 KB | Posted: 10/25/14
Need something like this
